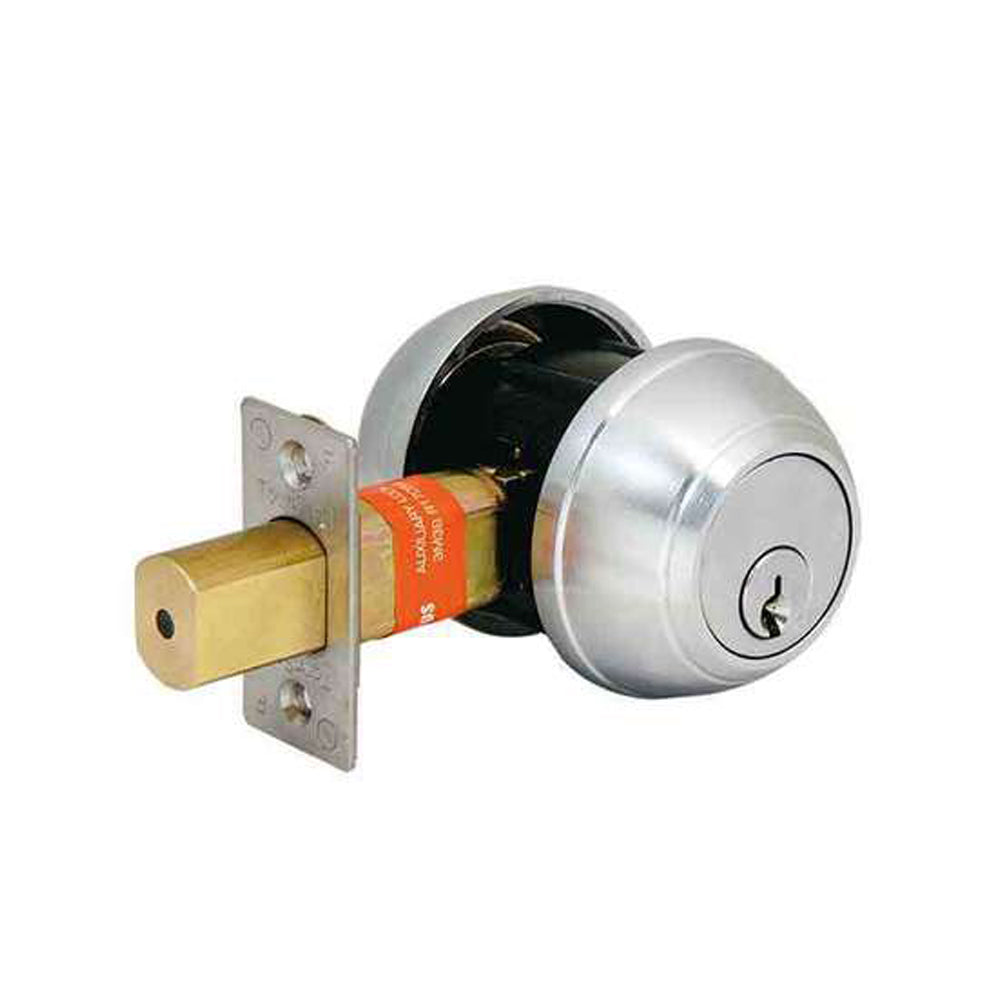

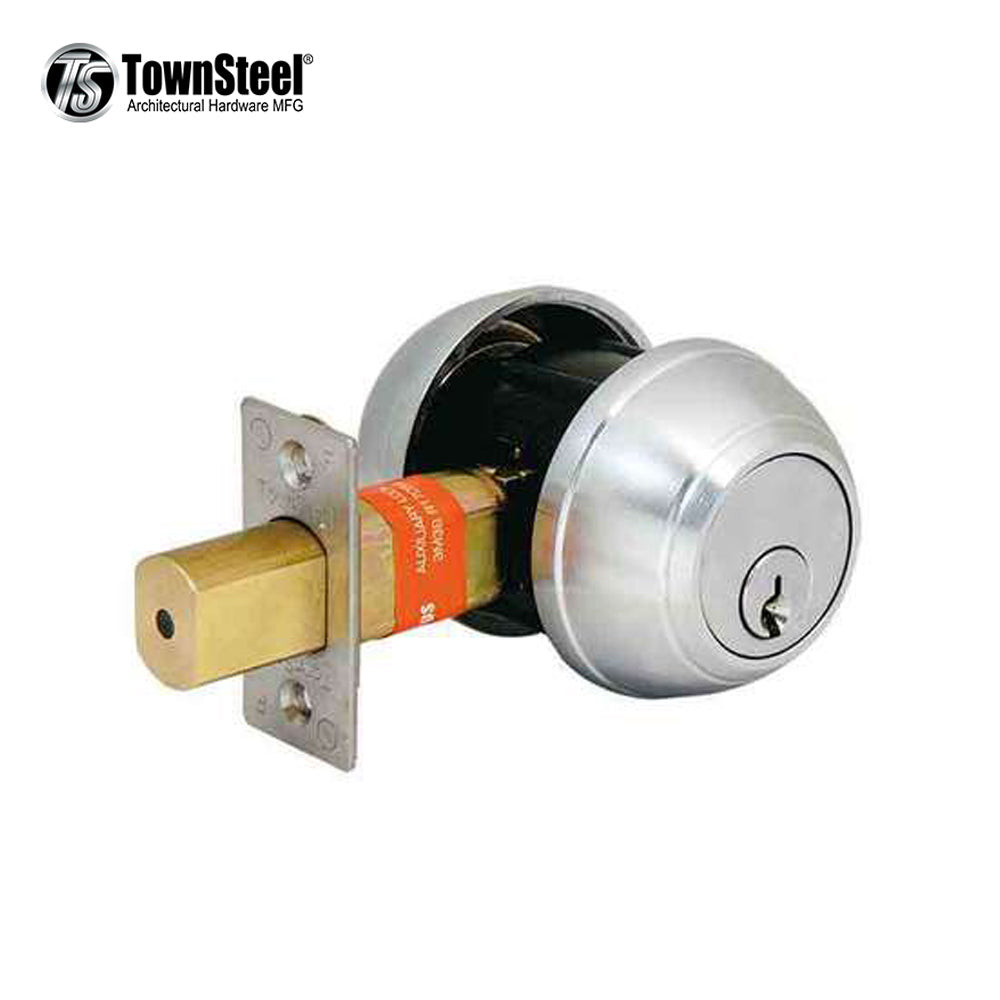

TownSteel - DBD-61 - Commercial Deadbolt - Single Cylinder - 2-3/4 Backset - Satin Chrome - Grade 1

TownSteel - DBD-61 - Commercial Deadbolt - Single Cylinder - 2-3/4 " Backset - Satin Chrome - Grade 1

The DBD-61 is a Grade 1 Heavy Duty Commercial deadbolt. Tamper resistant solid brass one piece housing provides a positive deterrent to forced entry.

Specifications

Application	To use as an auxiliary lock for quality residential and commercial buildings wherever additional security is desired
Door Thickness	1-9/16″ to 2″
Backset	2-3/4″ standard
Deadbolt	Solid brass with hardened steel rod insert, 1″ throw
Strike	1-1/8″ x 2-3/4″ lipless
Faceplate	1-1/8″ x 2-1/4″, square corner
Finish	US26D
Function	Single Cylinder with Thumb Turn
Door Prep	2-1/8″ diameter for lock, 1″ for latch
Handing	Non-Handed
Cylinder	6 pin Schlage “C” keyway, pick resistant pin and anti-drill bearing balls inserted
Keying	Keyed different - KD (standard)
Finish	626 - 26D - Satin Chrome
Certifications	ANSI/BHMA - Meets or exceeds A156.5-2001 Grade 1 requirements UL - UL 10C 3-hour rated BAA - Meets requirements of the Buy American Act
Manufacturer Warranty	1-year limited for electronic 5-year limited for finish 10-year limited for mechanical



Installation Guide
