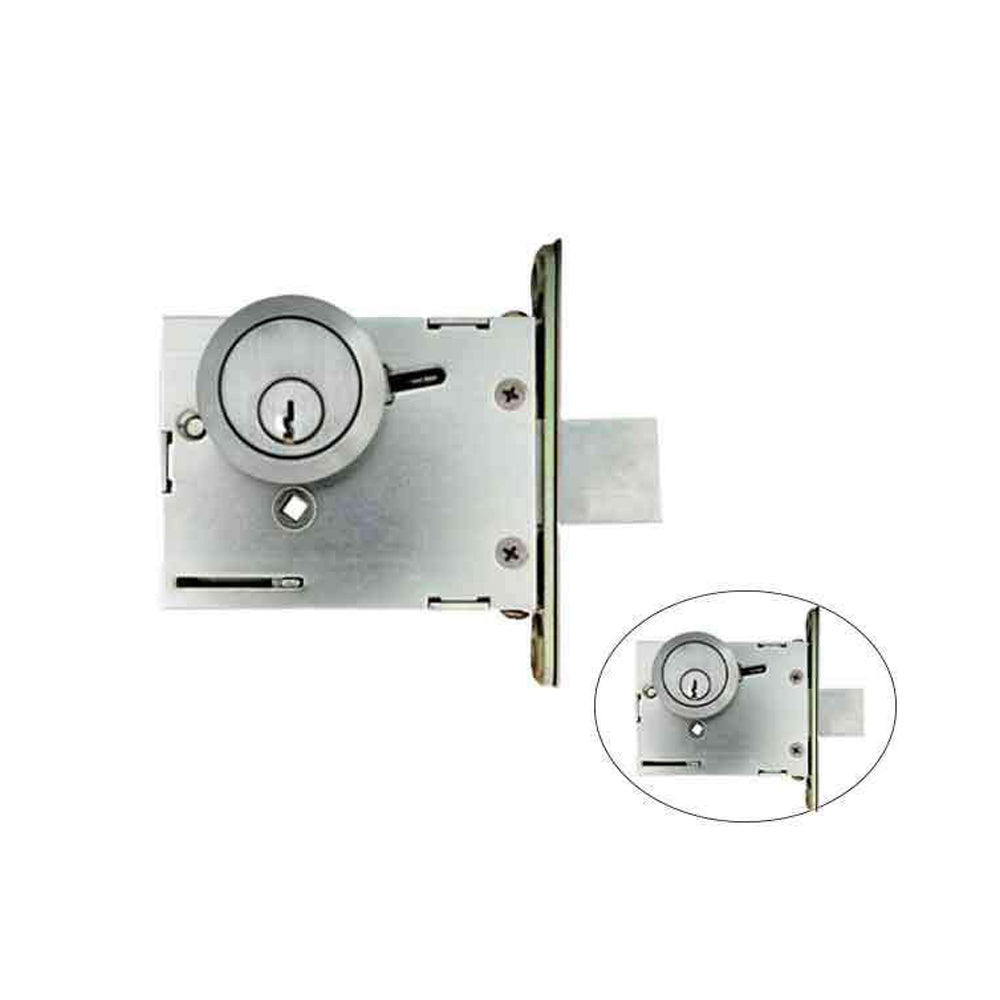

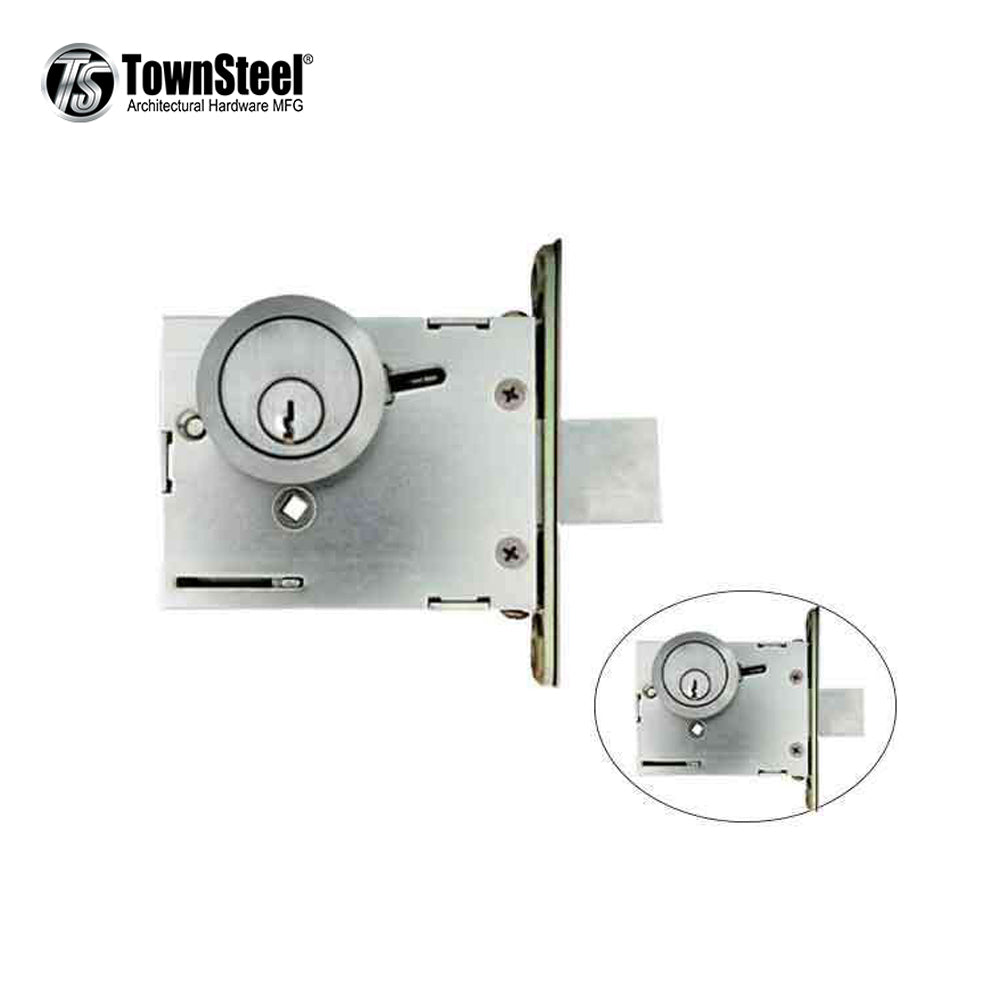

TownSteel - DBM16 - Commercial Mortise Deadbolt - Double Cylinder - 2-3/4 Backset - Satin Chrome - Grade 1

TownSteel - DBM16 - Commercial Mortise Deadbolt - Double Cylinder - 2-3/4 " Backset - Satin Chrome - Grade 1

The DBM-16 is a heavy duty commercial quality deadbolt that provides a positive deterrent to forced entry. Designed for maximum security, the cylinder resists blows attempting to move the lock.

Specifications

Application	To use as an auxiliary lock for quality residential and commercial buildings wherever additional security is desired
Door Thickness	1-3/8”- 2”
Backset	2-3/4″ standard
Deadbolt	Solid brass with hardened steel rod insert, 1″ throw
Strike	1-1/8″ x 3-1/2″
Faceplate	1-1/8” x 3-5/8″ , square corner
Function	Double Cylinder
Cylinder	6 pin solid brass cylinder, Schlage “C” keyway.
Keying	Keyed different - KD (standard)
Finish	626 - 26D - Satin Chrome
Certifications	ANSI/BHMA Meets or exceeds A156.5 Grade 1 requirements UL Listed 3-hour fire rating BAA Meets guidelines of the Buy American Act
Manufacturer Warranty	1-year limited for electronic 5-year limited for finish 10-year limited for mechanical

Installation Guide
