TownSteel - e-Elite 2000 Series - Electronic Push Button Lever Set - 2-3/8 Backset - Rigid Lever Set - Satin Chrome - Key Override - Grade 1Backset - Satin Chrome - Entrance / Office - Grade 1

TownSteel - e-Elite 2000 Series - Electronic Push Button Lever Set - 2-3/8″ Backset - Rigid Lever Set - Satin Chrome - Key Override - Grade 1Backset - Satin Chrome - Entrance / Office - Grade 1

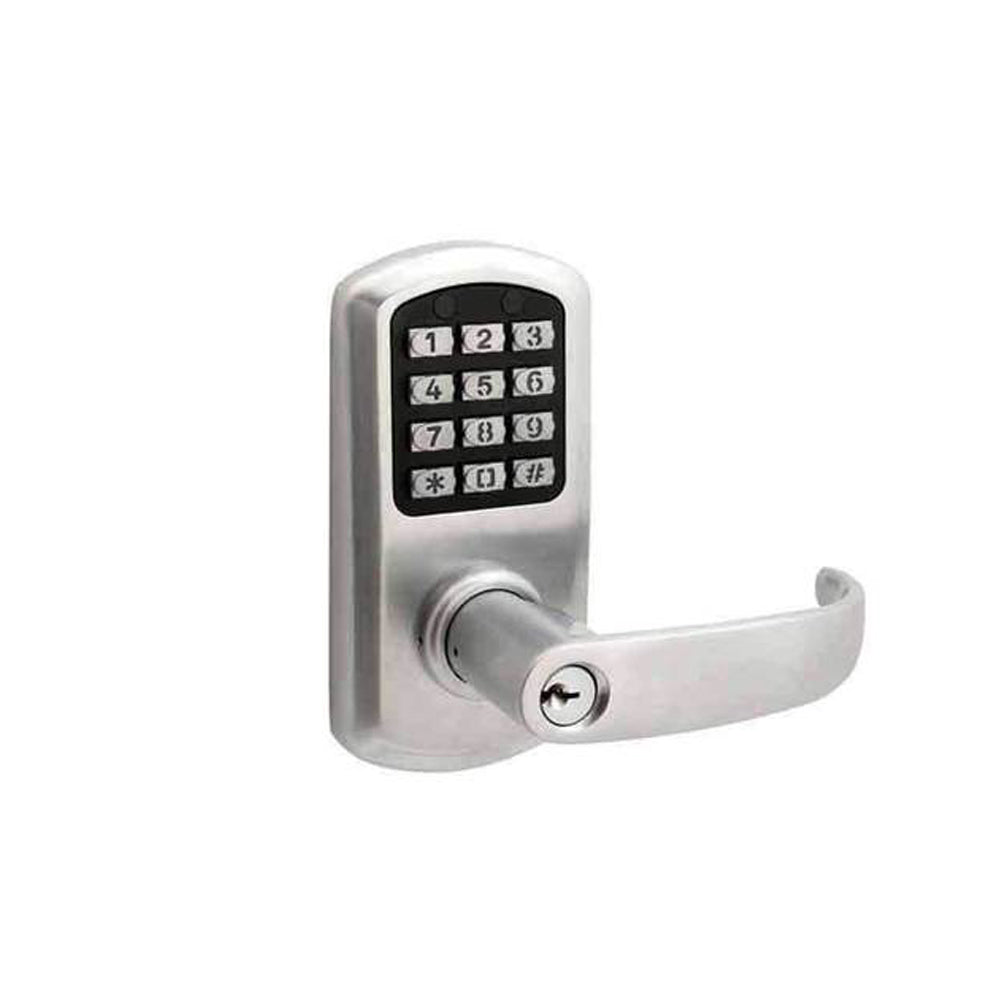

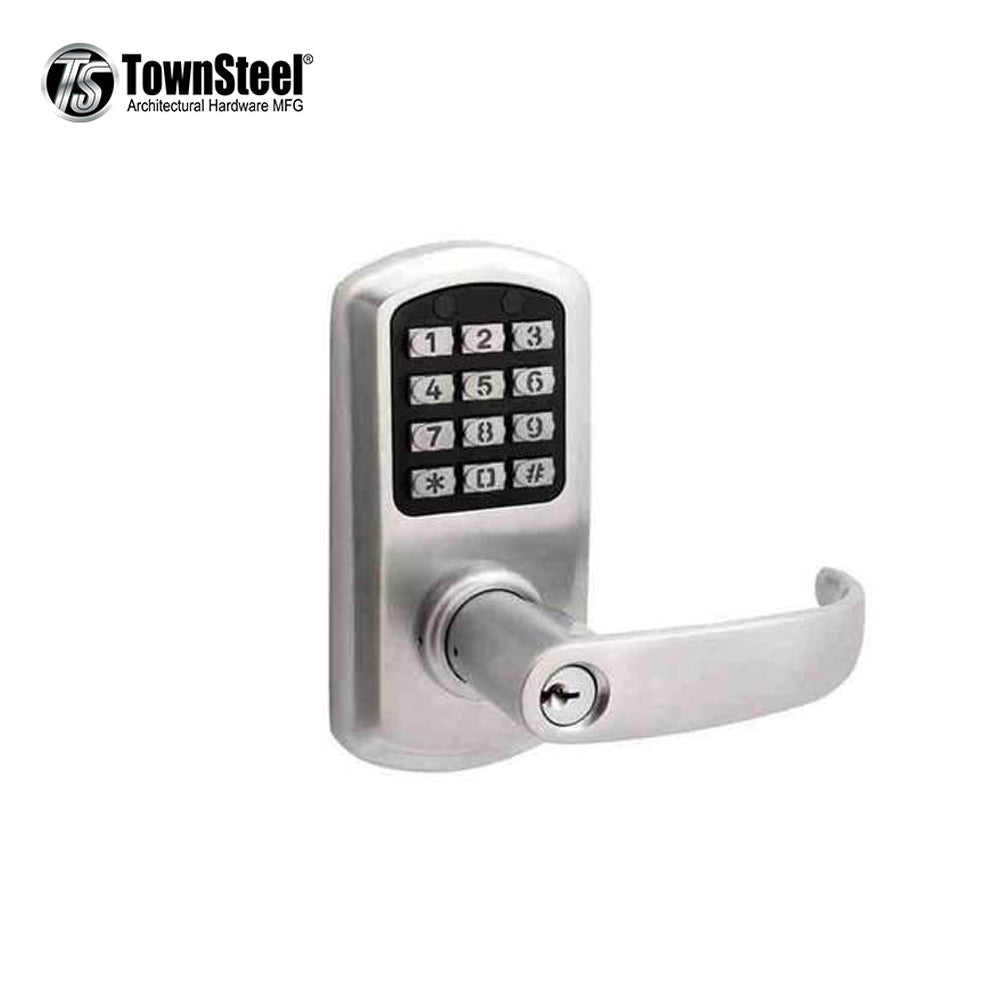

The e-Elite 2010 is a modern, low profile lock with robust stainless steel latch bolt providing easy keyless access to your home using a highly responsive, 12-key touch and fingerprint resistant keypad programmable with up to 99 user codes with user IDs, and five temporary, one-time use service codes. Mechanical key override lock is available as an extra back-up.

The e-Elite 2000 series is quick and easy to program

Features

- 12-Key Touch Illuminated Keypad
- Code Length: 4 to 6 Digits
- 99 Pin Codes and 5 Service Code Capacity
- Programmable at the lock
- Battery Operated - no hard wiring
- Non-volatile memory
- Key Override w/ 2 Keys

Specifications

Door Thickness:	1-3/4”
Backset	2-3/8” standard
Trim	Rigid Sentinel Lever
Latch bolt:	Stainless steel, deadlocking, ½”throw
Faceplate	1-1/8“x 2-1/4”
Strike	ASA strike standard, 1-1/4” x 4-7/8”
Key Override	Yes
Cylinder	6 pin Schlage C keyway, standard
Power Supply	4AA batteries  - No Hard wiring
Battery Life	Up to 1 year w/ Low Battery Alert
Certifications	ANSI/BHMA A156.2 -- A156.2-2011 Grade 1 certified UL/ULC -- UL 10C 3-hour rated BAA -- Meets guidelines of the Buy American Act ADA --- Meets requirements of the Americans with Disabilities Act RoHS -- Meets requirements of EU RoHS Directive 2002/95/EC
Manufacturer Warranty	1-year limited for electronic 5-year limited for finish 10-year limited for mechanical
