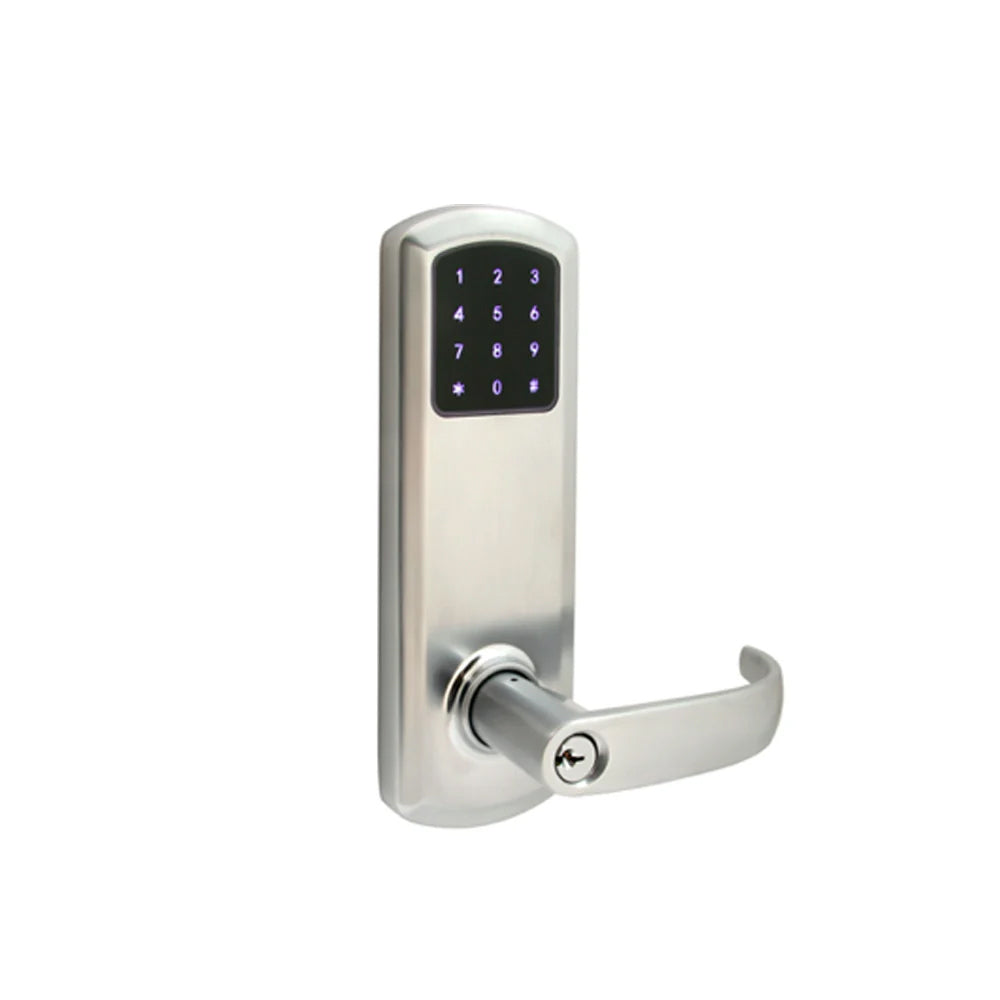

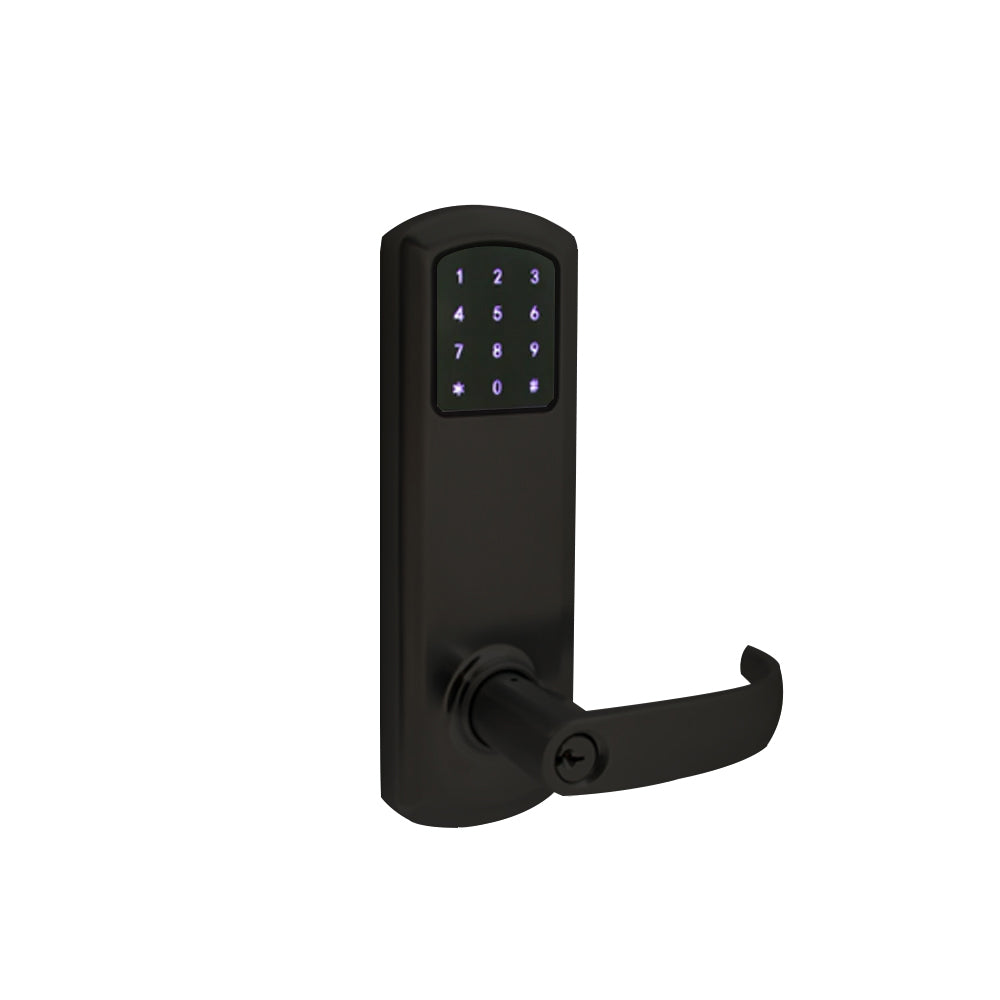

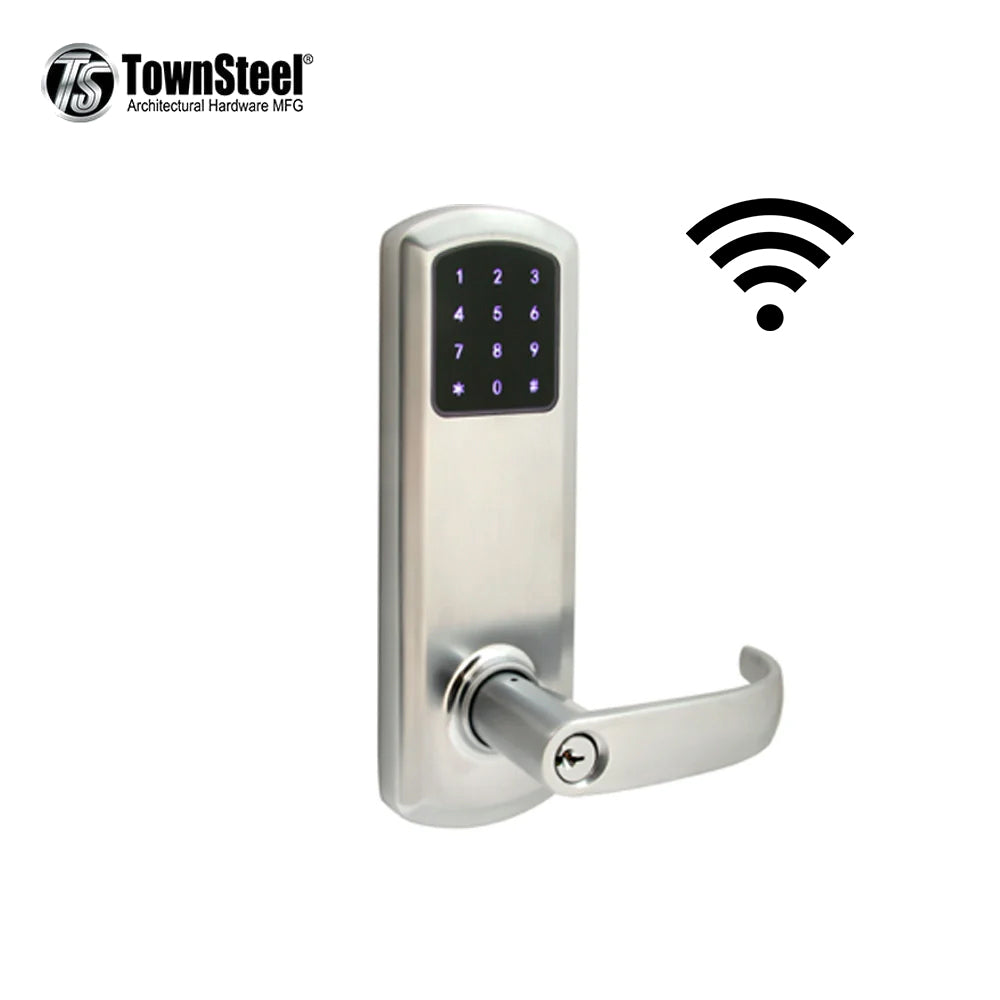

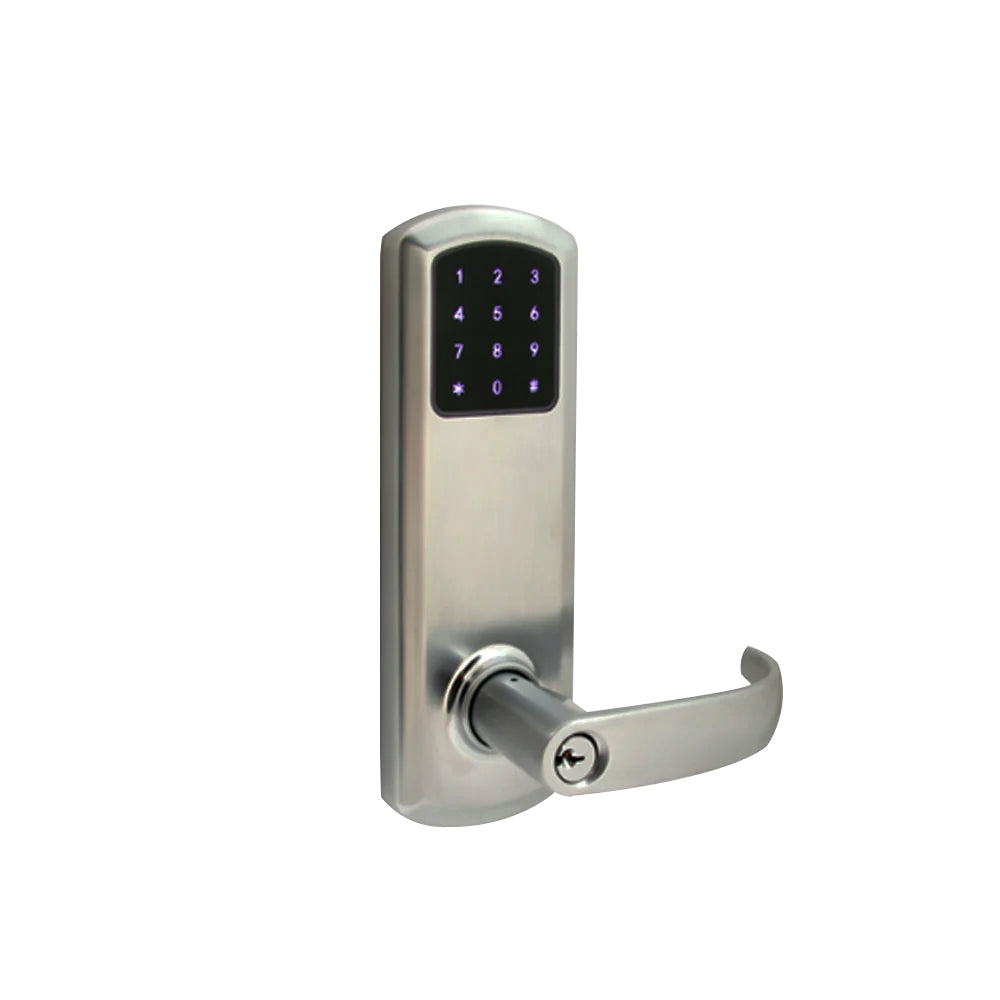

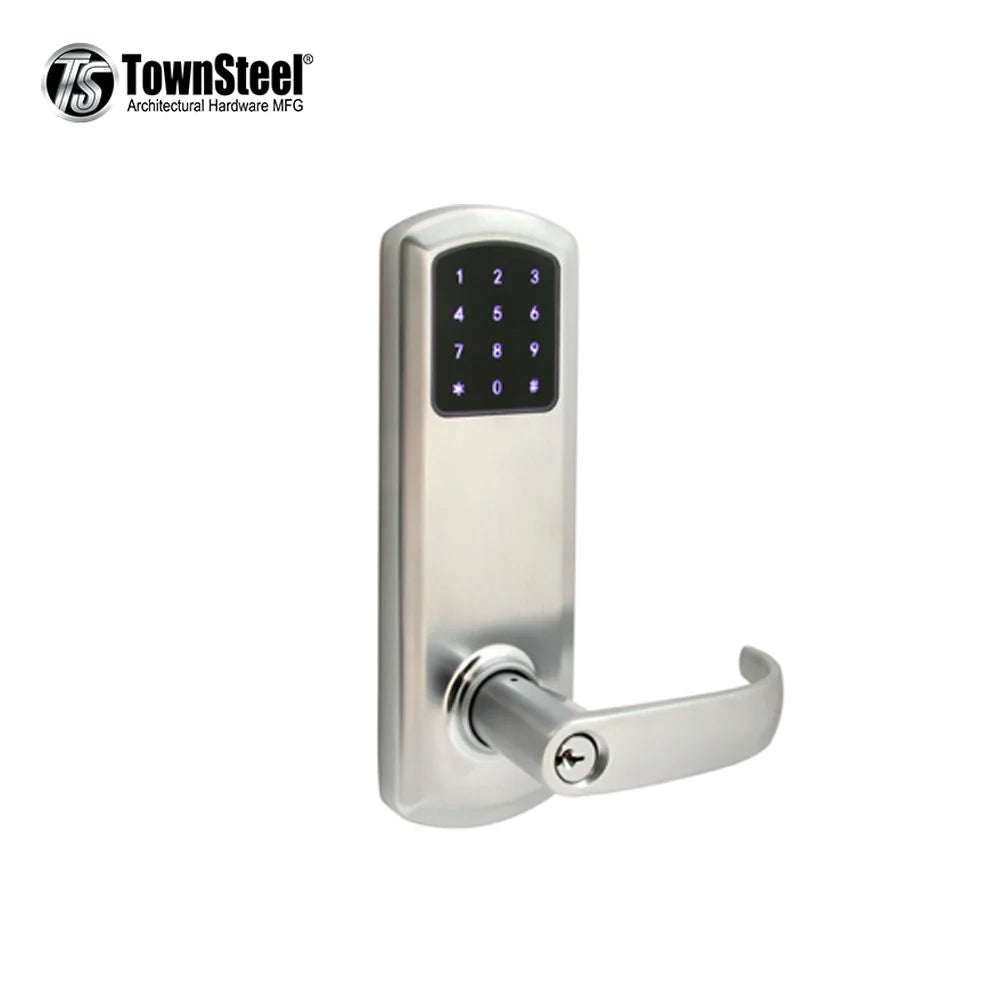

TownSteel - e-Genius - 5000 Series Electronic Interconnect Touch Keypad Lock - RF (Wi-Fi) - 5-1/2" Lockbody with Wide Faceplate - Schlage C Keyway - Storeroom Function
- Product SKU: TS-EG5RST-QLH626-55WSC
-
Order within
and choose FedEx 2Day® Shipping
People also viewed
TownSteel - e-Genius - 5000 Series Electronic Interconnect Touch Keypad Lock - RF (Wi-Fi) - 5-1/2" Lockbody with Wide Faceplate - Schlage C Keyway - Storeroom Function
The e-Genius 5000RF is ideal for rental properties, residential homes, and offices that is manageable through our TSE Home APP via a Wi-Fi gateway to extend its range and manage multiple 5000 series of our locks. Access your home with keyless freedom and convenience using a highly responsive, 12-pin touch keypad, or RFID keycards/stickers, or through TSE Home APP, available in Android and IOS. The 5000RF series is programmable with up to 450 user codes interchangeable with RFID keycards/stickers. A mechanical key to is also provided as an extra backup.
This electronic lock is also the only keyless double lock providing the ability to lock and unlock an interconnected deadlatch and deadbolt with ease. To unlock the door, simply provide valid credentials and push the lever downwards to reentry with single motion. To lock the door, lift lever upwards from either side to extend the deadbolt. The deadlatch will not be retracted when the door is locked for the security.
Feature:
- Illuminated 12-pin touch keypad
- Interconnected deadbolt and deadlatch
- Single motion egress
- Clutched lever design
- Weather resistant design
- Wi-Fi access through Gateway* to interface between the lock and smartphone.& *Gateway sold separately
- TSE Home APP compatible, available for Android and IOS
- One smart phone only as the administrator (Paired with the lock)
- Code Length: 6-10 digits
- 450 interchangeable user codes and RFID key cards/stickers
- Anti-tamper lockout after 5 invalid tries for 90 seconds
- Low battery warning
- Mechanical key as an extra backup
Specification:
| Series | e-Genius |
| BHMA/ANSI Grade | Grade 1 Certified, ANSI/BHMA A156.12 |
| Lockbodies | 4″ 5.5″ |
| Handings | RHR LHR RH LH Field Reversible for KIK cylinder Field Irreversible for IC core |
| Backsets | 2-3/8″ and 2-3/4″ available |
| Electronic Specifications | RX Switch |
| Faceplates | Wide Faceplate - 1-1/8” x 2-1/4” Narrow Faceplate1" x 2-1/4" |
| Door Thickness | 1-3/4" 1-3/8” with 2 spacers |
| Latch bolt | 1/2" throw stainless steel deadlocking |
| Latch strike | Full lip with radius corners T-Strike with square corner ASA Strike with radius corner |
| Deadbolt Strike | 1-1/8" x 2-3/4" radius corners with security underplate 1-1/8” x 2-3/4” square corner with security underplate |
| Escutcheon | Zinc |
| Levers | Quest Sentinel Wolfsburg Wolfsburg R |
| Trims | Escutcheon |
| Finishes | 619- Satin Nickel 622- Flat Black 626- Satin Chrome |
| Compliance | Americans with Disabilities Act Compliant UL 10C Compliant CAN/ULC S104 Compliant FCC part 15 certified |
Available Keyway:
- Kwikset® 6-pin with “KW” Keyway
- High security 6-pin with Townsteel® “L” Keyway
- High security 7-pin IC core with Townsteel ® “L” Keyway
- 6-pin IC core with Best® “A” Keyway
- 7-pin IC core with Best® “A” Keyway
- Small format IC, SFIC, Less cylinder core option
- Schlage® LFIC less core
Corbin LFIC less core
Download:
