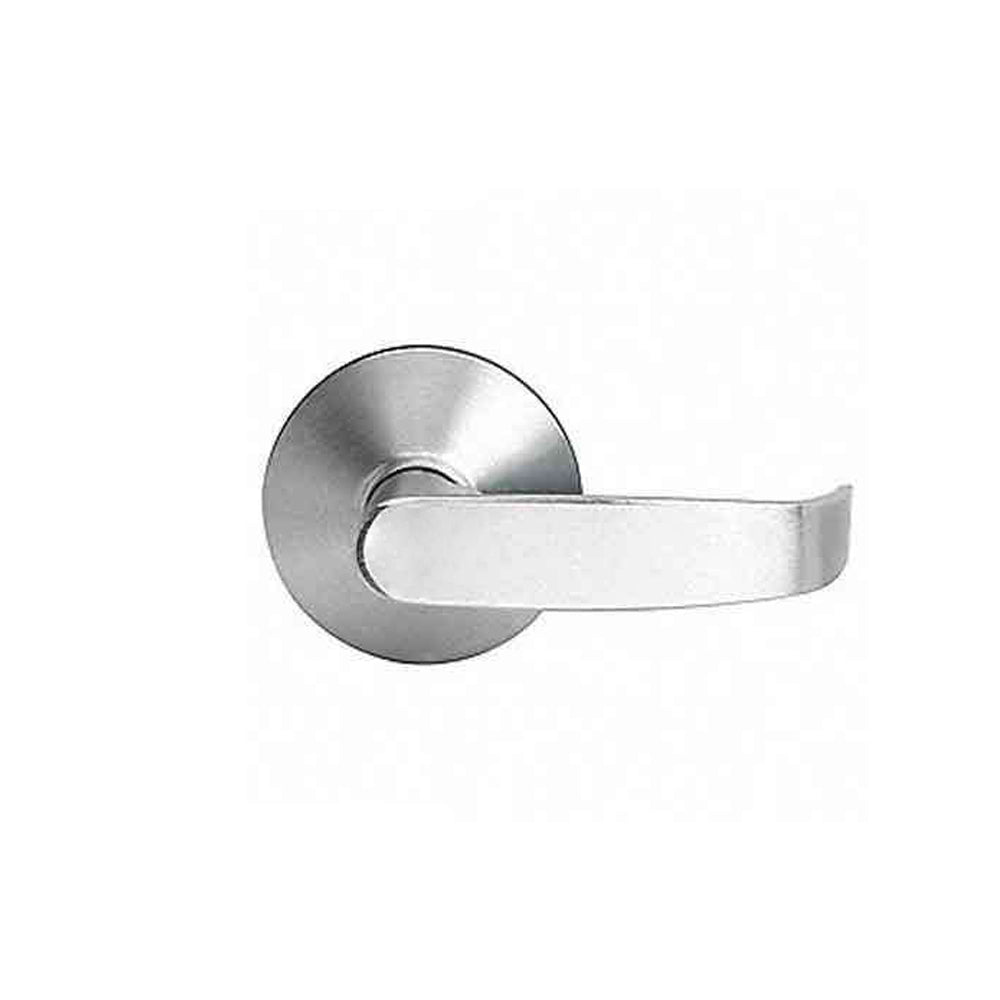

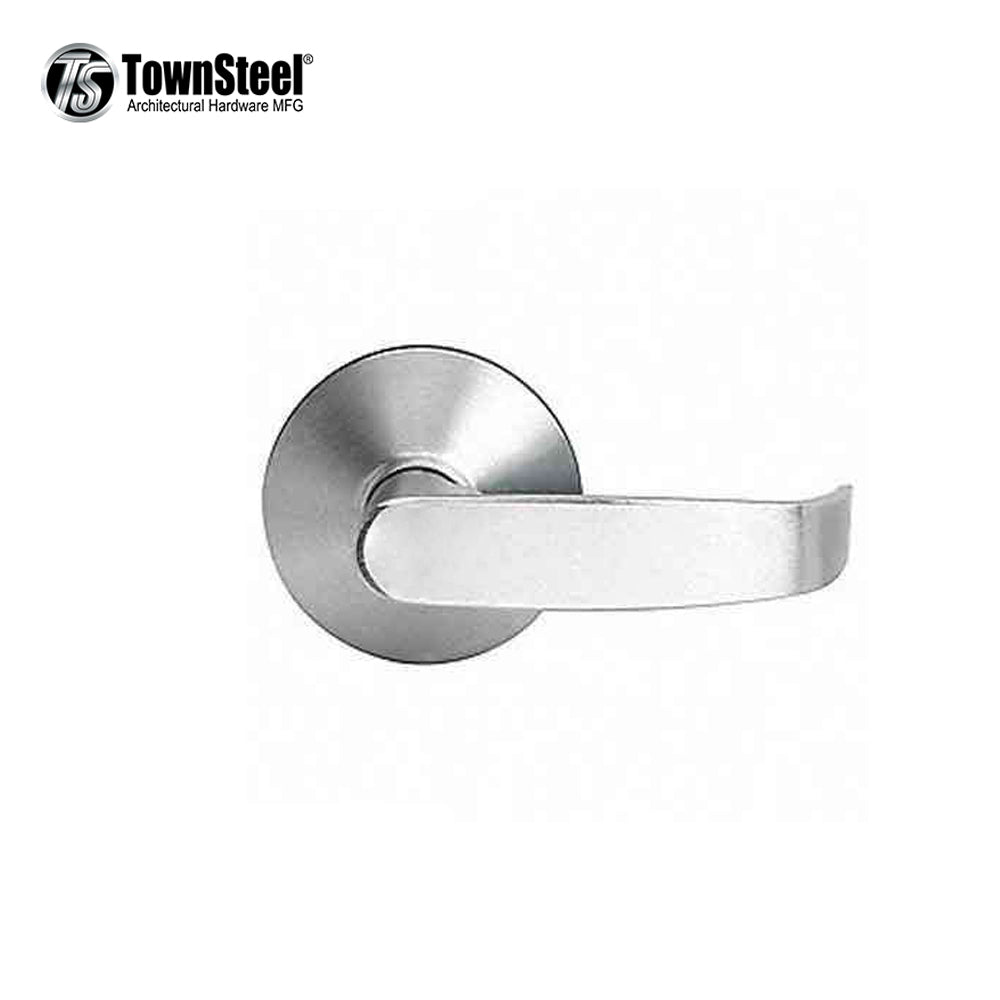

TownSteel - ED5500L - Lever Exit Trim - 2-3/4 Backset - for ED5500/ED5600 Exit Devices - Passage Function - Satin Chrome - Grade 1

TownSteel - ED5500L - Lever Exit Trim - 2-3/4 " Backset - for ED5500/ED5600 Exit Devices - Passage Function - Satin Chrome - Grade 1

The ED5500L key-in-lever trim is designed to work with ED5500/ED5600 series devices (not included). Exit Trim Only

Specifications

Application	Lever Exit Trim Application For ED5500/5600 Series devices
Function	Passage Function- Lever always operable
Handling	Non-Handed
Door Thickness	1-3/4″ to 2-1/4″
Backset	2-3/4″ standard,
Door Prep	Fits and covers 161 cutout
Trim	Lever Exit Trim
Rose	Wrought steel, 3-1/2″ in diameter
Lever	Cast zinc, 4-3/4″ long
Cylinder	No Cylinder
Keying	No Keying
Finish	626 - 26D - Satin Chrome
Certifications	ANSI/BHMA - A156.2-2011 4000 Series Grade 1 Certified UL - UL 10C 3-Hour Rated ADA - Meet Requirements of The Americans with Disabilities Act BAA - Meet Guidelines of The Buy American Act CSFH - Sentinel and Quest Lever Designs meet California State Reference Code (CSFH)
Manufacturer Warranty	1-year limited for electronic 5-year limited for finish 10-year limited for mechanical

Template & Installation Guide
