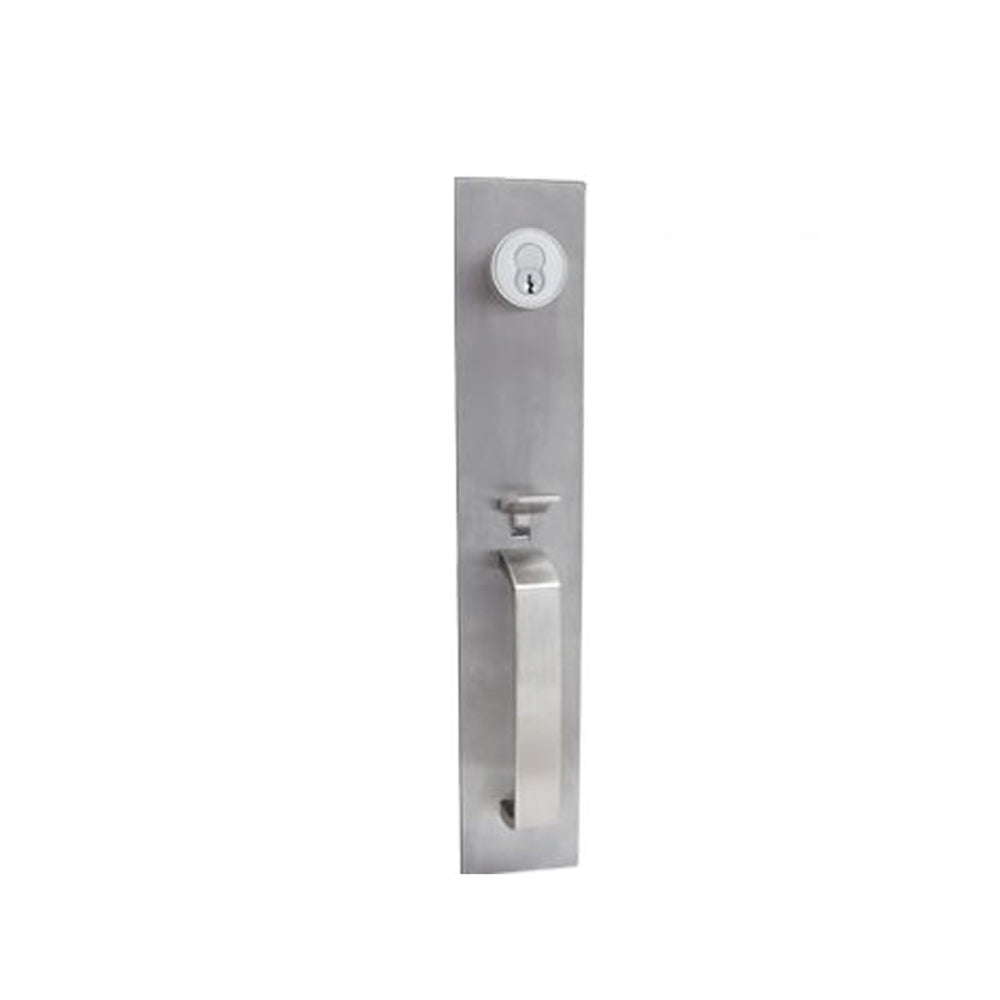

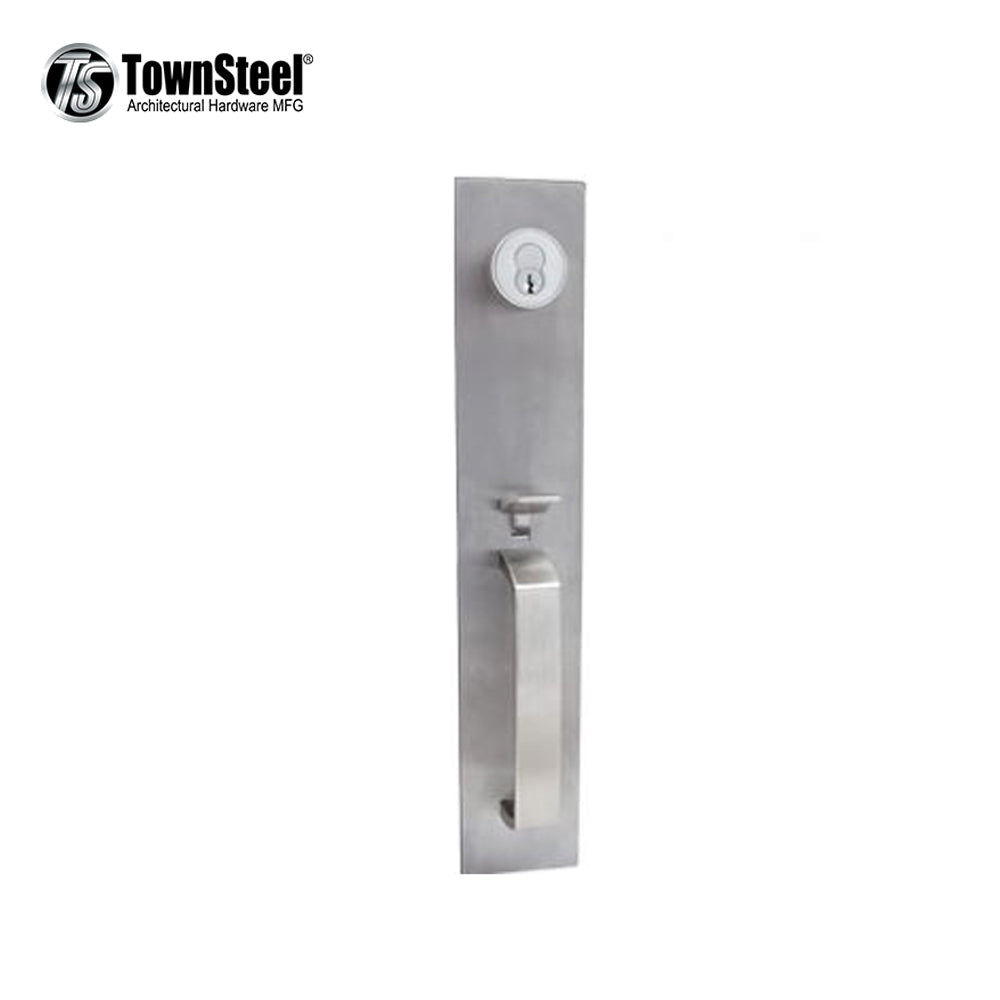

TownSteel - ED5500T - Thumbpiece Exit Trim - for ED5500/ED5600 Exit Devices - Storeroom Function - Satin Chrome - Grade 1

TownSteel - ED5500T - Thumbpiece Exit Trim - for ED5500/ED5600 Exit Devices - Storeroom Function - Satin Chrome - Grade 1

The ED5500T Thumbpiece Trim is designed to work with ED5500/ED5600 series devices (not included). Exit Trim Only

Specifications

Application	Thumbpiece Trim Application For ED5500/5600 Series devices
Function	Storeroom Function
Handling	Non-Handed
Door Thickness	1-3/4″
Backset	2-3/4″ standard
Door Prep	Fits and covers 161 cutout
Trim	Outside is stationary and cannot be moved
Lever	Stainless Steel, 2-5/8 x 15″
Cylinder	Brass, 6 pin
Keying	Schlage “C” keyway, 2 keys per cylinder
Finish	US32D - Satin Chrome
Certifications	ANSI/BHMA - A156.2-2011 4000 Series Grade 1 Certified UL - UL 10C 3-Hour Rated ADA - Meet Requirements of The Americans with Disabilities Act BAA - Meet Guidelines of The Buy American Act CSFH - Sentinel and Quest Lever Designs meet California State Reference Code (CSFH)
Manufacturer Warranty	1-year limited for electronic 5-year limited for finish 10-year limited for mechanical

Template & Installation Guide
