TownSteel - ED3700 - Narrow Stile Rim Exit Device - Push Bar - 36 -...
Description
Description

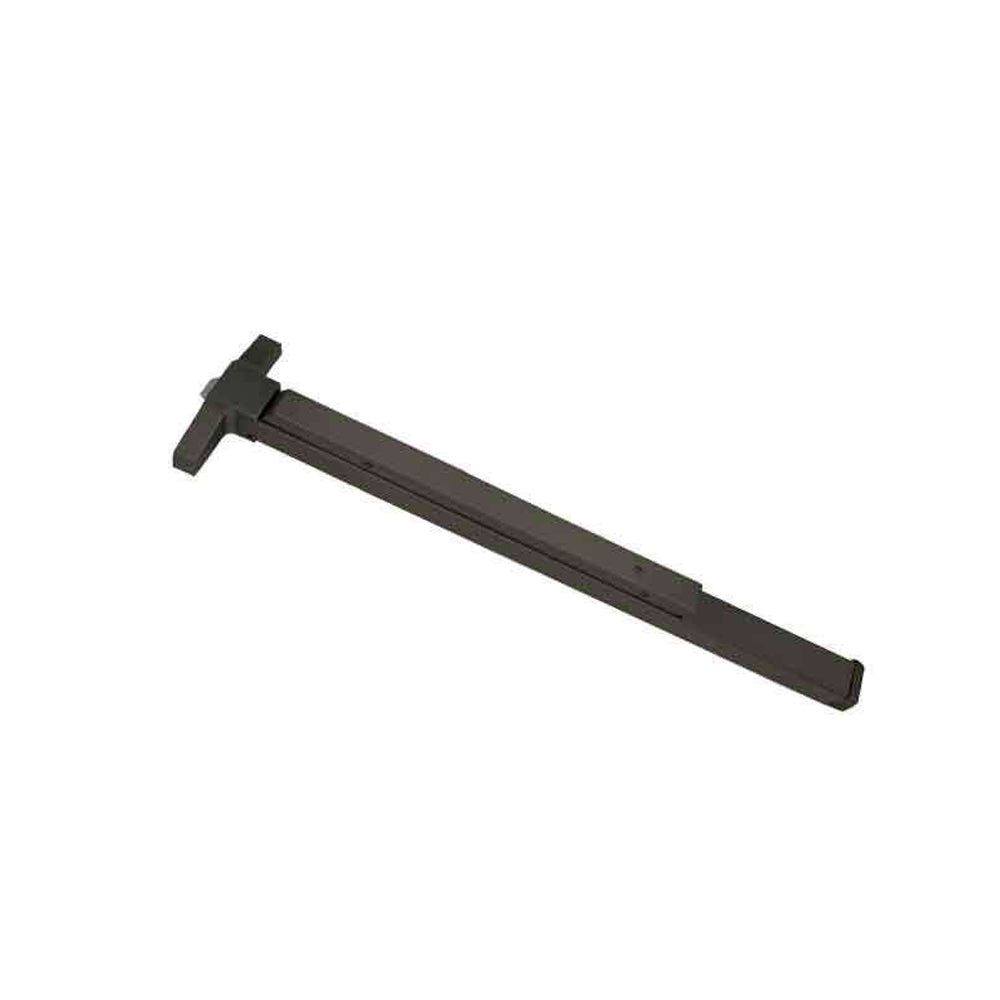

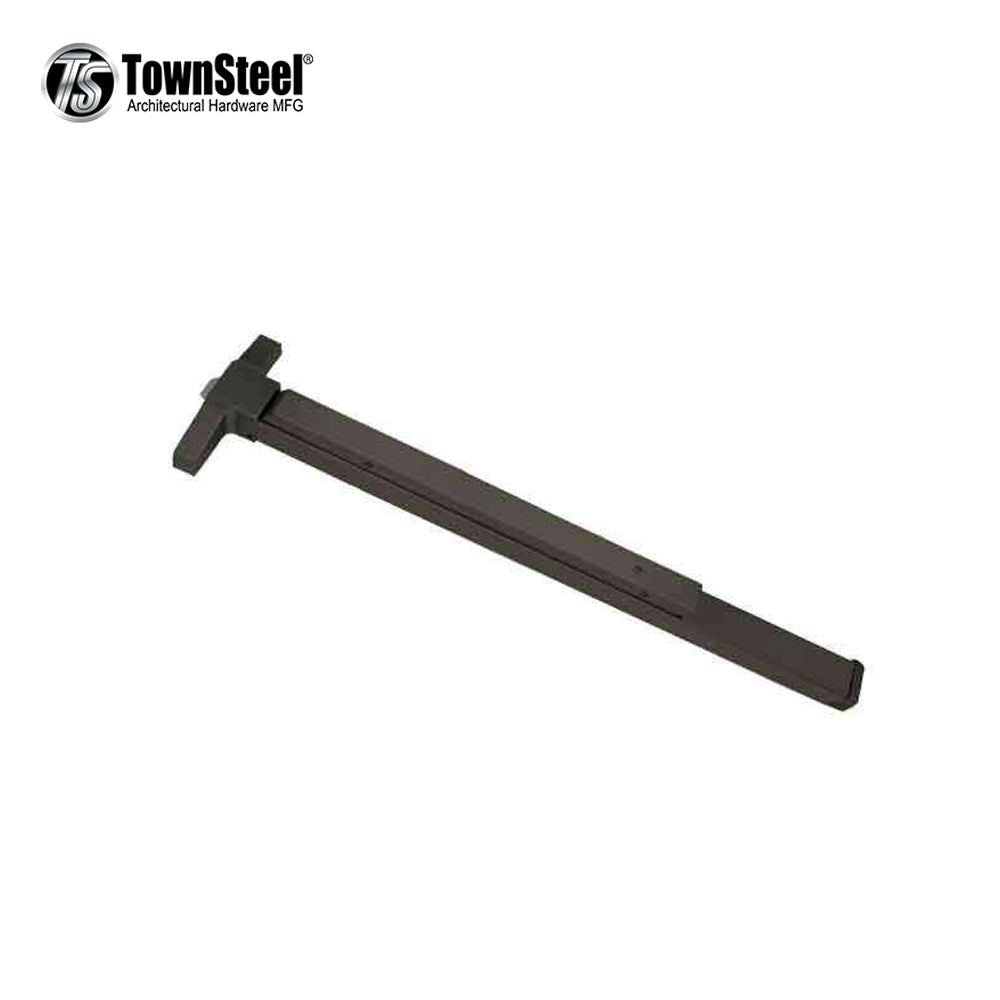

TownSteel - ED3700 - Narrow Stile Rim Exit Device - Push Bar - 36" - Oil Rubbed Bronze - Grade 1 - ED3700-36-DURO
Features
- Full line of exit devices are certified to ANSI/ BHMA A156.3 Grade1.
- All devices are non-handed or reversible design.
- UL Listed for Fire Exit hardware , 3 hours.
- High shock -resistant latching mechanical design for vandalism protection.
- "A" Label (3 hr) rating on pairs of doors up to 8' x 8' for same or double egress.
- All internal components are made of electro-plated steel or corrosion-resistant alloy.
Specifications
|
Application |
For wood, metal or aluminum glass door with 1-3/4″ minimum stile width |
| Handing | Non-handed |
|
Door Thickness |
1-3/4″ standard |
|
Door Widths |
28″ to 36″, no cutting for 36″ door |
|
Door Width |
36″ device for up to 3′ wide opening |
|
Device Length |
34-1/2″ |
|
Maximum Cut Down |
8″ |
| Centerline from Finished Floor | 41″ |
|
Projection |
Push bar Neutral 3 9/32" (83mm) Push bar Depressed 2 17/32" (64.5mm) |
|
Latch Bolt |
3/4″ throw, stainless steel |
| Strike | 900 Strike standard |
| Dogging | 1/2 turn hex key dogging standard For non-fire rated devices |
|
Mounting |
Furnished with wood and machine screws |
| Finish | 10B - Oil Rubbed Bronze |
|
Certifications |
UL/ULC - 305 & UL fire rated, 3 hours ANSI/BHMA A156.3 Grade 1 standard |
| Manufacturer Warranty | 1-year limited for electronic 5-year limited for finish 10-year limited for mechanical |
