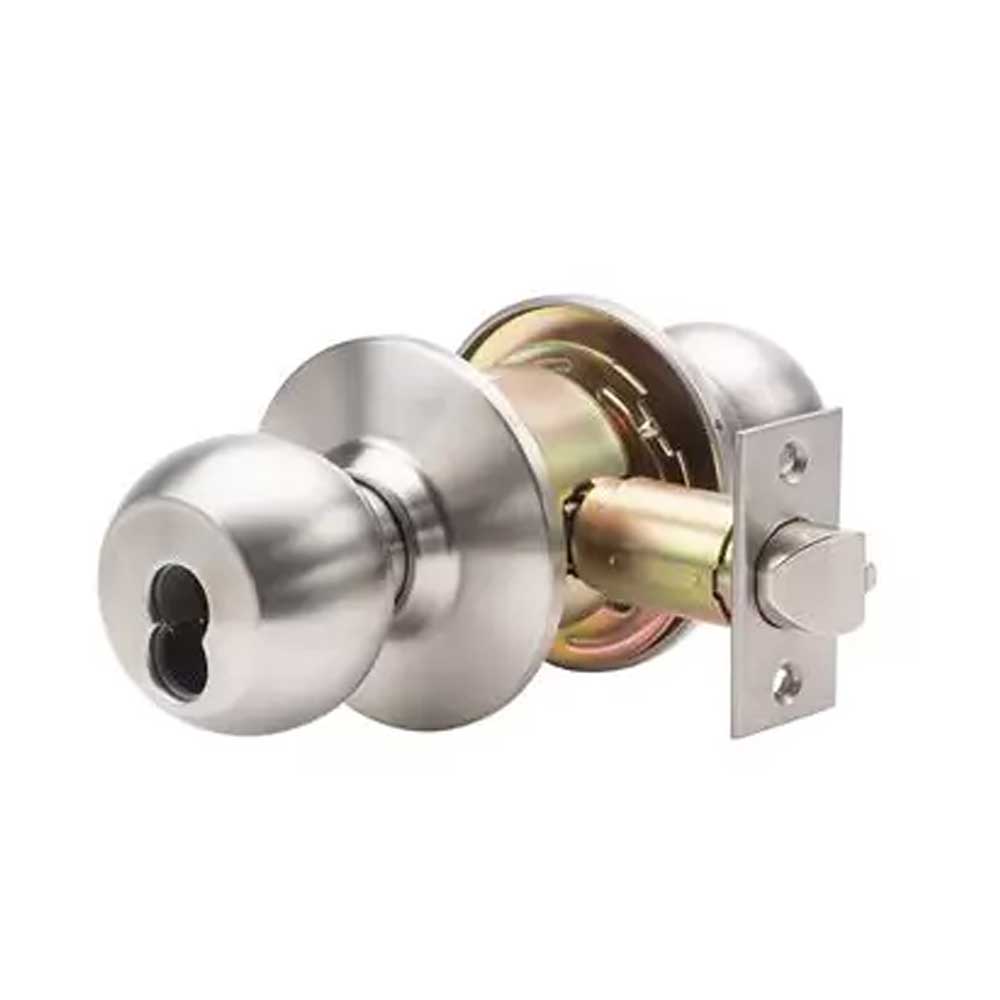

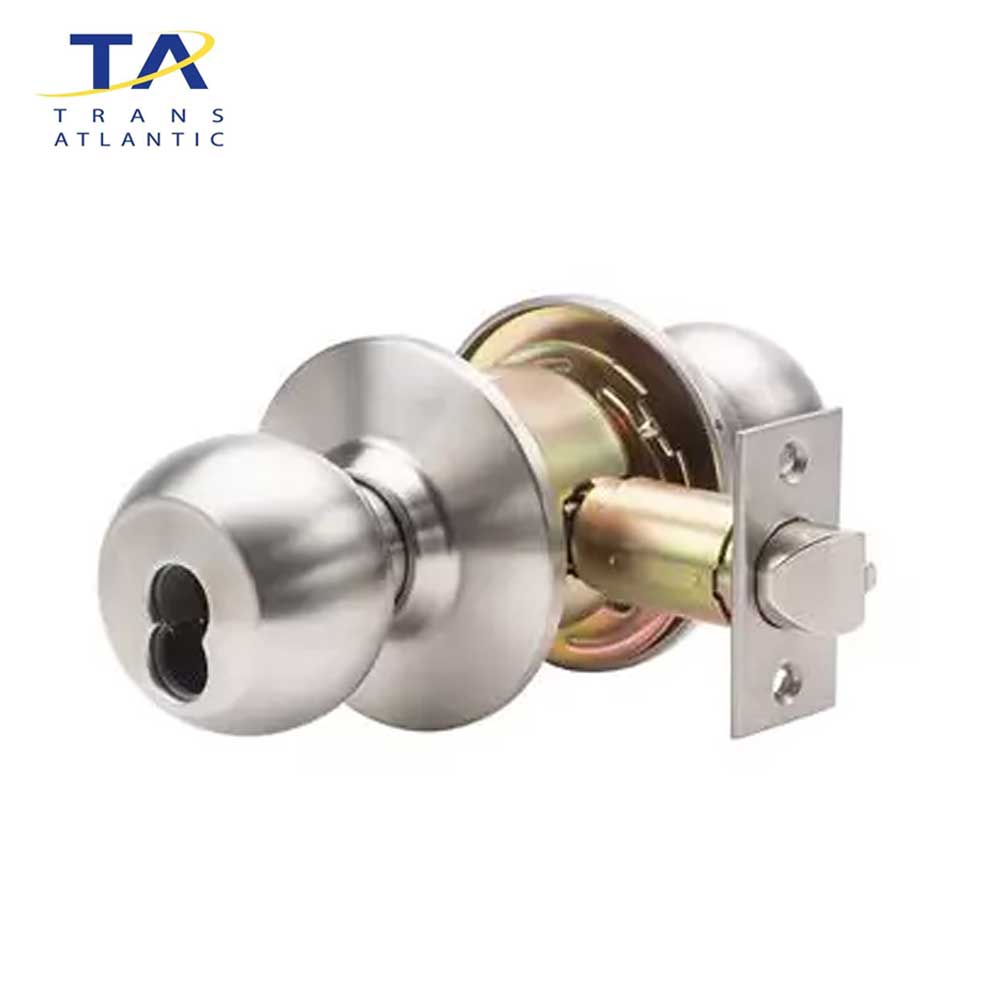

Trans-Atlantic - DL-SVB Series - Commercial Cylindrical Knob - Interchangaeble Core - Grade 2

Trans-Atlantic - DL-SVB Series - Commercial Cylindrical Knob - Interchangaeble Core - Grade 2

The DL-SVB series cylindrical knobset are designed for use on all standard grade 2 light commercial and residential applications. Solid zinc diecast.

Specifications:

• Door Thickness: 1-3/4” - 2”
• Backset: 2-3/4” - face 1-1/8”- 2-1/4”
• Cylinder: Schlage “C” keyway
• Keying: Schlage 6 pin keyed
• Key: 2 six pin nickel plated
• Certification: UL listed ANSI A156.2 Grade 1
• IC - Small format Figure 8 Interchangeable Core NOT included
• Latch: 1/2" projection stainless steel 3 hour UL
• Bore: 2-1/8” hole retrofits all cylindrical locksets
• Strike: ANSI 1-1/4” - 4-7/8” strike
• Non-handed and reversible
• Warranty: Lifetime mechanical. 10 year finish.

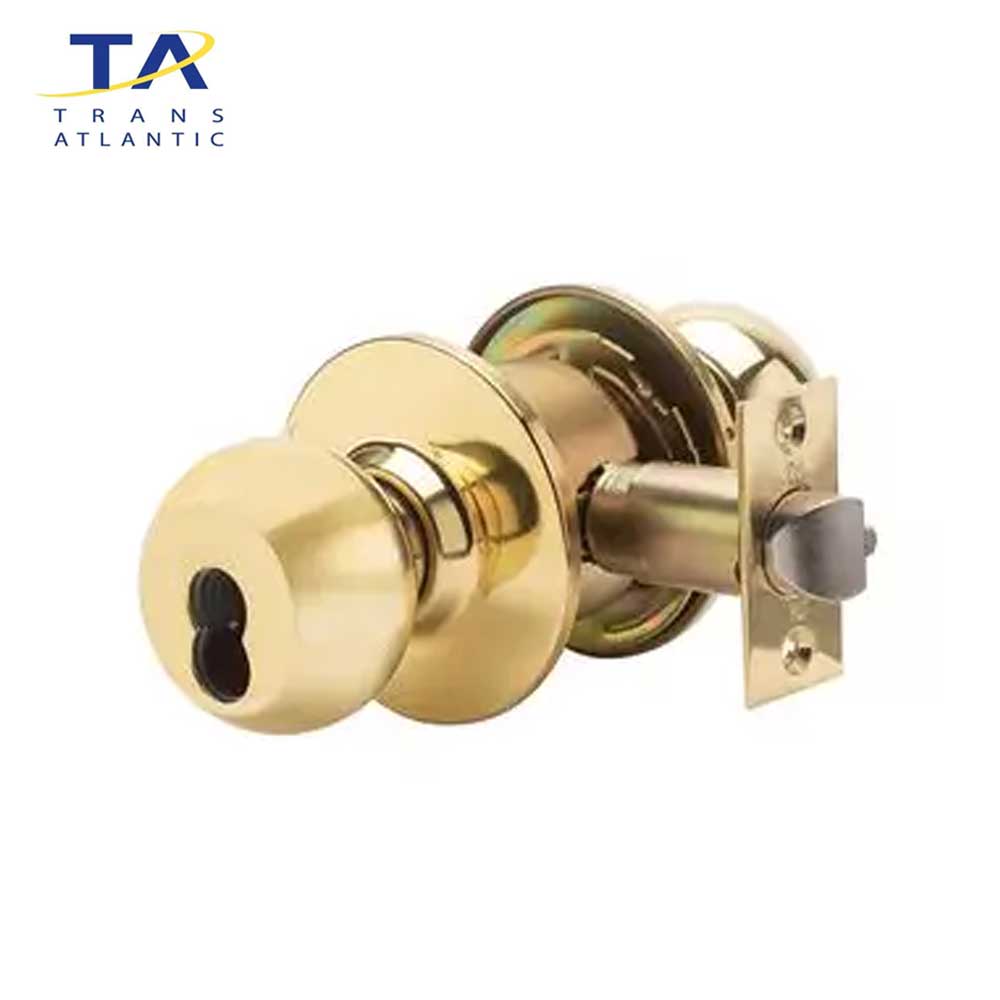

• Finish: US3, 32D

Available Options:

• IC - Small format Figure 8 Interchangeable Core NOT included
• DL-DLUL238 - 2-3/8" backset, UL Deadlatch
• DL-SLUL238 - 2-3/8" backset, UL Springlatch
• DL-TAO13 - 1-1/8" 2-3/4" "T" Strike
• DL-EXBS5: Extension for 5" backset
• DL-LSV53DB751 - Combo, Single Cylinder
• DL-LSV53DB760 - Combo, Double Cylinder
• 2 keys per cylinder
• KD: Keyed Different
• KA: Keyed Alike
• KA2: Keyed Alike; groups of 2
• KEYWAYS: SC6, AR5, KW1

Download:

• Installation Instruction
