Uniview Tec  |  SKU: UVT-NR12824-120T

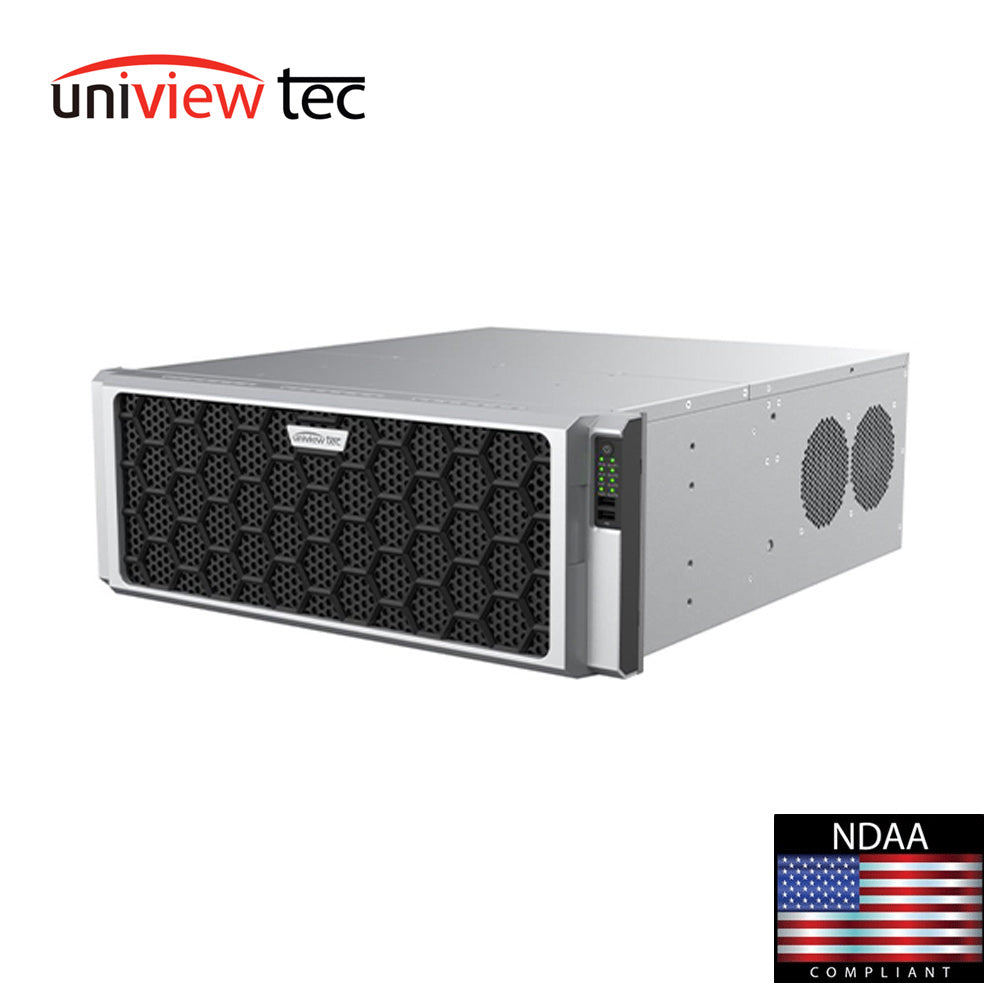

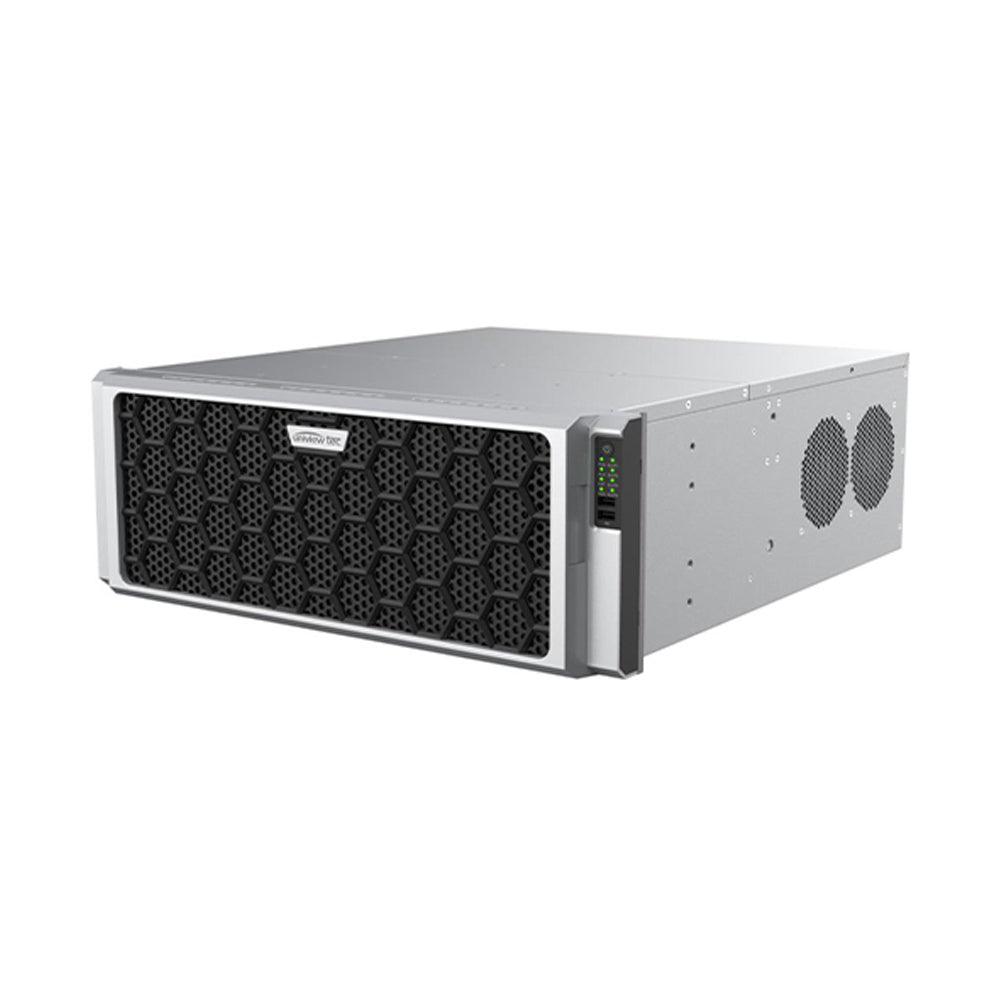

Uniview Tec NR12824 Network Recorder 128ch 12MP Resolution 24-Bay HDD H.265 NVR

$18,00000 $21,60000
Shipping calculated at checkout.
Trust Guard Security Scanned
Trust Guard Security ScannedSecure transaction

Found a better price? Call for Price Match!
Shop with confidence knowing you’re getting the best deal.

Delivery and Shipping

All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 4 p.m. EST will be shipped next business day.
Learn more

Description

Uniview Tec NR12824 Network Recorder 128ch 12MP Resolution 24-Bay HDD H.265 NVR

Key Features:
  • Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
  • 128ch network recorder with H.265 Compression for Best-in-Class Recording and Storage Performance
  • Supports recording of up to 12MP (4000 x 3000) Resolution Images
  • Display Images up to 4k (3840 x 2160) Resolution on both HDMI Outputs
  • Concurrent Independent Display on all HDMI and VGA Monitor Outputs
  • Easy Plug and Play Functionality with Automatic Device Discovery and Display
  • Maximum internal storage of 24 SATA HDD's up to 12TB each for 288TB total, with HDD Hot Swap and RAID 0, 1, 5, 6, 10, 50, 60
  • Supports optional external storage devices for up to an additional 384TB of external storage
  • Supports ONVIF Profile Series Compliant Third Party Cameras
  • Powerful Video Content Analysis Features such as Cross Line Detection, Audio Detection, Scene Change, People Counting
  • Supports Cloud Upgrade for NVR and uniview tec Cameras with Automatic Detection of Latest Firmware
  • Supported by license-free uniview tec Guard Station Client Software and Guard Viewer Mobile App's for iPhone and Android Devices
  • Optional Mini-SAS Disk Enclosures, Redundant Power Supply and PoE Switches
Specifications:

Video:

IP Camera Inputs 128-ch
Video Formats Ultra 265, H.265, H.264
Recording Video Resolution 12MP Maximum
Playback Video Capability (fps) 5 x 4K @ 30, 20 x 1080P @ 30, 24 x 1080P @ 25, 40 x 960P @ 25, 45 x 720P @ 30, 54 x 720P @ 25, 96 x D1 @ 25
Monitor Output - Concurrent & Independent HDMI & VGA Only 2 x HDMI (4K~ 720p); 1 x VGA (1080p ~ 720P); 1 x BNC
Synchronous Playback 16-ch

Network:

Incoming Bandwidth 768Mbps
Outgoing Bandwidth 768Mbps
Remote Users 128
Protocols P2P, UPnP, NTP, DHCP, PPPoE
Video Analytics People Counting, Face and Behavior Search

General:

Network Interface 4 x RJ45, 10M/100M/1000M, Adaptive Ethernet
Serial Interface 1 x RS232, 1 x RS485
USB Interface Front panel: 2 x USB2.0; Rear panel: 2 x USB3.0
Alarm Interface 24ch - Inputs; 8ch - Output
Audio Interface 1ch RCA Input / Output
Hard Disk 24 SATA, up to 12TB each: total 288TB
eSATA 1 port
Mini-SAS 2 ports
Disk Array RAID 0, 1, 5, 6, 10, 50, 60
Power 100-240VAC; 70W Consumption (w/o HDD)
Operating Temperature -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)
Rack Mountbale Yes; Shelf or Rails are Rec'd, but Not Included
Dimensions (W x D x H) 533 x 484.6 x 175.5mm (21 x 19.1 x 6.9")
Weight (w/o HDD) 12.5kg (27.56lb)
Conformity Certifications FCC, CE (UL - Power Supply only)

Specifications Sheet

User Manual

Installation Guide
