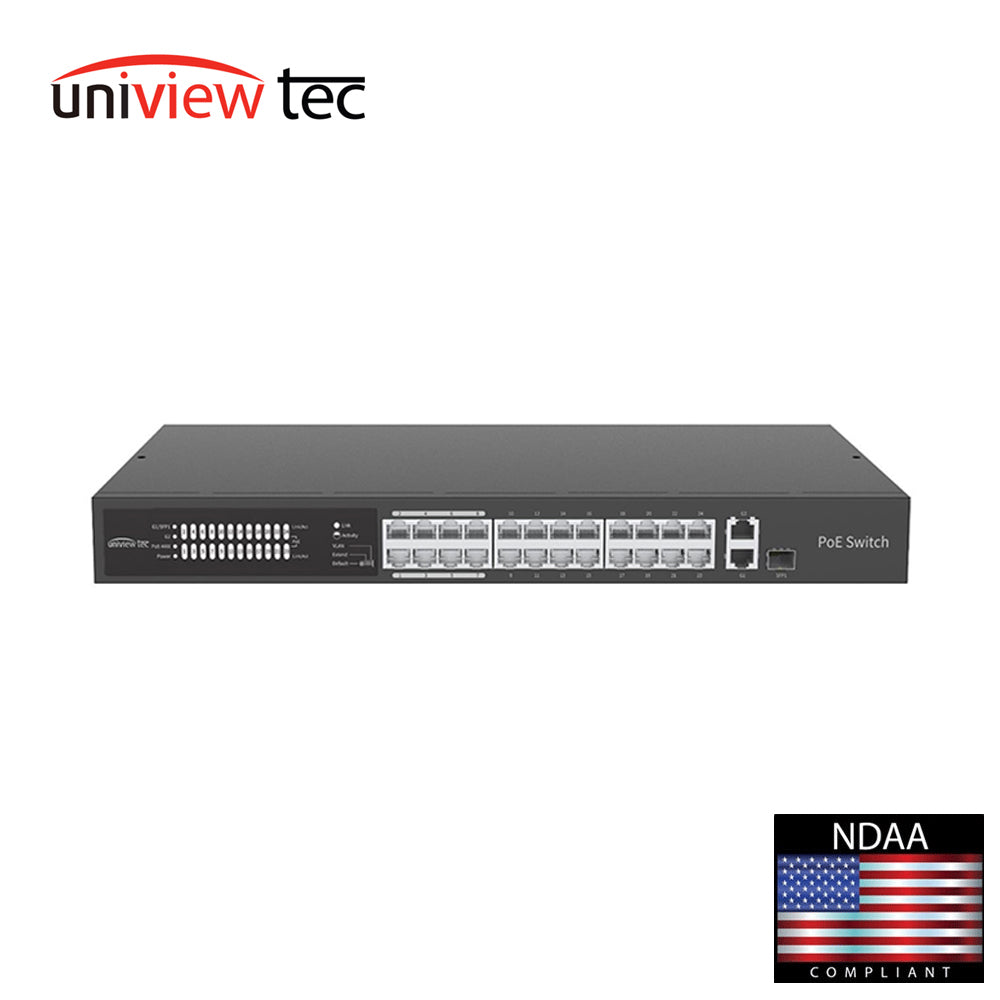

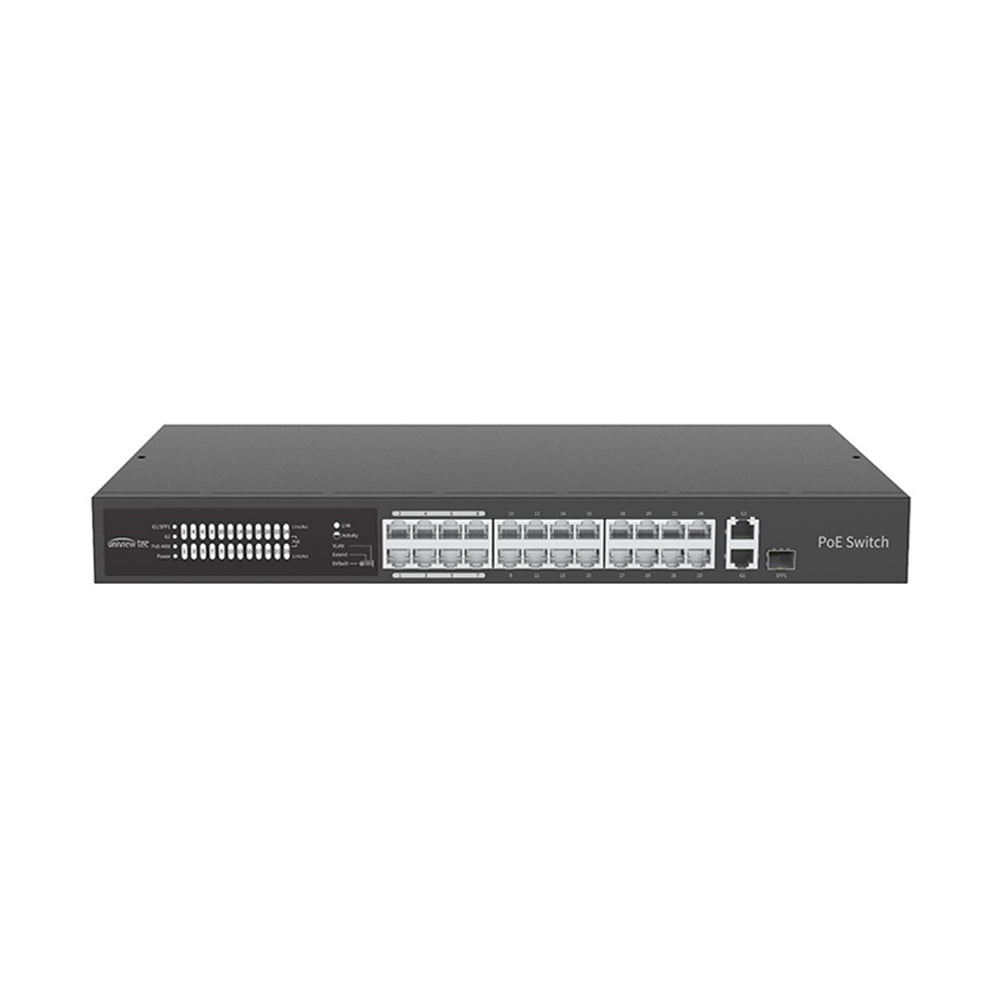

Uniview Tec NSW242PX 24-Port PoE Network Switch
- Product SKU: UVT-NSW242PX
-
Order within
and choose FedEx 2Day® Shipping
People also viewed
Uniview Tec NSW242PX 24-Port PoE Network Switch
Key Features:
- Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
- 24 x 100Mbps RJ45 PoE ports, 370W Total Capacity - model NSW242PX
- Each model has 1 x 1000Mbps SFP port and 2 x 1000Mbps Gigabit Ports
- Support buffer optimization and port traffic control
- Multiple working modes to address all applications: Normal, Secure and Surveillance
- PoE complies with IEEE802.3af/at, up to 30W for single port
- Up to 825ft (250m) transmission distance on EXTEND (Surveillance) mode
- High quality, metal housing and built-in cooling fan
Specifications:
PoE Network Switch:
| Ports | 16 or 24 x 100Base-TX RJ45 PoE ports; 1 x 1000Mbps SFP port and 2 x 1000Mbps Gigabit Ports |
| Standards |
IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3ab, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.3az |
| MAC | 16K |
| Packet Forwarding Rate | 6.55Mpps (24 port) |
| Switching Capacity | 8.8Gbps (24 port) |
| Work Modes |
Default (Normal mode): All ports can communicate with each other.
EXTEND (Surveillance mode): Transmission distance up to 250 meters. VLAN (Secure mode): Downlink ports can communicate only with uplink ports (24 port only) |
| Indicator LED's |
PWR: Steady on: AC input is normal; Off: No AC input PoE: Off: No PoE power supply; Steady on: PoE power supply is normal Flashing: PoE power supply is abnormal LINK/ACT: Off: No link Steady: Linked at 10/100Mbps Flashing: Transmitting data |
| PoE |
802.3at/af: Max capacity for single port = 30W 24-port Max PoE capacity: 370W |
| Cooling Fans | 1, each model |
| AC Voltage | 100-240V, 50/60Hz |
| Operating Temperature | 0° ~ 40°C (32° ~ 104°F) |
| Operating Humidity | 10% ~ 90% non-condensing |
| Dimensions (W x D x H) | 440 x 244.8 x 44mm (17.3 x 9.6 x 1.7") |
| Weight | 2.93kg (6.5lb) |
