Uniview Tec | SKU:
UVT-SBNR8XP
23% off
New arrival

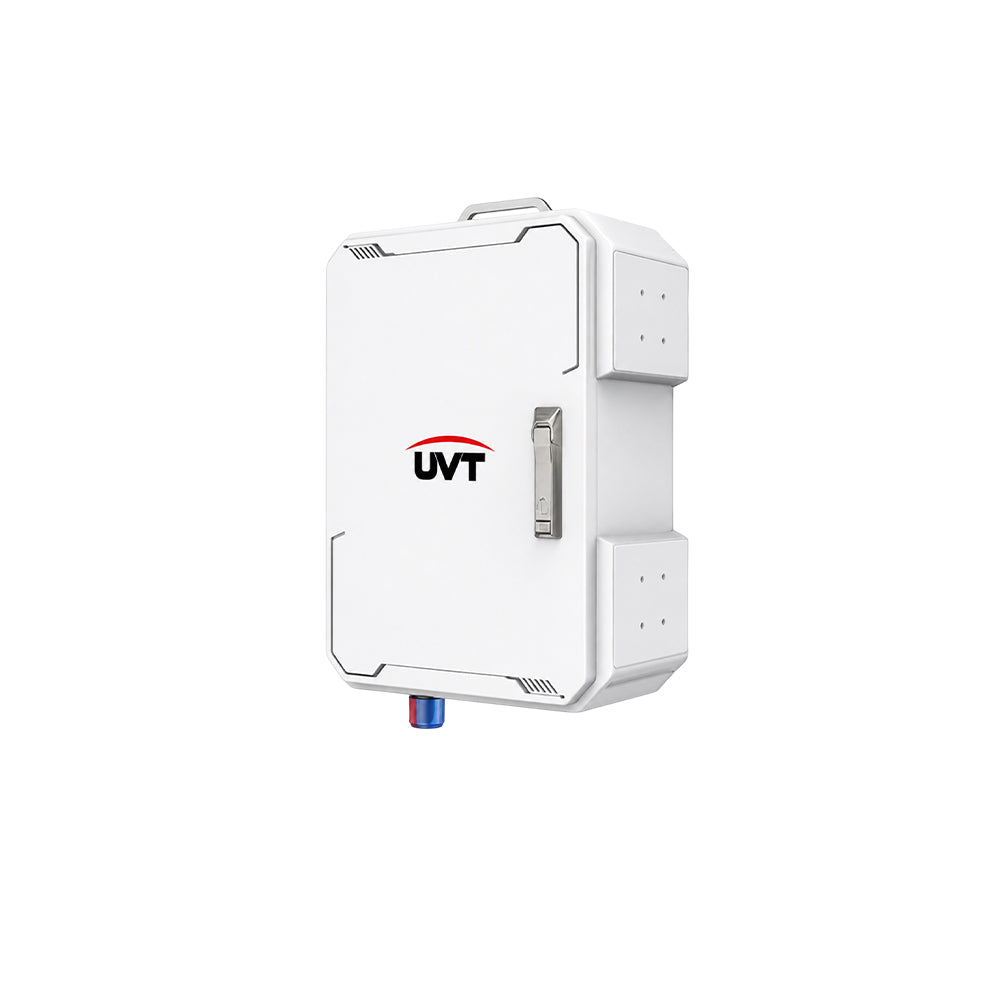

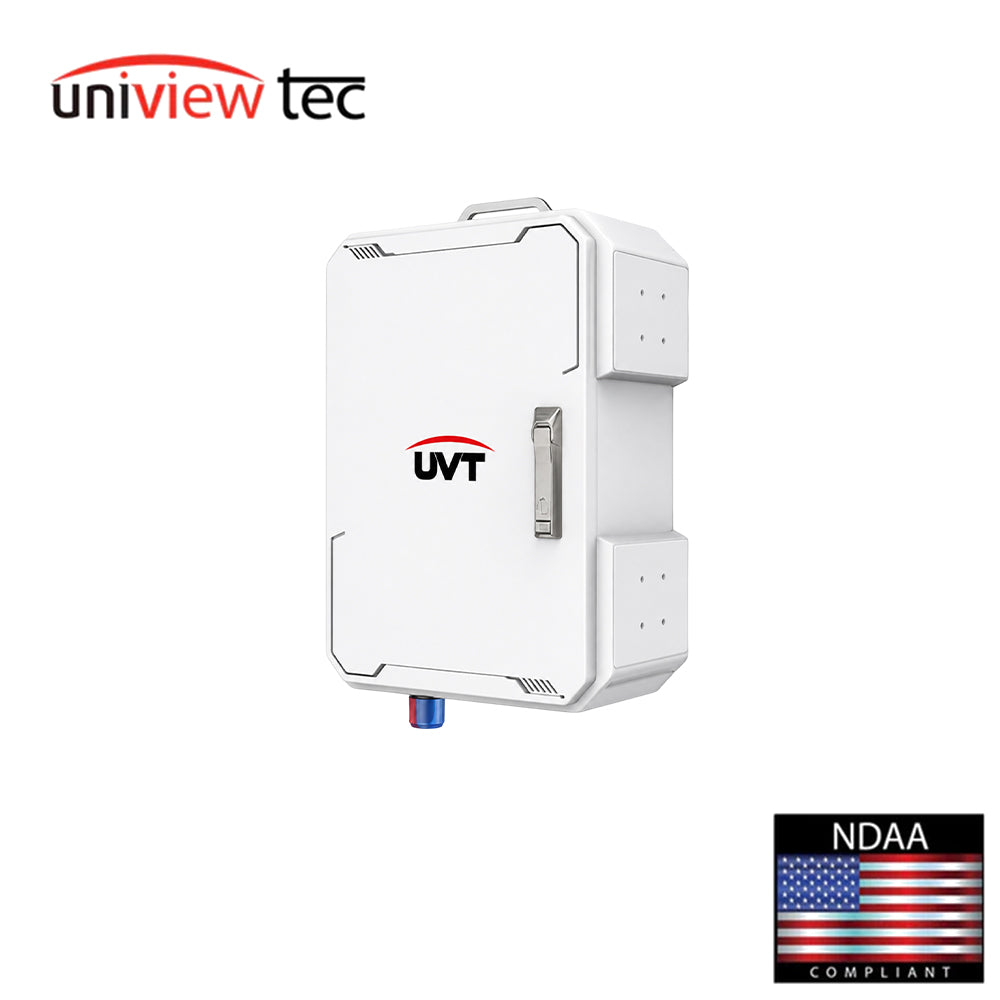

Uniview Tec SBNR8XP Smart Management Box
$7,88900
$10,24545
Unit price
/
Unavailable
Shipping calculated at checkout.
Secure transactionCouldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All in-stock items ship within 24 hours or less, Monday through Friday, between 9:00 AM and 6:00 PM EST. Orders placed after 5 p.m. EST will be shipped next business day.
Learn more about our shipping and return policy.
Return Policy
Return Policy
At Locksmith Keyless, we prioritize your satisfaction and offer a simple return process. Returns are accepted within 30 days of purchase for unused items in original packaging. Certain items, including OEM keys, Lishi tools, and customized orders, are non-returnable. A restocking fee of up to 30% may apply. For a full list of non-returnable items and more details, please refer to our complete return policy.
For damaged, missing, or incorrect items, please contact us within 48 hours of delivery. All returns require an RMA number. Shipping costs for returns are the responsibility of the customer.
View Full Return Policy
Uniview Tec SBNR8XP Smart Management Box
$7,88900
$10,24545
Unit price
/
Unavailable
Description
Description
Uniview Technology SBNR8XP Smart Management Box
Features:
- Fully adheres to National Defense Authorization Act (NDAA) guidelines
- Integrated design combining the SMSERVER, smart power management module, power supply switch, heater, fan, and warning light
- Allows users to remotely monitor the working status of the smart management box and connected devices and receive alarm notifications via mobile app and Star4live
- Supports automatic restart of the power port for network devices. When the smart management box detects a network disconnection, it automatically powers off and restarts the network devices
- Supports manual restart of the PoE port. If devices such as IPC or IP Speaker become faulty, users can manually restart the PoE power output port of the cloud management server via mobile app and Star4live
- Equipped with a surge protector, circuit breaker, and software protection function, providing a three-layer protection mechanism against lightning, short circuit, overvoltage, and overcurrent risks
- Integrated design eliminates the need for manual wiring, simplifying installation for users
Specifications:
| Power Input | |
| Input Type | AC 100 V to 240 V |
| Input Port | 3-pin Connector, For the final installation, a UL 489-certified, 20-ampere circuit breaker must be installed at the front end. |
| Power Output | |
| Socket | 1-ch 5A, US socket |
| DC 12V | 1-ch 2.5A, DC5521, used for powering the router |
| PoE | |
| Interface | 8 RJ45 10M/100M self adaptive Ethernet Interface |
| PoE Power | Max 30 W for single port, Max 75 W in total |
| PoE Standard | IEEE 802.3at, IEEE 802.3af |
| Dedicated Power Interface (Pre-Wired Internal Cabling) | |
| Fan Power Interface | DC12V, 2.5A |
| Heater Power Interface | AC 100 ~ 240V to DC 12V, 8A |
| NVR Power Interface | AC 100 ~ 240V to DC 48V, 2.3A |
| Router Power Interface | DC12V, 2.5A |
| Warning Light Power Interface | DC12V, 2.5A |
| Function | |
| System Functional Description | Overvoltage and Overload Protection, Power Information Collection, Power Switch Detection, Power Switch Control, Thermostatic Fan, Thermostatic Heater, Automatic Network Restart, Door Open Detection, Warning Light, Fault Reporting and Analysis |
| SMSERVER | |
| Decoding Format | Ultra 265, H.265, H.264 |
| Decoding Capability | Smart Off: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 8 x 4MP@30; Smart On: 2 x 12MP@30, 2 x 4K@30, 6 x 4MP@30, 8 x 3MP@30 |
| Audio Compression | G.711A, G.711U |
| Bandwidth | 80 Mbps |
| Protocols | TCP/IP, P2P, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, IPv6, IPv4 |
| IP Video Input | 8-ch |
| FTP/Schedule/Event Snapshot | 4-ch snapshot (max. 8 MP (3840 x 2160) video resolution, with 1080P snapshot resolution) |
| Recording Resolution | 16 MP/ 12 MP/ 8 MP/ 6 MP/ 5 MP/ 4 MP/ 3 MP/ 1080P/ 960P/ 720P/ D1/ 2CIF/ CIF |
| Smart by IPC | Face Detection, Face Comparison, Vehicle Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Ultra Motion Detection (UMD), Temperature Detection (Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection), People Counting (People Flow Counting, Crowd Density Monitoring), Video Metadata, Traffic Monitoring |
| Smart by SMBOx | Face Detection, Face Comparison, Ultra Motion Detection (UMD), Smart Intrusion Prevention (SIP) |
| VCA Search | Face Snapshot Search, Face Comparison Search, Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map, SmartSearch+, AcuSearch |
| By SMBOx with Face Detection Cameras | 8-ch |
| By SMBOx with Normal Cameras | 2-ch |
| Vehicle Picture Library | Up to 5 vehicle picture libraries, with up to 25,000 vehicle pictures in total |
| SIP by SMBOx | 4-ch |
| UMD by SMBOx | 8-ch |
| Capacity of Snapshot Records | 500 thousand records for face snapshot, One and a half millions records for SIP and vehicle |
| General Alarm | Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection |
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal, Array Damaged, Array Degraded |
| External Interface | |
| Network Interface | 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface |
| USB | 1 x USB2.0, 1 x USB3.0 |
| Alarm In | 4-ch |
| Alarm Out | 2-ch |
| ONVIF | Support |
| Hard Disk | |
| Hard Disk | 1 x SATA interface, up to 16TB HDD (2.5" or 3.5"), or up to 4TB SSD (2.5") |
| Power Lightning Protector | |
| Maximum Discharge Current | 40 kA |
| Rated Discharge Current | 20 kA |
| Response Time | L-PE ≤ 25 ns, N-PE ≤ 25 ns |
| General | |
| Surge Protection | 6 kV |
| Working Temperature | When using HDDs: -40 °C to 60 °C (-40 °F to 140 °F); When using SSDs: -40 °C to 70 °C (-40 °F to 158 °F) |
| Working Humidity | ≤ 90% RH (non condensing) |
| Weight (Without Camera) | ≤ 16 kg (35.27 lb) |
| Dimensions | 650 (H) x 424 (W) x 230 (D) mm |
| Slot Dimensions | The space has a depth of 55mm and a width of 190mm for installing a 4G router, Select a 4G router with DC 12V round plug power supply, total power consumption not exceeding 30W, and at least 2 LAN ports. |
| Rating | IP56, Custom stainless-steel enclosures available to meet NEMA 4x requirements. |
| Certification | CE-EMC, FCC |
| Consumption | |
| No-load Power Consumption | At ambient temperature of 25°C: 13.7 W (No HDD, No HDD heating, No Heater, No Fan, No Alarm Light) |
| Full-load Power Consumption | At ambient temperature of 25°C: 247.2 W (16T HDD, HDD Heating, Heater, Full POE Output (75W), Fan, Alarm Light) |
| SMSERVER Power Consumption | At ambient temperature of 25°C: ≤8W (No HDD + No POE Output); 96.5W (Full POE Output + 16T HDD); 122.2W (Full POE Output + 16T HDD + Heating Film) |
| Adaptable Mounting Bracket | |
| Left Side | Up to 2 units can be installed, supporting TR-JB07/WM03-F-IN-V2, TR-JB07/WM03-G-IN-V2, TR-JB07/WM03-H-IN-V2, TR-JB07/WM04-B-IN-V2, TR-JB05-B-IN or TR-JB07-D-IN-V2 |
| Right Side | Up to 2 units can be installed, supporting TR-JB07/WM03-F-IN-V2, TR-JB07/WM03-G-IN-V2, TR-JB07/WM03-H-IN-V2, TR-JB07/WM04-B-IN-V2, TR-JB05-B-IN or TR-JB07-D-IN-V2 |
| Bottom | Up to 1 unit can be installed, which cannot be installed simultaneously with the IP Speaker and supports TR-UF45-A-IN (Only 4-inch PTZ) |
| Top | Support the installation of an IP speaker, no mounting bracket required. |
