Uniview Tec UHDB5L28X HD Analog Bullet Camera with IR, 5MP and DWDR...
Description
Description

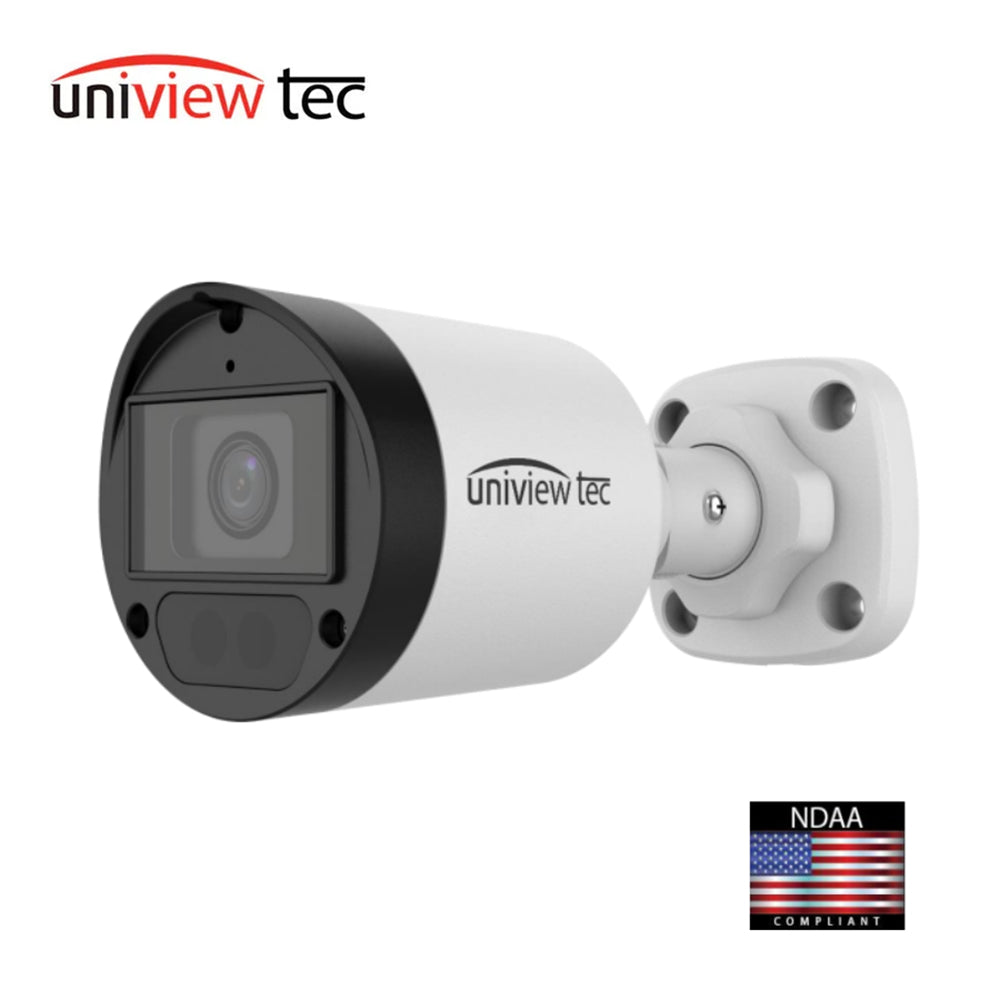

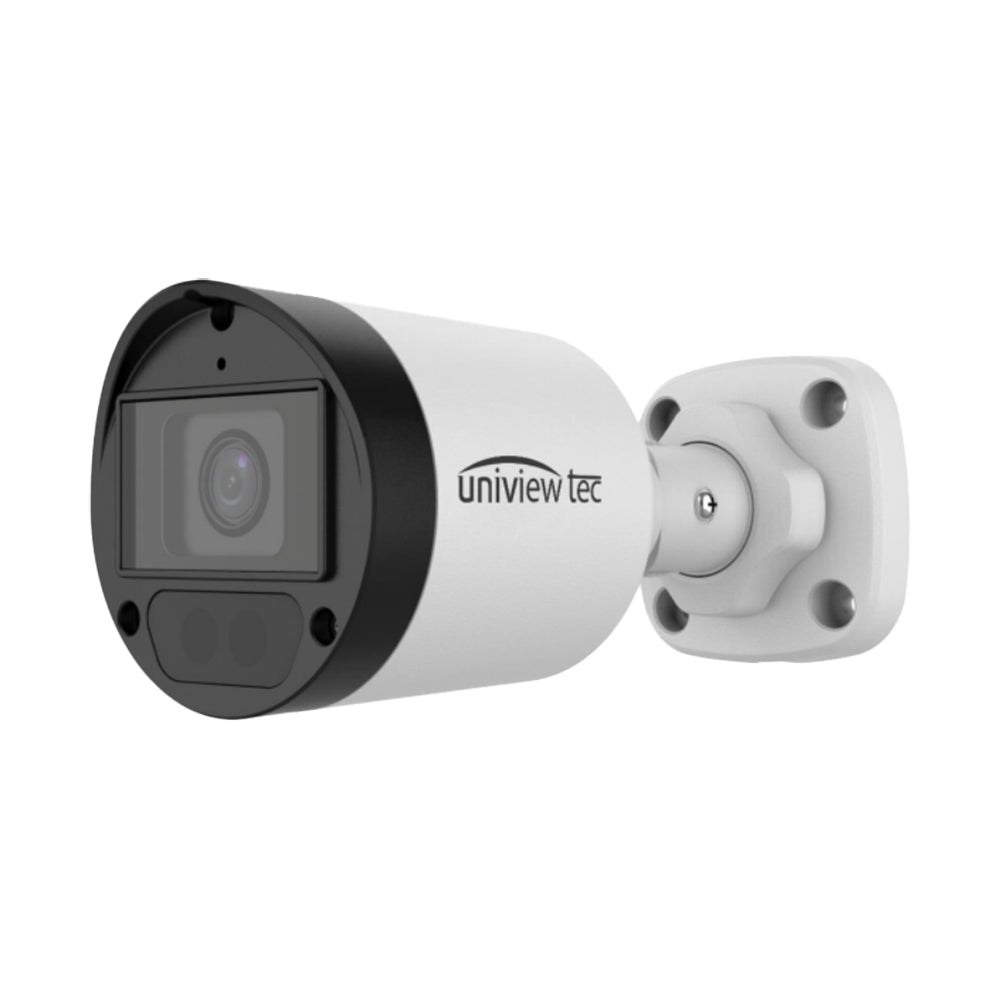

Uniview Tec UHDB5L28X HD Analog Bullet Camera with IR, 5MP and DWDR Functionality
Key Features:
- Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
- High Video Quality with 5MP, 2880 x 1620 Resolution
- High Definition Analog (HD Analog) over Coax Technology, utilizes existing Coax Cables & BNC Connectors, allowing Mega-pixel Video Images without any rewiring necessary
- Smart IR illumination up to 131 feet, TRUE Day/Night and DWDR functionality
- TVI, AHD, CVI and CVBS Protocol selectable - Engineered to work with UVT Hybrid NVR's for Maximum Stability and Performance
- 2.8mm fixed lens, Backlight Compensation and 2D DNR (Digital Noise Reduction)
- Built-in Microphone for High Quality Audio Transmission via Coax Cables
- Supports 180° horizontal flip, 180° vertical flip, 3-Axis Mount
- Easy to Operation On Screen Display (OSD) Configuration Menu
- 12VDC Power Options; IP67 Weather Resistant Housing with Optional Mounts
- Supported by Uniview Tec Guard Station Client Software, Guard Live and Guard Viewer Mobile App's for iPhone or Android Devices
Specifications:
| Sensor | ||
|---|---|---|
| Pixel | 5MP | |
| Size | 1/2.7" CMOS | |
| Minimum illumination | 0.005 lux (F1.6, AGC ON) 0 lux (IR on) |
|
| Lens | ||
| Focal Length | 2.8mm | |
| Angle of View (H x V x D) | 109.1° x 60.9° x 126.7° | |
| IR Illumination | ||
| IR | 40M (131ft); Smart support | |
| Video | ||
| Resolution | 5MP @ 25fps: 2880(H) x1620(V); 5MP @ 20fps: 2592(H) x 1944(V); 5MP @ 12.5fps: 2592(H) x 1944(V) 4MP: 2560(H) x 1440(V) 1080P: 1920(H) x 1080(V |
|
| Frame rate | TVI: 5MP @ 20fps (default), 5MP @ 12.5fps, 4MP @ 25fps, 4MP @ 30fps, 1080P @ 25fps, 1080P @ 30fps AHD: 5MP @ 20fps, 4MP @ 25fps, 4MP @ 30fps, 1080P @ 25fps, 1080P @ 30fps CVI: 5MP @ 25fps, 4MP @ 25fps, 4MP @ 30fps, 1080P @ 25fps, 1080P @ 30fps CVBS: PAL, NTSC |
|
| Shutter time | PAL: 1/25s - 1/50000s NTSC: 1/30s - 1/50000s |
|
| Image | ||
| Exposure mode | 4 modes: Global (default), BLC, HLC, DWDR | |
| Day/Night | Three modes: Auto (default), Day, Night | |
| Digital noise reduction | 2D | |
| White balance | Two modes: Auto (default), ManuaL | |
| WDR | DWDR | |
| Flip | Supports 180° horizontal flip, 180° vertical flip. | |
| Defog | N/A | |
| Audio | ||
| Microphone | Built-in | |
| Camera Audio | TVI: 5MP@20fps, 5MP@12.5fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps CVI: 5MP@25fps, 4MP@25fps, 4MP@30fps |
|
| Interface | ||
| Power | 5.5mm power interface | |
| Video output | BNC; supports TVI / AHD / CVI / CVBS | |
| Operating Environment | ||
| Temperature | -30°C to 60°C (-22°F to 140°F) | |
| Humidity | ≤95% (RH, non-condensing) | |
| Surge protection | 4KV | |
| Ingress protection | IP67 | |
| General | ||
| Power | DC 12V(±25%), with reverse polarity protection and surge protection, Max 3.4W | |
| Mount | Corner Mount and Pole Mount available | |
| Dimensions (L x W x H) | 154 x 66 x 66mm (5.9 x 2.6 x 2.6") | |
| Material | Graphene, Metal and Plastic | |
| Weight | 240g (0.53lb) | |
| Certification | CE, FCC | |
