Uniview Tec | SKU:
UVT-KNR8UB4
23% off
New arrival

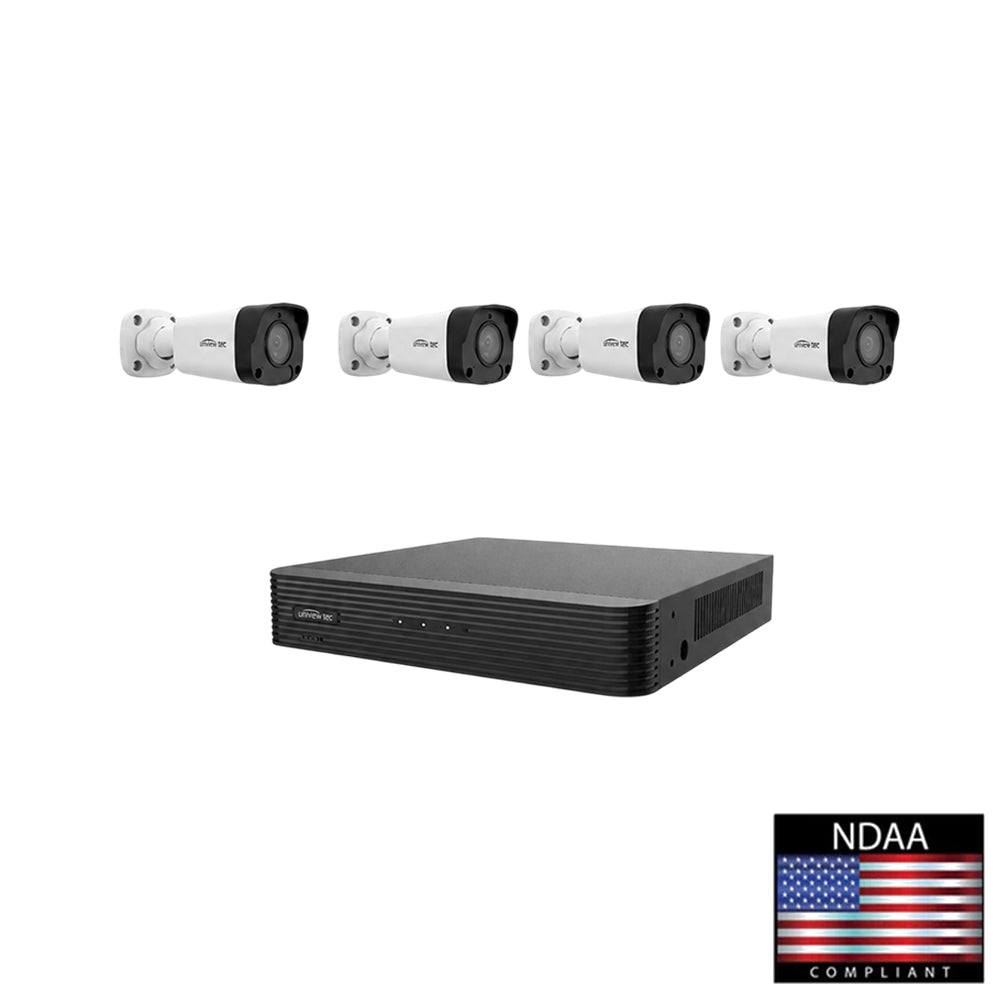

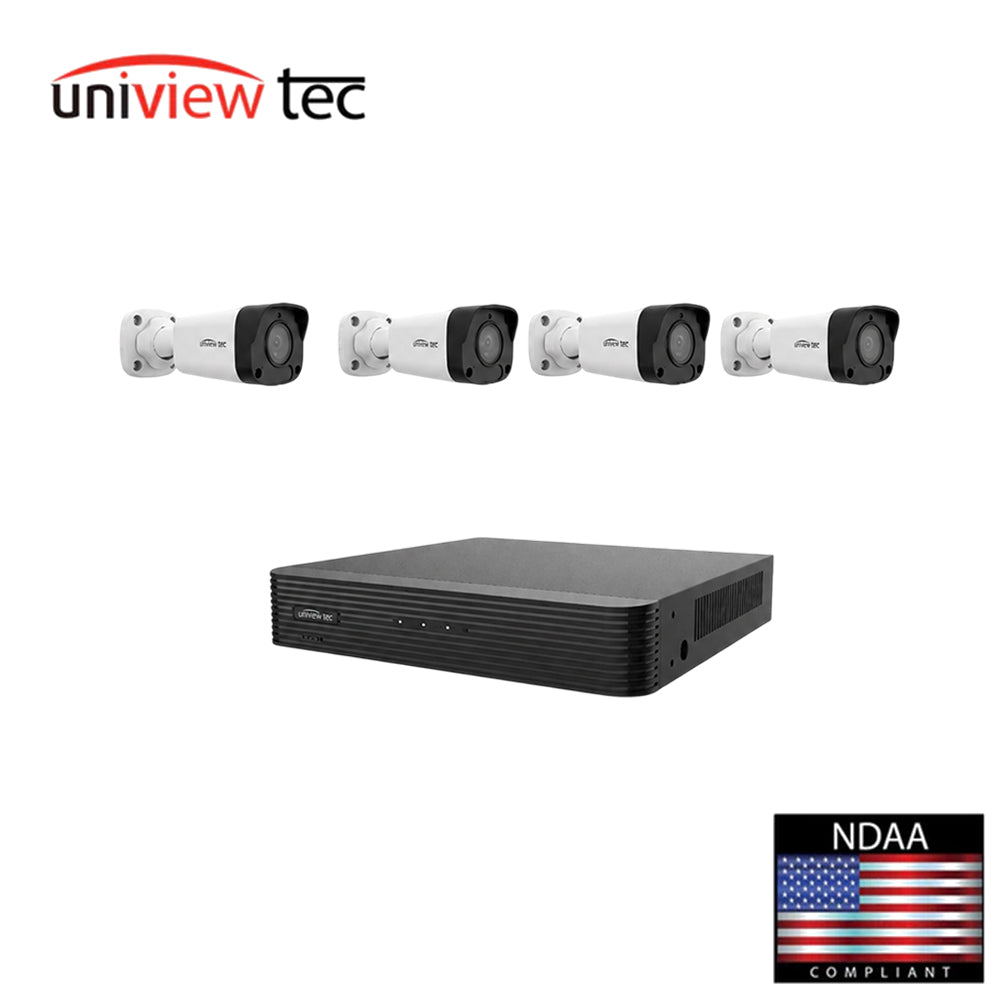

Uniview Technology KNR8UB4 5MP DWDR IR Bullet IP Camera Kit with 8 Channel 4K H.265 NVR, 8 PoE Ports and 2TB HDD
$99700
$1,29481
Unit price
/
Unavailable
Shipping calculated at checkout.
Secure transactionCouldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All in-stock items ship within 24 hours or less, Monday through Friday, between 9:00 AM and 6:00 PM EST. Orders placed after 5 p.m. EST will be shipped next business day.
Learn more about our shipping and return policy.
Return Policy
Return Policy
At Locksmith Keyless, we prioritize your satisfaction and offer a simple return process. Returns are accepted within 30 days of purchase for unused items in original packaging. Certain items, including OEM keys, Lishi tools, and customized orders, are non-returnable. A restocking fee of up to 30% may apply. For a full list of non-returnable items and more details, please refer to our complete return policy.
For damaged, missing, or incorrect items, please contact us within 48 hours of delivery. All returns require an RMA number. Shipping costs for returns are the responsibility of the customer.
View Full Return Policy
Uniview Technology KNR8UB4 5MP DWDR IR Bullet IP Camera Kit with 8 ...
$99700
$1,29481
Unit price
/
Unavailable
Description
Description
Uniview Technology KNR8UB4 5MP DWDR IR Bullet IP Camera Kit with 8 Channel 4K H.265 NVR, 8 PoE Ports and 2TB HDD
Features:
- Fully complies with National Defense Authorization Act (NDAA) guidelines.
- Includes an 8-channel network video recorder (NVR) with H.265 compression for efficient storage and recording.
- Supports one SATA hard drive up to 8TB capacity.
- Built-in PoE switch for all video channels.
- Supports recording at up to 8MP (3840 x 2160) Ultra HD resolution.
- HDMI output up to 4K (8MP) resolution.
- Simultaneous mirrored display through HDMI and VGA outputs.
- Supports cloud firmware upgrades for both the NVR and cameras with automatic update detection.
- Compatible with ONVIF Profile S devices.
- Works with Guard Station Client Software, Guard Live, and Guard Viewer mobile apps for iPhone and Android.
- Includes four 5MP IP cameras (IPB5U28X).
- Delivers 5MP (2592 x 1944) high-definition video quality.
- Powerful Smart IR LEDs provide night vision up to 98 ft (30 m) with 0 Lux illumination.
- Equipped with a 2.8mm fixed lens for wide-area coverage.
- Built-in microphone for audio recording.
- Features Backlight Compensation (BLC) for improved image clarity in challenging lighting conditions.
- Supports 2D and 3D Digital Noise Reduction (DNR) for enhanced image quality.
- ONVIF Profile Series compliant for broad compatibility with third-party systems.
Specifications:
| NVR - Video & Audio Inputs | |
| IP Video Input | 8-ch |
| Audio Input | 1-ch, RCA |
| Video & Audio Outputs | |
| VGA Output | 1920 x 1080p / 60Hz, 1920 x 1080p / 50Hz, 1600 x 1200 / 60Hz, 1280 x 1024 / 60Hz, 1280 x 720 / 60Hz, 1024 x 768 / 60Hz |
| HDMI Output | 3840 x 2160 / 30Hz, 1920 x 1080p / 60Hz, 1920 x 1080p / 50Hz, 1600 x 1200 / 60Hz, 1280 x 1024 / 60Hz, 1280 x 720 / 60Hz, 1024 x 768 / 60Hz |
| Audio Output | 1-ch, RCA |
| Audio Compression | G.711A, G.711U |
| Synchronous Playback | 8 |
| Live View Display | 1 / 4 / 6 / 8 / 9 |
| Network | |
| Incoming Bandwidth | 50Mbps |
| Outgoing Bandwidth | 40 Mbps |
| Remote Users | 128 |
| Protocols | TCP/IP; P2P; UPnP; DHCP; HTTP; HTTPS; DNS; DDNS; SMTP; RTSP; IPv4 |
| Supported Browsers | IE(IE10/11), Firefox (52+), Chrome (45+), Edge (79+) |
| Decoding | |
| Decoding Format | H.265 / H.264 |
| Live View / Playback | 8MP / 6MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P / D1 / 2CIF / CIF |
| Capability | 1 x 4K@30, 2 x 6MP@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25, 4 x 1080P@30 |
| Hard Disk Drives | |
| SATA | 1 SATA Interface |
| Capacity | Up to 8TB |
| Smart Features | |
| VCA Detection | Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, UMD (Ultra Motion Detection) |
| VCA Search | Behavior Search |
| Smart Intrusion Prevention / UMD | 4-ch |
| External Interface | |
| Network Interface | 1 RJ45 10M/100M Ethernet |
| USB Interface | 2 x USB2.0 (Rear Panel) |
| PoE | |
| Interface | 8 x RJ-45 10M/100M |
| Max Power | 30W per port, 75W total |
| Supported Standard | IEEE 802.3af/at |
| General | |
| Power Supply | 52V DC / 1.8A; ≤10W (without HDD) |
| Working Environment | -10°C ~ +55°C, Humidity ≤90% RH (non-condensing) |
| Dimensions | 260 x 243 x 46mm (10.2 x 9.6 x 1.8") |
| Weight | ≤1.2kg (2.65lb) |
| Certifications | |
| Certifications | FCC, CE (UL - Power Supply only) |
| Camera | |
| Sensor | 5MP 1/3.0" CMOS |
| Minimum Illumination | 0.01 Lux (Color), 0 Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto / Manual, 1 ~ 1/100000s |
| Adjustment Angle | Pan 0°~360°, Tilt 0°~90°, Rotate 0°~360° |
| WDR | DWDR |
| S/N Ratio | >52dB |
| Lens | |
| Lens | 2.8 mm, F2.0 |
| Field of View | H: 94.3°, V: 52.2°, O: 99.6° |
| DORI | |
| DORI (Detect) | 63.0m (206.7ft) |
| DORI (Observe) | 25.2m (82.7ft) |
| DORI (Recognize) | 12.6m (41.3ft) |
| DORI (Identify) | 6.3m (20.7ft) |
| Illuminator | |
| IR Distance | 30m (98.4ft), 850nm, Auto/Manual |
| Video | |
| Video Compression | Ultra 265 / H.265 / H.264 |
| Frame Rate | Main Stream up to 5MP@20fps, 1080P@30fps |
| Bit Rate | 128Kbps ~ 6144Kbps |
| Video Stream | Dual Stream |
| Image | |
| White Balance | Auto / Outdoor / Fine Tune / Sodium Lamp / Locked / Auto2 |
| Noise Reduction | 2D / 3D DNR |
| HLC / BLC / Defog | Supported |
| Audio | |
| Audio | G.711U/A, 64Kbps, 8KHz, Built-in Mic |
| Network (Camera) | |
| Protocols | IPv4, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, HTTP, HTTPS, SSL/TLS |
| Integration | ONVIF Profile S/T, API, SDK |
| User Access | Up to 32 users |
| Security | HTTPS, TLS 1.2, RTSP/HTTP authentication |
| General (Camera) | |
| Power | DC 12V ±25% / PoE IEEE 802.3af, Max 3.9W |
| Dimensions | 157.5 x 62.5 x 62.7mm |
| Weight | 0.19kg (0.42lb) |
| Protection | IP67, 4KV surge protection |
