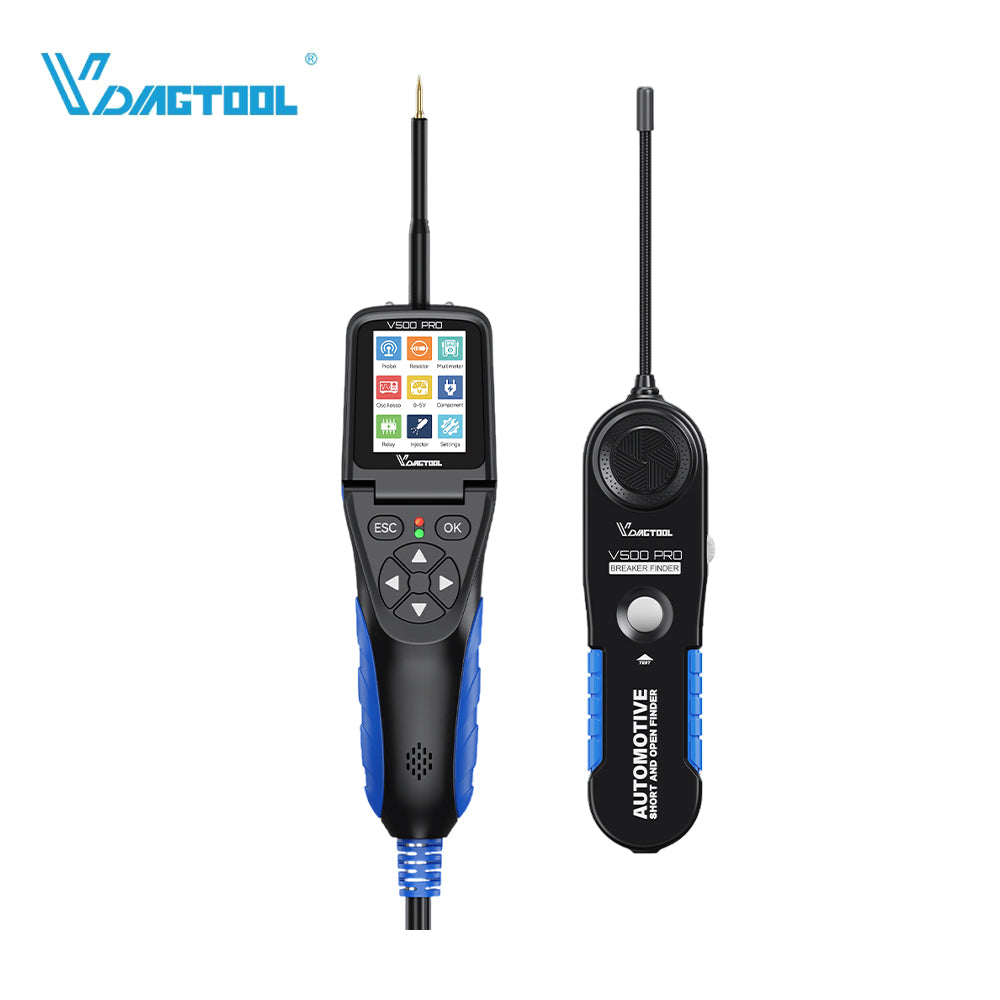

VDIAGTOOL V500 Pro 2 in 1 Intelligent Power Circuit Probe Tester and Circuit Breaker Finder
The VDIAGTOOL V500 Pro is a next-generation automotive electrical system tester with a 2.36-inch LCD display, designed to accurately test all 9V-30V vehicle electrical systems.
Features:

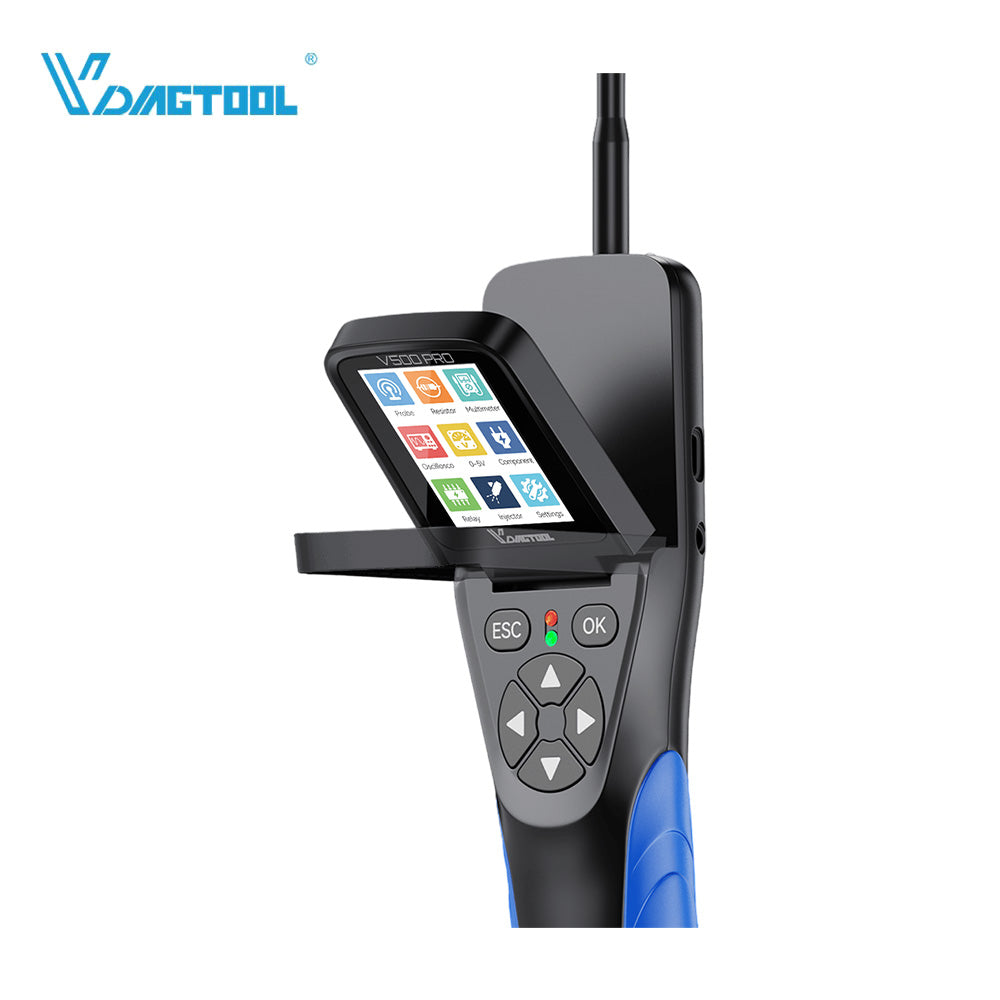

- Foldable LCD Screen: 90 Degree adjustable display for versatile viewing angles.
- Open & Short Circuit Detection: Fast, precise fault location for complex circuits.
- Oscilloscope Function: Visualize waveforms, detect transient problems, analyze frequency.
- Relay Testing: Voltage, coil resistance, action, and delay checks for reliable operation.
- Smart Test & Multimeter Mode: Auto-detect voltage, current, resistance; wide measurement range.
- Component Activation & Injector Test: Quick diagnostics for injectors and other components.
- Breaker Finder (Mode 2): Locate open/short circuits, trace wires, test intermittents with flexible probe.
- 0-5V Power Supply: Stable low-voltage output for sensors, relays, and module testing.
- Wide Vehicle Compatibility: Cars, SUVs, trucks, motorcycles, buses, and ships (9-30V DC).
- Multi-language Support: English, Chinese, French, Spanish, German, Russian, Italian, Portuguese, Polish.
- Software Updates via PC: Easy firmware upgrades for new vehicles and features.
Specifications:
| Operating Voltage | 9-30V DC |
| Voltage Measurement | 2 mV - 100 V |
| Current Measurement | 2 mA - 25 A |
| Resistance Measurement | 0 - 10 MΩ |
| Frequency Measurement | 10 Hz - 1000 kHz |
| Oscilloscope Waveform Display | 10 Hz - 100 kHz |
| Power Supply Output | 0-5 V adjustable |
| Operating Temperature | 0-50°C (32-122°F) |
| Storage Temperature | -20-70°C (-4-158°F) |
| Display | 2.36-inch LCD, foldable 90° |

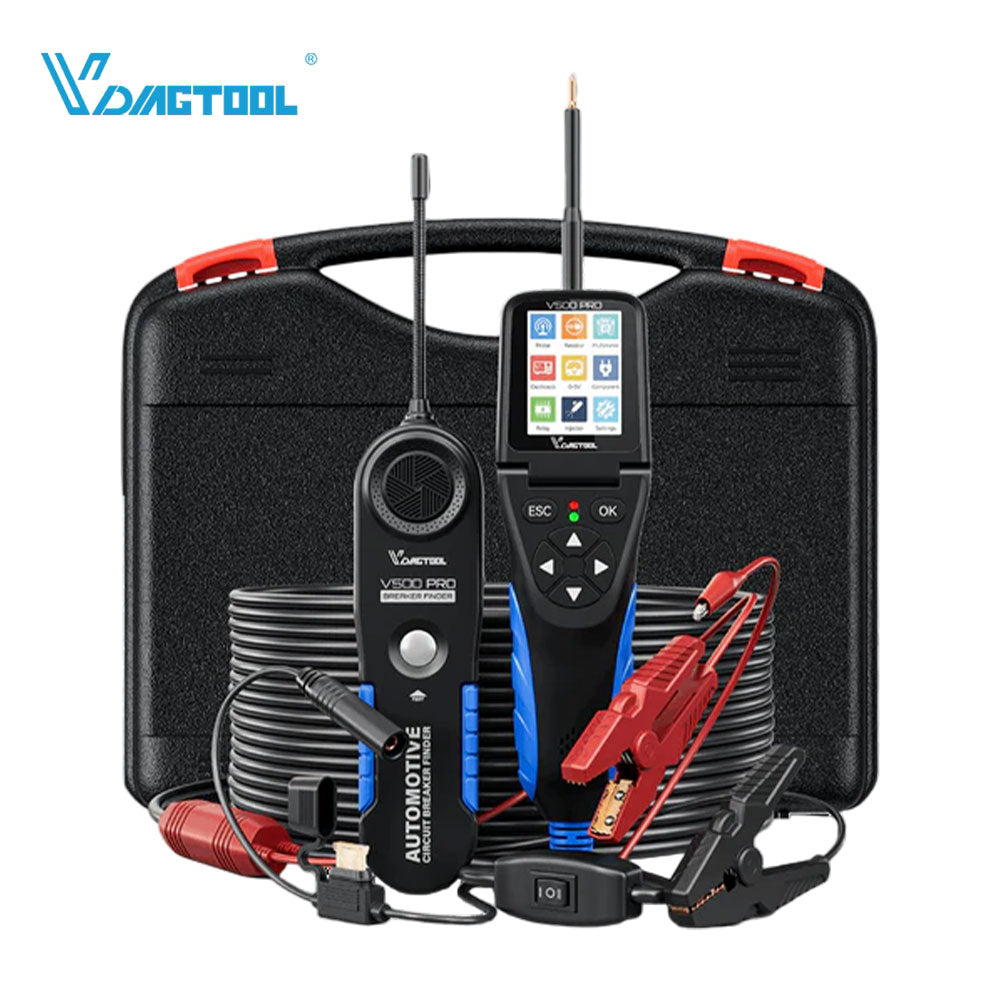

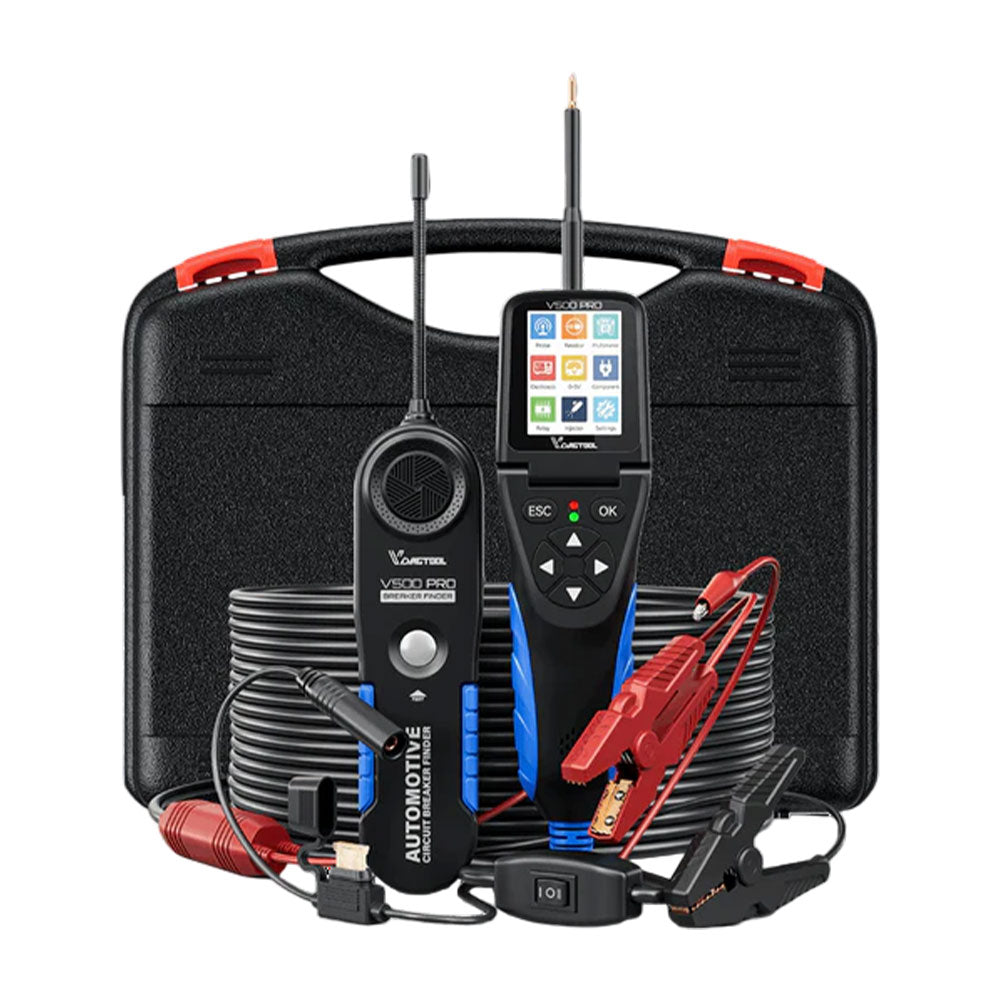

Packing List:

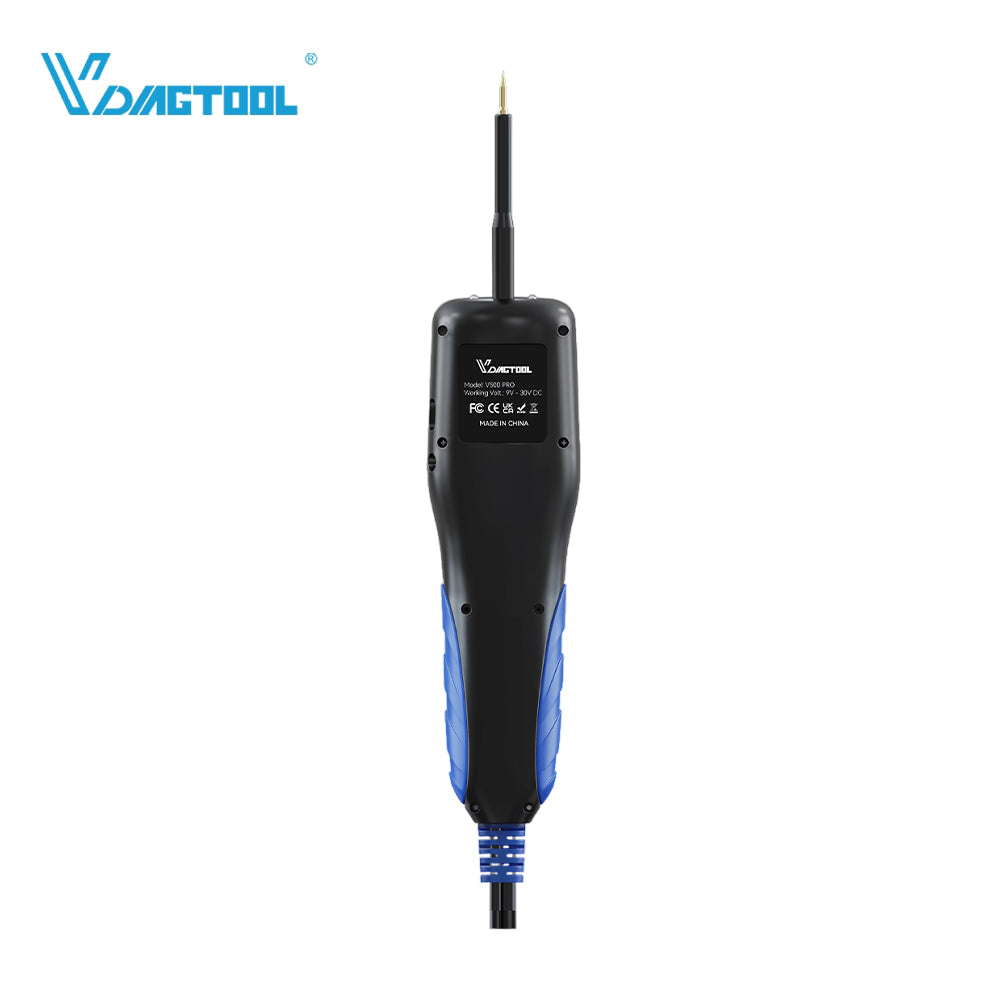

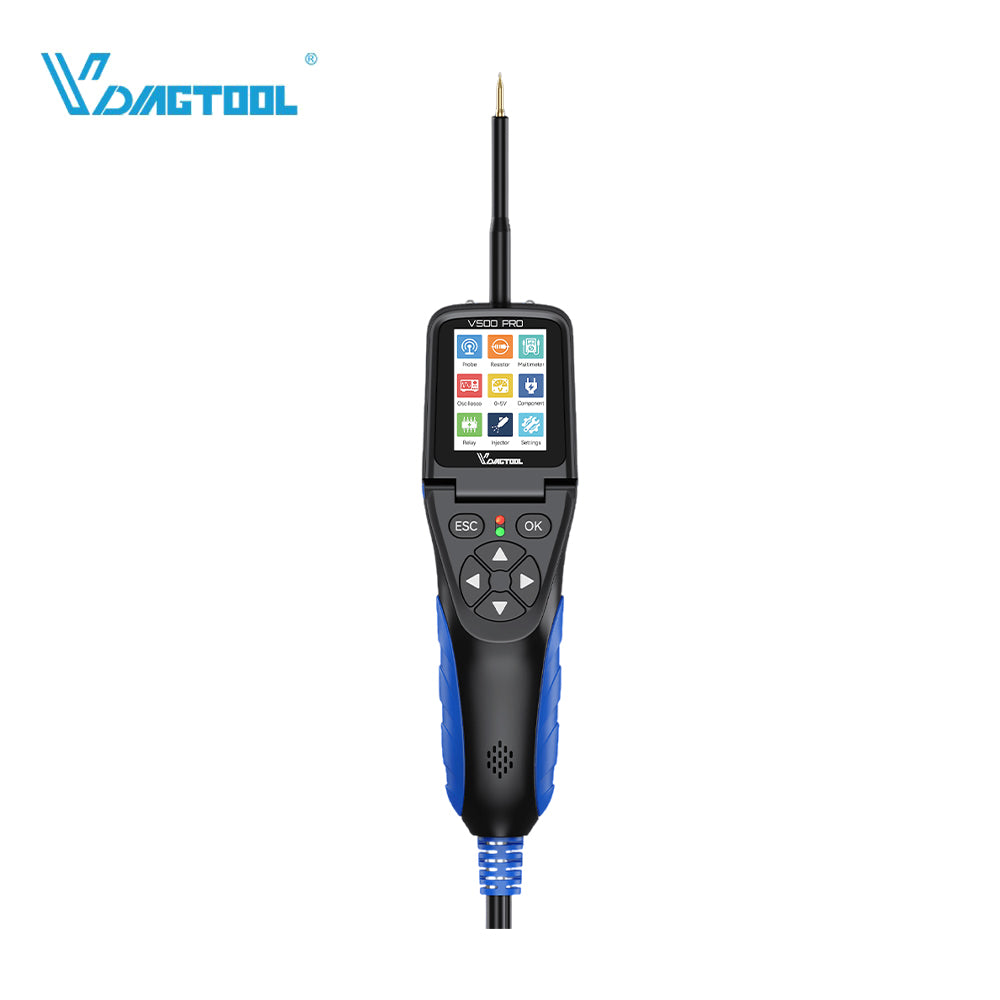

- V500 Pro Circuit Probe Tester x 1

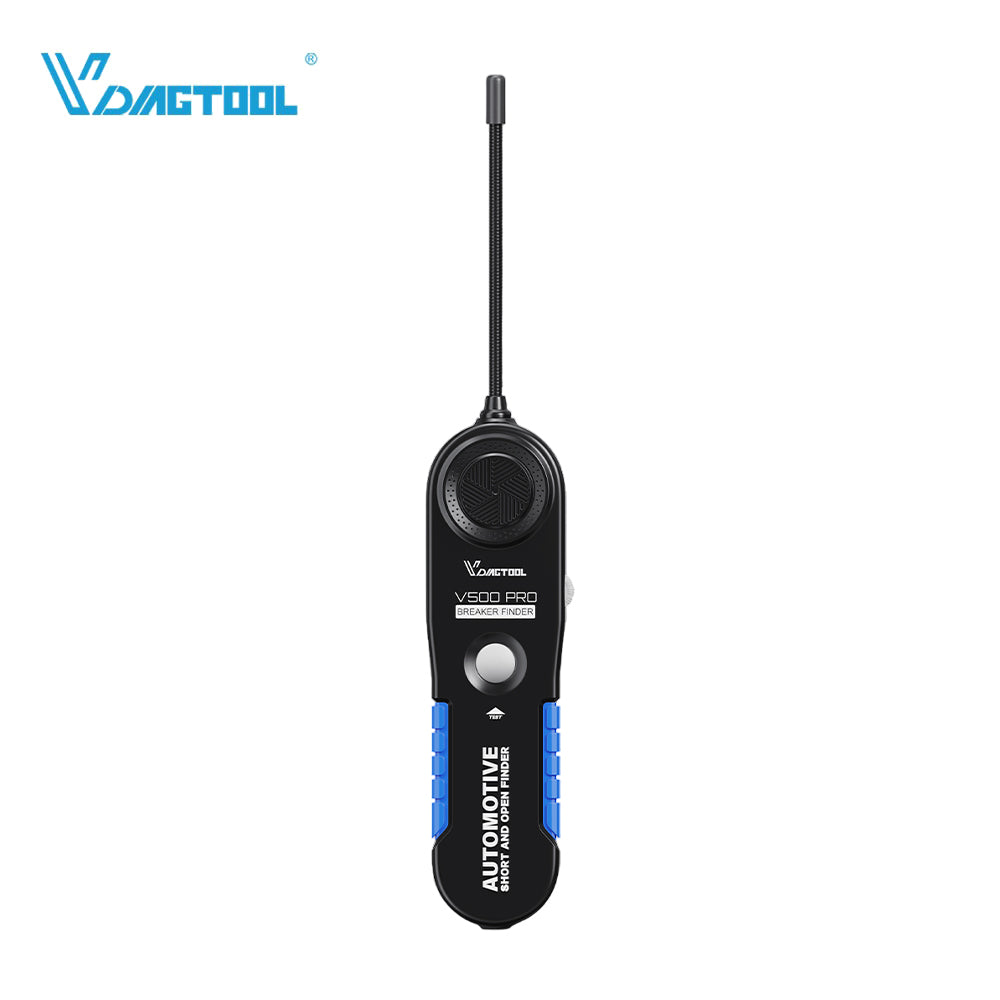

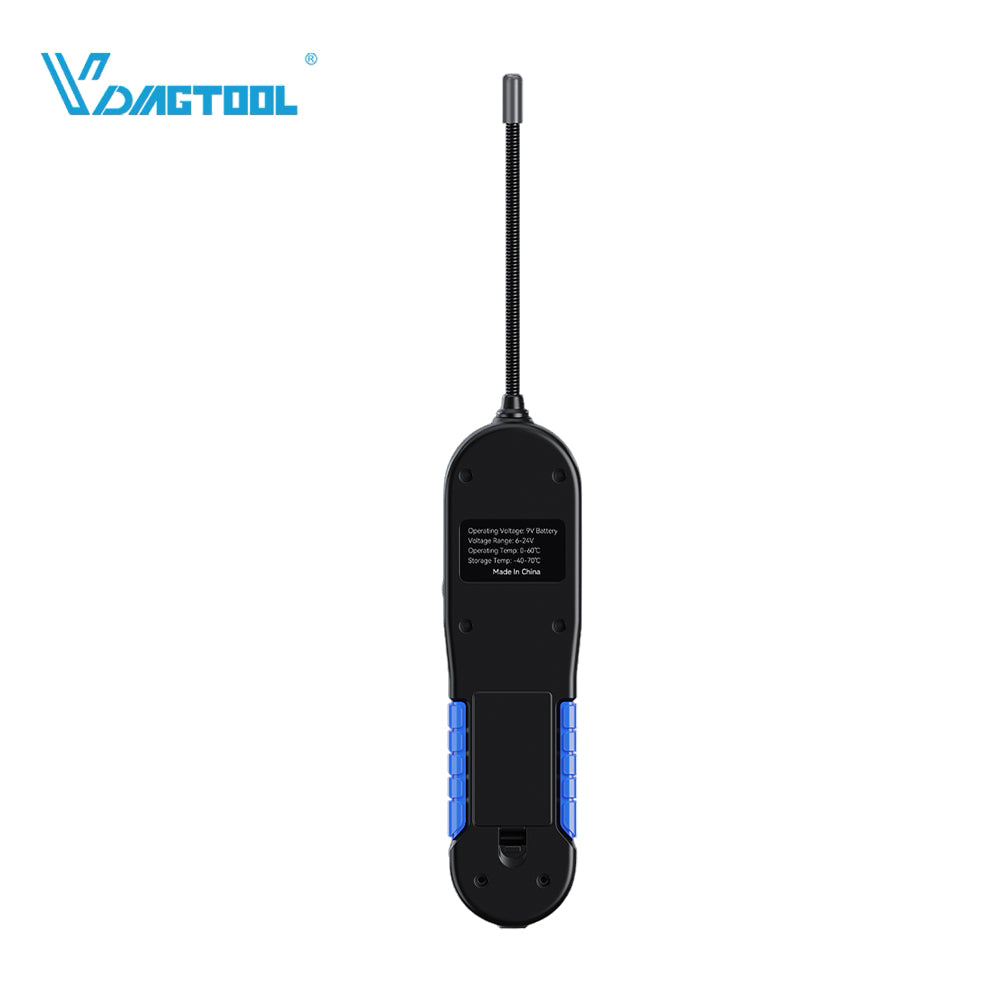

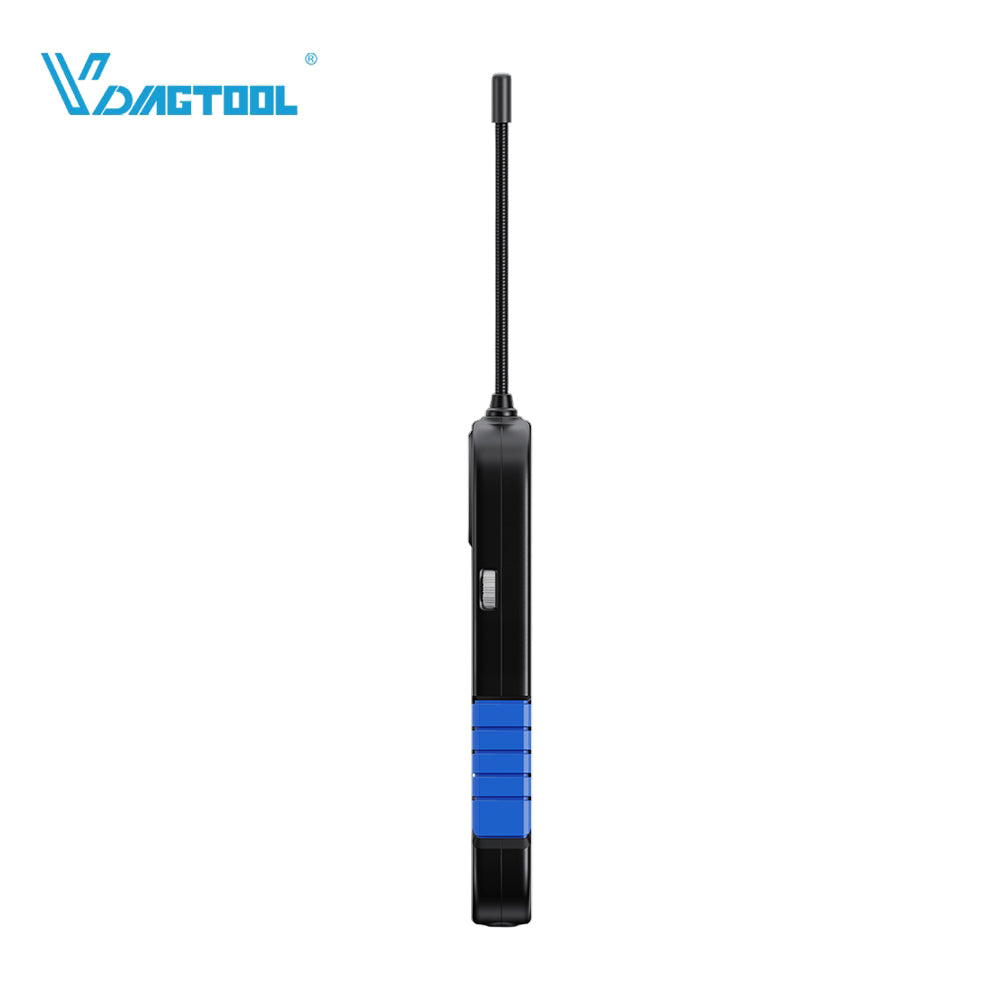

- V500 Pro Short/Open Circuit Finder x 1
- Probe Tip x 1
- Fine Probe Tip x 1
- Probe Tip Extension Cable x 1
- Wire Piercing Probe x 2
- Banana to Banana Plug Test Lead x 2
- Banana Plug to Alligator Clip x 1
- Alligator Battery Clip x 1
- Relay Test Cable x 1
- Fuse x 3
- Type-C Data Cable x 1
- User's Manual x 1
