Von Duprin - 2227EO-4-689 - Surface Vertical Rod Exit Bar - 48" Device - Exit Only - Aluminum Painted Finish - Field Reversible - Grade 1

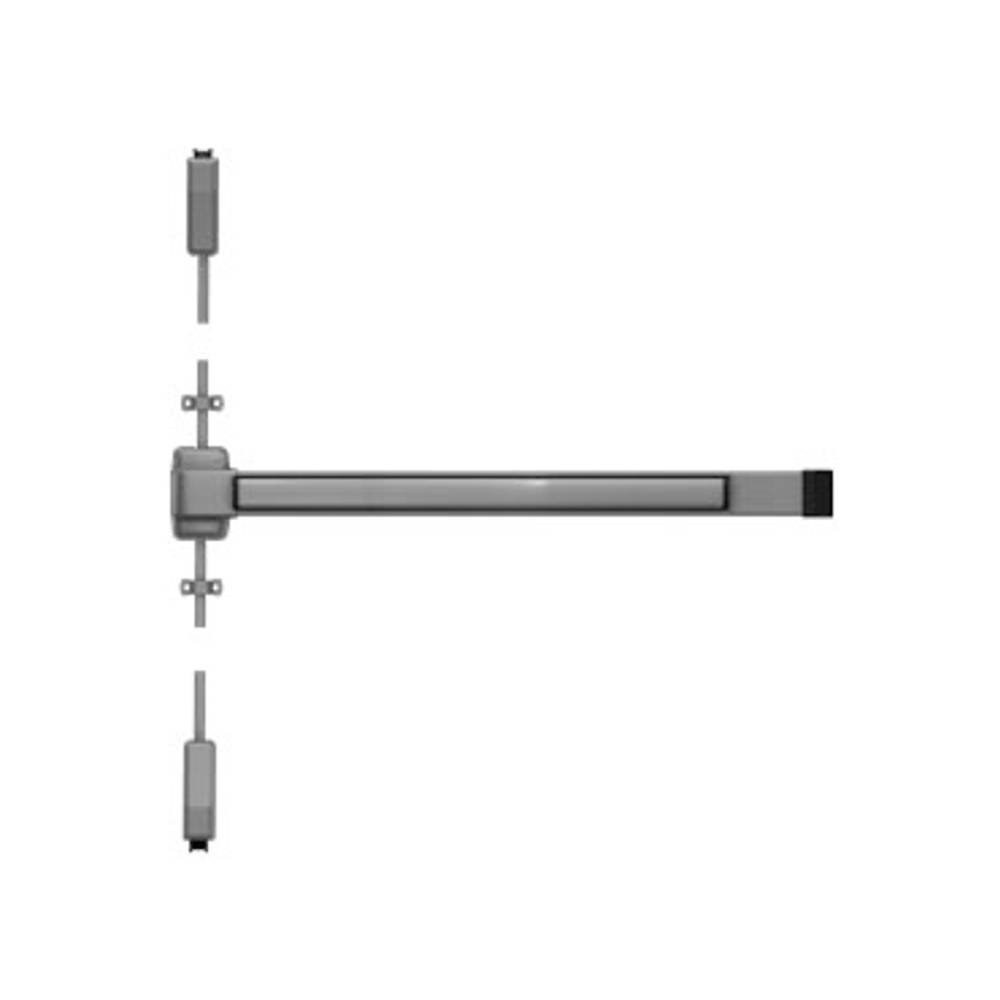

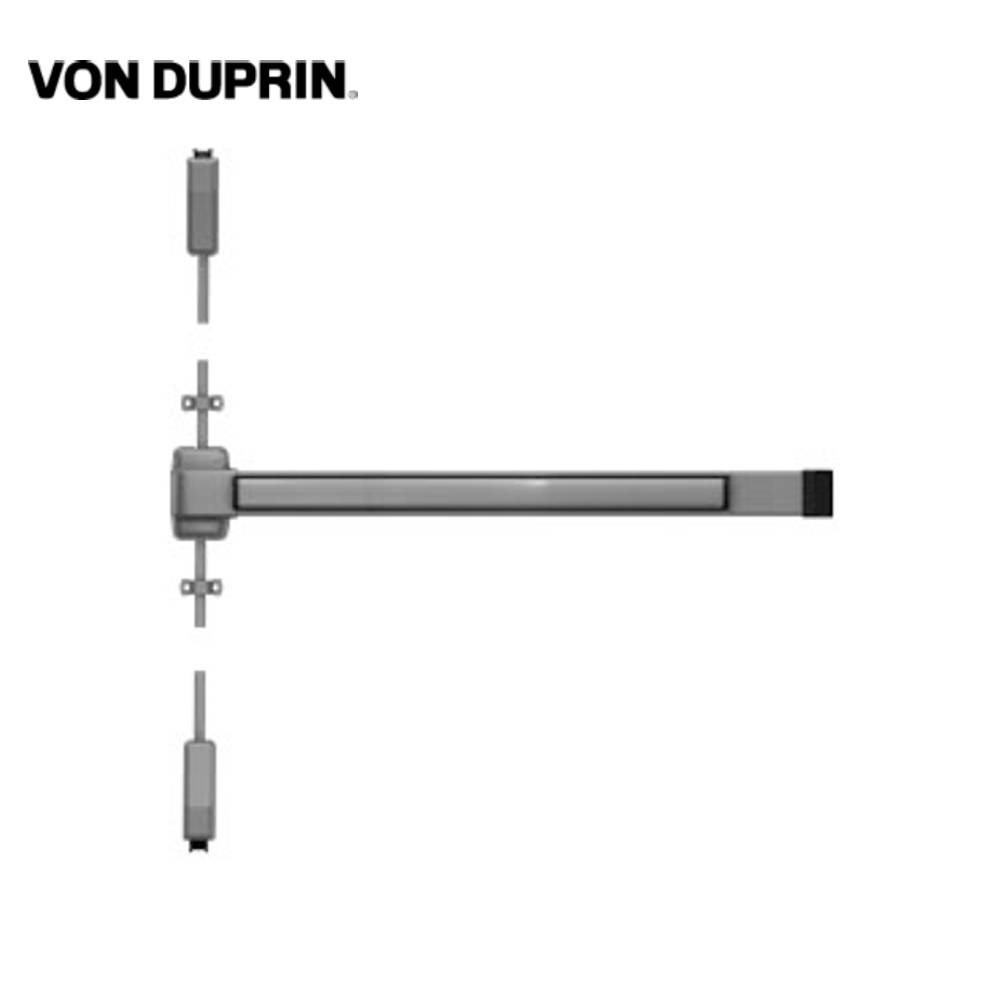

The Von Duprin 2227 Surface mounted vertical rod exit device for all types of single and double doors with mullion, UL listed for Panic Exit Hardware. Devices are ANSI A156.3, 2008 Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. Fits door stiles as narrow as 3-5/8" (92mm). The device is non-handed.

  • Device functions: Ships ready for all functions, EO, DT, NL, TP, K, L
  • Device lengths: 3' (914 mm), 4' (1219 mm)
  • Door height: 7' (2134 mm) standard door height extension rods available for door heights up to 10' (3048mm) 12" (205 mm), door height 36" (914 mm), door height
  • Device centerline from finished floor: 39 13/16" (1011 mm)
  • Center case dimensions: 4 1/4" (108 mm) x 1 3/8" (41 mm) x 2 3/8" (60 mm)
  • Mechanism case dimensions: 2" (51 mm) x 3 3/4" (95 mm)
  • Projection push bar: Push bar neutral - 3 3/4" (95 mm) Push bar depressed - 3" (76 mm)
  • Door undercut: 1 /4" (7 mm) from finished floor recommended , 3 /4" (19mm) maximum or 1 /8" (3mm) from threshold
  • Latch bolt: Deadlocking anti-friction top and bottom bolt, 5 /8" (16 mm) throw
  • Fasteners & sex bolts (SNB): Includes screw pack for 1 3/4" (44mm) and 2 1/4" (57mm) thick metal or wood doors. Optional SNB available
  • Electric options: LX latchbolt monitor switch RX pushpad monitor switch RX2 double pushpad monitor switch ALK alarm exit kit CON Allegion Connect
  • Mechanical options: PL pullman latch GBK glass bead kit RG rod guards LG latch guards
  • Dogging feature: Hex key dogging standard
  • Dogging options: LD less dogging
  • Strikes: 299 – Dull black Bottom 248L-4 and 304L – unfinished
Product Specifications:
Vendor Allegion
Manufacturer Von Duprin
SKU 2227EO 4 689
UID VON1002227EO4SP28
Grade Grade 1
Installation Commercial
Origin USA
Unit of Measure Each
UL Listing Type UL 305
ANSI Number A156.3
BAA Qualified Yes
Technical Specifications:
Physical Appearance Wide Stile Pushpad
Device Type Surface Vertical Rod
Mechanical Function Exit Only, Accepts Various Trim
Device Length 48"
Hand Non-Handed
Dogging Options Hex Key Dogging
Top Strike 299
Strike Bottom 304L & 248L-4
Trim Type Less trim
Cylinder Type Non-Keyed
Minimum Stile Size 3-5/8"
Door Material Metal or Wood
Door Width 25.875 - 36"
Door Height 84"
Door Thickness 1-3/4" - 2-1/4"
Reversible Yes
Product Type Surface Vertical Rod Exit Devices
