Von Duprin - 22EO-3-689 - Rim Exit Device - 36 - Wide Stile Pushpad - Exit Only - Less Trim - Aluminum Painted Finish (Grade 1)

Von Duprin - 22EO-3-689 - Rim Exit Device - 36" - Wide Stile Pushpad - Exit Only - Less Trim - Aluminum Painted Finish (Grade 1)

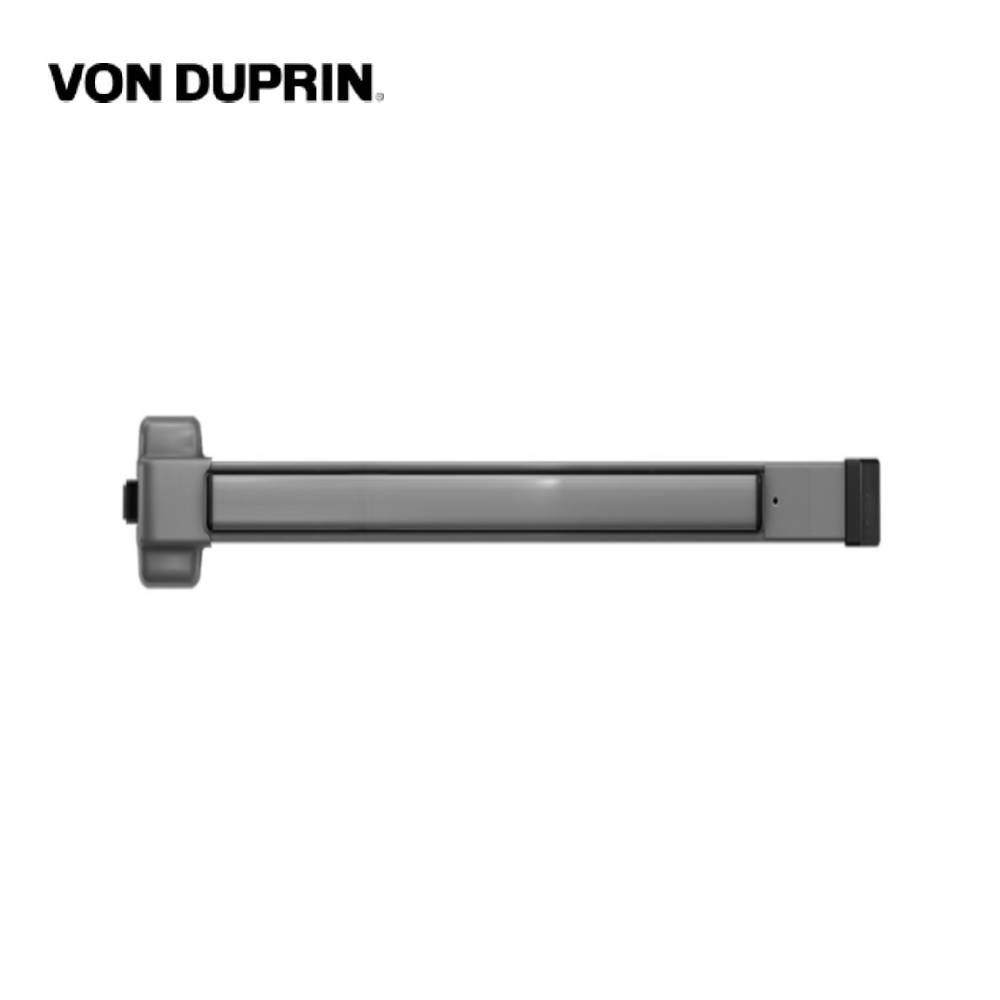

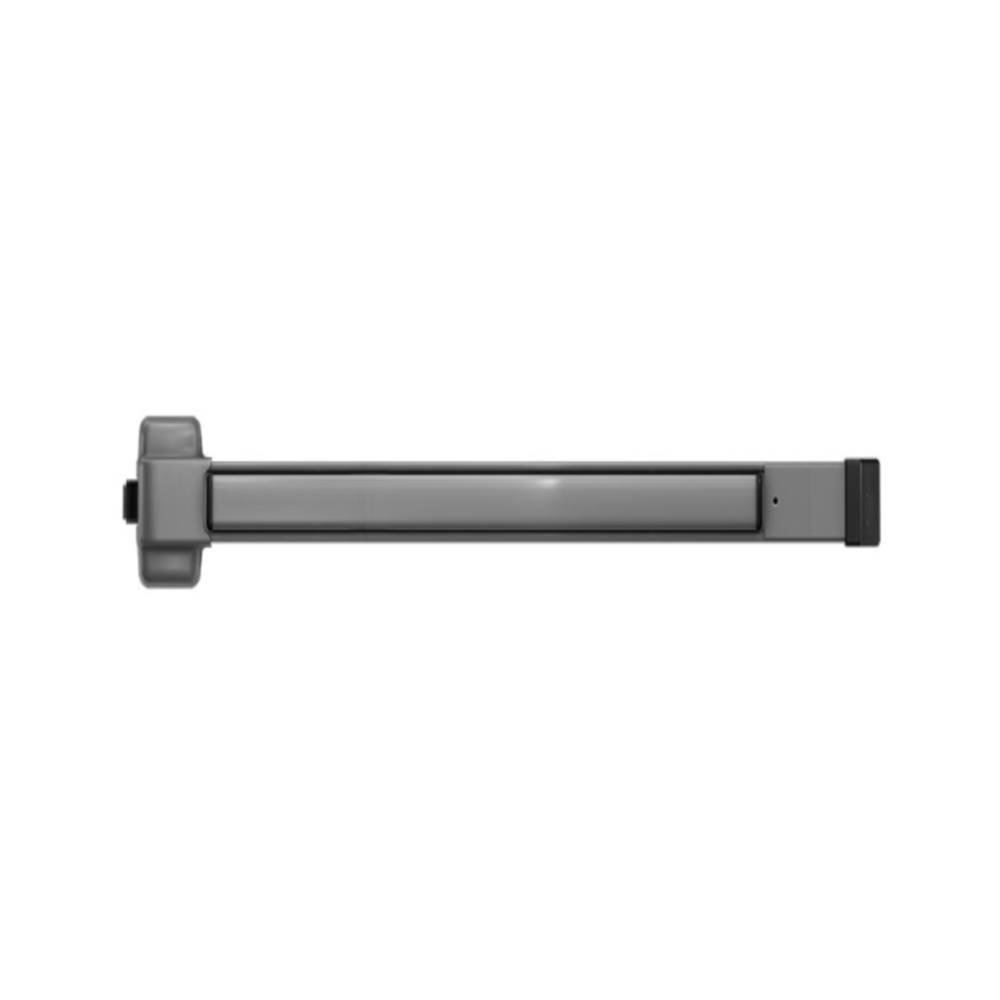

The 22 Series is well constructed from heavy gauge rolled steel section with the proven heavy duty touch bar mechanism that has been used so successfully in all architectural grade Von Duprin touch bar devices. The 22 Rim exit device is the economical alternative, incorporating a modern touch bar styling for all types of single and double doors with mullion and the hardware is UL listed for panic exit hardware.

Features:

• Device functions: Ships ready for all functions, EO, DT, NL, TP, K, L
• Device lengths: 3' (914 mm), 4' (1219 mm)
• Device centerline from finished floor: 39 13/16" (1011 mm) 39 11/16" (1008 mm) with mullion
• Center case dimensions: 4 1/4" (108 mm) x 1 3/8" (41 mm) x 2 3/8" (60 mm)
• Mechanism case dimensions: 2" (51 mm) x 3 3/4" (95 mm)
• Projection push bar: Push bar neutral - 3 3/4"" (95 mm) push bar depressed - 3" (76 mm)
• Latch bolt: Deadlocking, 3 /4" (19 mm) throw
• Fasteners & sex bolts (SNB): Includes screw pack for 1 3/4"" (44mm) and 2 1/4"" (57mm) thick metal or wood doors. Optional SNB available
• Electric options: LX latchbolt monitor switch RX pushpad monitor switch RX2 double pushpad monitor switch ALK alarm exit kit CON Allegion Connect
• Mechanical options: GBK glass bead kit AX accessible device
• Dogging feature: Hex key dogging standard
• Dogging options: LD less dogging
• Strikes: 299 – Dull black

Product Specifications:

Technical Specifications:

Installation Instructions:

• Von Duprin 22EO Rim Device
