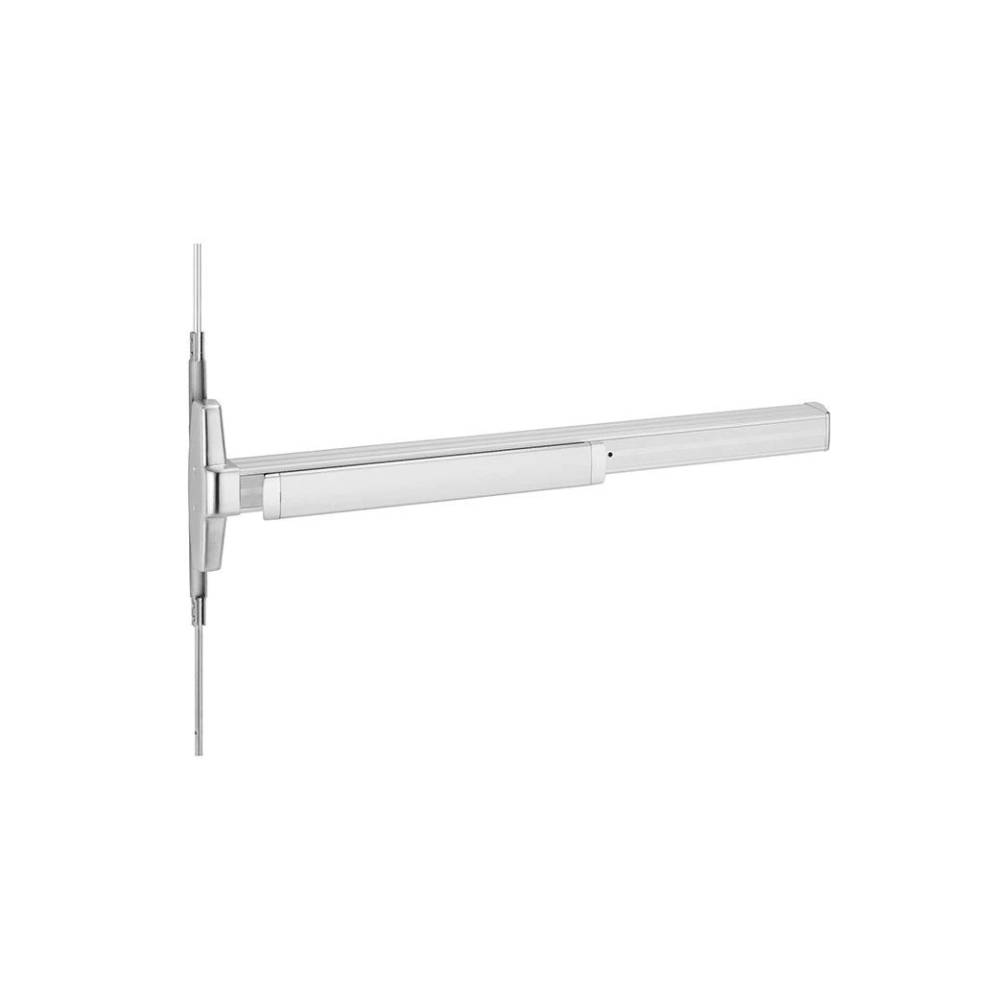

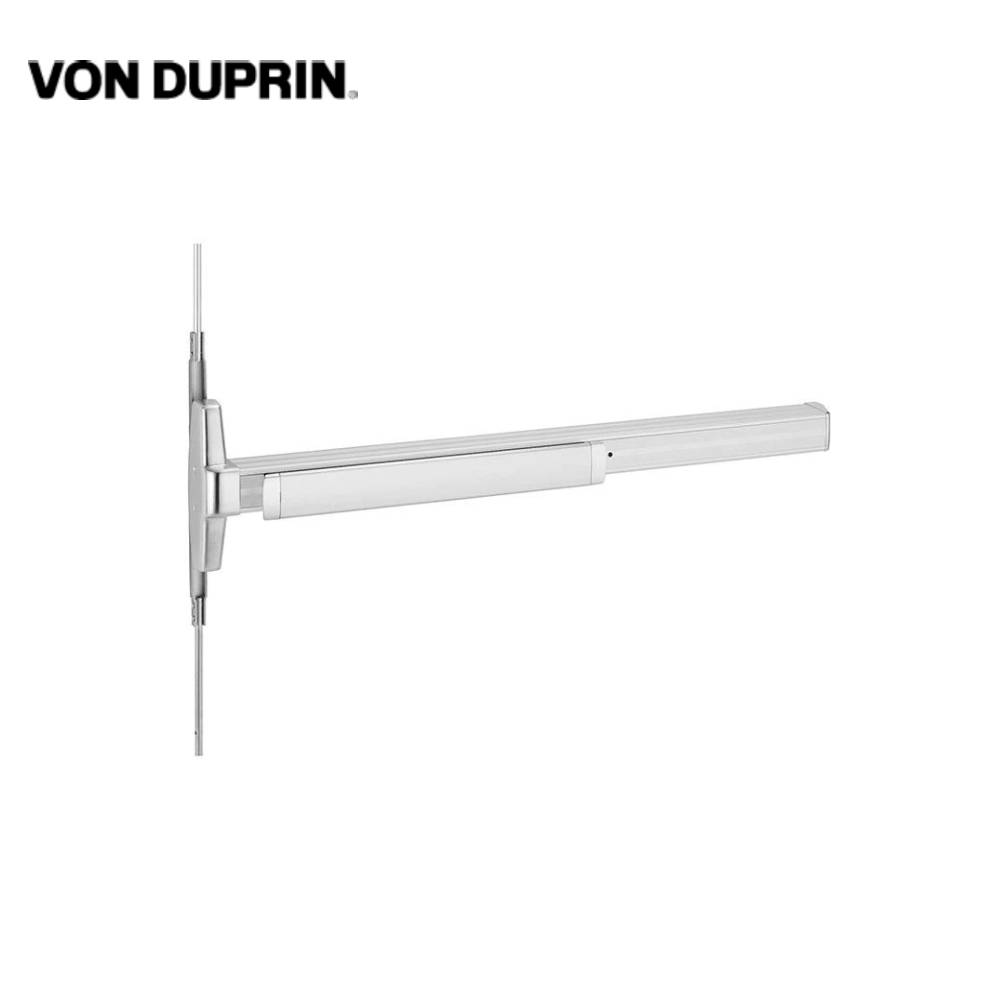

Von Duprin - 3347ANL-OP - Concealed Vertical Rod Exit Device - Narrow Stile Pushpad - Night Latch Omit Pull 36 - Dark Bronze Anodized Aluminum Finish - Grade 1

Von Duprin - 3347ANL-OP - Concealed Vertical Rod Exit Device - Narrow Stile Pushpad - Night Latch Omit Pull 36" - Dark Bronze Anodized Aluminum Finish - Grade 1

3347A fits door stiles as narrow as 2-1/8" (44 mm), wood door stiles as narrow as 4" (102mm).

3347A is for all types of single and double doors, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2001 Grade 1 and the 3347A has a grooved case. The concealed vertical rod device is non-handed except when the SS (signal switch) option is used.

Features:

• Device lengths: 2' 2' (610 mm) Door size 3' 2'4" to 3' (660mm to 914 mm) door size 4' 2'8" to 4' (813 mm to 1219 mm) door size
• Device centerline from finished floor: 39 13/16" (1006mm)
• Center case dimensions: 8 13/16" x 2 13/32" x 1 9/16" (208mm x 62mm x 40mm)
• Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
• rojection: Pushbar neutral – 3 13/16" (97 mm) Pushbar depressed – 3 1/16" (78 mm)
• Latch bolt: Deadlocking anti-friction top & bottom bolt 5 /8" (16mm) throw
• Door undercut: 1 /4" (7mm)
• Top & bottom latch: 3 3/4" x 1 1/2" x 1" (89mm x 38mm x 25mm)
• Vertical rods: Round 2 piece adjustable rods Top rod adjustable from 6'8" (2027mm) to 8'4" (2533mm) Bottom rod adjustable from 35 5/8" (905mm) to 49 5/8" (1260mm) Extension rod kits available for doors over 8'4" (2533mm)
• Fasteners & sex bolts: (SNB) Includes screw pack for 1 3/4"(44mm) to 2 1/4" (57mm) thick metal or wood doors, and 325 SNB for top and bottom latch. Optional 425 SNB available.

Product Specifications:

Technical Specifications:
