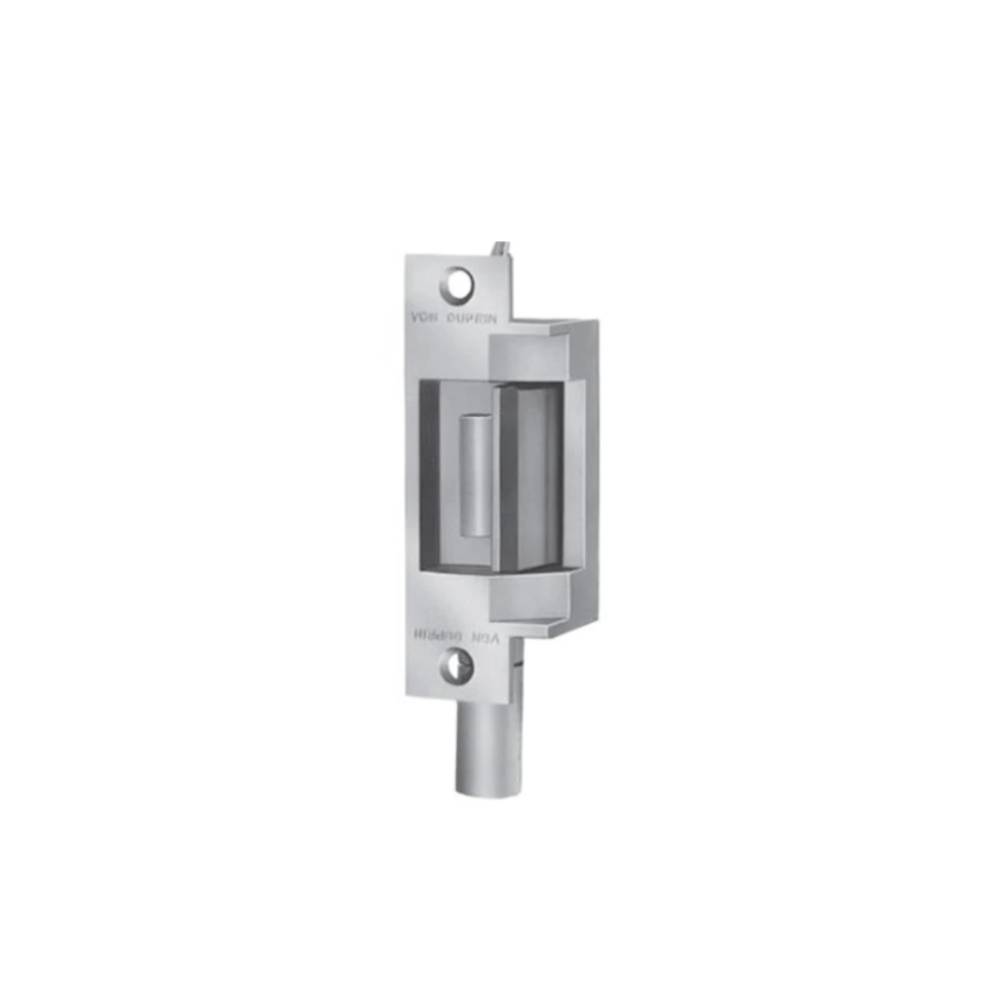

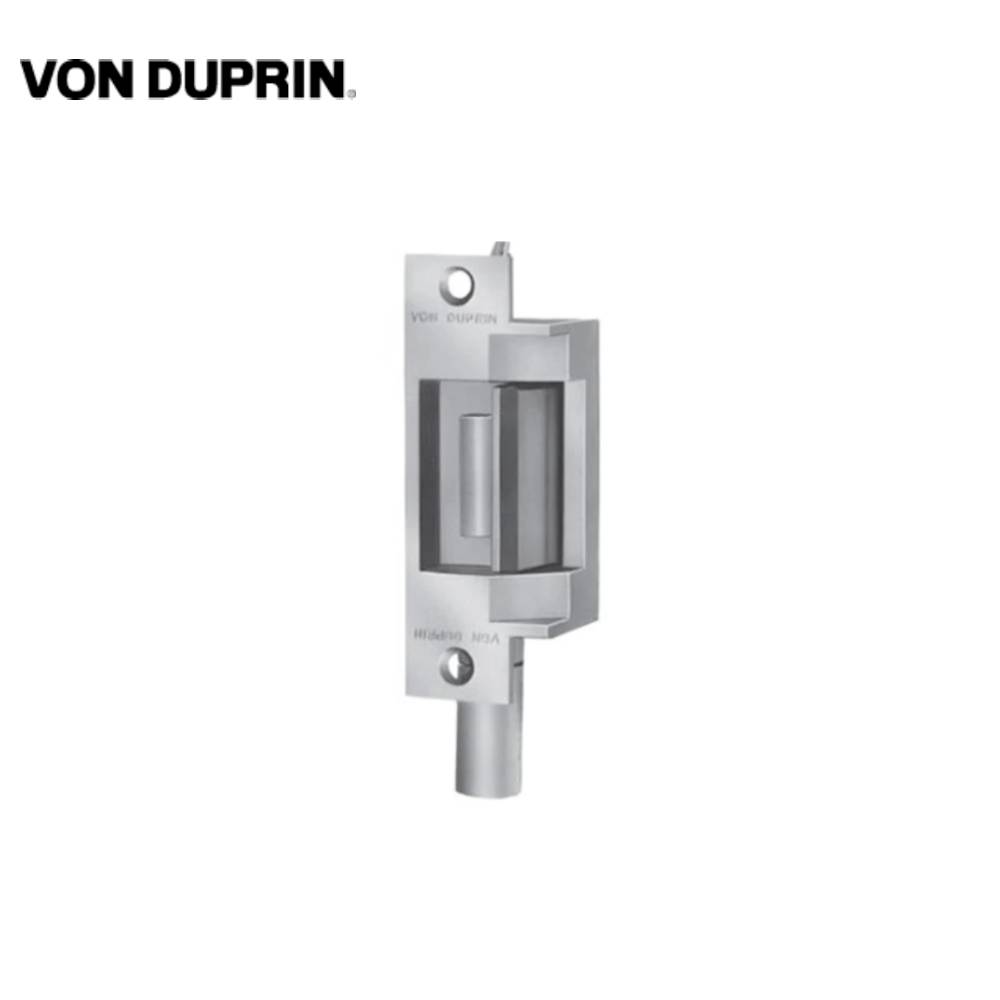

Von Duprin - 6211 - Electric Strike for Mortise or Cylindrical Devices with Dual Signal Switch - Fail Secure - Satin Stainless - 24VDC
Von Duprin electric strikes are known for their reliability, durability and security. The 6200 Series strikes are designed to withstand abuse. Their heavy-duty stainless steel construction is fully UL1034 and UL10C listed and meets ANSI/BHMA Grade 1.
6200 Series electric door strikes are designed for use with a variety of mortise or cylindrical locksets. Electrified strikes allow remote release of a locked door by activating a movable lip (keeper) using an entry/exit button or credential reader and can be a cost effective means for managing access. 6200 Series strikes come standard as 24 VDC in fail secure mode. 12 VDC and AC operation can be selected, as can fail safe mode and other options that enable you to configure these strikes to fit your exact needs.
Features:
- Non handed design provides greater flexibility
- Strike box is adjustable to compensate for misalignment of the door or frame
- Two piece plug connectors are furnished for ease of installation and for removal during strike servicing
- ANSI 156.5 Grade 1, 1500 lb hold-force rated
- UL1034 Burglary-Resistant and UL10C Electric Strike for Fire Door
- Six finishes available to suite with existing hardware
- Durable stainless steel construction
- 24 VDC standard with 12 VDC and AC operation optional
- Meets BHMA A156.31, Grade 1 for endurance and strength
- Static strength 1300 lbs
- Dynamic strength 70 ft-lbs
- Endurance 1,000,000 cycles
Product Specifications:
| Vendor | Allegion |
| Manufacturer | Von Duprin |
| SKU | 6211 24V US32 DS |
| UID | VON100621124VUS32DS |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| Application | Single Door |
| UL Listing Type | UL 10C, 1034 |
| Restrictions | None |
| BAA Qualified | Yes |
Technical Specifications:
| Function | Electrically Unlocked (Fail Secure) |
| Operating Voltage | 24VDC |
| Amp Draw | 330mA |
| Keeper Size | Pullman Keeper |
| Configuration | Centered |
| For Use With | Cylindrical/Mortise Locks |
| Faceplate Size | 4-7/8" x 1-1/4" |
| Frame Depth | 1-21/32" |
| Ramp Cut Out | 3-3/8" |
| Fire Rated | Yes |
| Frame Application | Hollow Metal or Aluminum |
| Product Type | Electric Strikes |
