Von Duprin - 6400-US32D - Mortise Locks Electric Strike Fail Secure - 12/24VDC - 4-7/8" x 1-1/4" Faceplate - Satin Stainless Steel Finish - Grade 1
- Product SKU: VDRN-6400-US32D
-
Order within
and choose FedEx 2Day® Shipping
People also viewed
GET $55 OFF
Here's your coupon code: KM10075

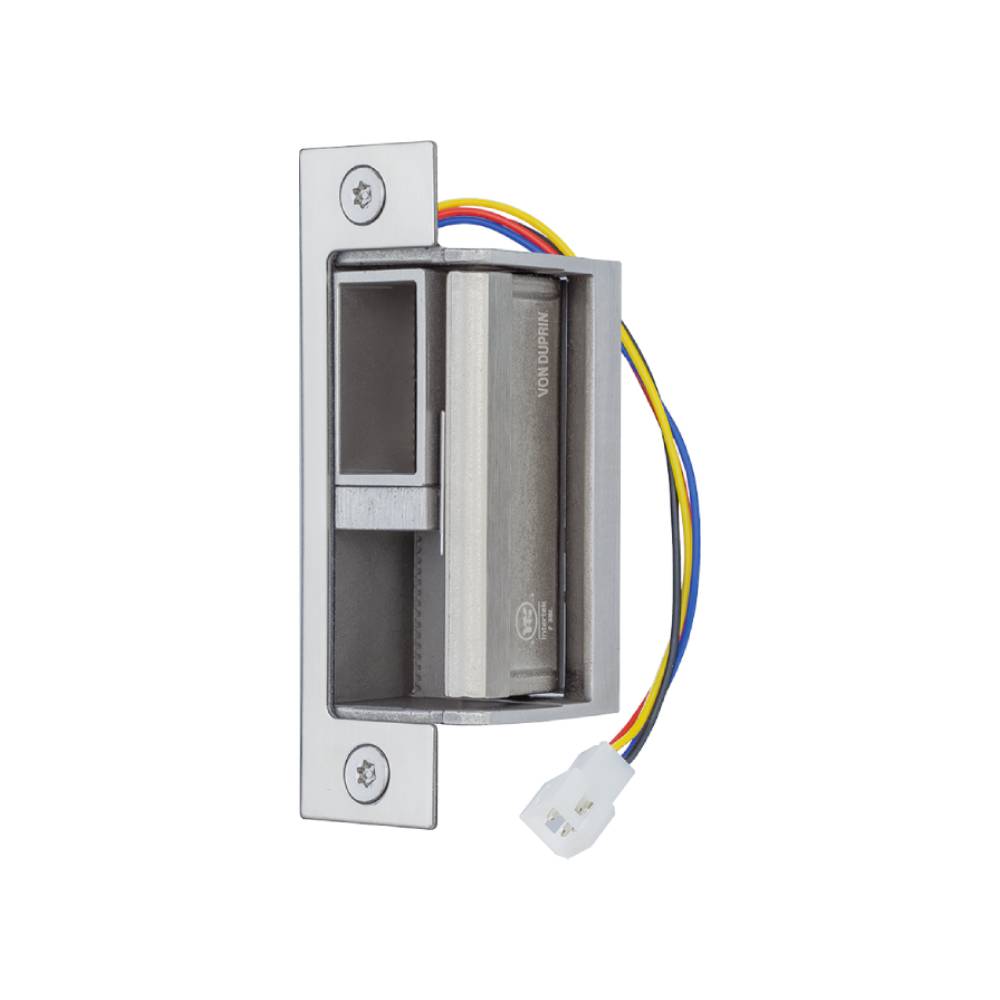

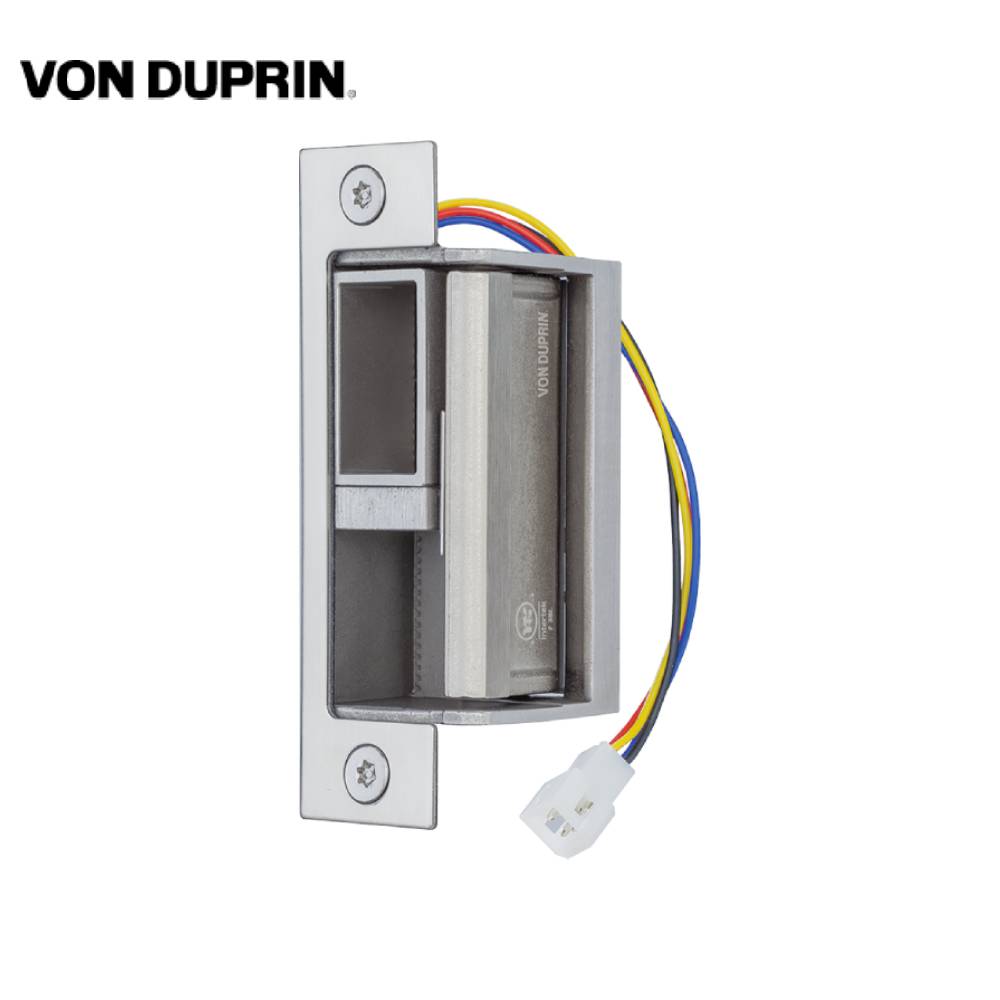

Von Duprin - 6400-US32D - Mortise Locks Electric Strike Fail Secure - 12/24VDC - 4-7/8" x 1-1/4" Faceplate - Satin Stainless Steel Finish - Grade 1
Designed to be modular and highly configurable to fit nearly any mortise or cylindrical lock. As a 3-hour UL 10C listed strike, the 6400 Series is intended as a fail-secure only solution for fire-rated openings. Its durability and quality are shown by its UL 1034 listing, heavy-duty stainless steel construction and over 2,000,000 cycles endurance testing.
Features:
- Modular design fits cylindrical and nearly any mortise lock
- Heavy-duty stainless steel construction in BHMA 630 satin finish
- Vertical adjustments allow for alignment with a wide variety of mortise locks with offset latches
- Horizontal adjustment of up to 1⁄8” improves fit on tight door preps § Can accommodate up to 1” deadbolt (for night latch only)
- Field selectable voltage 12 or 24VDC and 12 to 24VAC
- Plug-in voltage connectors are included for ease of installation and removal during strike servicing
- Optional plug-in latchbolt monitor can be added in the field
- Non-handed, unique internal solenoid design prevents keeper from heating up
- Low current draw (0.19 amps @ 24 VDC)
- Suitable for interior and exterior doors
- 3-hour fire-rated to UL 10C (fail secure only)
- UL 1034 listed for burglary-resistant electric door strikes
- Meets ANSI/BHMA A156.31, Grade 1 for endurance and dynamic strength
- Meets ANSI/BHMA A156.31, Grade 1, 1500 lbs static strength § Dynamic strength 70 ft-lbs
- Endurance 2,000,000 cycles
Product Specifications:
| Vendor | Allegion |
| Manufacturer | Von Duprin |
| SKU | 6400 32D |
| UID | VON1006400US32D |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| Application | Single Door |
| UL Listing Type | UL 1034, 10C |
| ANSI Number | A156.31 |
Technical Specifications:
| Function | Electrically Unlocked (Fail Secure) |
| Operating Voltage | 12/24VDC |
| Amp Draw | 375mA at 12VDC, 190mA at 24VDC |
| Keeper Size | Pullman Keeper |
| Configuration | Universal |
| For Use With | Cylindrical/Mortise Locks |
| Faceplate Size | 4-7/8"" x 1-1/4"" |
| Frame Depth | 1-3/4"" |
| Ramp Cut Out | 3-3/8"" |
| Fire Rated | Yes |
| Frame Application | Hollow Metal, Aluminum, or Wood |
| Product Type | Electric Strikes |
