Von Duprin | SKU:
VDRN-8827L-26D-RHR
17% off

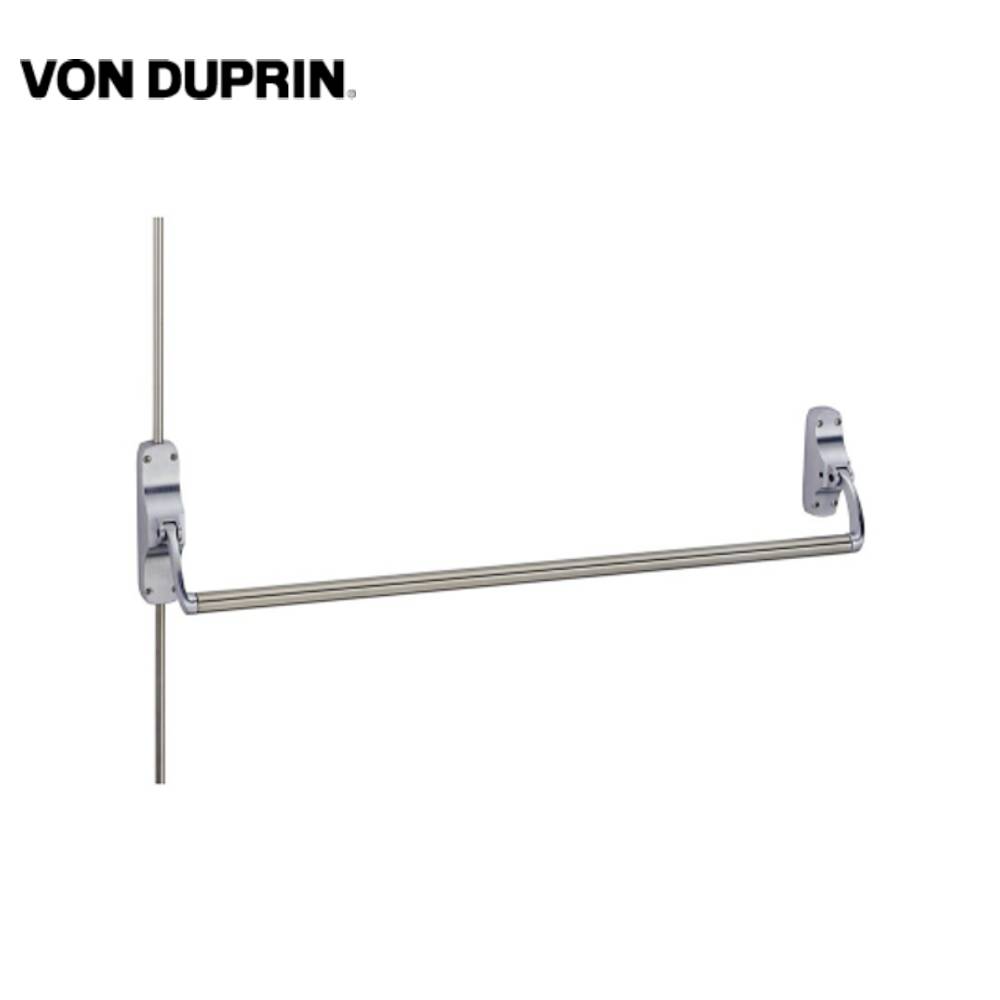

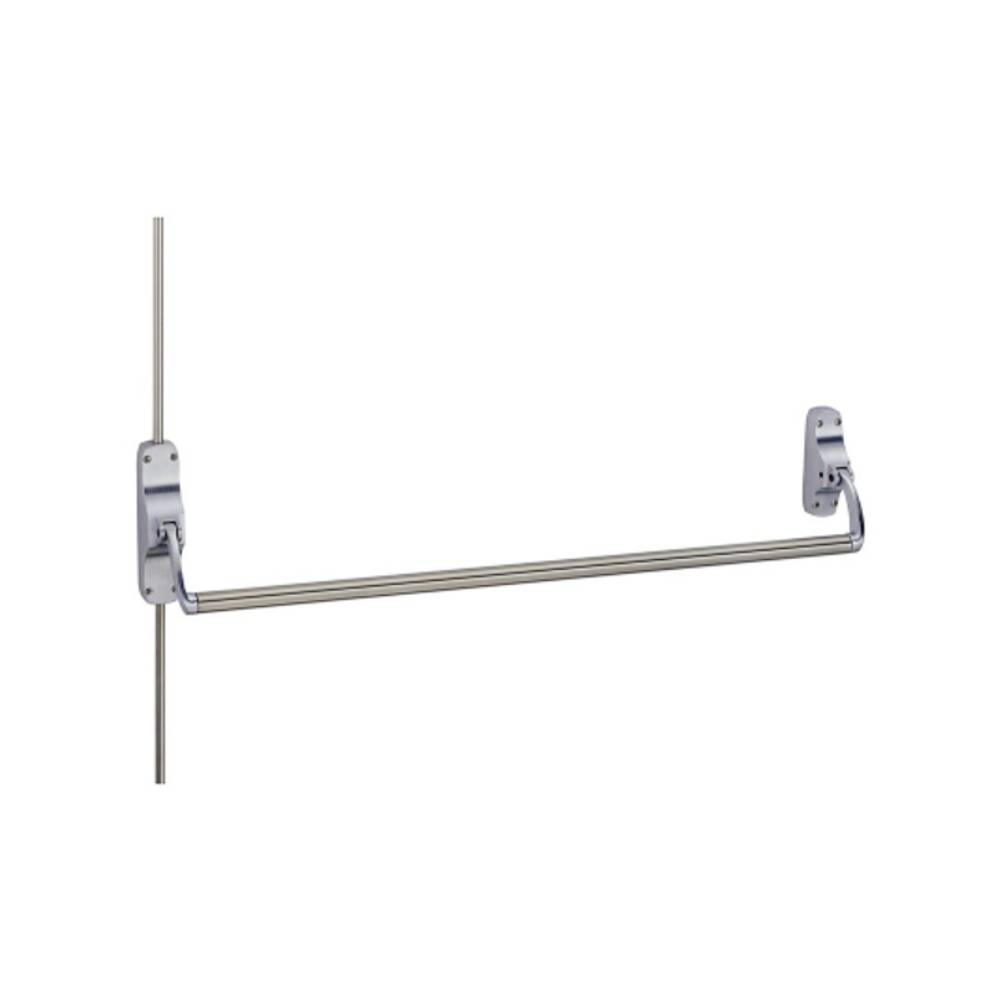

Von Duprin - 8827L - Surface Mounted Vertical Rod Exit Device - Wide Stile Crossbar - 48 - Exit Only - Less Trim - Satin Chrome (RHR)
$1,85130
$2,22156
Unit price
/
Unavailable
Shipping calculated at checkout.
Secure transactionCouldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 4 p.m. EST will be shipped next business day.
Learn more
Von Duprin - 8827L - Surface Mounted Vertical Rod Exit Device - Wid...
$1,85130
$2,22156
Unit price
/
Unavailable
Description
Description
Von Duprin - 8827L - Surface Mounted Vertical Rod Exit Device - Wide Stile Crossbar - 48" - Exit Only - Less Trim - Satin Chrome (RHR)
8827 surface mounted vertical rod devices for all types of single and double doors, UL listed for accident hazard installations. Covers stock hollow metal doors with 86 cutout and fits door stiles as narrow as 2 1/2" (90 mm). This device is field sizeable.
Features:
- Device functions Field reversible Device ships EO, DT, TP, K, L, TL
- Crossbar length 42" (1067 mm) field sizable
- Device centerline 3913/16"
- Crossbar centerline to finished floor 36 13/16" (935 mm) at center
- Lock stile case 8 1/4" x 2 x 15/16" (210 mm x 51 mm x 24 mm) Lock case 4 5/8" x 5 3/4" x 1 1/16" (117 mm x 146 mm x 27 mm)
- Faceplate 1 1/4" x 8" x 7 /32" (32 mm x 203 mm x 6 mm)
- Cylinder backset 2 3/4" (70 mm)
- Hinge stile case 6" x 1 3/4" x 15/16" (152 mm x 44 mm x 24 mm)
- Crossbar tubing 1" (25 mm) outside diameter
- Projection Neutral – 4 7/8" (124 mm) Depressed – 4" (102 mm)
- Latchbolt 5 /8" (16mm) throw
- Fasteners and sex bolts (SBN) Includes screw pack for 1 3/4" (44 mm) and 2 1/4" (57 mm) thick metal or wood doors. Sex nuts and bolts included
Product Specifications:
| Vendor | Allegion |
| Manufacturer | Von Duprin |
| SKU | 8827L 26D RHR L/TRIM |
| UID | VON1008827LUS26DRHR |
| Grade | Grade 1 |
| Installation | Commercial |
| Unit of Measure | Each |
| Base Material | Brass or Bronze |
Technical Specifications:
| Physical Appearance | Wide Stile Crossbar |
| Device Type | Surface Vertical Rod |
| Mechanical Function | Classroom |
| Device Length | 48" |
| Hand | Right Hand Reverse |
| Dogging Options | Hex Key Dogging |
| Top Strike | 299 |
| Strike Bottom | 248L-4, 304L |
| Trim Type | Lever |
| Trim Design | Lever with Escutcheon |
| Cylinder Type | 1-1/4" Mortise |
| Minimum Stile Size | 2-1/2" |
| Door Material | All Types |
| Door Width | 3' - 4' |
| Door Height | 84" |
| Door Thickness | 1-3/4" |
| Reversible | Yes |
| Product Type | Surface Vertical Rod Exit Devices |
Installation Instructions:
