Von Duprin - 9847NL - Concealed Vertical Rod Exit Bar with Nightlat...
Description
Description

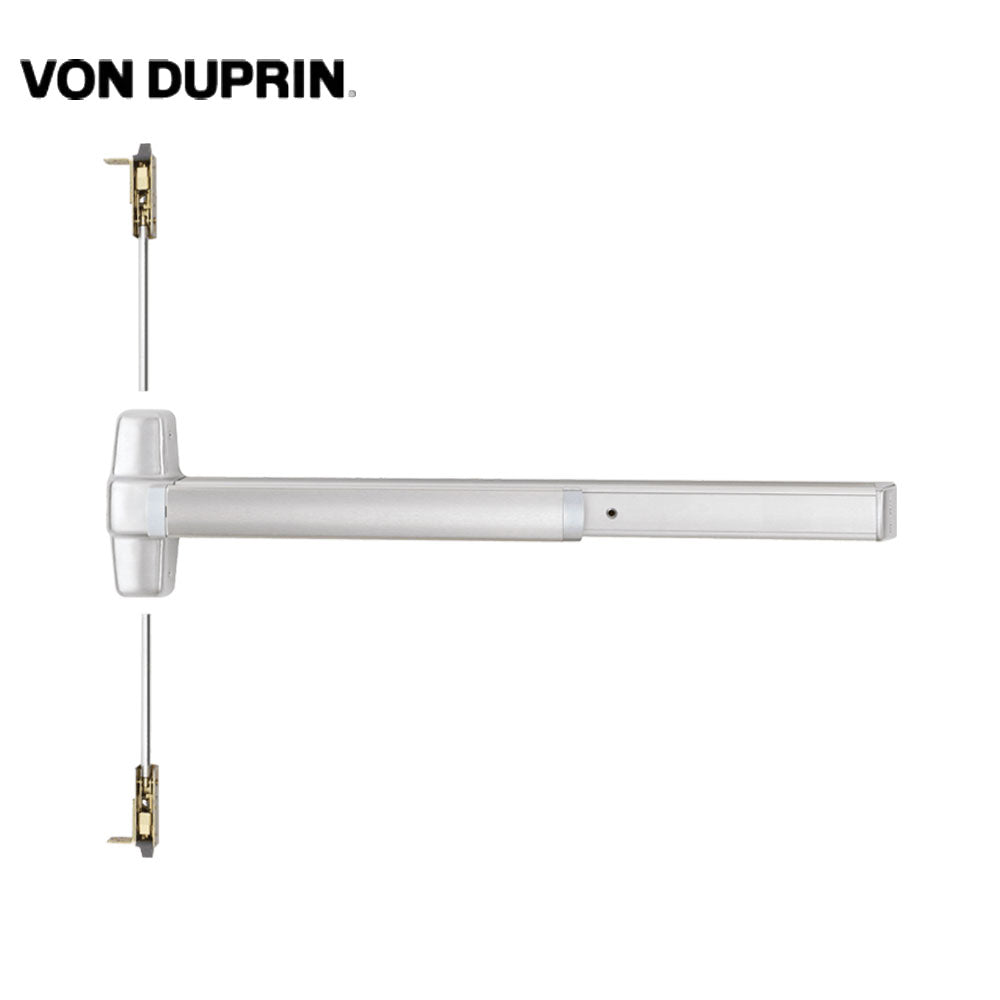

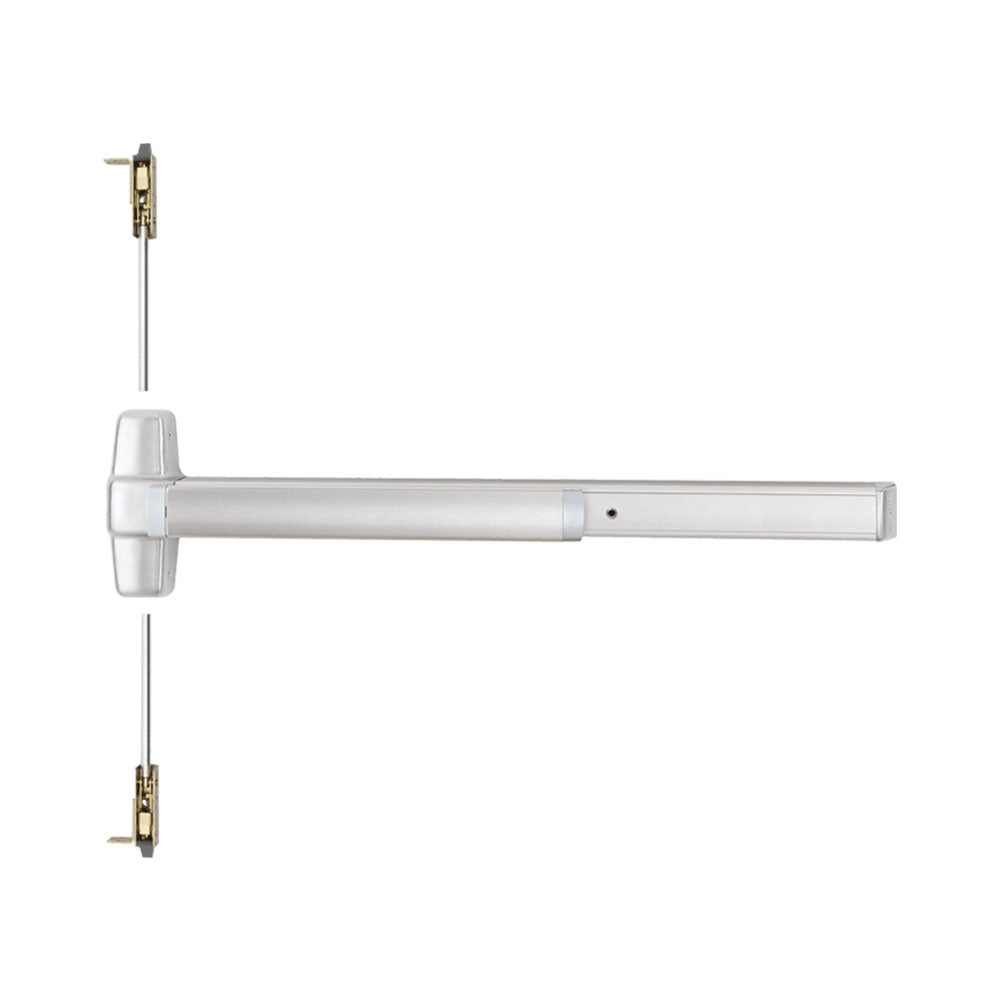

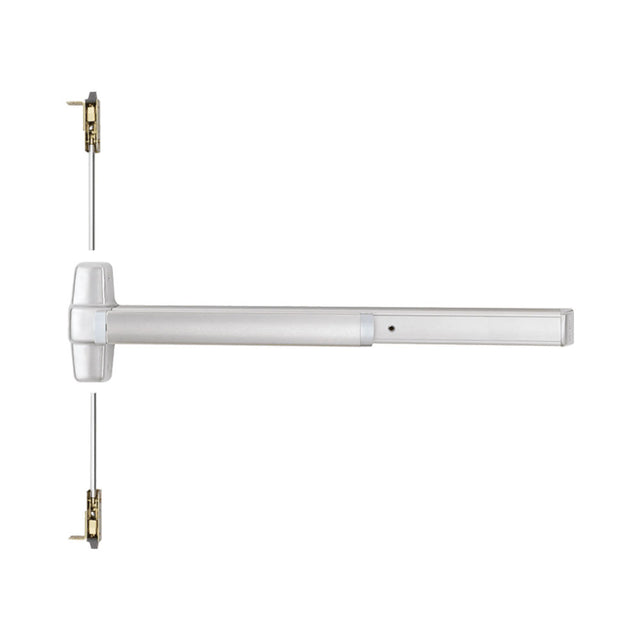

Von Duprin - 9847NL - Concealed Vertical Rod Exit Bar with Nightlatch Function - Hex Key Dogging - Wide Stile Pushpad - 36" - 626 (Satin Chrome Finish) - Grade 1
The 9847 Series is for use on single or double metal doors, UL listed for panic exit hardware. Devices are ANSI A156.3 - 2008 Grade 1.
Features:
- Device functions: Ships EO / DT / NL (field selectable). For TP, K, or L functions, remove NL drive screw from device.
- Device lengths: 2' (610 mm) - Door size 2'4" to 3' (711 mm to 914 mm), 3' (914 mm) - Door size 2'10" to 4' (864 mm to 1219 mm)
- Device centerline from finished floor: 39 5/8" (1006 mm) standard; adjustable from 35 5/8" (905 mm) to 49 5/8" (1260 mm)
- Center case dimensions: 8" x 2 3/4" x 2 3/8" (203 mm x 70 mm x 60 mm)
- Mechanism case dimensions: 2 1/4" x 2 1/4" (57 mm x 57 mm)
- Projection: Pushbar neutral: 3 13/16" (97 mm), Pushbar depressed: 3 1/16" (78 mm)
- Latch bolt: Deadlocking top & bottom bolts, 5/8" (16 mm) throw
- Recommended door undercut: 1/4" (7 mm)
- Top & bottom latch case dimensions: 4 1/2" x 2 1/8" x 1 1/2" (114 mm x 54 mm x 38 mm)
- Vertical rods: Round 2-piece adjustable rods, Top rod adjustable from 6'8" (2027 mm) to 8'4" (2533 mm), Bottom rod adjustable from 35 5/8" (905 mm) to 49 5/8" (1260 mm), Extension rod kits available for doors over 8'4" (2533 mm)
- Fasteners & sex bolts (SNB): Includes screw pack for 1 3/4" (44 mm) to 2 1/4" (57 mm) thick metal doors. Optional 425 SNB available.
Product Specifications:
| Grade | Grade 1 |
| ANSI | A156.3 |
| Unit of Measure | Each |
| Origin | USA |
| BAA Qualified | Yes |
| Limited Warranty | 3 Years |
| Burglar Rated | No |
| ADA Compliance | No |
| UL Listing | UL 305 |
| Installation | Commercial |
| Fire Rating | No |
| Finish | 626 / US26D |
| Finish Description | Satin Chrome |
| Finish Family | Matte Silver |
Technical Specifications:
| Handing | Field Reversible |
| Cylinder Type | Rim |
| Door Thickness | 1-3/4" - 2-1/4" |
| Physical Appearance | Wide Stile Pushpad |
| Includes Trim | Yes |
| Includes Cylinder(s) | No |
| Minimum Stile Size | 4-1/2" |
| Reversible | Yes |
| Device Length | 36" |
| Fire Rated | No |
| Dogging Options | Hex Key Dogging |
| Door Width | 28" to 36" |
| Trim Type | Cylinder Only |
| Trim Part No. | 110MD-NL 26D |
| Door Material | Hollow Metal |
| Device Type | Concealed Vertical Rod |
| Top Strike | 338 |
| Strike Bottom | 385A |
| Door Height | 80" to 100" |
| Mechanical Function | Nightlatch |
