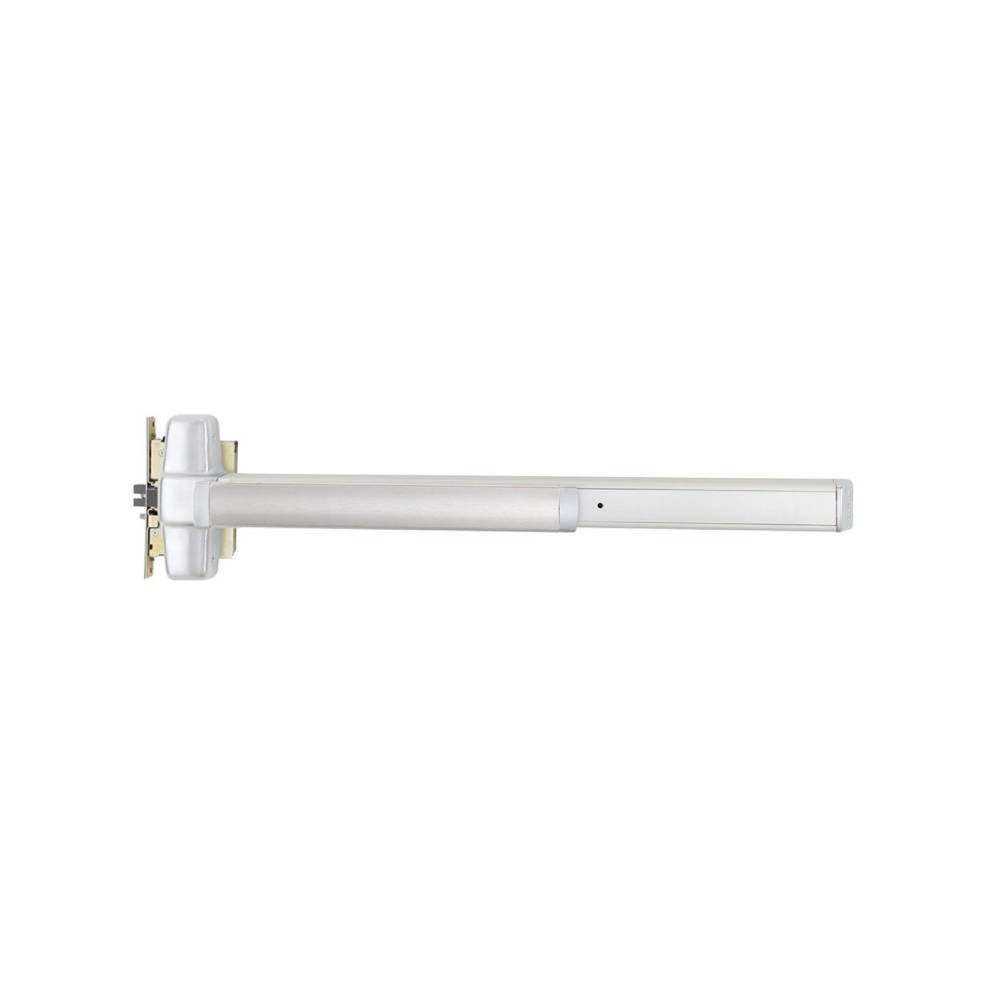

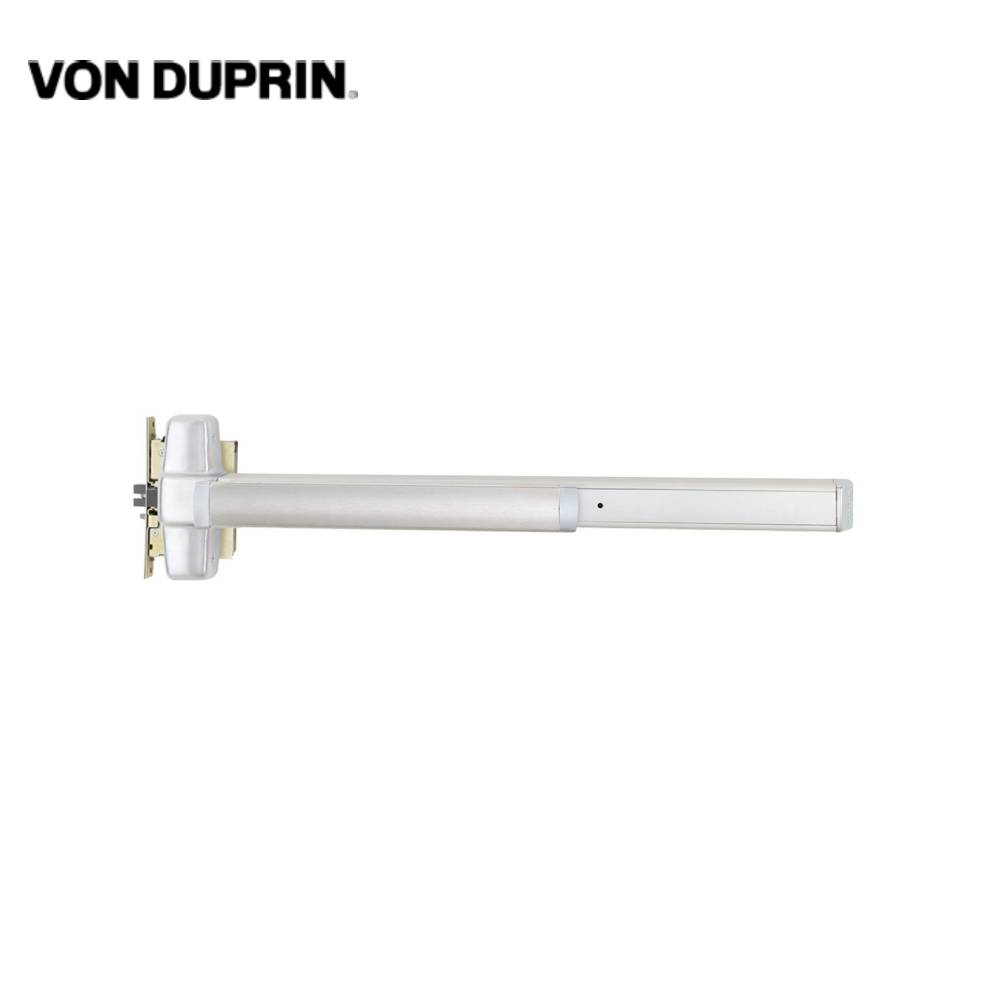

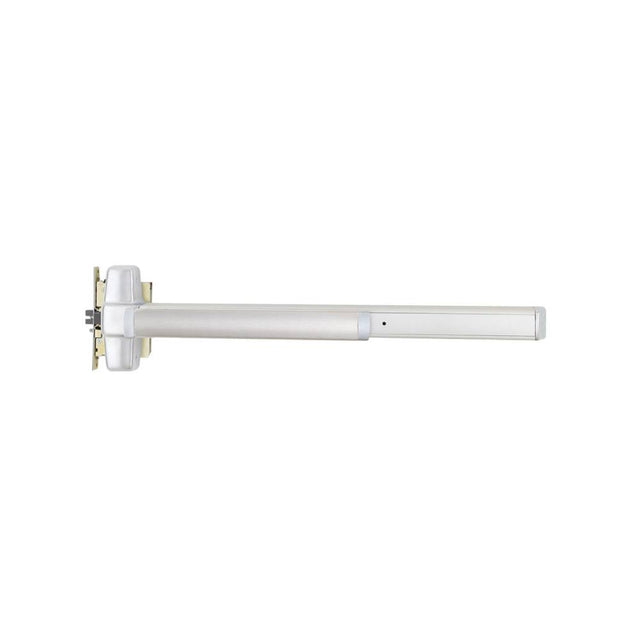

Von Duprin - 9875 - Series Mortise Exit Device - 36"- Wide Stile Pushpad - Night Latch - Lever with Escutcheon - Satin Chrome Finish - Right Hand Reverse - Grade 1
Fire exit mortise lock devices with a smooth mechanism case.
The 9875 Series is for all types of single or double doors and is UL listed for panic exit hardware. Devices are ANSI A156.3 – 2008 Grade 1. Fits stock hollow metal doors with 86 cutout and door stiles as narrow as 4-3/4" (121mm).
Features:
- Device Functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
- Device Lengths: 3' – 2' 4" to 3' (711 mm to 914 mm) door size 4' – 2' 10" to 4' (864 mm to 1219 mm) door size
- Device centerline from finished door: 39-13/16" (1011 mm) 39-11/16" (1008 mm) with mullion
- Center case dimensions: 8" x 2-3/4" x 2-3/8" (203 mm x 70 mm x 60 mm)
- Mechanism case dimensions: 2 1/4" x 2 1/4" (57 mm x 57 mm)
- Projection: Pushbar neutral – 3-13/16" (97 mm); Pushbar depressed – 3-1/16" (78 mm)
- Fasteners & sex bolts (SNB): Includes screw pack for 1-3/4" (44 mm) and 2-1/4" (57 mm) thick metal or wood doors.
Product Specifications:
| Vendor | Allegion |
| Manufacturer | Von Duprin |
| SKU | 9875L-NL-06 3 26D RHR |
| UID | VON1009875LNL06326DRHR |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| UL Listing Type | UL 305 |
| ANSI Number | A156.3 2014 |
| Design A | 06 Lever |
| Restrictions | None |
| BAA Qualified | Yes |
Technical Specifications:
| Physical Appearance | Wide Stile Pushpad |
| Device Type | Mortise |
| Mechanical Function | Night Latch |
| Device Length | 36" |
| Hand | Right Hand Reverse |
| Dogging Options | Hex Key Dogging |
| Includes Trim | Yes |
| Trim Type | Lever |
| Trim Design | Lever with Escutcheon |
| Trim Part No. | 996L-NL-06-M 26D RHR |
| Includes Cylinder(s) | No |
| Minimum Stile Size | 4-3/4" |
| Door Material | Wood or Metal |
| Door Width | 28" to 36" |
| Door Thickness | 1-3/4" to 2-1/4" |
| Fire Rated | No |
| Reversible | Yes |
| Product Type | Mortise Exit Devices |
