Von Duprin | SKU:
VDRN-98EO-4-26D
17% off

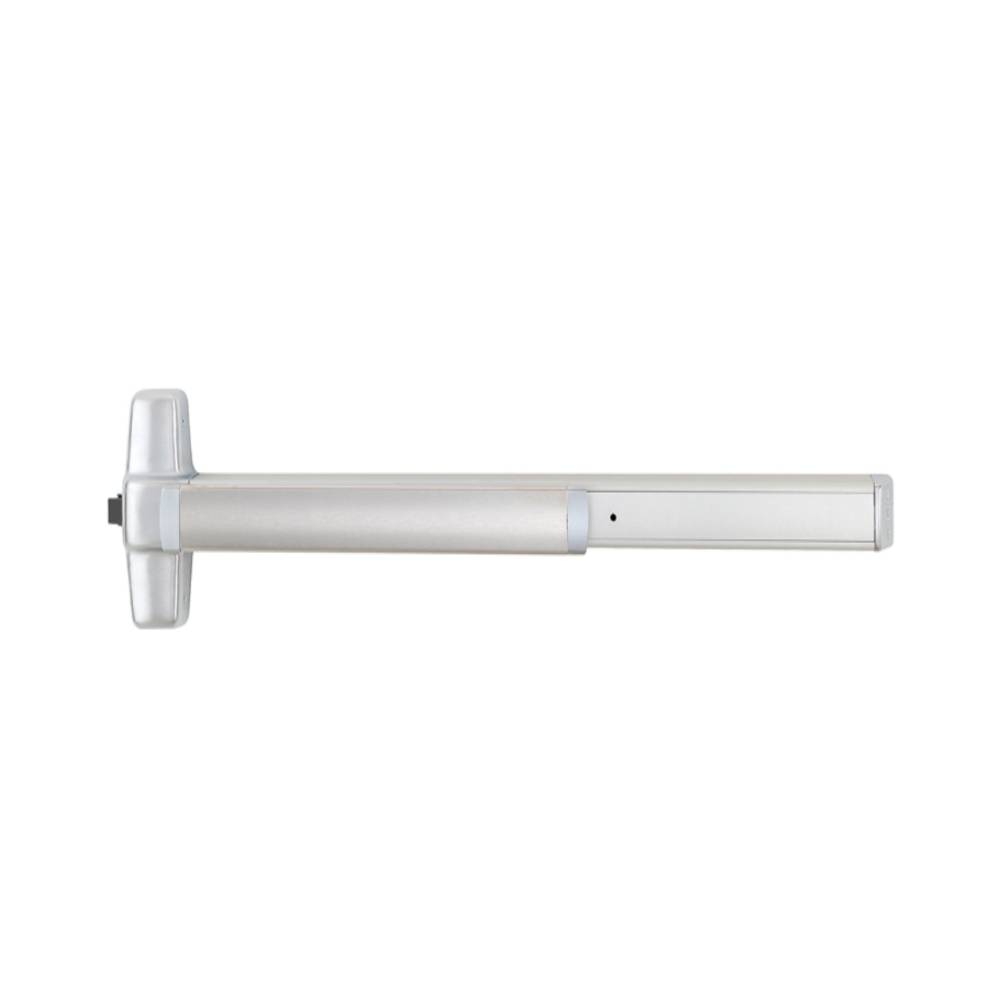

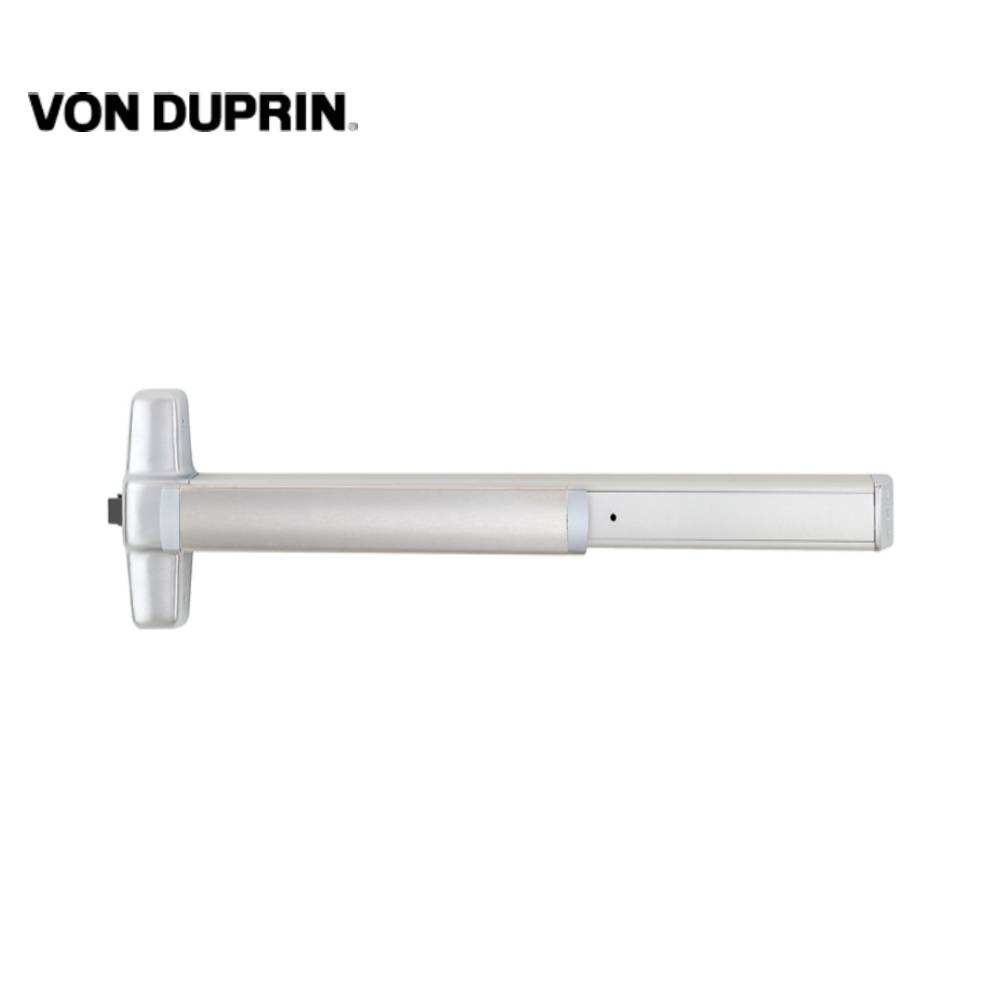

Von Duprin - 98EO - Rim Exit Device - 48 Length - Exit Only - 626 (Satin Chrome Finish)
$1,23235
$1,47882
Unit price
/
Unavailable
Shipping calculated at checkout.
Secure transactionCouldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 4 p.m. EST will be shipped next business day.
Learn more
Von Duprin - 98EO - Rim Exit Device - 48 Length - Exit Only - 626 (...
$1,23235
$1,47882
Unit price
/
Unavailable
Description
Description
Von Duprin - 98EO - Rim Exit Device - 48" Length - Exit Only - 626 (Satin Chrome Finish)
Heavy-duty high-performance exit devices with many customizable options. Von Duprin's 98 Series Exit Devices are wide stile, heavy-duty push pads. They are certified to the maximum industry standards and ideal for use in schools, hospitals and government buildings.
Feature:
- Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
- Device lengths: 3' 2'4' to 3' (711mm to 914 mm) Door size 4' 2'10" to 4' (864 mm to 1219 mm) Door size
- Device centerline from finished floor: 39 13/16" (1011 mm) 39 11/16" (1008 mm) with mullion
- Center case dimensions: 8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
- Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
- Projection: Pushbar neutral – 3 13/16" (97 mm) Pushbar depressed – 3 1/16" (78 mm)
- Latch bolt: Deadlocking, 3/4" (19mm) throw
- Fasteners & sex bolts (SNB): Includes screw pack for 1 3/4" (44mm) and 2 1/4" (57mm) thick metal or wood doors. Optional 425 SNB available
Product Specifications:
| Vendor | Allegion |
| Manufacturer | Von Duprin |
| SKU | 98EO 4 26D |
| UID | VON10098EO426D |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| UL Listing Type | UL Listed |
| ANSI Number | A156.3 2014 |
| BAA Qualified | Yes |
| UPC Code | 43156977727 |
Technical Specifications:
| Physical Appearance | Wide Stile Pushpad |
| Device Type | Rim |
| Mechanical Function | Exit Only |
| Device Length | 48" |
| Hand | Non-Handed |
| Dogging Options | Hex Key Dogging |
| Trim Type | Less Trim |
| Trim Design | Blank Plate |
| Cylinder Type | Non-Keyed |
| Minimum Stile Size | 4-1/2" |
| Door Material | Wood or Metal |
| Door Width | 34" to 48" |
| Door Thickness | 1-3/4" to 2-1/4" |
| Product Type | Rim Exit Devices |
