Von Duprin - 9927EO-3-26D - Surface Vertical Rod Exit Devices - Wide Stile Pushpad - Exit Only - Less trim - Field Reversible - Satin Chrome (Grade 1)
Review: 5 - "A masterpiece of literature" by , written on May 4, 2006
I really enjoyed this book. It captures the essential challenge people face as they try make sense of their lives and grow to adulthood.

Von Duprin - 9927EO-3-26D - Surface Vertical Rod Exit Devices - Wide Stile Pushpad - Exit Only - Less trim - Field Reversible - Satin Chrome (Grade 1)

  • Product SKU: VDRN-9927EO-3-26D
  • Order within

    and choose FedEx 2Dayยฎ Shipping

Von Duprin - 9927EO-3-26D - Surface Vertical Rod Exit Devices - Wide Stile Pushpad - Exit Only - Less trim - Field Reversible - Satin Chrome (Grade 1)

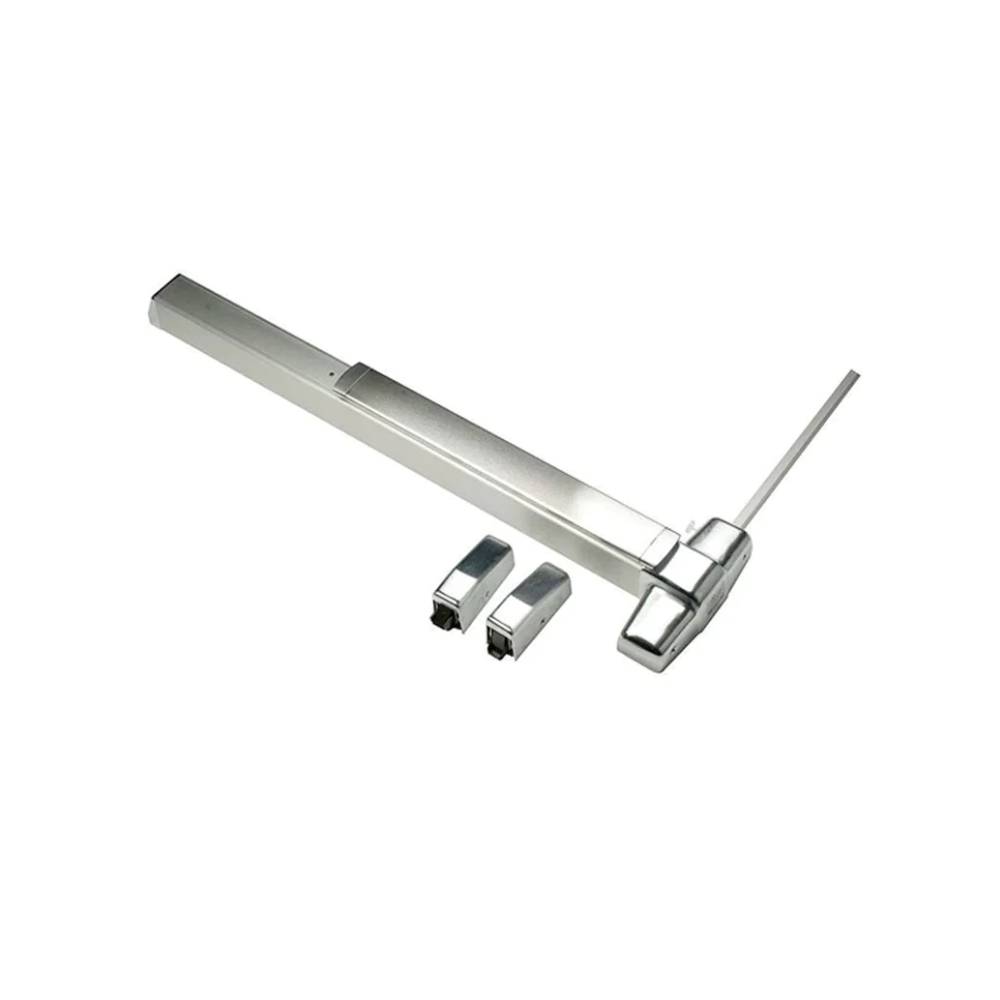

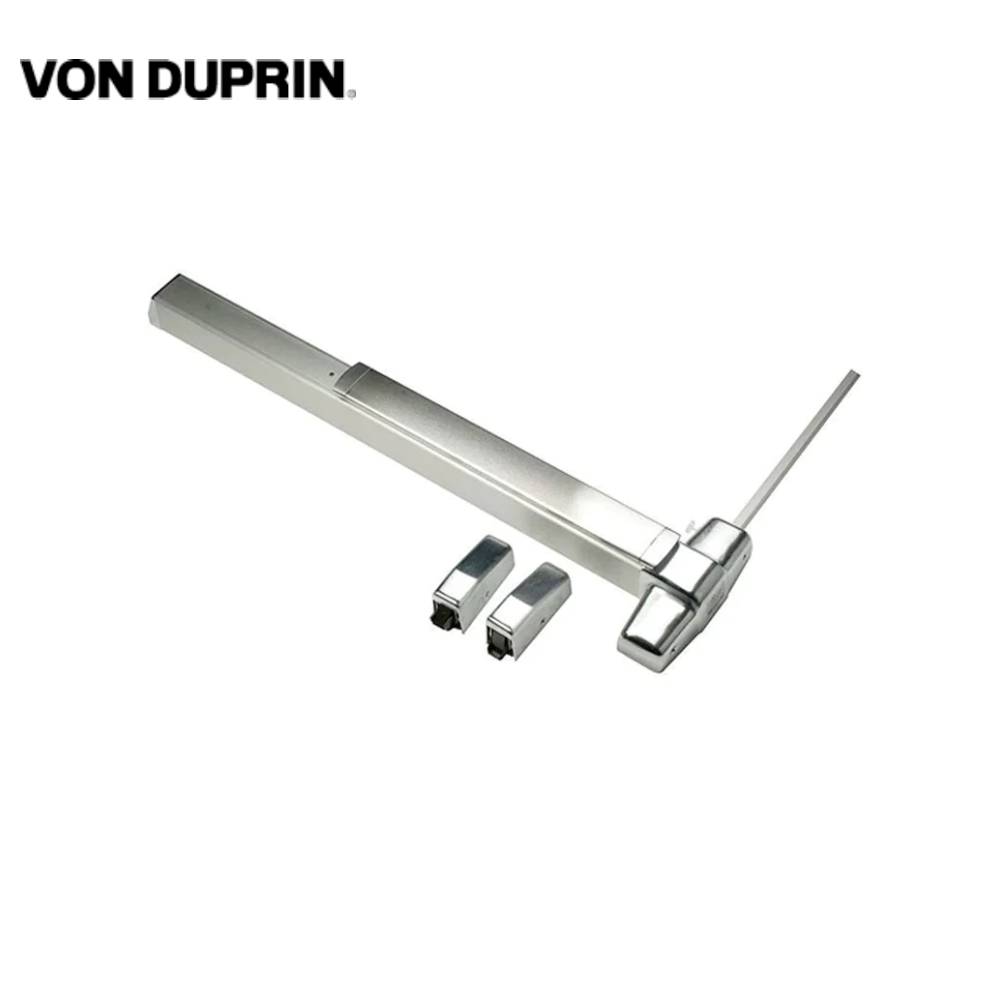

Von Duprin 9927EO 36"" (3ft.) Surface Mounted Vertical Rod Exit Device replacement for all types of single or double doors, UL listed for panic exit hardware

  • Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
  • Device lengths: 2' 2"" (610 mm) Door size (shipped less UL label) 3' 2'4' to 3' (711mm to 914 mm) Door size 4' 2'10"" to 4' (864 mm to 1219 mm) Door size
  • Device centerline from finished floor: 395 /8"" (1006 mm)
  • Center case dimensions: 8"" x 2 3/4"" x2 3/8"" (203mm x 70mm x 60mm)
  • Mechanism case dimensions: 2 1/4"" x 2 1/4"" (57mm x 57mm)
  • Projection: Pushbar neutral โ€“ 3 13/16"" (97 mm) Pushbar depressed โ€“ 3 1/16"" (78 mm)
  • Latch bolt: Deadlocking anti-friction top & bottom bolt, 5 /8"" (16mm) throw
  • Door undercut 1 /4"" (7mm) recommended
  • Top & bottom Latch case: 4 1/2"" x 2 1/8"" x 1 1/2"" (114mm x 54mm x 38mm)
  • Vertical rods: 1 /2"" square tubing, standard rods accommodate 7' (2134mm) doors. Top rod length: 34 15/16"" (887mm); Bottom rod length: 31 1/2"" (794mm) Extension rods available in 1' (205mm) or 3' (914mm) for doors over 7'. One piece top rod is available for 8' (2438mm) and 10' (3048mm) doors.
  • Fasteners & sex bolts: (SNB) Includes screw pack for 1 3/4"" (44mm) to 2 1/4"" (57mm) thick metal or wood doors, and 325 SNB for top and bottom latch. Optional 425 SNB available.
Product Specifications:
Vendor Allegion
Manufacturer Von Duprin
SKU 9927EO 3 26D
UID VON1009927EO326D
Grade Grade 1
Installation Commercial
Origin USA
Unit of Measure Each
UL Listing Type UL 305
ANSI Number A156.3 2014, Grade 1
Restrictions None
BAA Qualified Yes
Technical Specifications:
Physical Appearance Wide Stile Pushpad
Device Type Surface Vertical Rod
Mechanical Function Exit Only, Accepts Various Trim
Device Length 36""
Hand Field Reversible
Dogging Options Hex Key Dogging
Top Strike 299
Strike Bottom 248L4 / 304L
Includes Trim No
Trim Type Less trim
Includes Cylinder(s) No
Cylinder Type Non-Keyed
Minimum Stile Size 3-11/16""
Door Material All Types
Door Width 28"" - 36""
Door Height 84""
Door Thickness 1-3/4""
Fire Rated No
Reversible Yes
Product Type Surface Vertical Rod Exit Devices
