Von Duprin | SKU:
VDRN-9927EO-F-3-26D
17% off

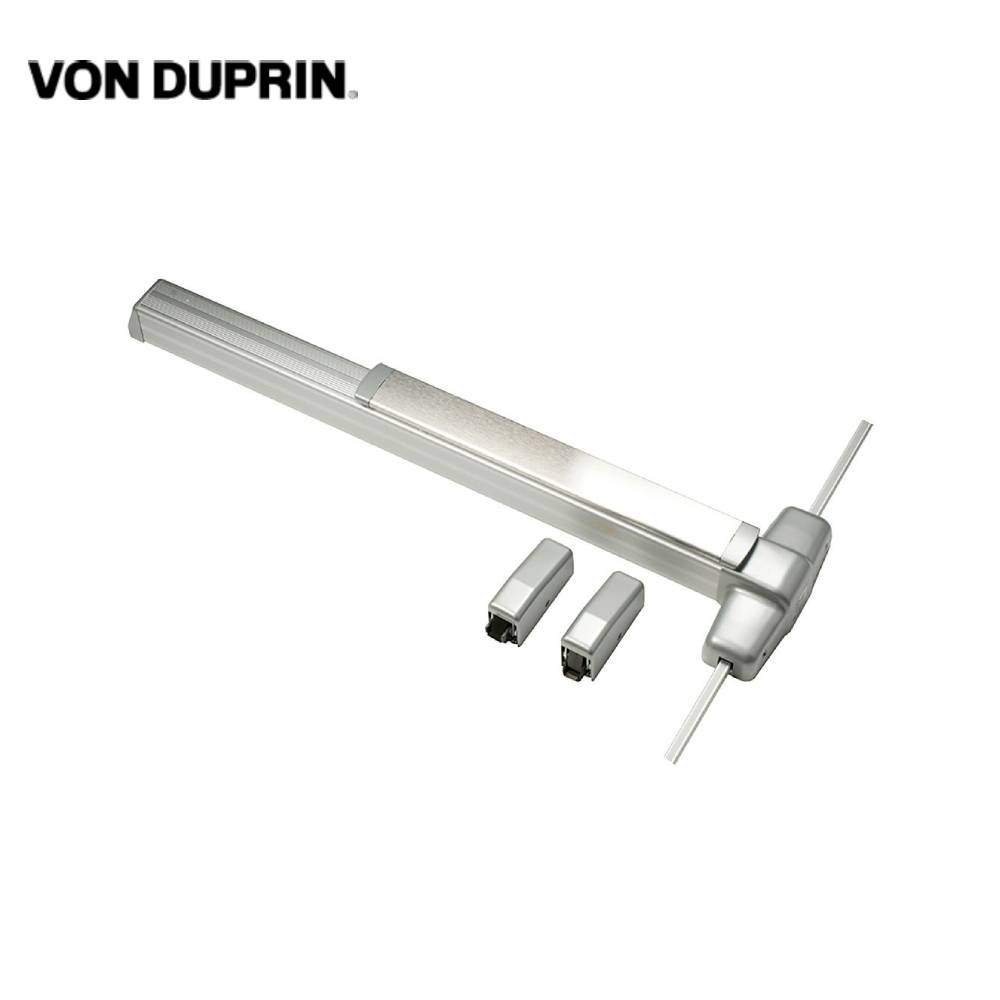

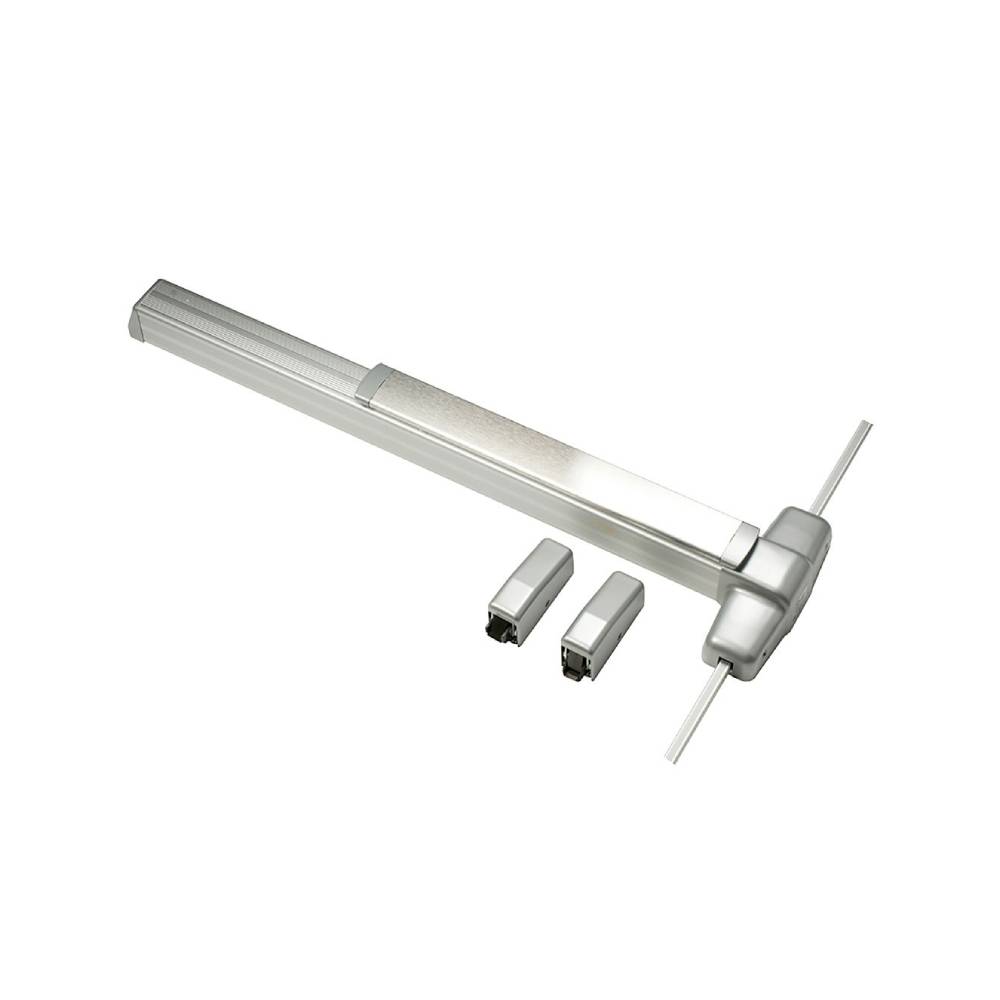

Von Duprin - 9927EO-F-3-26D - Surface Vertical Rod Exit Devices - Wide Stile Pushpad - Exit Only - Less trim - Field Reversible - Satin Chrome - Grade 1
$1,98840
$2,38608
Unit price
/
Unavailable
Shipping calculated at checkout.
Secure transactionCouldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 4 p.m. EST will be shipped next business day.
Learn more
Von Duprin - 9927EO-F-3-26D - Surface Vertical Rod Exit Devices - W...
$1,98840
$2,38608
Unit price
/
Unavailable
Description
Description
Von Duprin - 9927EO-F-3-26D - Surface Vertical Rod Exit Devices - Wide Stile Pushpad - Exit Only - Less trim - Field Reversible - Satin Chrome - Grade 1
The 9927 Series has been certified to the highest industry standards and are used in schools, hospitals, and government buildings. 9927 Surface mounted vertical rod device for all types of single or double doors.
Features:
- Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
- Device lengths: 2' 2" (610 mm) Door size (shipped less UL label) 3' 2'4' to 3' (711mm to 914 mm) Door size 4' 2'10" to 4' (864 mm to 1219 mm) Door size
- Device centerline from finished floor: 395 /8" (1006 mm)
- Center case dimensions: 8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
- Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
- Projection: Pushbar neutral – 3 13/16" (97 mm) Pushbar depressed – 3 1/16" (78 mm)
- Latch bolt: Deadlocking anti-friction top & bottom bolt, 5 /8" (16mm) throw
- Door undercut 1 /4" (7mm) recommended
- Top & bottom Latch case: 4 1/2" x 2 1/8" x 1 1/2" (114mm x 54mm x 38mm)
- Vertical rods: 1 /2" square tubing, standard rods accommodate 7' (2134mm) doors. Top rod length: 34 15/16" (887mm); Bottom rod length: 31 1/2" (794mm) Extension rods available in 1' (205mm) or 3' (914mm) for doors over 7'. One piece top rod is available for 8' (2438mm) and 10' (3048mm) doors.
- Fasteners & sex bolts: (SNB) Includes screw pack for 1 3/4" (44mm) to 2 1/4" (57mm) thick metal or wood doors, and 325 SNB for top and bottom latch. Optional 425 SNB available.
Product Specifications:
| Vendor | Allegion |
| Manufacturer | Von Duprin |
| SKU | 9927EO-F 3 26D |
| UID | VON1009927EOF326D |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| UL Listing Type | UL 10C |
| ANSI Number | A156.3 2014, Grade 1 |
| Restrictions | None |
| BAA Qualified | Yes |
Technical Specifications:
| Physical Appearance | Wide Stile Pushpad |
| Device Type | Surface Vertical Rod |
| Mechanical Function | Exit Only, Accepts Various Trim |
| Device Length | 36" |
| Hand | Field Reversible |
| Dogging Options | Less Dogging |
| Top Strike | 299 |
| Strike Bottom | 304L |
| Trim Type | Less trim |
| Cylinder Type | Non-Keyed |
| Minimum Stile Size | 3-11/16" |
| Door Material | All Types |
| Door Width | 28" - 36" |
| Door Height | 84" |
| Door Thickness | 1-3/4" |
| Fire Rated | Yes |
| Reversible | Yes |
| Product Type | Surface Vertical Rod Exit Devices |
