Von Duprin | SKU:
VDRN-99EO-3-US28
17% off

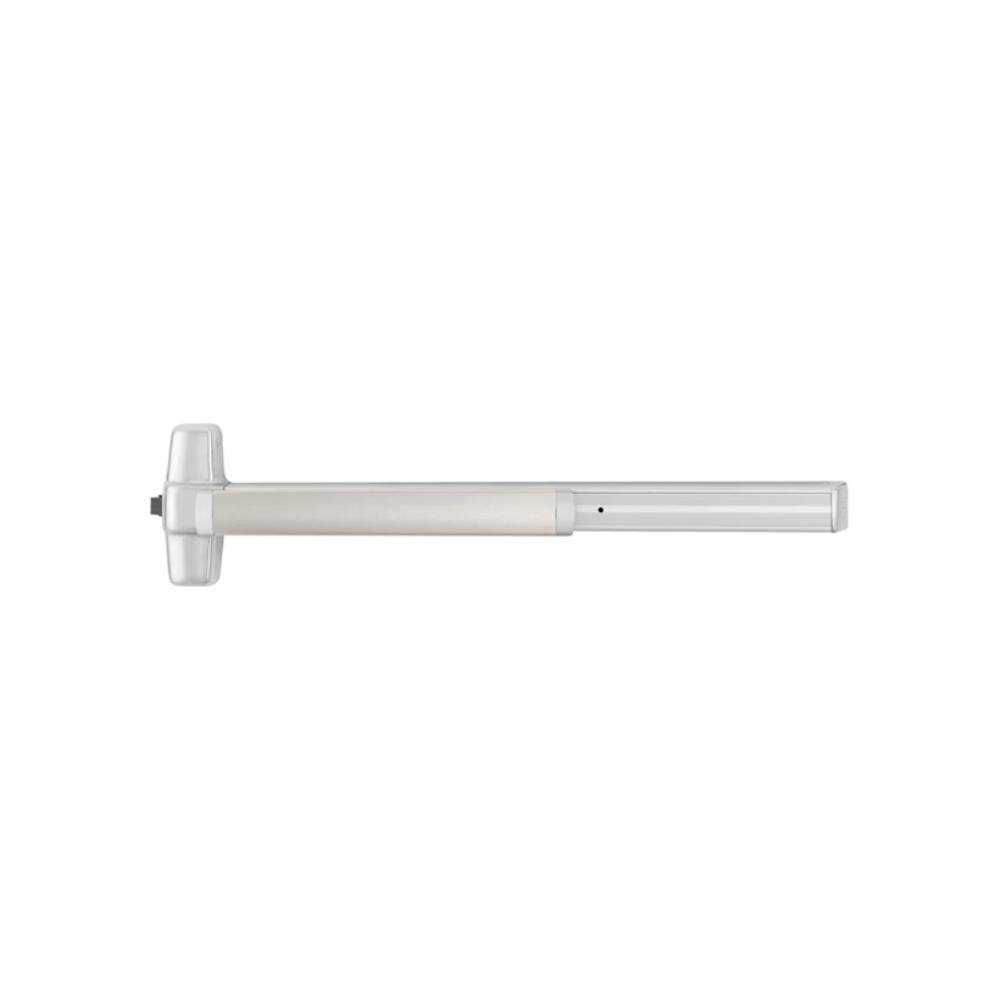

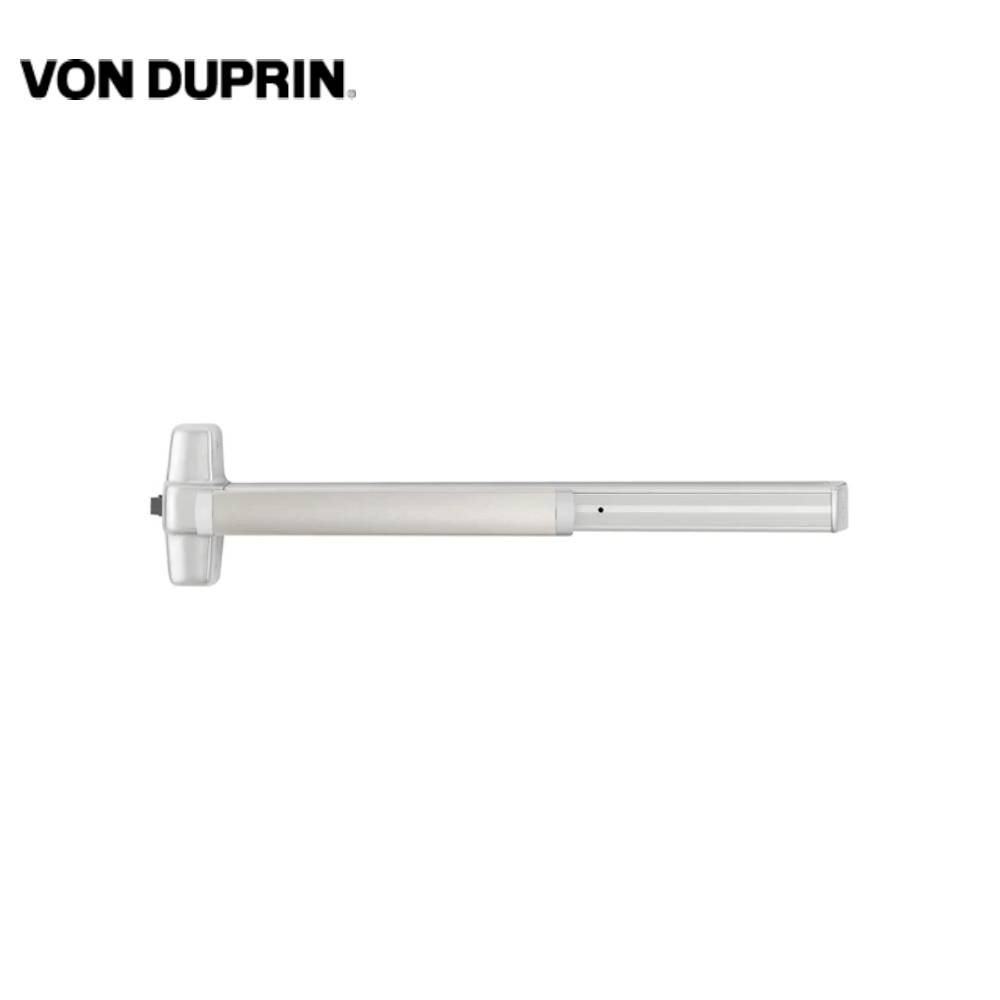

Von Duprin - 99EO-3-US28 - Rim Exit Bar - Wide Stile Pushpad - 36- Exit Only - Less Trim - Satin Aluminum Clear Anodized (Grade 1)
$1,07340
$1,28808
Unit price
/
Unavailable
Shipping calculated at checkout.
Secure transactionCouldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 4 p.m. EST will be shipped next business day.
Learn more
Von Duprin - 99EO-3-US28 - Rim Exit Bar - Wide Stile Pushpad - 36- ...
$1,07340
$1,28808
Unit price
/
Unavailable
Description
Description
Von Duprin - 99EO-3-US28 - Rim Exit Bar - Wide Stile Pushpad - 36"- Exit Only - Less Trim - Satin Aluminum Clear Anodized (Grade 1)
99 rim exit devices for all types of single and double doors with mullion, UL listed for panic exit hardware. Devices are certified to ANSI/BHMA A156.3 2014, Grade 1. The 99 device has a grooved case It is specifically designed for use in areas where frequent abusive treatment can be expected.
Features:
- Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
- Device lengths: 3' 2'4' to 3' (711mm to 914 mm) Door size 4' 2'10" to 4' (864 mm to 1219 mm) Door size
- Device centerline from finished floor: 39 13/16" (1011 mm) 39 11/16" (1008 mm) with mullion
- Center case dimensions: 8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm
- Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
- Projection: Pushbar neutral – 3 13/16" (97 mm) Pushbar depressed – 3 1/16" (78 mm)
- Latch bolt: Deadlocking, 3/4" (19mm) throw
- Fasteners & sex bolts (SNB): Includes screw pack for 1 3/4" (44mm) and 2 1/4" (57mm) thick metal or wood doors. Optional 425 SNB available, see page 9 for quantities.
Product Specifications:
| Vendor | Allegion |
| Manufacturer | Von Duprin |
| SKU | 99EO 3 US28 |
| UID | VON10099EO3US28 |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| UL Listing Type | UL 305 |
| ANSI Number | A156.3 |
| Restrictions | None |
| BAA Qualified | Yes |
Technical Specifications:
| Physical Appearance | Wide Stile Pushpad |
| Device Type | Rim |
| Mechanical Function | Exit Only, Accepts Various Trim |
| Device Length | 36" |
| Hand | Non-handed |
| Dogging Options | Hex Key Dogging |
| Trim Type | Less Trim |
| Trim Design | Less Trim |
| Cylinder Type | Non-Keyed |
| Minimum Stile Size | 3-5/8" |
| Door Material | Metal or Wood |
| Door Width | 28" - 36" |
| Door Thickness | 1-3/4" - 2-1/4" |
| Product Type | Rim Exit Devices |
Installation Instructions:
