Von Duprin | SKU:
VDRN-99L06F-3-26D-RHR
17% off

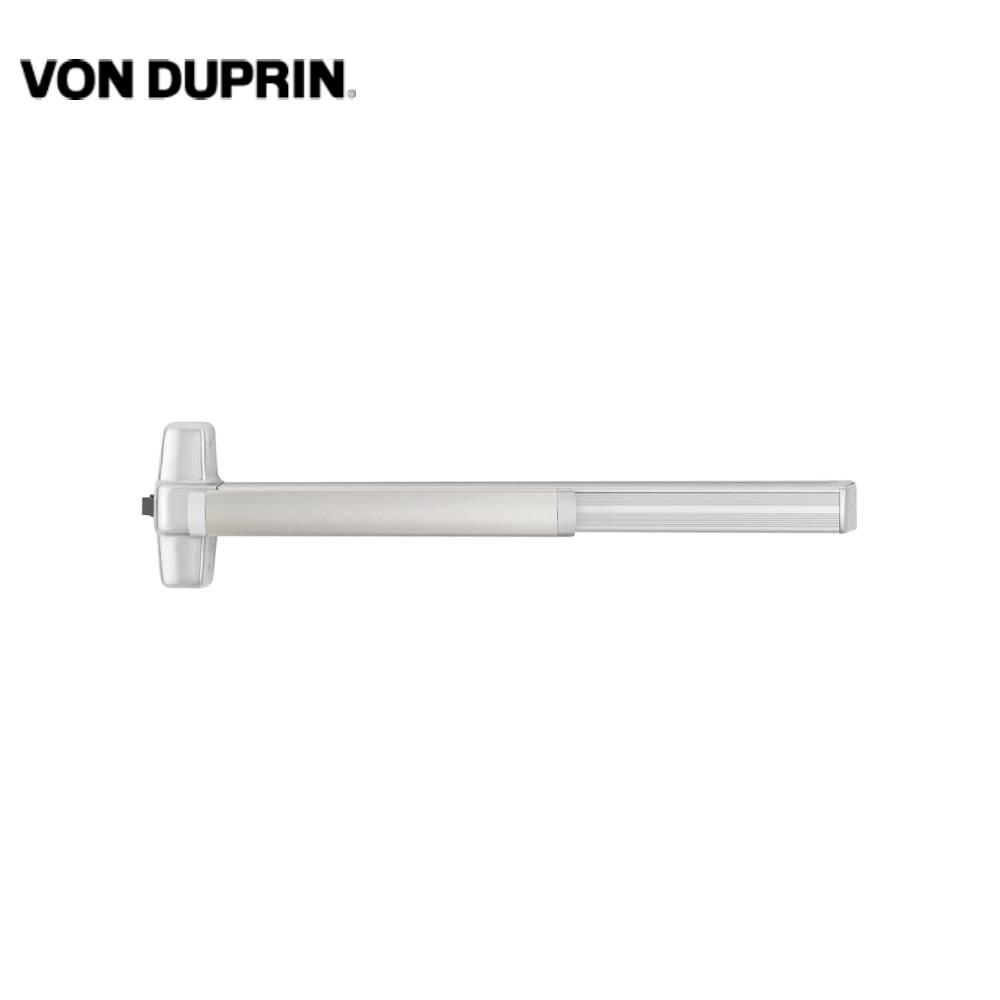

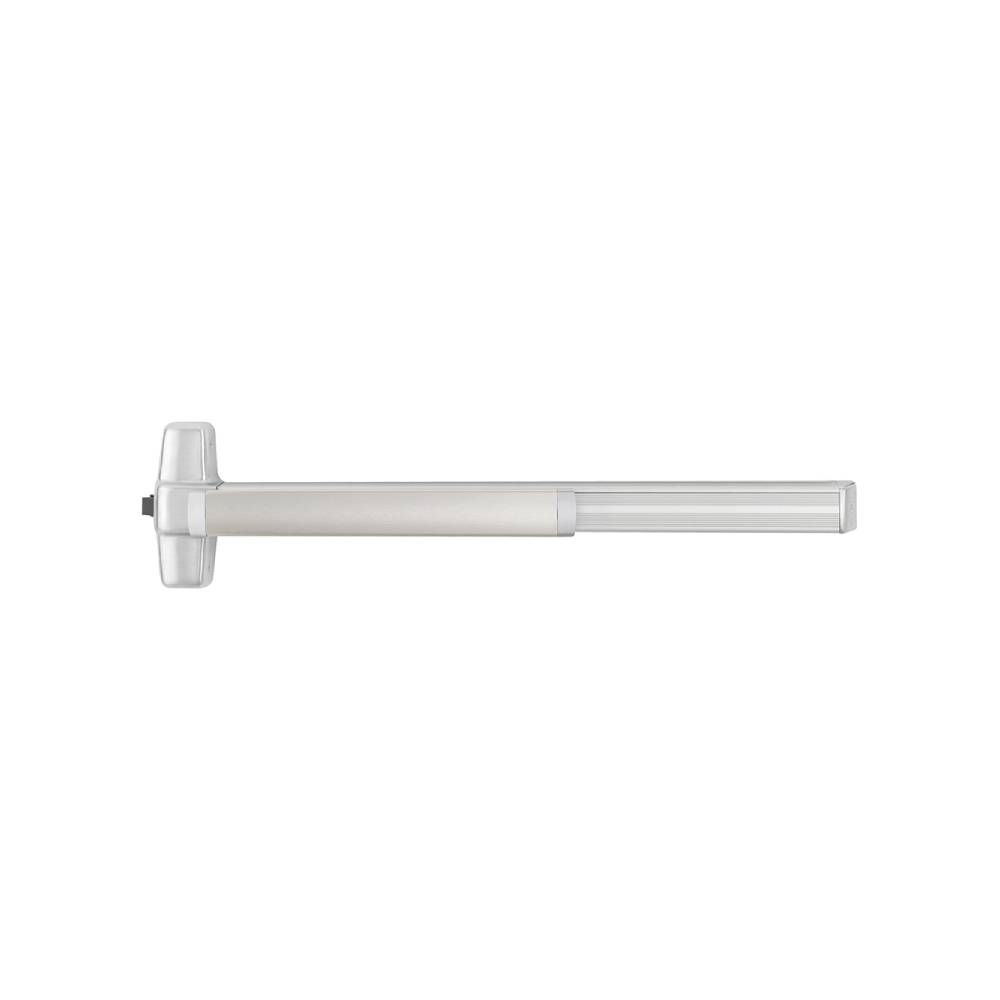

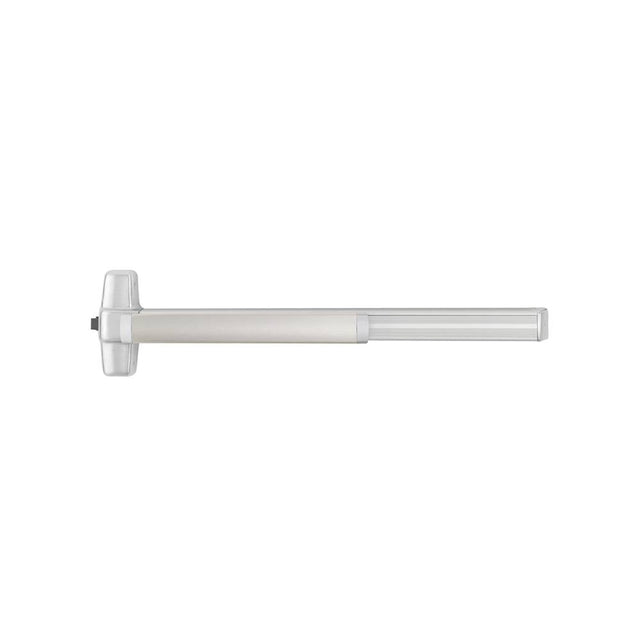

Von Duprin - 99L06F-3-26D-RHR - Rim Exit Device with Classroom Lever Trim 36 - Satin Chrome - Grade 1
$1,86120
$2,23344
Unit price
/
Unavailable
Shipping calculated at checkout.
Secure transactionCouldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 4 p.m. EST will be shipped next business day.
Learn more
Von Duprin - 99L06F-3-26D-RHR - Rim Exit Device with Classroom Leve...
$1,86120
$2,23344
Unit price
/
Unavailable
Description
Description
Von Duprin - 99L06F-3-26D-RHR - Rim Exit Device with Classroom Lever Trim 36" - Satin Chrome - Grade 1
99 rim exit devices for all types of single and double doors with mullion, UL listed for panic exit hardware. Devices are certified to ANSI/BHMA A156.3 2014, Grade 1. The 99 device has a grooved case It is specifically designed for use in areas where frequent abusive treatment can be expected.
Features:
- Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
- Device lengths: 3' 2'4' to 3' (711mm to 914 mm) Door size 4' 2'10" to 4' (864 mm to 1219 mm) Door size
- Device centerline from finished floor: 39 13/16" (1011 mm) 39 11/16" (1008 mm) with mullion
- Center case dimensions: 8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
- Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm
- Projection: Pushbar neutral – 3 13/16" (97 mm) Pushbar depressed – 3 1/16" (78 mm)
- Latch bolt: Deadlocking, 3/4" (19mm) throw
- Fasteners & sex bolts (SNB): Includes screw pack for 1 3/4" (44mm) and 2 1/4" (57mm) thick metal or wood doors. Optional 425 SNB available, see page 9 for quantities.
Product Specifications:
| Vendor | Allegion |
| Manufacturer | Von Duprin |
| SKU | 99L-06-F 3 26D RHR |
| UID | VON10099L06F326DRHR |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| UL Listing Type | UL 10C |
| ANSI Number | A156.3 |
| Restrictions | None |
| BAA Qualified | Yes |
Technical Specifications:
| Physical Appearance | Wide Stile Pushpad |
| Device Type | Rim |
| Mechanical Function | Classroom |
| Device Length | 36" |
| Hand | Field Reversible |
| Dogging Options | Less Dogging |
| Includes Trim | Yes |
| Trim Type | Lever |
| Trim Design | Lever with Escutcheon |
| Trim Part No. | 996L-06-R/V 26D RHR |
| Includes Cylinder(s) | No |
| Cylinder Type | Rim |
| Minimum Stile Size | 4-1/2" |
| Door Material | Metal or Wood |
| Door Width | 28" - 36" |
| Door Thickness | 1-3/4" - 2-1/4" |
| Fire Rated | Yes |
| Reversible | Yes |
| Product Type | Rim Exit Devices |
