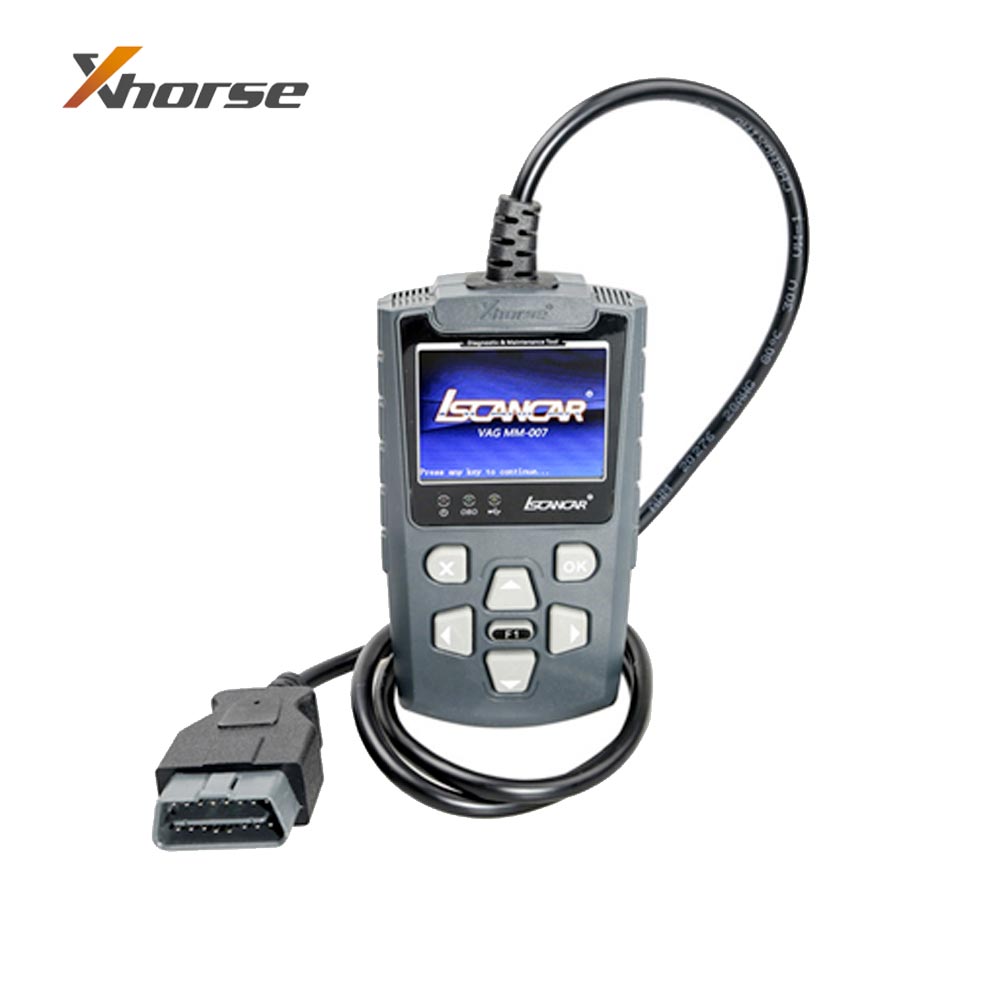

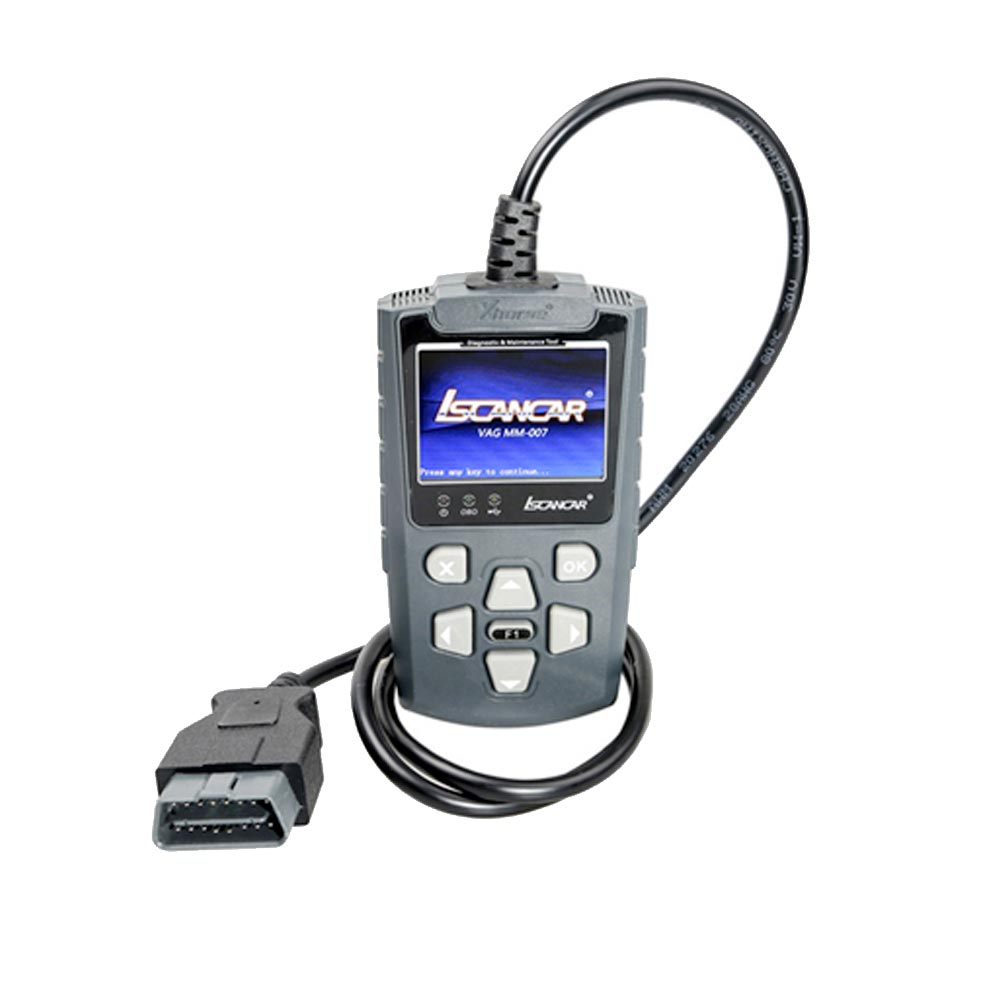

XHORSE VAG MM-007 Diagnostic and Maintenance Tool

XHORSE VAG MM-007 Diagnostic and Maintenance Tool

Product Description:

Xhorse Iscancar V-A-G MM-007 Support controller diagnostic: basic setting, channel adaption, read DTC, clear DTC, system login, etc

OBD read PINs, adaption after replacing controller, gateway register, etc

Iscancar VAG MM-007 Basic function:

Support controller diagnostic, such as basic setting, channel adaption, read DTC, clear DTC, system login, etc.

Guide function:

There are many commonly used functions. We have simplified the process so you can follow it more easily.

Special function:

OBD read PINs, adaption after replacing controller, gateway register, etc.

Write data record:

When replacing the new controller, you must write a data record online or the controller will not work correctly. Now you can use this diagnostic tool to write data records offline. And you can active some functions like MKE etc.

Example for writing data record:

• PQ35 gateway 7N0907530AN: active MKE. after writing the data record, you can set MKE on the dashboard.
• MQB gateway 5Q0907530AJ: active MKE. after writing the data record, you can set MKE on the dashboard.
• PQ35 replace kessy 5K0959434B: before writing data, there's a DTC “no basic setting”, the car can't find keys. After writing data the DTC disappears, and the car can find the keys.
• MQB replace kessy 5Q0959435A: before writing data, there's a DTC 10478040(invalid data record), and the car can’t find keys. After writing data the DTC disappears, and the car can find the keys.
• MQB front camera 5Q0980653G: before writing data, there's a DTC 0649 (invalid data record), after writing data the DTC disappears.
• MQB new ACC 5Q0907561A: before writing data, there's a DTC” invalid data record”, after writing data the DTC disappears.
• PQ Xenon 5M0907273F: before writing data, there's a DTC 10478040 (invalid data record), after writing data the DTC disappears.
• PQ tire pressure monitor 3AA907273D: before writing data, there's a DTC 12652550 (invalid data record), the controller doesn't work, after writing data the DTC disappears, you can set tire pressure on the dashboard.
• MQB new DCC 5Q0907376: before the writing data, there's a DTC 813056 (invalid data record), after writing data the DTC disappears.
• MQB parking assistance 5Q0919298K: before writing data, there's a DTC 10478040 (invalid data record), after writing data the DTC disappears.

Essential Function of Refitment and Maintenance:

Many functions are very useful for refitment and maintenance, such as controller replacement, throttle adaptation, and EPB replacing brake pads. In addition, further functions will be added continuously.

Built-in database:

There's a built-in database in the diagnostic tool. Users can write data records without an online account. It has already supported many controllers, and more data will be continuously added.

Parameters:

Power consumption: 80mA/12V

Technical Support:

Providing lifelong after-sale perfect service guarantees customer trouble-free operation of the machine.
Consider customer feedback suggestions and requirements carefully.

Online Upgrade:

The VAG MM-007 can be upgraded through the internet.

Latest Version: V2.3.2 (Please use Xhorse Update Kit software to Update)

Free Download VAG MM-007 Simulator V1.6.6 Software
