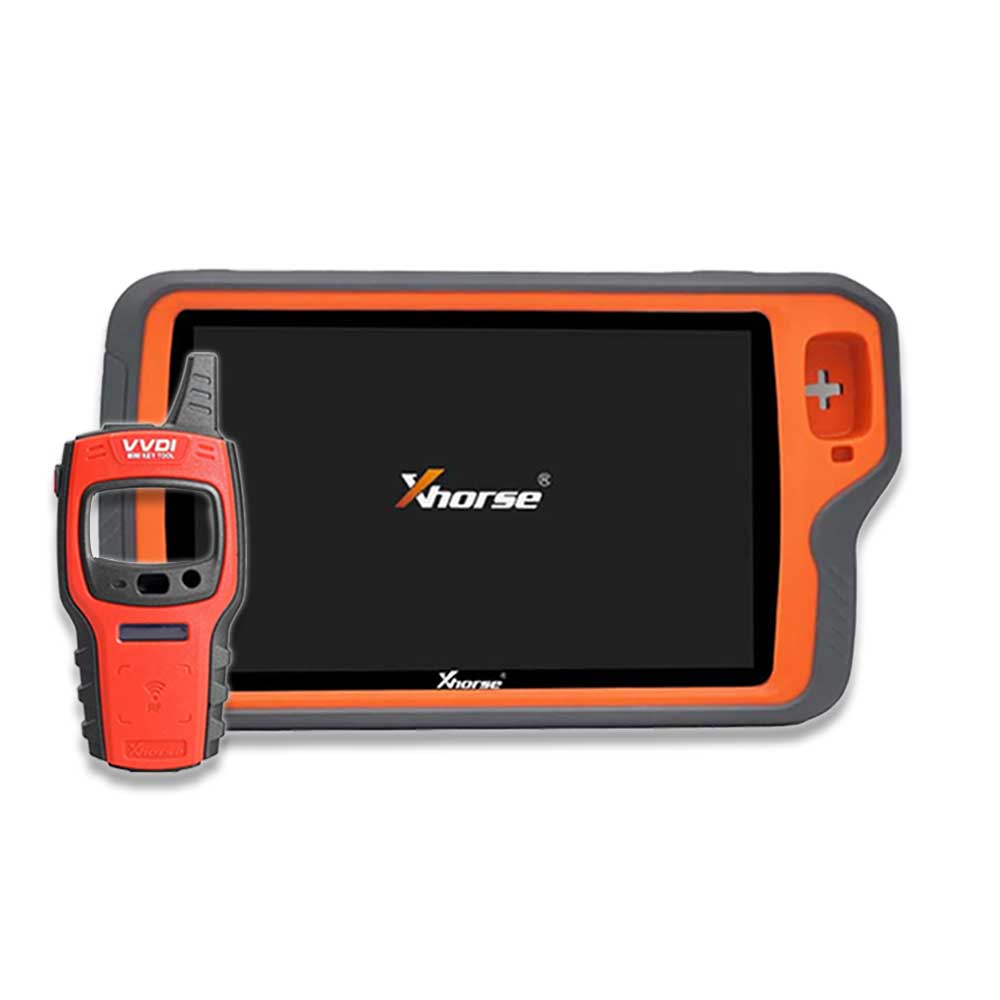

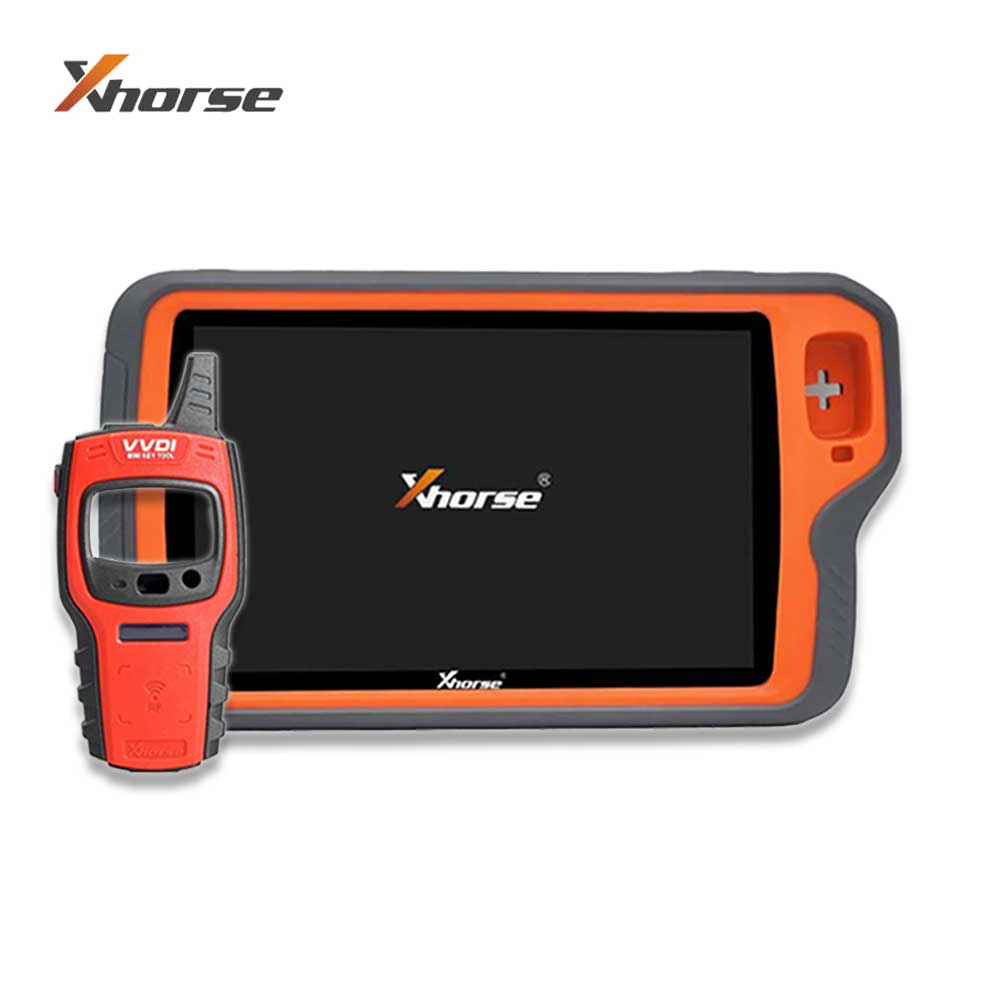

Xhorse VVDI Key Tool Plus PAD and VVDI MINI Key Tool Remote Generator, Cloner, Tester

Xhorse VVDI Key Tool Plus PAD and VVDI MINI Key Tool Remote Generator, Cloner, Tester

Includes:

• VVDI Key Tool Plus PAD
• VVDI MINI Key Tool

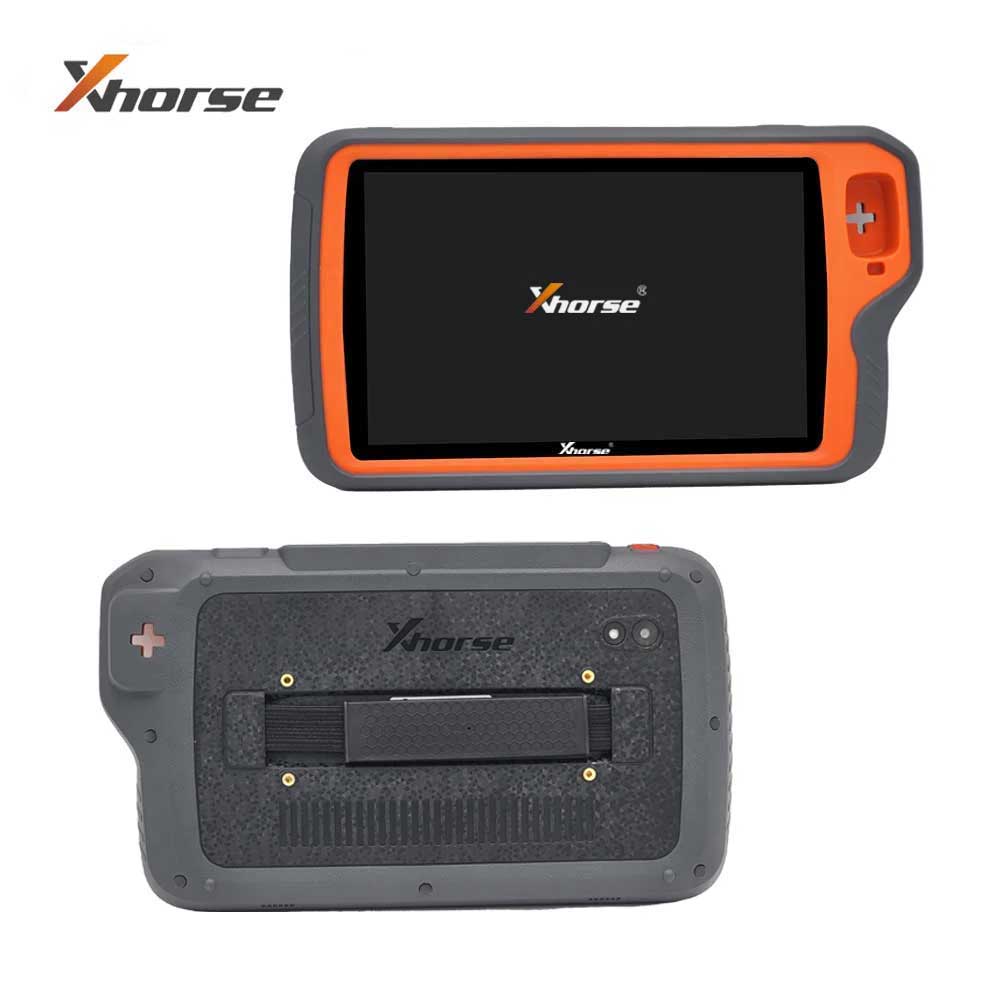

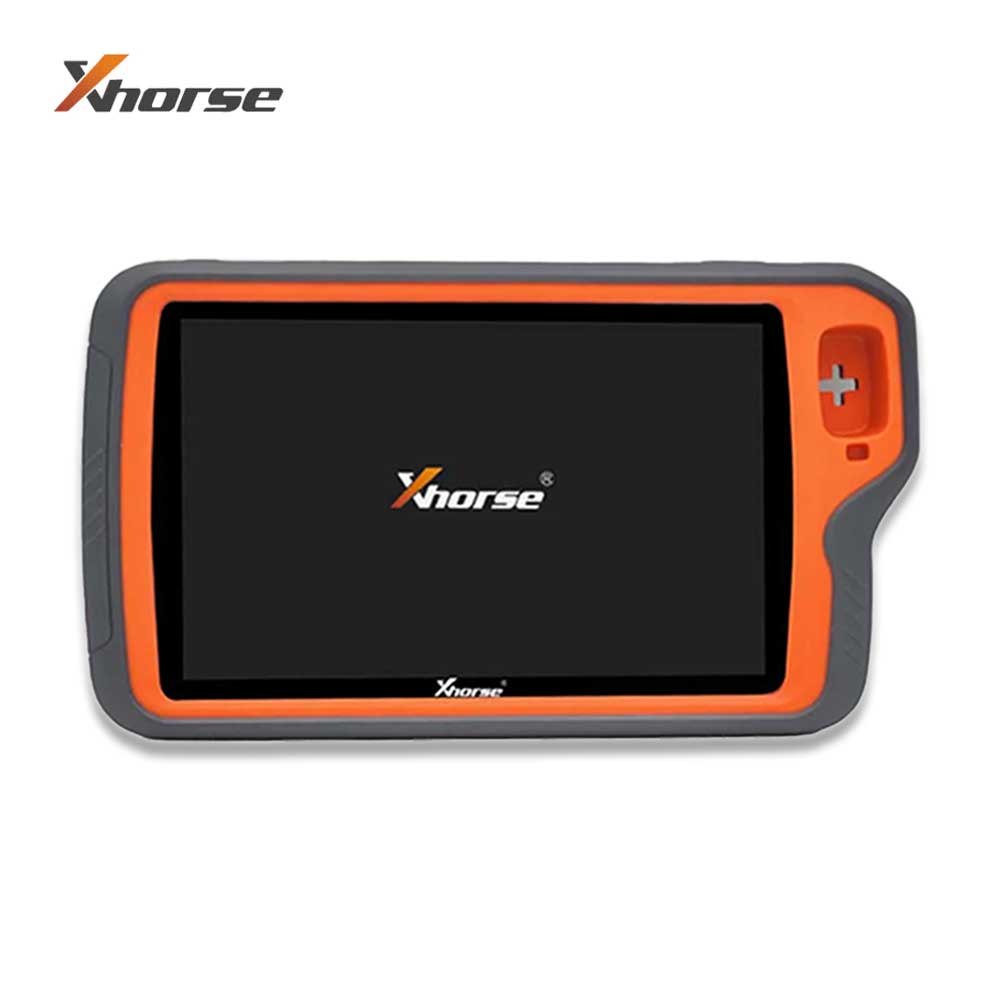

Xhorse VVDI Key Tool Plus PAD

Description:

• VVDI KEY TOOL PLUS provides an all-in-one security solution for locksmiths.
• Much easier to complete various automotive programming anywhere with no need to take your laptop, mobile phone.
• It supports IMMO programming for luxury cars like BMW, BENZ, AUDI, and VW.
• It's available to control Xhorse key cutting machines. Xhorse VVDI Key Tool Plus Pad All-in-One Programmer Global Advanced Version.

VVDI Key Tool Plus Highlights:

• Global advanced version support all countries market
• Combines functions of VVDI2, VVDI MB, Key Tool Max, part VVDI BIM, part VVDI PROG , and available to control
• Xhorse key cutting machines.
• Bind with Xhorse key cutting machines to get free MB BGA token everyday. ID48 and read MB Key password online
• will need token, but both can read xhorse bonus points.
• Multi-Language: KTP Xhorse App language Chinese English French Spanish Portuguese (other language need to be
• authorized by local dealer)
• Free Update Online
• 1 Year warranty

A Computer, A Mobile Phone, A Tablet, An Immo Programmer, A Remote Maker, A Transponder Generator, A Programmer, A Frequency Tester

Paremeters:

• CPU: 8-core 2GHz
• RAM+ROM: 4G+128G
• Operation System: Android 9.0

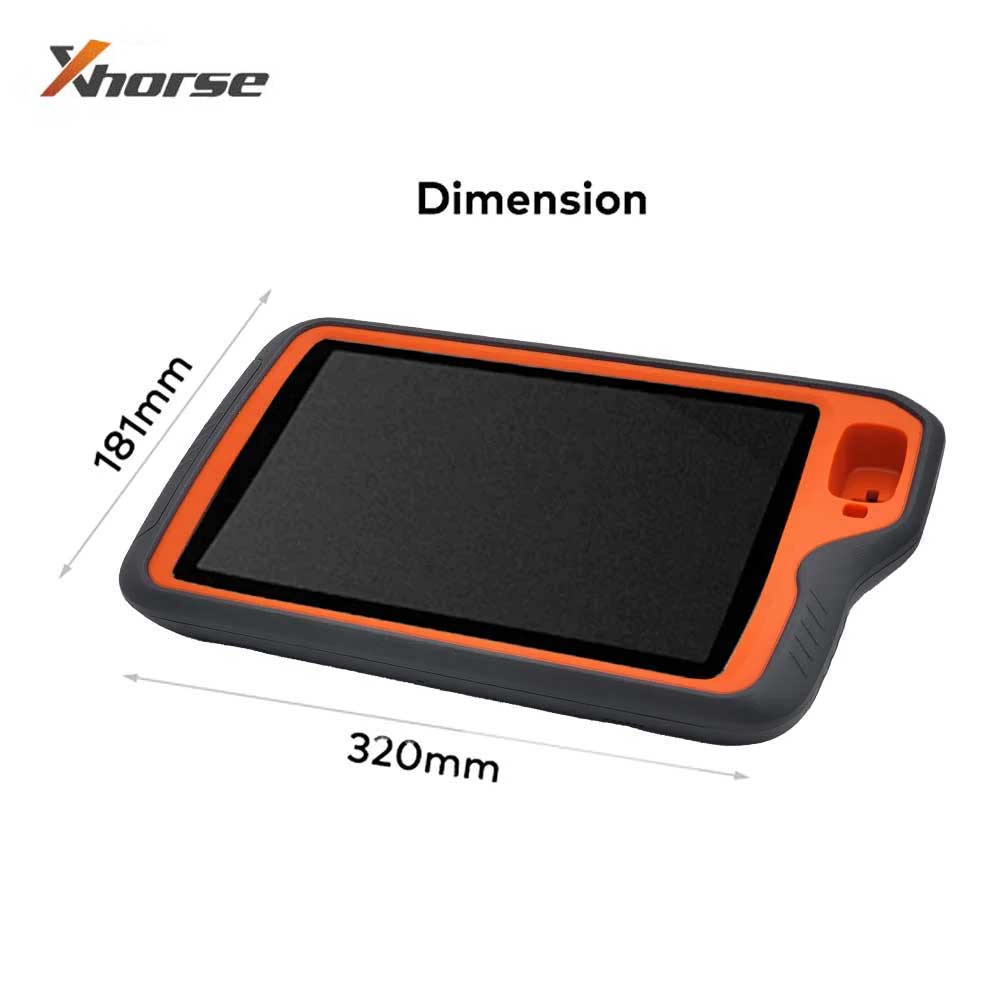

• Screen Size: 10.1" HD Anti-glare; Anti-fingerprint. Super 10.1" anti-glare display enables top operation experience.
• Rear HD Camera: 13.0MP. The 13MP rear camera is designed to fit in multiple scenarios perfectly.
• Battery Capacity: 10000mAh. Long battery life and PD3.0 fast charge help keep you productive throughout your day.
• Charging: 30W Super Fast Charge
• Bluetooth: 5.0 Bluetooth
• WIFI: 2.4G/5G

Xhorse Key Tool Plus Basic Functions:

Supports basic functions of a Key Tool, such as remote generating, cloning, transponder detection, and IMMO programming for VW & Audi, BMW, and Mercedes Benz.

• Transponder Detection
• Transponder Cloning
• Transponder Generation
• Remote Cloning
• Remote Generating
• Frequency Detection
• Remote Renew
• IC/ID Clone
• Vehicle Error Light Reset
• Key Cutting Machine Control
• Built-in OBD matrix switch
• Radio frequency simulator
• Integrated Key Identification Coil
• Mercedes Benz infrared read head
• Smart Key Simulator
• Long-distance IMMO collection
• Chip pin detection
• More functions to be added in future updates

Note:

• Bosch ECU Adapter, Benz EIZ/EZS adapter kit, vvdi renew adapter, BMW EWS4 adapter can be used with the key tool plus. But requires an extra Xhorse multi-function adapter converter to connect with.
• VVDI MB power adapter fast cable cannot be used with the pad. The Pad uses Benz power adapter in its package to fast calculate pass.
• VVDI Toyota 8A AKL adapter can be used with vvdi pad.
• Tokens: ID48 96 bit Cloning Token, Benz Password Online Calculation 1 Token, Unlimited MB Tokens
• Combine with Xhorse Condor XC-Mini/Mini Plus/Condor II/Dolphin XP005/XP005L to enjoy 1 free token everyday for MB password calculation.
• Xhorse released a series of solderless adapters for key tool plus to read chips easily without soldering.
• Key tool plus will do Chrysler Immo with SGW (with 12+8 gateway adapter) and 2016-2021 Ford AKL with active alarm (with Ford AKL harness)

IMMO Key Programming Function: Striking innovations

Supports IMMO programming on luxury car brands - Benz, BMW, Audi, VW (You need to buy these software separately, they are not installed in this device)

KEY TOOL PLUS provides users with functions including key programming, key learning, ECU coding/ adaption/ replacing, diagnostic function, etc. to best resolve most problems they met in immo programming for Volkswagen and AUDI cars.

VW & Audi:

• 3rd / 4th / 5th generation
• MQB
• MED17/EDC17

KEY TOOL PLUS can achieve BMW CAS1 CAS2 CAS3 CAS3+ CAS4 CAS4+ OBD key learning, FEM/BDC key programming, File Make Key, ECU ISN reading, ECU and CAS synchronization, etc. Getting work done has never been easier.

BMW IMMO Programming:

• CAS3/CAS3+
• CAS4/CAS4+
• FEM/BDC
• ECU ISN Reading Function

KEY TOOL PLUS offers users all-rounded and professional security solutions for Mercedes-Benz. The device helps with FBS3 Keyless-go smart key programming, all key lost, adding keys, enabling & disabling keys and 曰S/EZS，ELV, ECU, gearbox, ISM replacing.

Benz IMMO Programming:

• FBS3 standard keys and FBS3 keyless-go keys
• Smart keys, all keys lost, add keys, enable & disable keys
• EIS/EZS, ELV, ECU, gearbox, and ISM replacement

Other Car Models Supported:

• For Toyota
• For Honda
• For Mazda
• For Ford
• For Cadillac
• For LandRover
• For Peugeot
• For Kia
• For Buick
• For Chevrolet
• For Volvo
• For Mitsubishi
• For Nissan
• For Suzuki

KEY TOOL PLUS supports over 20,000 car models worldwide. We can select the car brands and car models on the immo programming interface. On this smart platform, we can easily find the car models we need by brand area, brand name, and A-Z word search.

Transponder & Remote Function:

The Most Comprehensive Database of Vehicles Ever.

Transponders:

• ID46 online calculation
• ID48 (96 bit) online calculation
• Toyota H(8A) online calculation
• Transponder generation and cloning of over 850 car models
• Special transponders and special cars and old car models

Remotes:

• Support remote generation, smart key generation, frequency detection, remote clone for a variety of car models
• HCS/fix code clone, non-HCS rolling code clone, fix code editing
• PT22XX, LX918, HT6P20, VD5026, AX5326, HT12X fix code editing

Combined:

Its design concept is to unite the functions of your various devices and offers the advantage of ultra-convenience at hand.

Prog Function:

Key Tool Plus is designed with Prog function, which can work as a solder-free programmer, directly reading and writing common modules and chips for plenty of car models. Xhorse is the first to offer this targeted solution.

KEY TOOL PLUS supports reading and writing common modules and chips. It covers "EEPROM and FLASH", "IMMO", "Instrument", "Airbag", and "ECU", etc.

• Supported EEPROM and FLASH
• ATMEL
• Mitsubishi
• Winbond
• Catalyst
• ST
• XICOR
• Microchip
• SEIKO
• Xhorse
• MXIC
• Toshiba

Support Modules:

• BMW: CAS3/CAS3+/CAS4/CAS4+/FEM/FRM/BDC
• BENZ: EIS/EIZ
• LANDROVER: RFA
• PORSCHE: BCM
• VOLVO: CEM/KVM
• BMW/AUDI/VW: ECU AND MORE

  (Note: To complete certain functions, users need to connect KEY TOOL PLUS to the specific adapters and get the required model prompt on the interface. The function is only effective on the advanced edition.)

What We Can Complete by Prog Function on Key Tool Plus?

• Support EEPROM reading and writing: support reading & writing most types of transponders in the market.
• Support BMW immo module programming covering CAS3, CAS3+, CAS4, CAS4+, BDC, FRM, and FEM.
• Support Land Rover RFA module reading and immo programming.
• Support Porsche BCM programming.
• Support read ECU with CAN on AUDI, BMW, and VOLKSWAGEN.
• Support Instrument programming on HONDA, KIA, and HYUNDAI.

IMMO DATA TOOL (FILE MAKE KEY) Supports Jaguar - Land Rover - Porsche - Volvo - Mitsubishi - and Others

For some cars, key programming and other settings can't be finished via OBDII. KEY TOOL PLUS gives amazing strength to solve the dilemma by delivering File Make Key function which can be used to add keys for them. This very function features generating transponder via reading related transponder data of the car immo module directly.

[ File make key, to generate a car key via a data file. Users need to use the specific device to read the immo data, and generate a boot transponder to directly start the car, no need to match the original car.(Users may need to rewrite the data to the immo box when doing the programming process on some car models.) ]

Xhorse PAD supports File Make Key function for common car models and motorcycles. we can easily find the car models we need by brand area, brand name, and A-Z word search.

We "LIBERATE" Your Application Program Interface

Maintenance Function Meet Your Work Demands in Every Way. KEY TOOL PLUS supports maintenance light reset, electric parking brake, TPMS, battery matching, throttle program, injector programming, steering angle programming, bitting decode, gearbox programming, headlight programming, etc. More maintenance functions will be released soon.

KEY TOOL PLUS is available to control the key cutting machines and PANDA), to perfectly work as an operation screen. By using KEY TOOL PLUS, completely free your mobile phones.

Cloud Diagnosis Mode-C: After keytool plus start the C mode of cloud diagnosis, it will generate tghe local C-terminal ID and send C-terminal ID to customer who provide remote service. Customer use cloud diagnosis B-terminal Xhorse device, after inputting C ID and connect to the Plus pad for remote diagnosis, programming, coding, matching, maintenance and other functions.

Other Special Functions: Remote renew, Set type of VVDI Special TP, Unlock Toyota Smart Key, Detect remote, VVDI remote repair calibration, VVDI smart key clone, VVDI smart key customization, remote charge battery, Honda cycle key renew, 8E remote upgrade/unlock, XM smart key customization, Toyota smart key frequency setting

More Functions coming soon Eg. OBD diagnosis and MQB49 immo programming have just been released on KEY TOOL PLUS and it’s projected to support DOIP, CAN-FD, Toyota 8A smart key in the near future.

Light sensor:

Detects the brightness in the surrounding environment. Detection coil (including 125K low, 13.56M Medium, 300-900M high frequency).

• Support reading, writing, and cloning common immo transponders
• Support reading common ID transponders
• Support reading common IC transponders
• Support frequency detection of common vehicle remotes
• Immo transponder placement hole for vehicle immo transponders
• USB charging port: support standard fast charge adapter and standard Type-C port DC-5V input.
• PS2 port for remote programming
• DB15 port: support standard & optional programming adapters with DB15 port
• DB25 port for OBD matching

Benz Infrared (IR) port:

Support IR read Benz FBS3 & FBS4 smart key and support Benz IR reader.

Xhorse VVDI Key Tool Plus Full Package List:

• KEY TOOL PLUS
• User Manual
• Certification and warranty card
• Charger
• USB3.0 TYPE-C cable
• OBD_DB25 cable
• OBD_KlA_10 connector
• OBD_KIA_20 connector
• 0BD Honda 3 connector
• Remote_PS2 programming cable
• Transponder box
• Prog_DBI5_15 cable
• Prog EEPROM adapter
• Benz IR adapter
• Benz NEC1 adapter
• Benz NEC2 adapter
• Benz NEC3 adapter
• Benz power adapter
• 9S12xE cable
• MCU cable

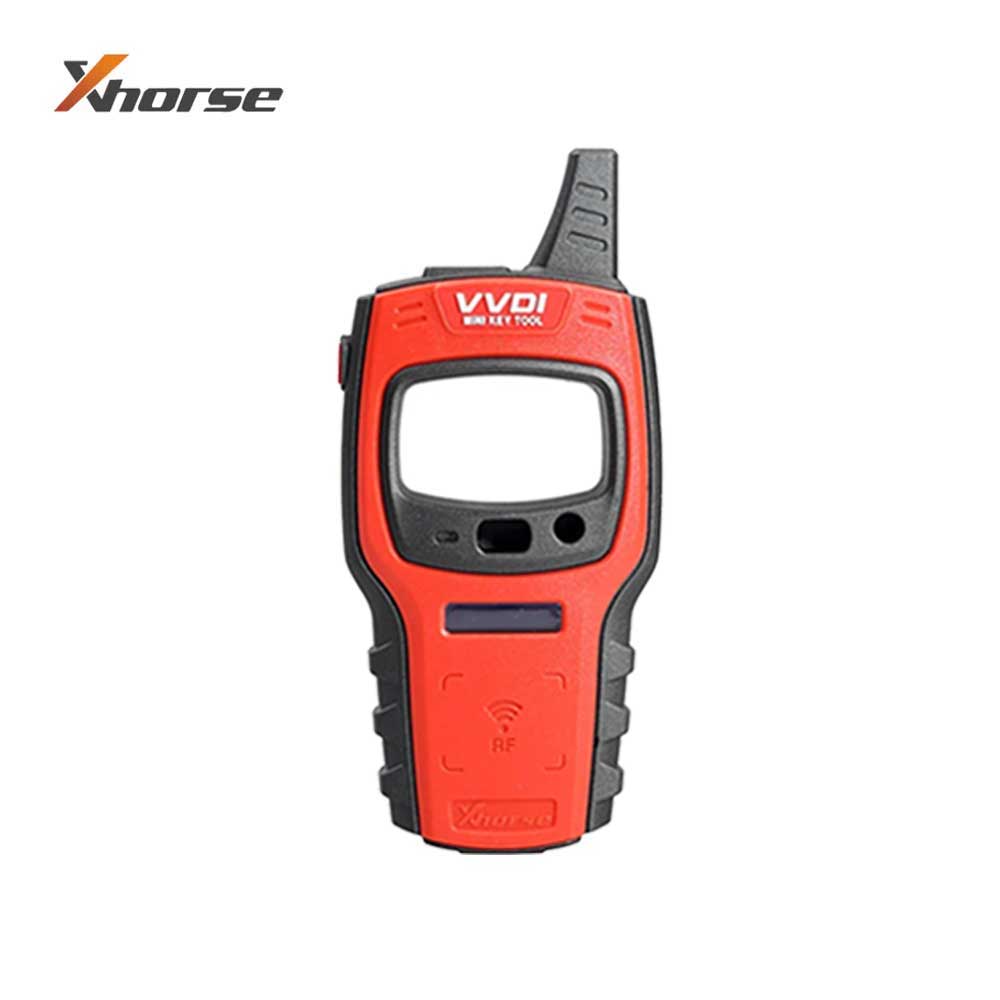

VVDI MINI Key Tool Remote Generator, Cloner, Tester

Features:

• Transponder Editing & Cloning: Detects most immobilizer transponders. It will edit and clone common transponders
• Transponder Generating: Supports TP transponder & parts of special transponders of more than 700 vehicle models. You may reduce the stock of transponders immediately when you start using it.
• Remote Generating: Supports 128 makes and over 2000 vehicle models. Generate more abundant and thorough key pictures, transponder types, key blanks and remote matching data.
• Remote Cloning: Supports the HCS/fixed code cloning. Supports nonHCS rolling code cloning. Supports PT22XX, LX918, HT6P20, VD5026, AX5326, HT12X fixed code editing.
• Frequency Tester: Supports the power test within the range of 300450Mhz
• Toyota H Transponder: Activate Toyota H transponder generation function.

Special Functions:

• Unlock Toyota smart keys
• ID63 to ID83
• Special 4D to 4C
• Detect Remote
