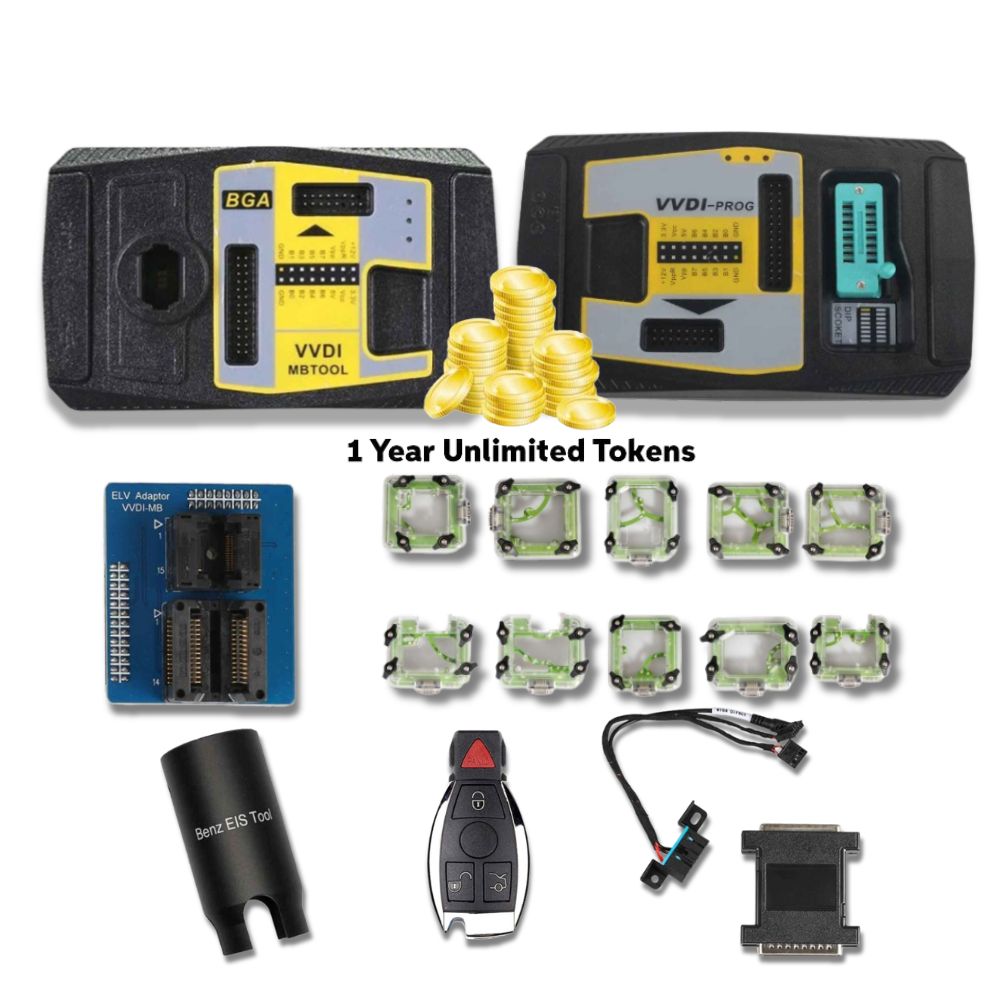

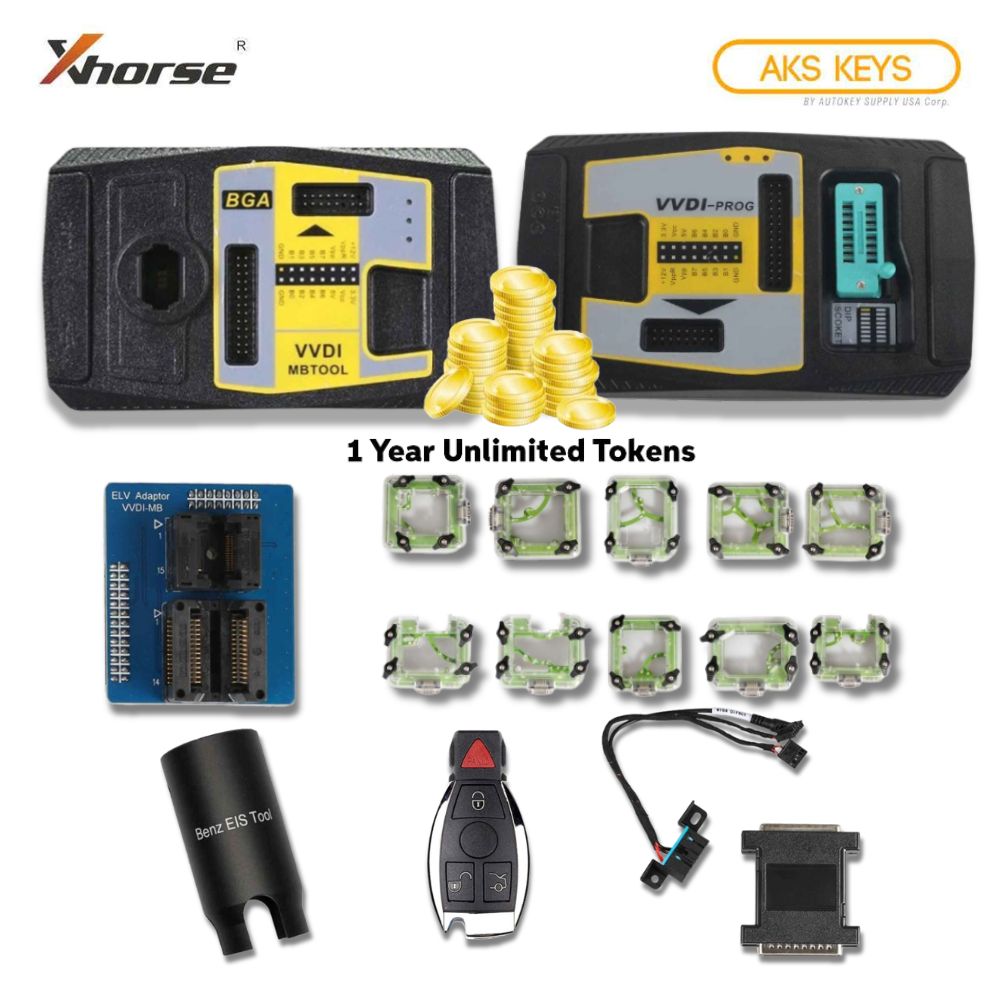

XHORSE VVDI MB Key Programmer and VVDI PROG EEPROM Programmer with Adapters, Smart Key, Removal Tool and 1 Year Unlimited Token for VVDI MB Tool

XHORSE VVDI MB Key Programmer and VVDI PROG EEPROM Programmer with Adapters, Smart Key, Removal Tool and 1 Year Unlimited Token for VVDI MB Tool

Includes:

• VVDI MB Key Programmer
• VVDI PROG EEPROM Programmer
• VVDI Prog. EZS Adapters Set
• W164 Gateway Adapter
• VVDI MB NEC ELV Adaptor
• 5 x 1997 - 2014 Smart Key Fob 4B W/ Panic Compatible with Mercedes Benz
• XDMB07GL VVDI MB Mercedes Benz EZS Removal Tool
• MB Token Unlimited Pack for VVDI MB Tool - 1 Year

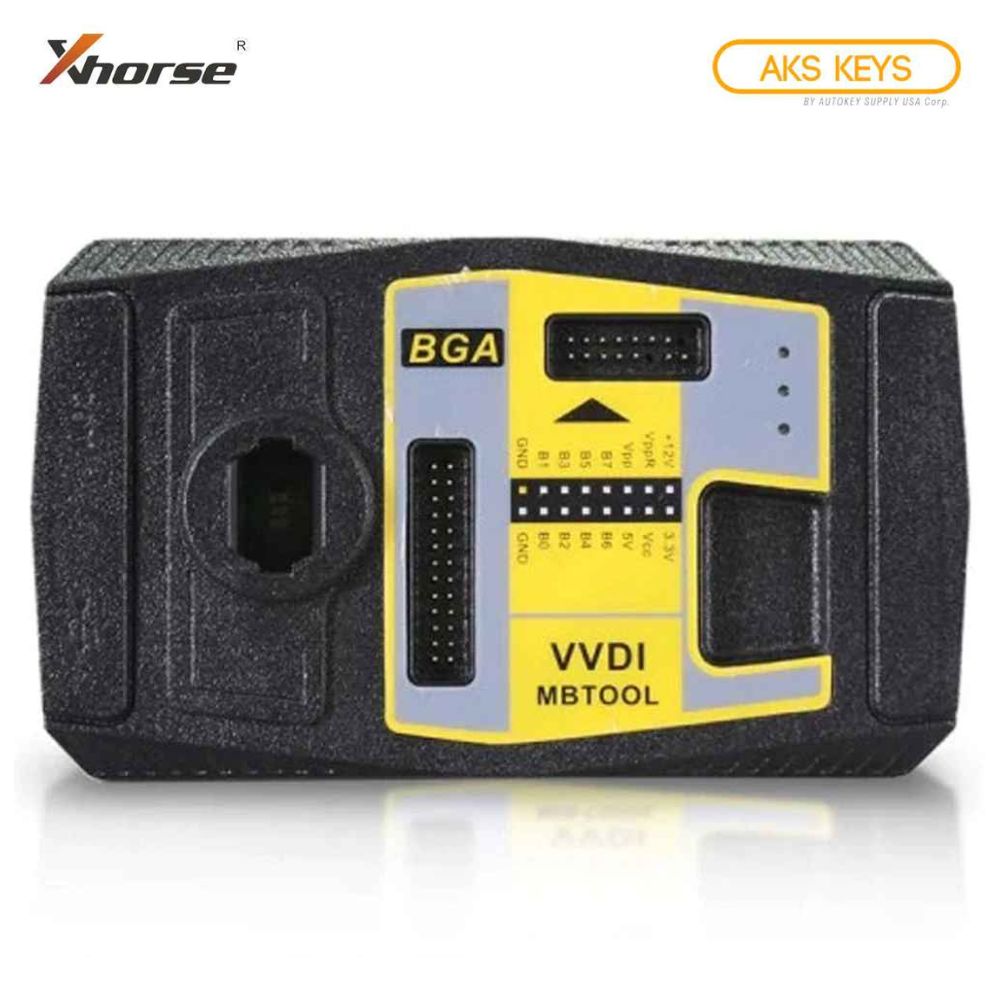

Xhorse VVDI MB Machine BGA Mercedes Key Programmer

The VVDI MB BGA Key Programmer from XHorse is the latest key programmer for Mercedes Benz. It will allow you to program new keys to your customer's Mercedes without the need for desoldering/resoldering. Features frequent online updates, supports Mercedes Benz keys, reading password and preparing a new key via IR. Mainly used for key reading and writing, EIS tools, password calculation, key file preparing, ESL tools, ECU/Gearbox renewal, and many more special functions. Includes the original Xhorse VVDI MB BGA Tool Mercedes Benz Key Programmer BGA Calculator. Features frequent online updates, reading Mercedes passwords, preparing a new key/remote via IR, and more necessary functions for Benz key programming.

Features:

• Supports BE key, read password and prepare new key via IR
• NEC V051, V057 supports password retrieval on-board (no EEPROM needed)
• On-board writing and erasing to all NEC keys (no EEPROM needed)
• Fast password calculations for BGA and NEC keys (include 51,57 version)
• Writes & renews EIS (EZS) and ELV (ESL)
• Generates key file (must have Internet access)
• Unlocks ELV (ESL)
• Renews other control module
• Xhorse Mercedes Benz key programmer nec and bga keys

Read Key Basic Information:

• Key with BE version, we can read password from key via IR directly.
• Renew key, write new key file via IR is also supported
• Support IR repair key, repair key not work via IR
• NEC adaptor can read key password from NEC v51, v57 version

Support Write and Renew (NEC Adaptor) NEC Key Versions Following:

• v51, v57
• v28, v35, v40
• v03, v06, v08 (Keyless Go) v05, v07, v09 (Keyless Go) v59, v61 (Keyless Go)
• Support read EIS data via OBD and IR adaptor
• Under OBD mode, we provide auto detect EIS type for CAN protocol
• Support read W164, W209, W211 EIS via OBD without gateway support
• Support read old Motorola EIS (HC05, HC08, K-Line) password via IR directly
• Support renew EIS, make 2nd hand EIS to new one (online)
• Support replace EIS, you can write original EIS data to new EIS via IR
• Support write new VIN
• Support clear TP
• Support disable key position
• Support personalize W204ESL
• Support test EIS, ELV, working key status

Support Chassis Type:

• W164
• W164 2009-
• W166, 197, 212, 218, 246
• W169, 209, 211
• W172, 204, 207, 212(old, with ELV) W203, 463, 639 (K)
• W202, 208, 210 (K)
• W215, 220 (K)
• W230 (K)
• W216
• W221
• W639 2009

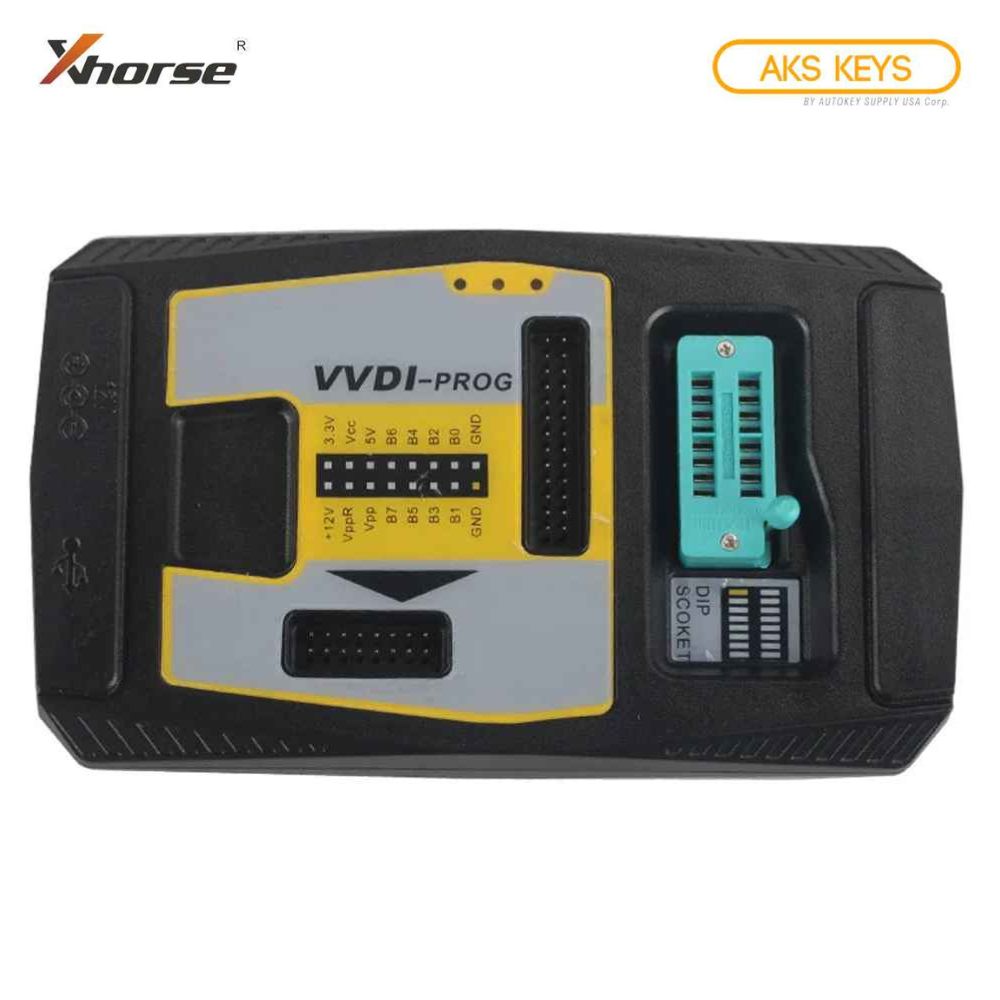

Xhorse VVDI PROG EEPROM Programmer

Once you buy VVDI Prog programmer, you can get free BMW ISN read function and NEC, MPC, Infineon etc. chip continuosly update service.

Features:

• The built-in update software allows user to update VVDI Prog firmware timely.
• Highspeed USB communication interface enable the software automatically connect.
• Smart operation mode: the possible causes of error will be listed
• Reserve ports: for future update.
• The selftest function enable you check if the machine works well.
• Can supply power via USB cable, the software will automatically prompt if the external USB power supply is needed.

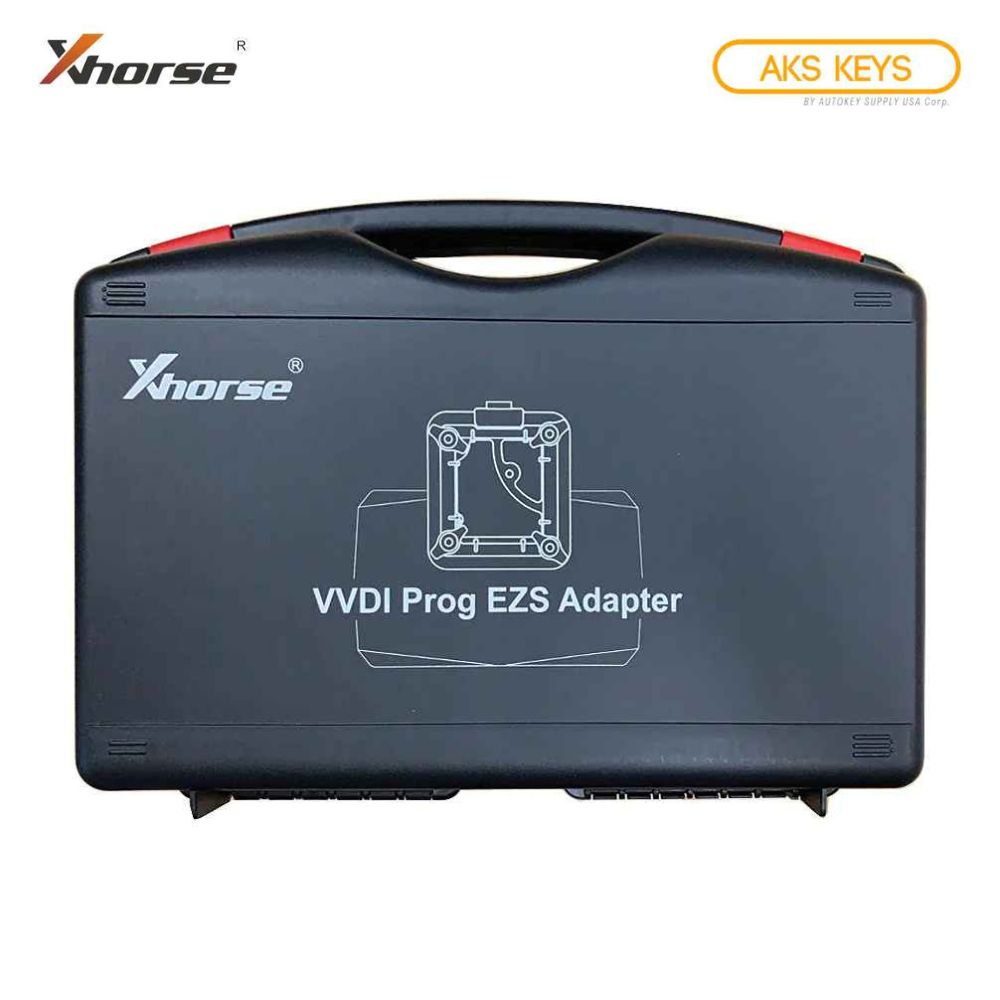

Xhorse VVDI Prog. EZS Adapters Set for Mercedes Benz

Features

• Easy to operate.
• No need to solder board.
• Read data with less error.
• Can be externally power to light up.
• Transparent material for better view of board.

Includes:

• W164(ST12)
• W169(ST12)
• W203(HC08)
• W209/211(ZWG)
• W209/211(HC12)
• W211(ST12)
• W215/220/230
• W639(HC08)
• SPRINTER(ST12)
• VITO W639(ST12)

Part #: XDPG30EN

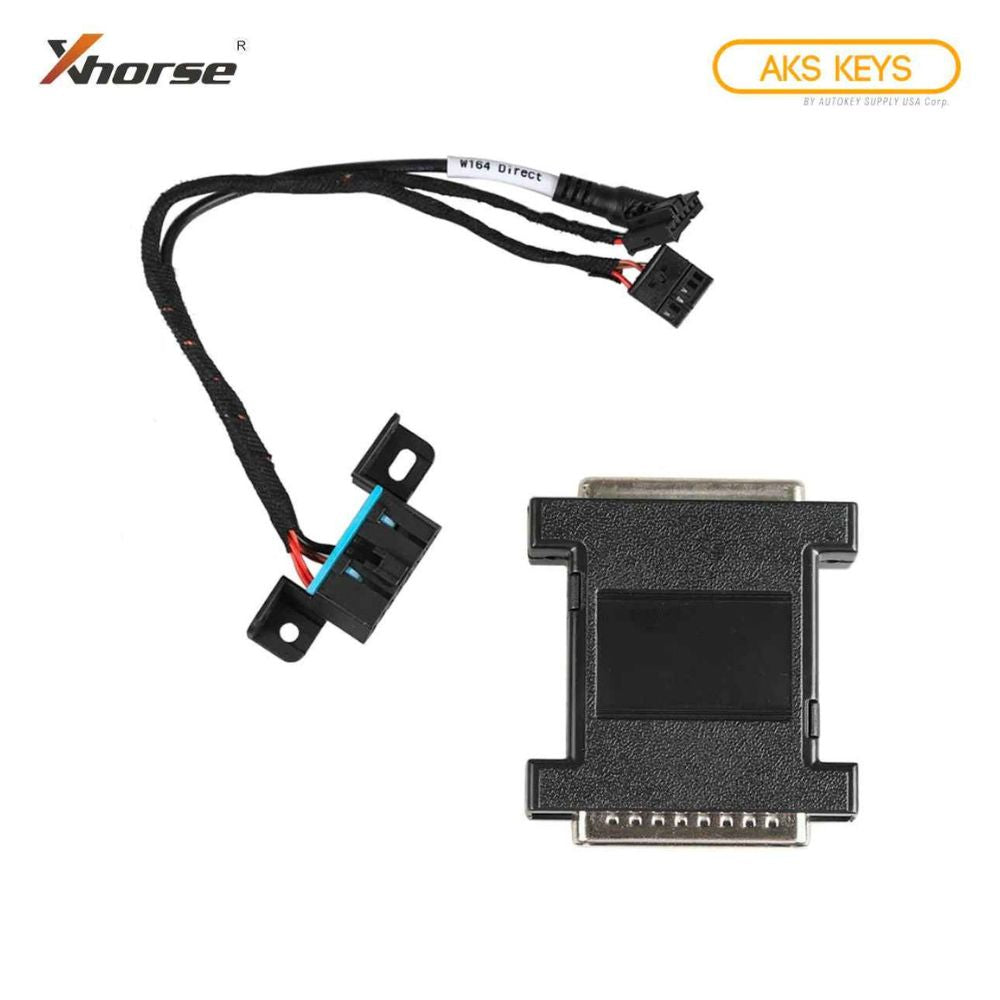

Xhorse W164 Gateway Adapter for VVDI MB BGA Tool

When VVDI for MB tool program key, first to read out the EIS data. With this Xhorse Benz W164 Gateway Adapter connected to the vehicle gateway, you are allowed to remove EIS in office, which is very convenient, without this adapter you have to read EIS data in the car.

Package including:

• 1pc x Mercedes W164 Gateway Adapter

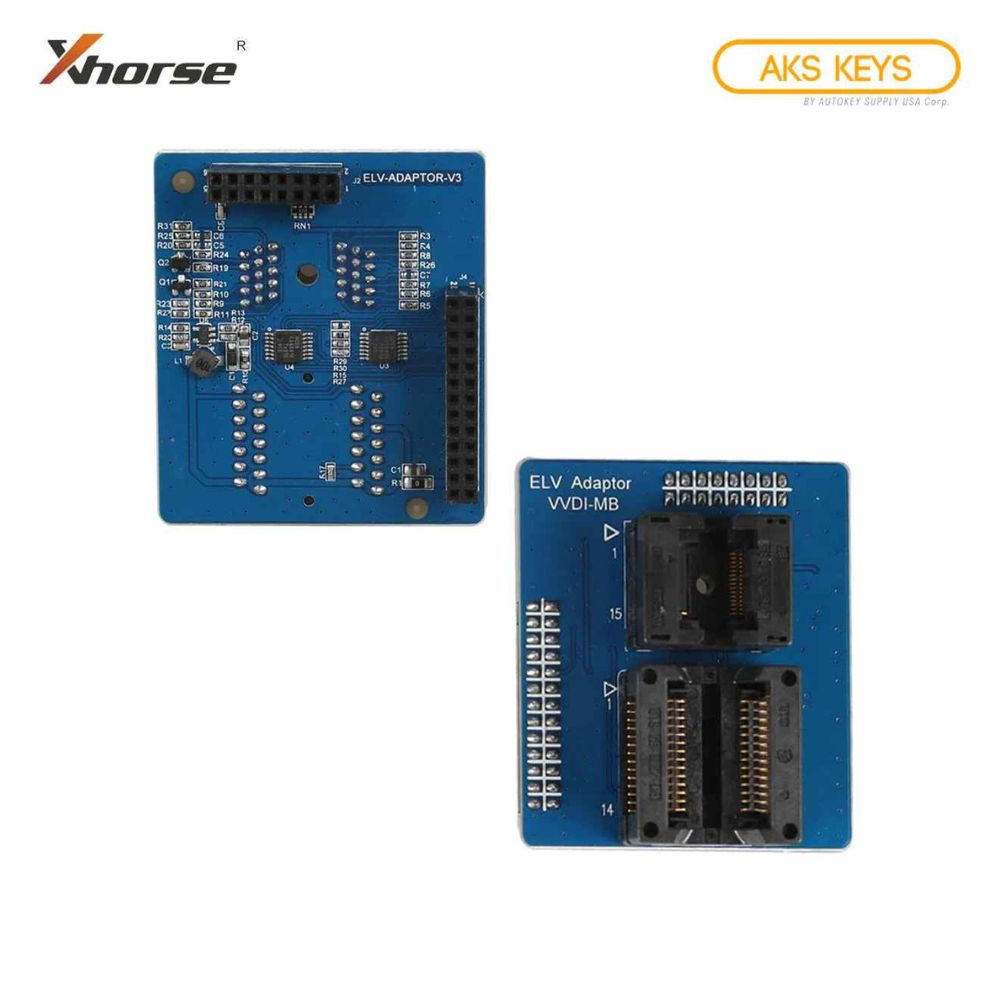

XHORSE VVDI for MB NEC ELV Adaptor

When you will need use this ELV Adaptor? When the W202/W204/W207 ESL damaged, you will need to use the VVDI for MB NEC ELV adapter to works together with VVDI for MB BGA tool to renew, then use MB BGA tool to reprogram key. Unlock W204 ESL: Fix the locked ESL to normal one (NEC chip fatal error: 0xAA). This function need buy an extra NEC ELV adaptor, support W204 ESL and old Motorola ESL. You need select Adaptor option in ESL window

Package Including:

• 1pc x VVDI MB NEC ELV adaptor

1997 - 2014 Smart Key Fob 4B W/ Panic Compatible with Mercedes Benz FCC# IYZ-3312 (Double Battery)

Replacement Key Fob for:

• MERCEDES BENZ A CLASS 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014
• MERCEDES BENZ C CLASS 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014
• MERCEDES BENZ CL 1996 1997 1998 1999 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013
• MERCEDES BENZ CLA 2013 2014
• MERCEDES BENZ CLK 1997 1998 1999 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014
• MERCEDES BENZ CLS 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014
• MERCEDES BENZ E CLASS 1996 1997 1998 1999 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014
• MERCEDES BENZ G WAGON 2000 2001 2002 2003 2004 2005 2006 2007
• MERCEDES BENZ GLA 2013 2014
• MERCEDES BENZ ML 2005 2006 2007 2008 2009 2010 2011
• MERCEDES BENZ ML3 2011 2012 2013
• MERCEDES BENZ R CLASS 2005 2006 2007 2008 2009 2010 2011 2012 2013
• MERCEDES BENZ S CLASS 1998 1999 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013
• MERCEDES BENZ SL 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011
• MERCEDES BENZ SLK 2011 2012 2013 2014 2015
• MERCEDES BENZ SLS 2010 2011 2012 2013 2014

Specifications:

• FCC ID: IYZ-3312
• Frequency: 315 MHz
• Emergency Key: HU64 (Included)
• Battery: CR2025 (2)

Notes:

• Replacement Keyless Entry Remotes and Key fobs for Cars and Trucks (picture might show FRONT and BACK of the same key remote).
• All Keyless Remotes and Smart, Proxy Keys and Locksmith Tools include a brand new battery.
• All New Keyless Entry Remote Key Fob, Refurbished Remote Key Fob and Locksmith Tools are tested before we ship.
• Refurbished Remotes have an OEM board. The case may have been replaced with or without the logo.
• Aftermarket Remotes do not include logo.
• We do not cut or program keys at our warehouse. Please contact your local locksmith here for pricing.

Compatibility Replacement Remotes: These remotes work with car models listed in the compatibility section.**Our compatibility section is researched to the best of our knowledge - it is to be used as a suggested guide. Please confirm part number and FCC ID to ensure proper fitment. In general there is no onboard programming procedure for newer replacement remote keys. Key fobs must be programmed by a professional locksmith. Please contact an automotive locksmith to get an accurate quote so they can program this key fob once you receive it.Many keyless entry remote fob and smart key programming procedures allow you to do the programming yourself for free. Programming Instructions for Replacement Key Fobs are available here.

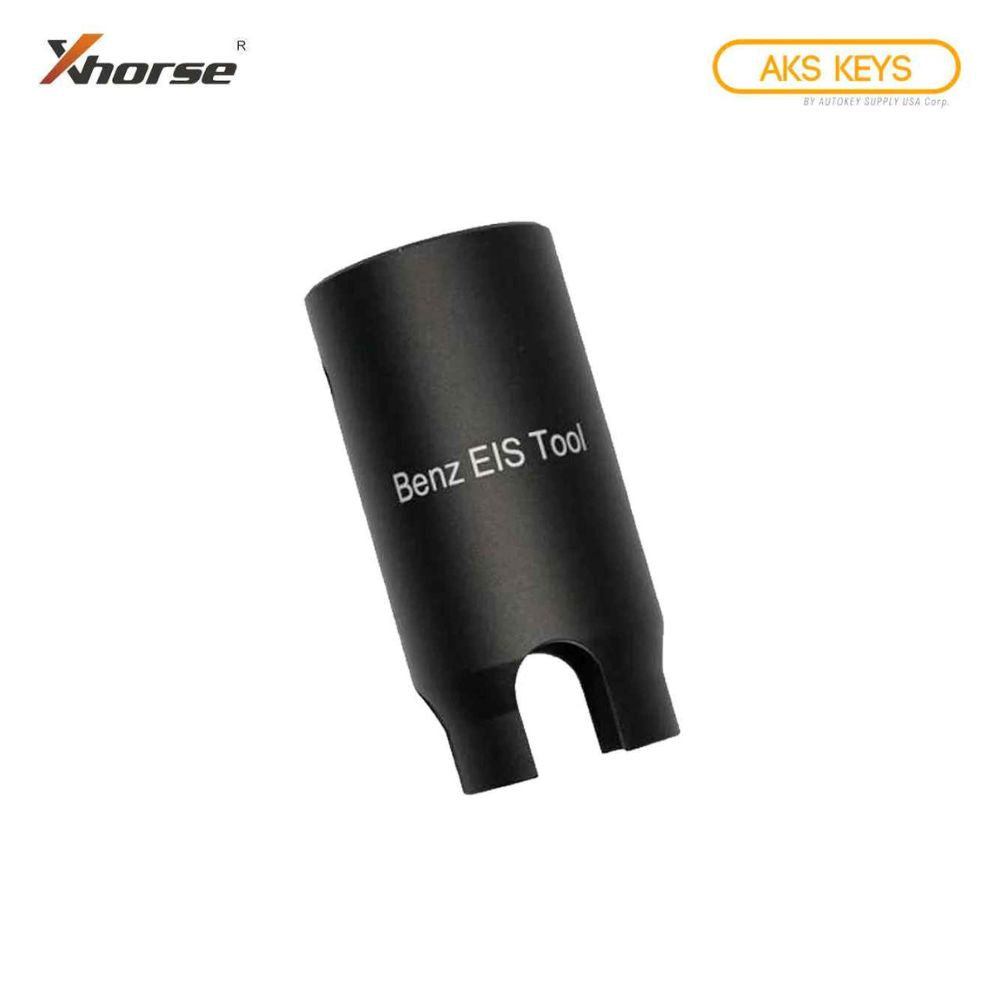

Xhorse XDMB07GL VVDI MB Mercedes Benz EZS Removal Tool

Mercedes EZS Removal Tool For:

• W164
• W211
• W203
• W220
• Sprinter
• Vito EZS (EIS)

Xhorse MB Token Unlimited Pack for VVDI MB Tool - 1 Year

Description:

• One year duration.
• Yearly Subscription Activation Free Token.

This is a digital product, no shipping is needed. We just need the serial number for the VVDI MB BGA device, and we can add the tokens online.

*If your one year unlimited tokens is not expire, you can still buy tokens again. It will start from the time when it expires.

• As many tokens as you can use everyday day ! No limitation!
• The unlimited token is for VVDI MB only. Key Tool Plus does not have unlimited token policy.

VVDI MB Tool Tokens

• Password calculation can get key password through EIS and working key (online)
• CAN protocol EIS all support password calculation
• Support BGA keys and other NEC keys
• Support calculate password for NEC v51, v57 keys. No soldering, safe method.
• Data acquisition time depends on the key version. It needs about 3.5 - 13 minutes
• BGA version need about 5 minutes, some versions only need 3.5 minutes
• Calculate time in server: 30 seconds – 1 minute

How to Check the MB BGA tokens?

• If you have condor mini/dolphin key cutting machine, after you bind condor with VVDI MB Tool,it will display free token.
• If you purchase the tokens,after we inform tokens are OK, you can see payed tokens times.

Support:

The application list below is for models that require a token to read the password:

• W164
• W166
• W197
• W212
• W218
• W246
• W169
• W209
• W211
• W172
• W204
• W207
• W216
• W221
• W639 2009-

Functions:

Mode: OBD and IR adaptor, mode use for communicate with EIS

Chassis: Select chassis number, you can detect it with auto detect in EIS Tools

Data Acquisition: Press “Data Acquisition”, it will continue with following steps automatically

• Insert working key to ignition, waiting 15 seconds
• Insert working key to device IR reader, verify key and car
• Data acquisition
• Insert working key to ignition, waiting 30 seconds
• Insert working key to device IR reader, wait end
• Save acquisition data

Upload Data: Upload saved acquisition data to server for calculate password.

Attention: Once success calculate password for one SSID, the server will not accept calculate the acquisition data with same SSID in 2 hours. After 2 hours, acquisition data with same SSID upload to server will start with a new task

Query result: Query server calculation result. The password will fill in key password area automatically after success calculation. Use “Copy” copy password to clipboard

Auto reflash: Program will auto re-flash server result until there’s no task for this device. You can start data acquisition once more while auto reflash starting

Stop acquisition after success: If you are run data acquisition while auto reflash running, program will stop the acquisition progress when find correct password

About query result status:

Query result support query calculation result in 24 hours, others don't support Query result will display Time, SSID, Status, Filename (name when upload to server) Status has the following types:

• Queuing: Number x, require about y minutes, means your task need y minutes
• Processing: Requires 1 minutes, means your task need 1 minute to finish
• Password: xxxxxxxxxxxxxxxx (Free), means success find password, "Free" show this task is calculated for free or this task already success calculated before
• Discard: Once you success calculate the password, in 2 hours, the upload acquisition data with same SSID will discard
• Already upload: Means the server already have this file in queuing
• Pay for password calculation before upload: Means your device doesn't have authorize for calculation. Contact your dealer and pay for password calculation
• Failed: Means this task failed to get password, you can run data acquisition again. Failed task is always free
