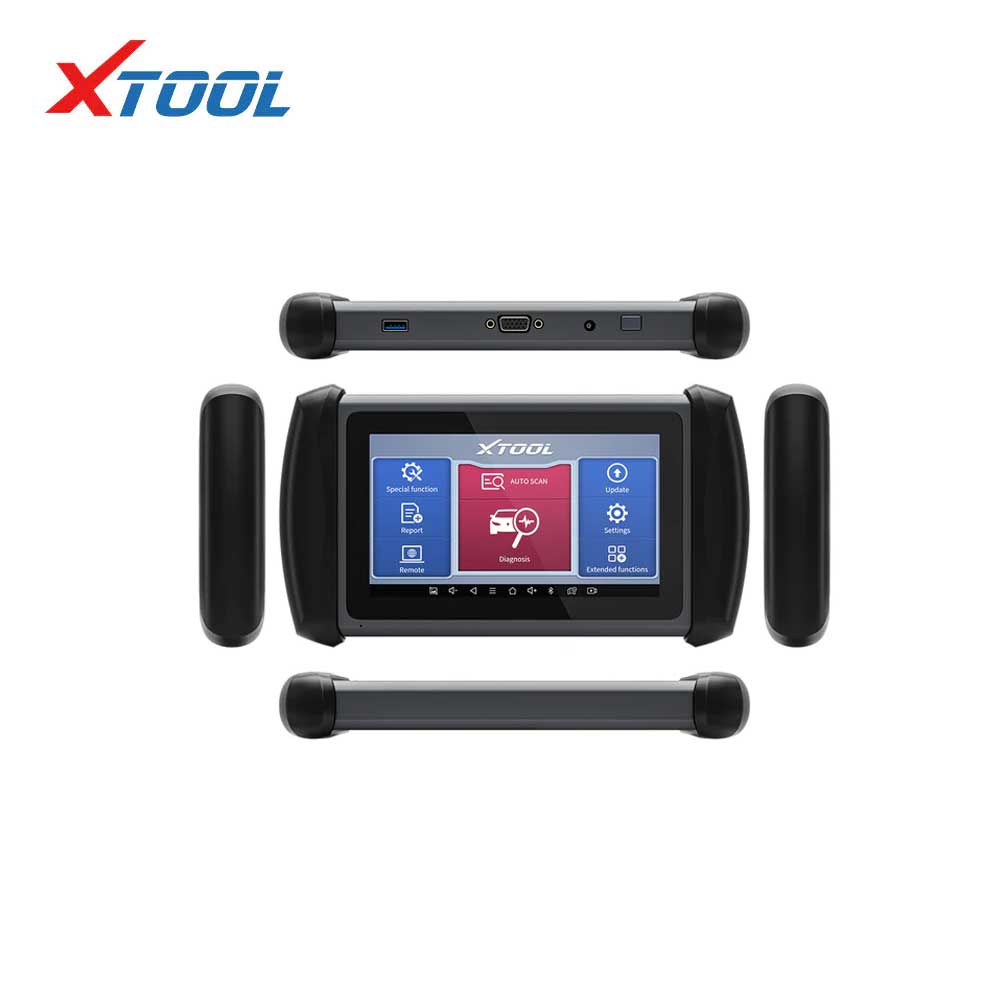

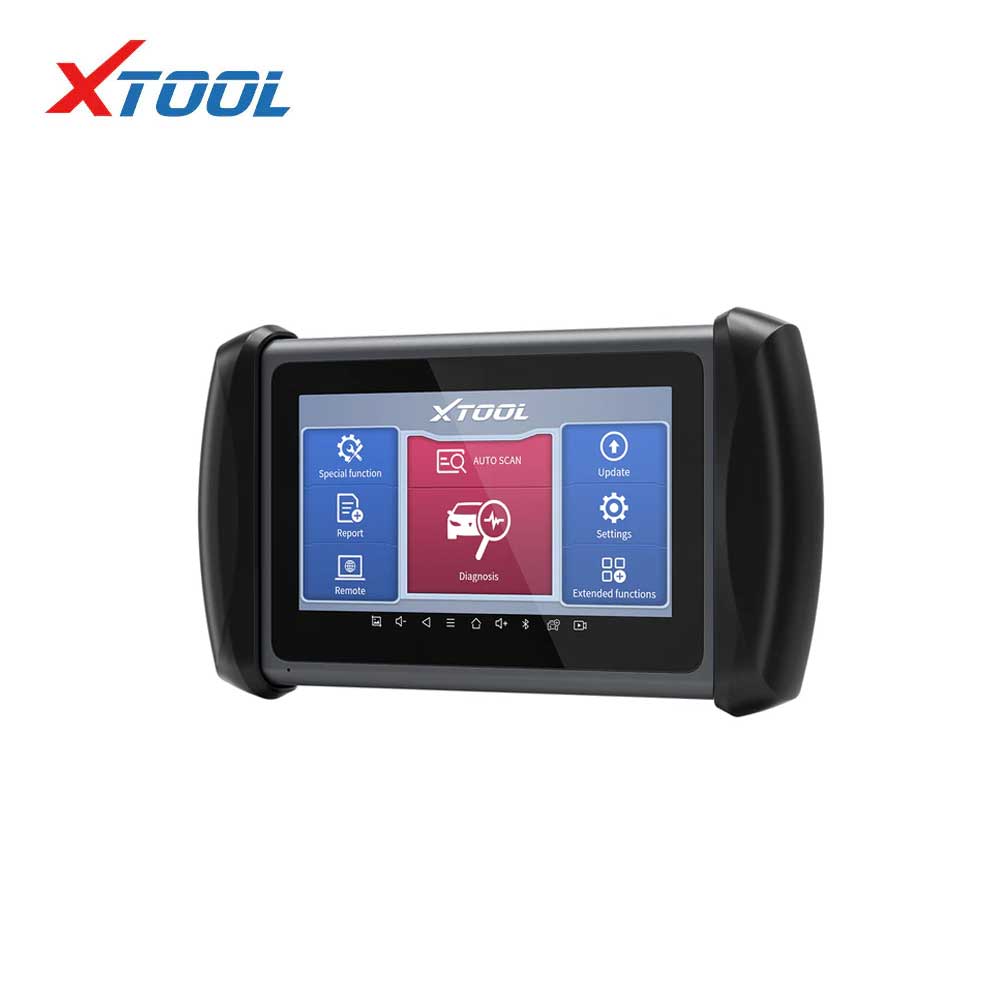

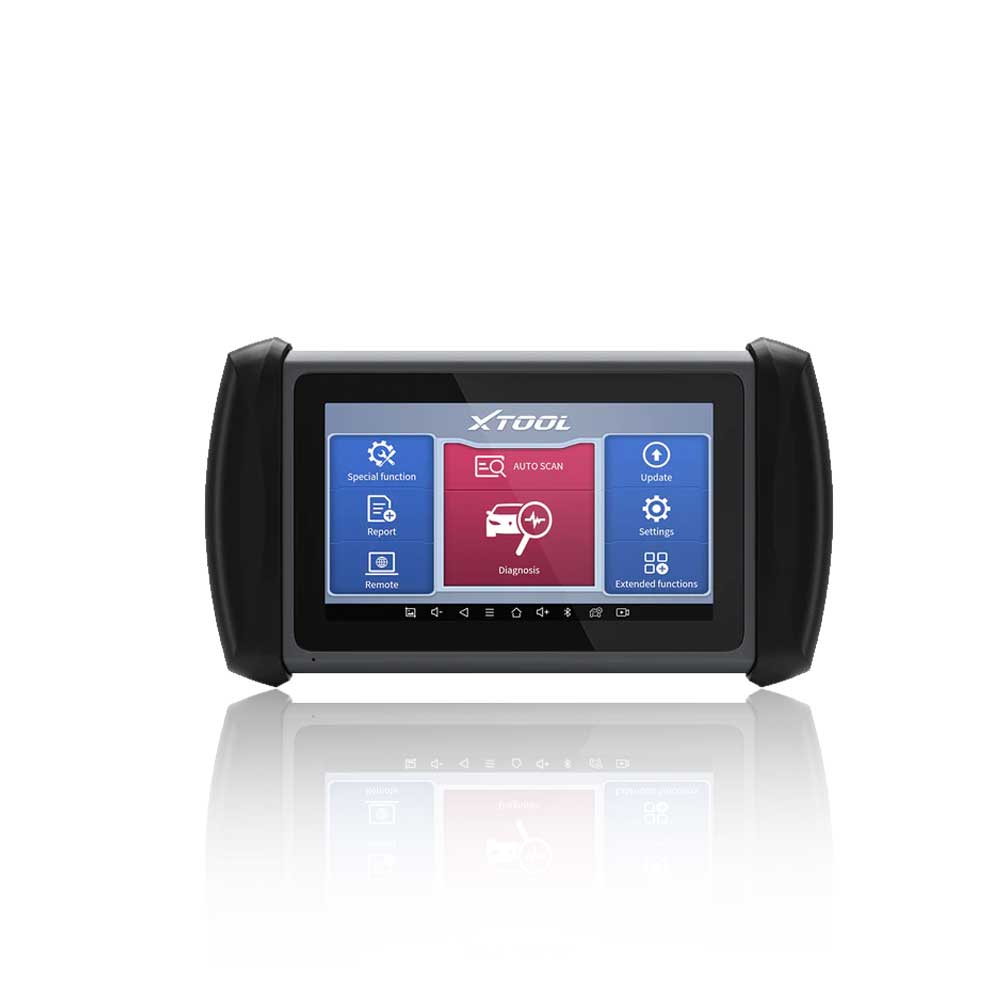

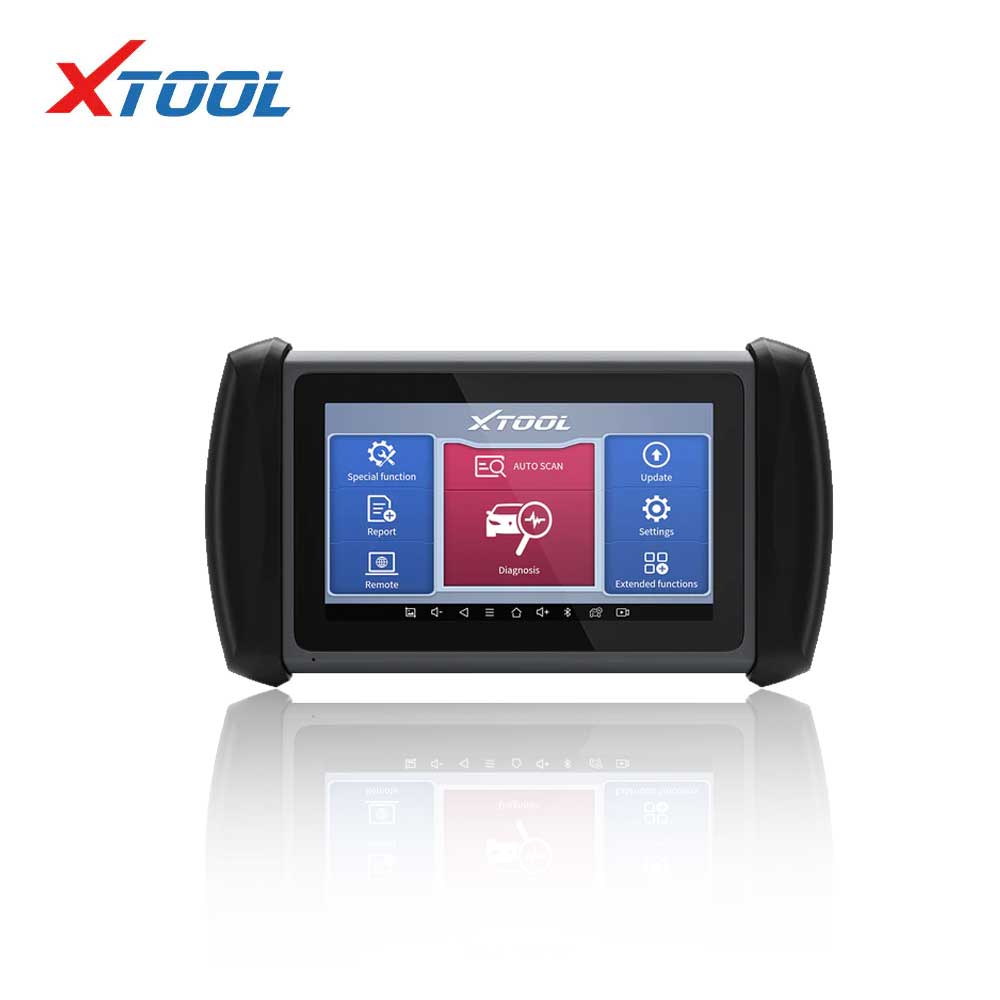

XTOOL - IK618 - IMMO & Key Programming Tool with Bi-Directional Control and 32 Service Functions

XTOOL - IK618 - IMMO & Key Programming Tool with Bi-Directional Control and 32 Service Functions

XTOOL InPlus IK618 Automotive All System Diagnostic Scanner is a professional auto key programmer with diagnostic functions. XTOOL IK618 can scan all available systems to perform diagnostics, support complete OBD2 test, perform pro-level key programming and IMMO functions, and support more than 32 special reset services

With KC100 Adapter can support VW 4th and 5th IMMO.

Can work with KC501,KS01,M821,M822(Note KC501，ks01，M821，M822 or SK1 Not included in package, needs to be purchased separately

New Arrival XTOOL In Plus IK618 IMMO & Key Programming Tool with Bi-Directional Control 32+ Service Functions Can work with CAN-FD Adapter

Highlights of XTOOL In Plus IK618 Key Programmer:

• OE-Level Bi-directional Control + All System Diagnostic Tool + Powerful Key Programming
• All Key Lost: When the key is lost, you can delete the lost key and add a new key to restart the vehicle
• Advanced IMMO Function: Add New Key + Disable Lost Key + Remote Learning + Key Learning + Key Matching+ All key lost +EEPROM etc.
• 32 Common Reset Service Functions like abs bleeding/dpf/Oil/SAS/BMS etc.
• Advance ECU Coding & Guide Functions for VW + Bi-Directional Controls + Auto VIN +8 in 1 Live date.
• NO IP LIMITED, Update like x100pad3 can works for all over the world 2 years Free update.
• Powerful Hardware Expansion: Android 5.1.1 + OS Quad-Core 1.6Ghz processor + 7 inch 1024*600 Touch screen+ CAN FD Protocol + 5,000mAh battery + 2GB +32 GB memory.
• Multi-Language Available: English, Spanish, German, French, Portuguese, Italian, Finnish, Arabic, Japanese, Thai, Korean, Polish, Russian, Chinese
• Complet with KC100(For VW 4th 5th immo） KC501(For Benz infrared key） ks01(For Toyota all key lost )M821(for toyoto 4a/8a key )M822(For benz all key lost )SK1(For toyota free password)
• Note KC501，ks01，M821，M822 or SK1 Not included in package, needs to be purchased separately

XTOOL InPlus IK618 with Complete IMMO& key FOB Programming Abilities:

• Backup IMMO data: Used to read, write and backup the EEPROM chip inside the immobilizer module.
• Check number of keys: check out how many keys that had been registered to the vehicle right now.
• Read PIN code & key info: Pull PIN code of the immobilizer of specific vehicles when it requires a pin to get access to the system.
• Program/Add keys Fobs: Add another new key when you have a key that has already matched to the vehicle
• Generate dealer key: Used for generating dealer keys for Volkswagen/ for Audi/ for Fiat/for Renault/for BMW/for Land Rover, etc.
• Program remote: Read the radio frequencies of the car remotes and program remote keys.
• All keys lost: Make a new key in the situation where you have no active keys at the moment.
• EEPROM modification: Allows you to modify EEPROM chip when unsoldered.
• Write-enable functions: Allows you to write key information inside the dump files.

IK618 Advanced KEY Functions:

• Add key for VW Group(For Volkswagen/Audi/Skoda/Seat/Bentley) 4th/5th IMMO system
• For Mercedes-Benz FEM3 key programming(KC501 needed)
• For BMW CAS1-3/CAS4 4+**/EWS2-4***/ISN Code reading/Gearbox reset & matching/Mileage syncronization
• Read pincode from OBD for FCA Group(For Fiat/Chrysler/Dodge/Jeep), via VPW protocol
• All key lost(pincode free) for Peuegot/Citroen/Mitsubishi(ID46/ID47 Smart keys)
• For 2015-18 Land Rover/Jaguar key matching via OBD (Special key needed)
• Key matching for latest Ford Ecosport /Escort/Focus/Transit/Explorer
• Key matching for GM CAN FD protocols(CANFD Adapter needed)
• For Hyundai/KIA 4A smart keys reading
• For Toyota all smart key lost(94/98/88/A8/A9 Chip)(KS-1 needed)
• For 2019+ Nissan Sylphy/Altima key programming(Adapter cable needed)
• For Subaru H-Chip key matching
• IMMO reset for Toyota H-key
• For 2018+ Dodge/Jeep/Chrysler key programming(Specialized cable needed) And more...
• CAS4/CAS4+ can learn keys via OBD

OE Level All Systems Diagnostics + Bi-Directional Control

InPlus IK618 Full systems Diagnostic: IK618 XTOOL scanner, you can easily achieve read and clear fault codes for full systems, view live data graphing, freeze frame, perform active tests, read ECU info, performs full bi-directional control abilities to verify various system input/output by sending commands to vehicle’s systems/components.

Auto Vin: Ik618 can automatically identify the VIN code of the car, and identify the model and year of the car. (If the VIN is not automatically recognized, you can contact the brand to add your vehicle in the next upgrade, or you can work through manual input

Advance ECU Coding & Guide Functions for VW

Performs online Coding, Component Matching, Adaptive Data Reset, Flash Hidden Functions, etc. to optimize vehicle performance and customize car settings, disable the annoying functions, such as turn off the back up beep, turn the seat belt buzzer off. And reset the adaptive data for certain components after repairs or replacements. With VAG Guide Functions, IK618 scan tool can perform complex functions such as special functions, ECU coding, etc., to help your diagnostic step by step with instructions for VW/Audi/Skoda, etc.

InPlus IK618 Bi-Directional Control:

Full control over all various vehicles components to perform active tests like EVAP test, idle relearn, injector test, cycling ABS motor pump, A/C Clutch Switch On/Off, Window/Mirror/Door Lock Test, etc.
IK618 bi-directional scan tool comes with OE level all systems diagnostic capabilities that you can only find in dealer-tool previously. It can scan all available systems to perform diagnostics including:

• Pull Codes: including manufacturer-specific codes, pending codes, permanent codes
• Clear Codes: Clear codes, reset monitors and turn off warning lights
• Live Data: Live data stream from various sensors including misfire, engine rpm, transmission fluid temperature and etc.
• Freeze Frame: Retrieve parameters when DTC is recorded for better diagnostics.
• ECU Information: Check ECU version and etc.
• Active Tests: EVAP Tests, Test injectors, cooling fan, A/C Clutch, Windows, Doors, Sunroof, ABS Motor Pump, solenoids, relays and etc.

XTOOL IK618 30+ Reset Services

XTOOL IK618 auto scan tool comes with comprehensive service options including Oil Reset, EPB, SAS, DPF, BMS, Injector Coding, IMMO Keys, ABS Bleed, Throttle Relearn, Gearbox Match, Suspension Calibration, Headlight, Window Reset, Seat Match/Configurations, Tire Refit, Crankshaft Position Variation Learn, Airbag Reset, Disable Transport Mode, Electronic Pump Activation, EEPROM Adapter and etc.

• Oil Reset: Reset service intervals after oil change and turn off the oil light.
• EPB Reset: Reset brake pads after replacement of brake system.
• SAS Adjustment: Perform calibration of the steering angle sensor
• DPF Reset: Perform DPF regeneration
• BMS Reset: Register the new battery to the ECU after replacement.
• Throttle Relearn:Throttle Relearn: Enables you to make initial settings to throttle to adjust the amount of air intake.
• ABS Bleeding: Perform ABS Brake Bleed function to cycle the ABS pump to bleed the air out of the ABS.
• Injector Coding: Coding injectors after replacement.
• Transmission Match: Reset the adaptive shifting points in your automatic Transmission Control Unit
• Gear Learning: Crankshaft position sensor learns crankshaft tooth machining tolerance and saves to the tablet to diagnose engine misfires more accurately.
• Key Programming/IMMO: Disable the lo~st vehicle keys and program a new replacement key fob.
• EEPROM ADAPTER: EEPROM chip stores the immobilizer data (like pincode) and odo~meter data, and sometimes you need to unsolder it to read & write the data inside the chip, flash the data, write start, data recovery, and so on.

Full Special functions: Steering position sensor calibration, Zero Point Calibration, Hybrid Control Compression Test, HVAC Control Module Calibrate, Injector balance test, ECU Configuration, VGT Turbo Calibration, Idle Learn Reset, Alcohol Content Reset, ABS Initialization, Seat Weight Sensor Calibration, Fuel Trim Reset, Crankshaft Sensors Relearn, Window Initialization, TPMS Reset, Air Suspension, Injector Coding, Airbag Repair, Cylinder Power Balance, Seat Configurations, Electronic Pump Activation, Disable Transportation, Performance Tire Upgrade, ECU configurations, A/F reset, Language change, Start/Stop Reset, etc.

14 Kinds of Language

XTOOL IK618 supports 14 languages: English, Spanish, German, French, Portuguese, Italian, Finnish, Arabic, Japanese, Thai, Korean, Polish, Russian, Chinese.
Note: If you need to modify the language, please provide the SN number to XTOOL

Live Data Stream: XTOOL D7 display live data stream in text or graph like misfire data, engine rpm, transmission oil temperature, mass air flow sensor data, cylinder balance rates, fuel pressure, actual fuel temperature vs desired fuel temperature and etc.

Compatible with KC-501, KS-1, Can Fd Key Programmers
XTOOL IK618 comes standard with KC-100 key programmer. However, you may choose to get KC-501, KS-1, KS-2 key programmers to extent its capabilities to the next level.It's also can works with the CAN FD adapter and M281

XTOOL IK618 Vehicle Coverage:

XTOOL IK618 Specifications:

Strong Hardware:

• Android 5.1.1
• OS Quad-Core 1.6Ghz processor
• 7 inch 1024*600 Touch screen
• CAN FD Protocol
• 5,000mAh battery
• 2GB +32 GB memory

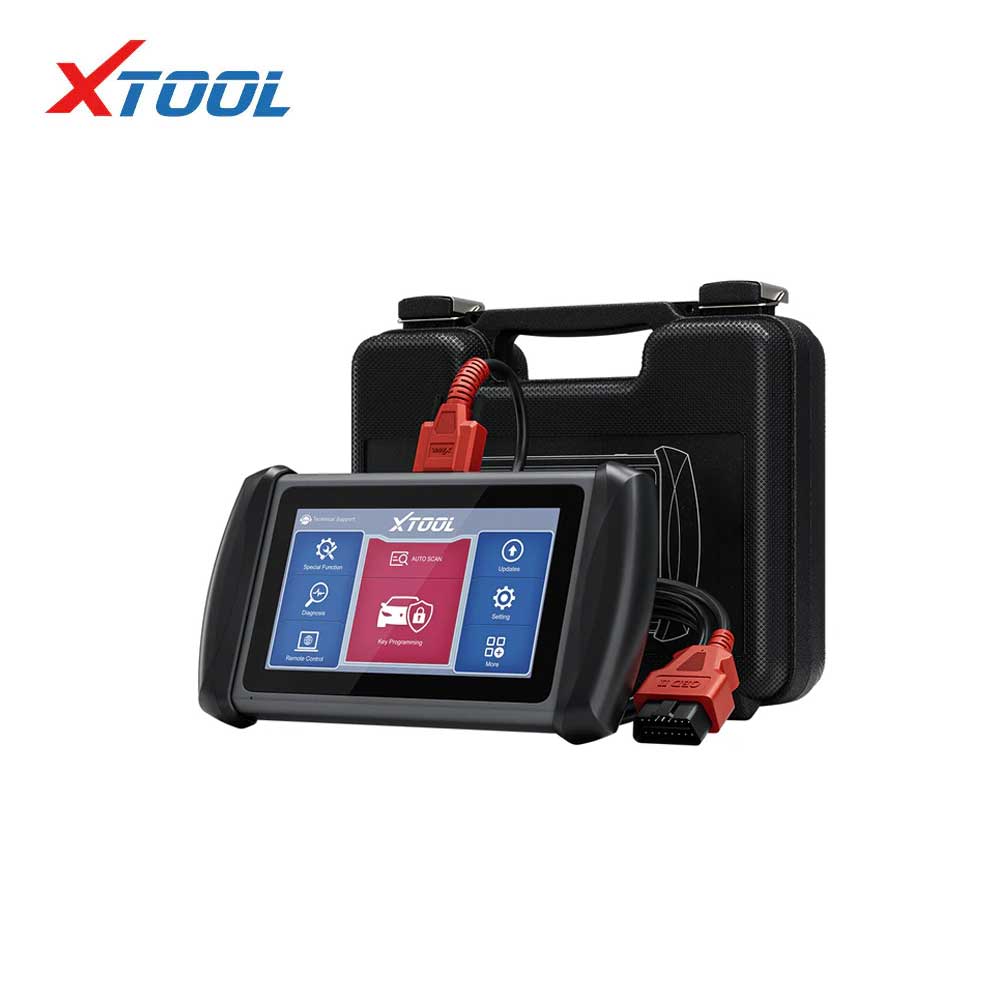

XTOOL IK618 Packing List:

• 1*IK618 Tablet
• 1*KC100 Programmer
• 1*EEPROM Adapter
• 1*Power adapter for Tablet
• 1*US Standard Charger
• 1*EU Standard Charger
• 1*VGA to DB15 Male Main Cable
• 1*OBD2-16 Connector
• 1*USB3.0 Cable
• 1*Mini USB to USB-C Cable
