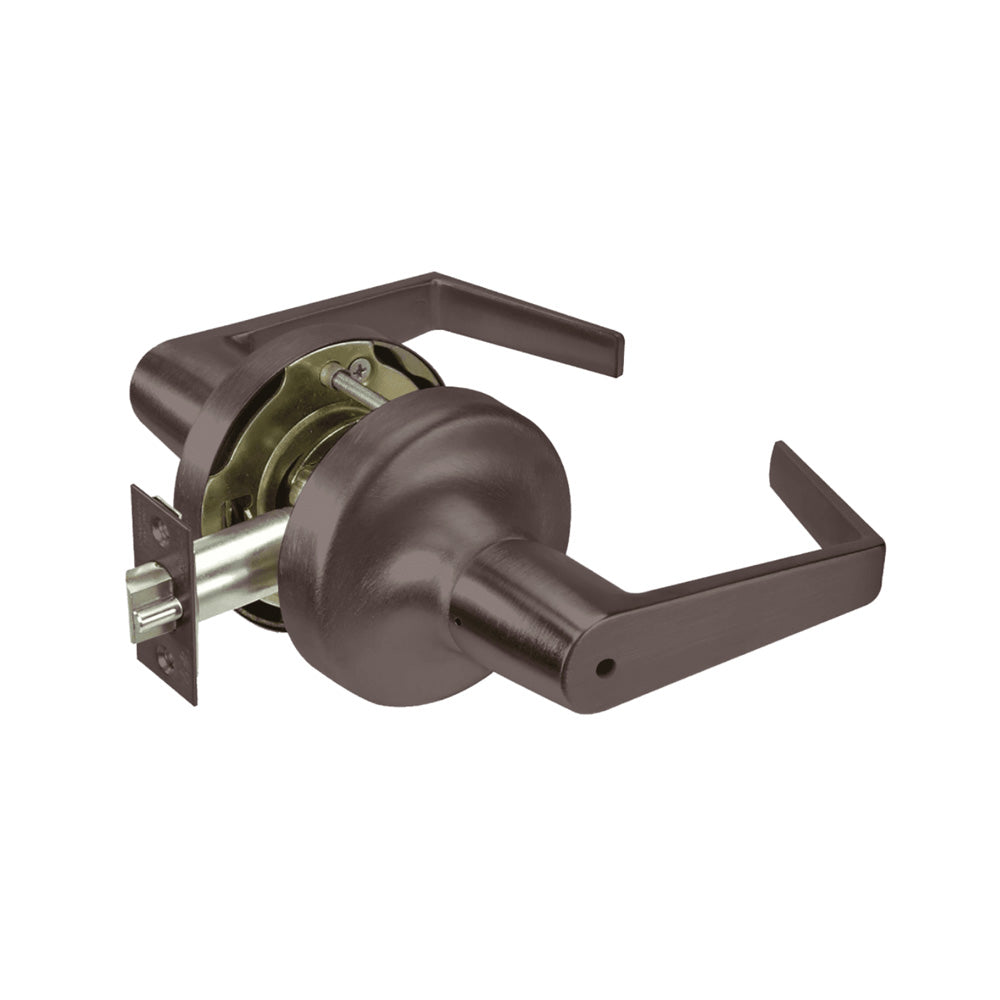

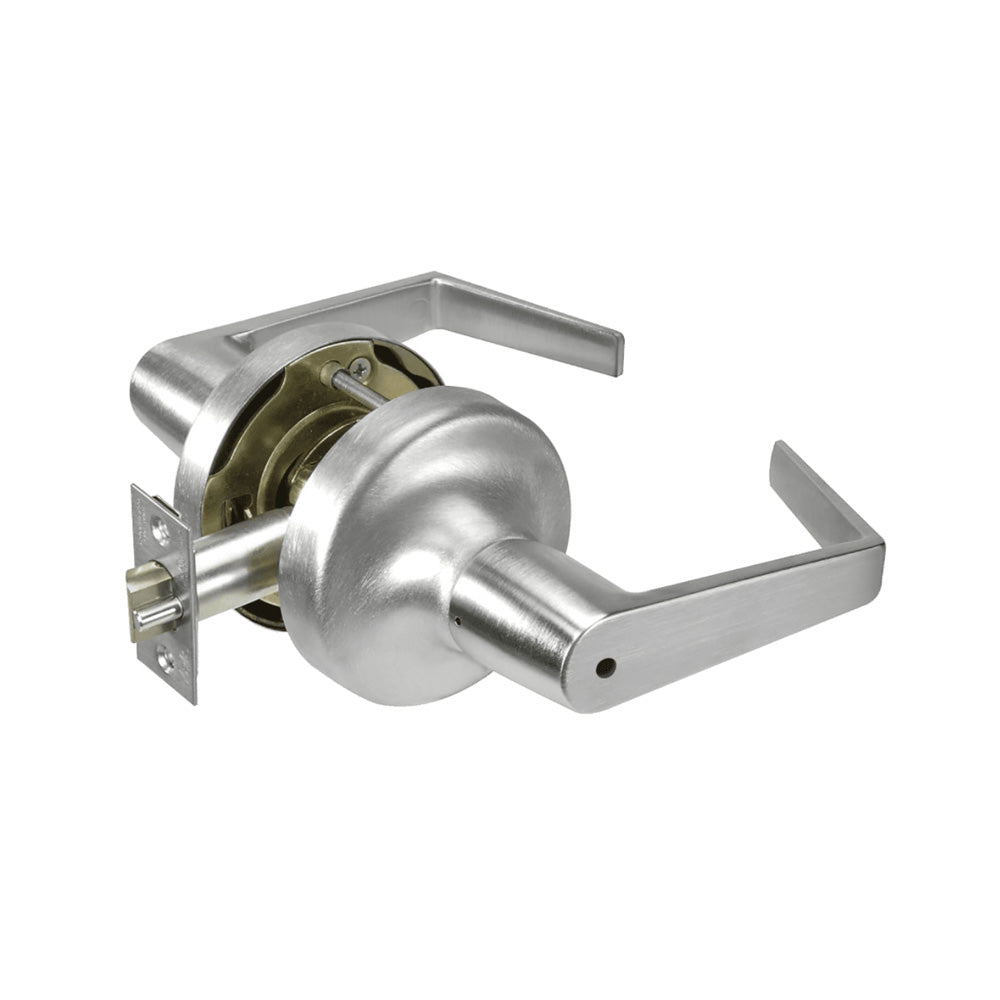

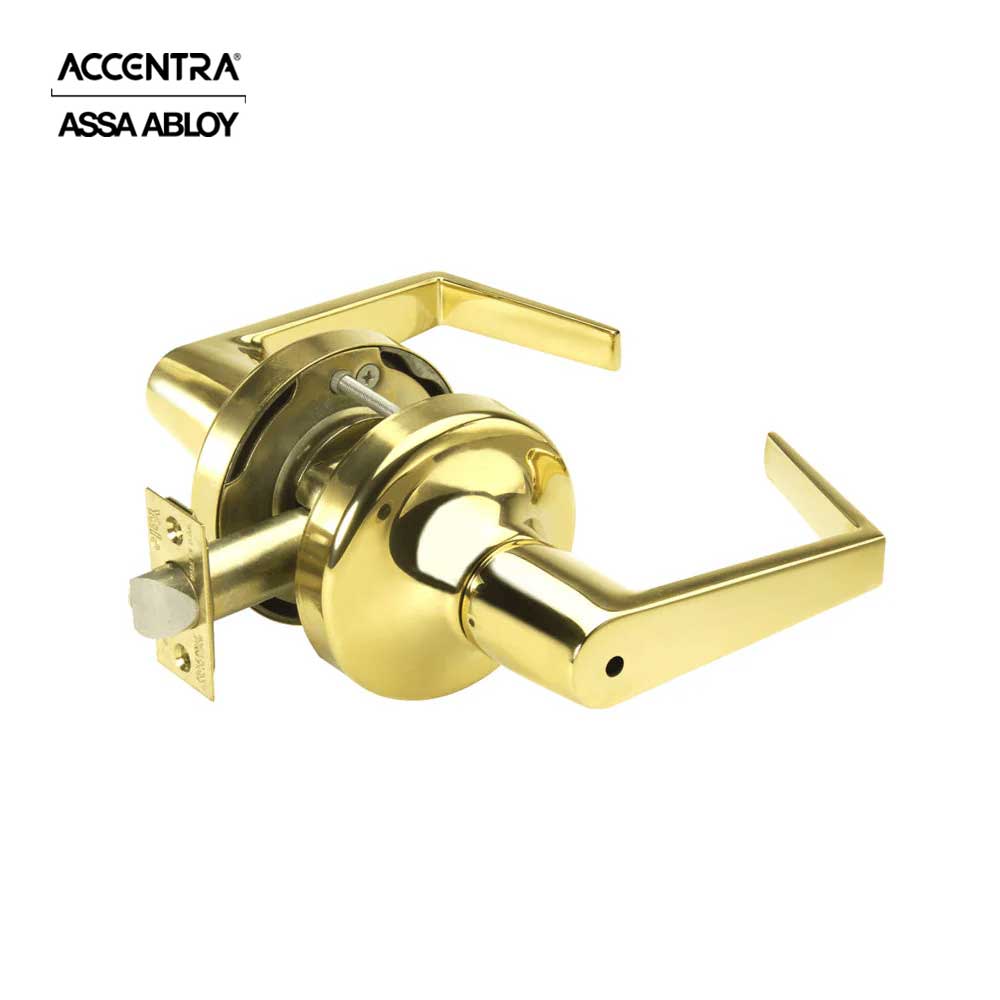

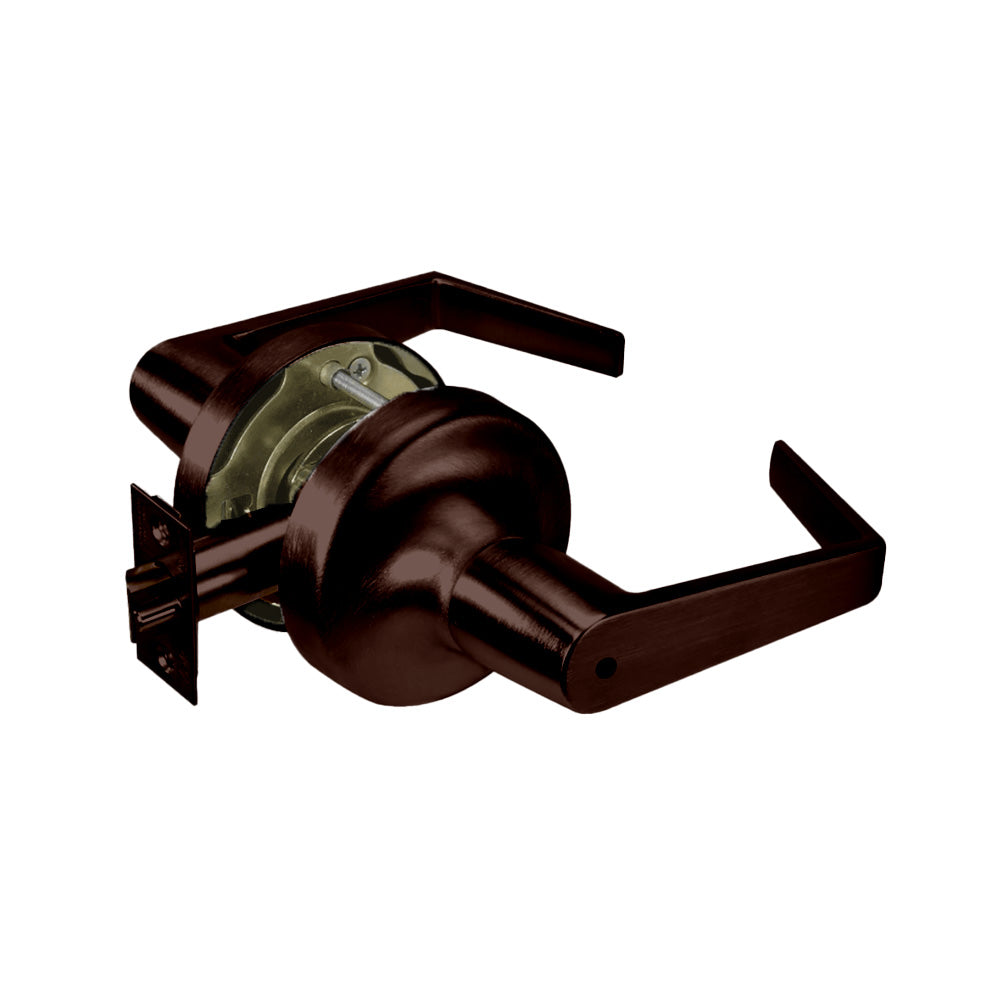

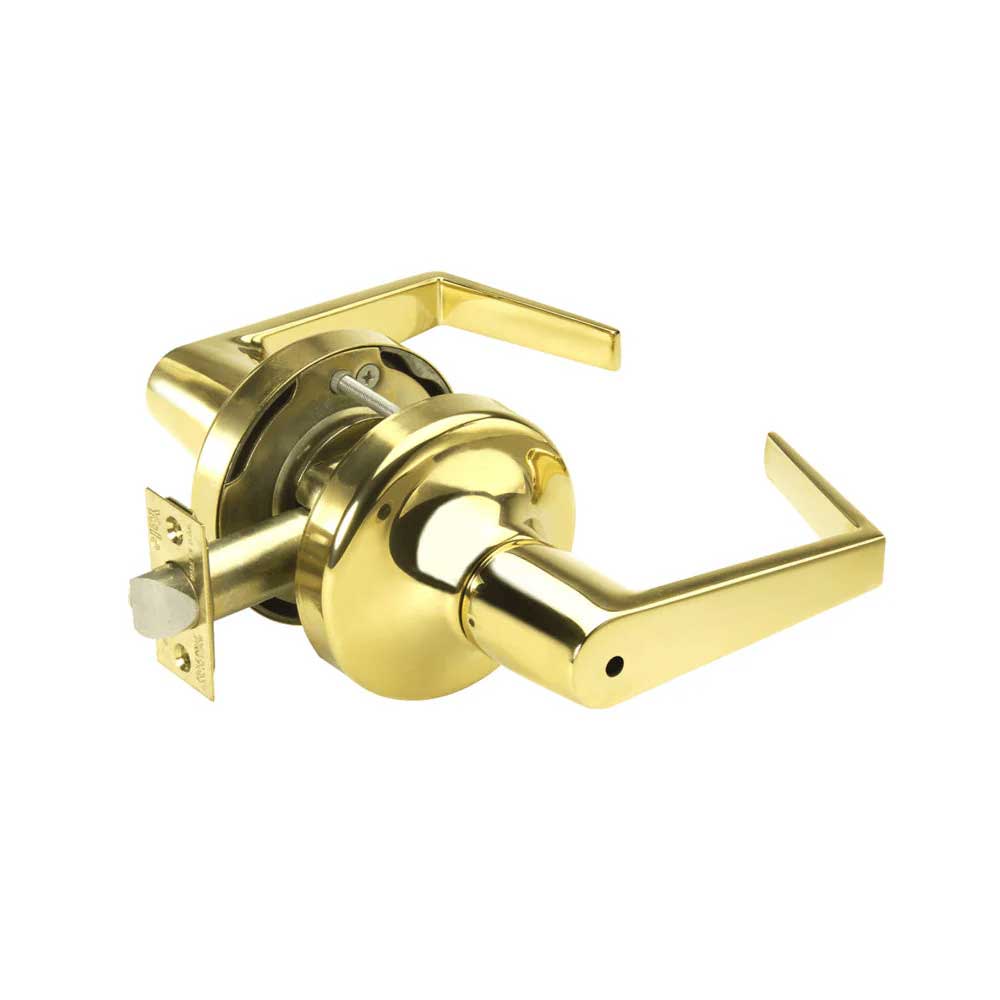

Yale - AU5302LN - Privacy/Bedroom/Bath Cylindrical Lock with Augusta Lever and Non-Keyed - Grade 2
$19800
$23760
Unit price
/
Unavailable
Shipping calculated at checkout.
Secure transactionCouldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 4 p.m. EST will be shipped next business day.
Learn more
Yale - AU5302LN - Privacy/Bedroom/Bath Cylindrical Lock with August...
From
$19598
$23518
Unit price
/
Unavailable
Description
Description
Yale - AU5302LN - Privacy/Bedroom/Bath Cylindrical Lock with Augusta Lever and Non-Keyed - Grade 2
The 5300LN Series features a vandal-resistant Free Wheeling lever mechanism. It also has through-bolting, which gives a secure fit that resists shaking and rattling.
Features:
- Free Wheeling lever mechanism for increased vandal resistance
- 13 finish options
- 3 lever designs
- 19 mechanical functions, 4 electrified
- Adjustable door thickness: (Patent #6,131,970) - Preset at factory for 1-3/4" (44mm) to 2" (51mm) - Special order available for 1-3/8" (35mm), 2-1/4" (57mm)
- 3-1/2" rose covers ANSI/BHMA door prep A156.115 “Spider Cut Out”
- Through-bolts solidly through the door, providing greater stability
- Wide range of Yale® 6-pin cylinder options: - Standard, Interchangeable core, Security and Yale® KeyMark® protected keyway cylinders (see page 10)
- Competitive keying options: - Standard cylinders with Schlage® C and Sargent® LA keyways - Levers which accept interchangeable core cylinders by Best®, Schlage®, Medeco® and ASSA® - Levers which accept standard cylinders by Schlage®
- Lifetime warranty against lever sag and lever spring breakage
Product Specifications:
| Vendor | ASSA ABLOY |
| Manufacturer | Yale |
| Grade | Grade 2 |
| Installation | Commercial |
| Origin | United States |
| Unit of Measure | Each |
| Base Material | Brass |
| UL Listing Type | ANSI A156.2, Series 4000, Grade 2, UL Listed |
| ANSI Number | F76A |
| Limited Warranty | 5 Year Warranty |
| Fire Rated | 3 Hours {A} |
Technical Specifications:
| Function | 02-Privacy Bedroom or Bath Lock |
| Function Family | Privacy |
| ANSI Function | F76A - Privacy |
| Lever/Knob Design | AU - Augusta Lever |
| Lever/Knob Design Family | Straight Return Lever |
| Rose/Escutcheon Design | 3-1/2" Rose Diameter |
| Rose/Escutcheon Dimensions | 3-1/2" |
| Cylinder Type | Non-Keyed |
| Handing | Non-handed |
| Door Thickness | 1-3/4" to 2" |
| Std. Latch Number | 380BN |
| Std. Latch Type | Springlatch |
| Std. Latch Backset Dim | 2-3/4" |
| Latch Bore Diameter | 7/8" |
| Lock Face Size | 1" x 2-1/4" |
| Bolt Projection | 1/2" |
| Bore Hole Diameter | 2-1/8" |
| Std. Strike Number | 497 |
| Std. Strike Type | ANSI Strike |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Screws | Wood/Machine Screws |
| Product Type | Cylindrical Lock |
