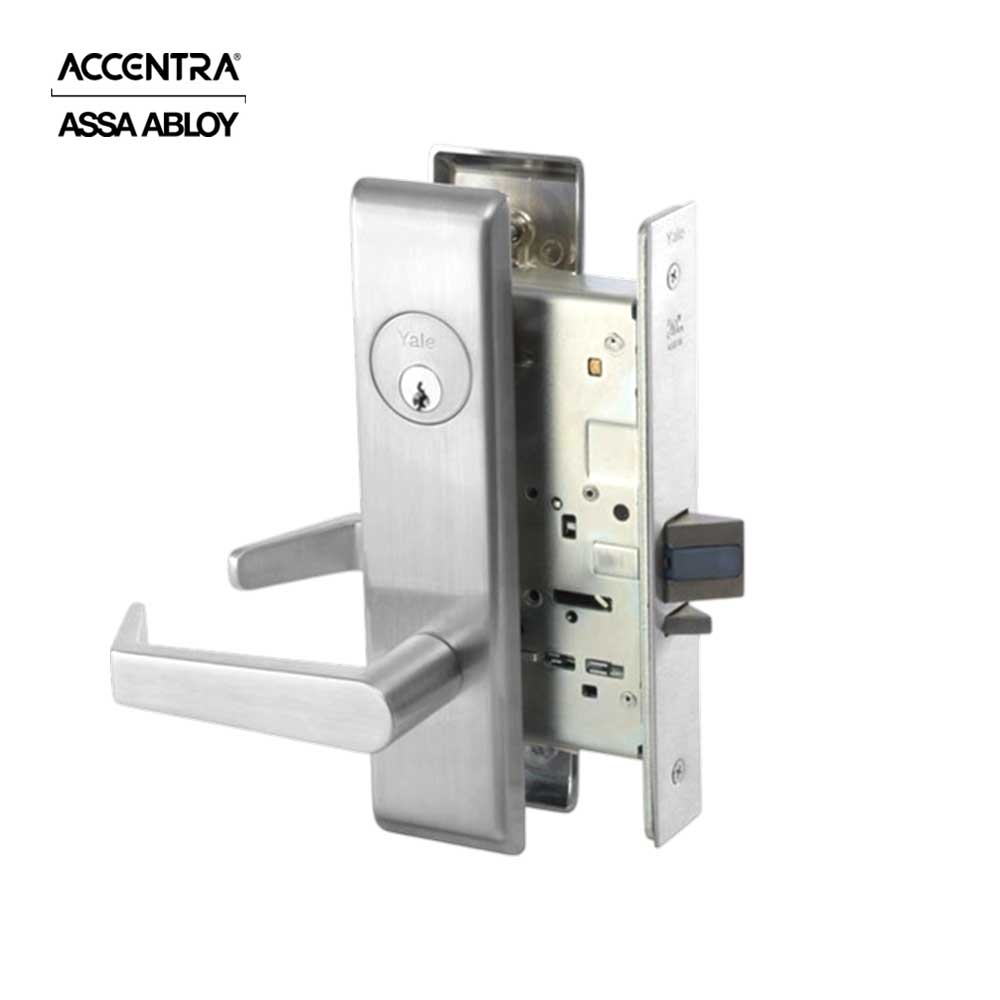

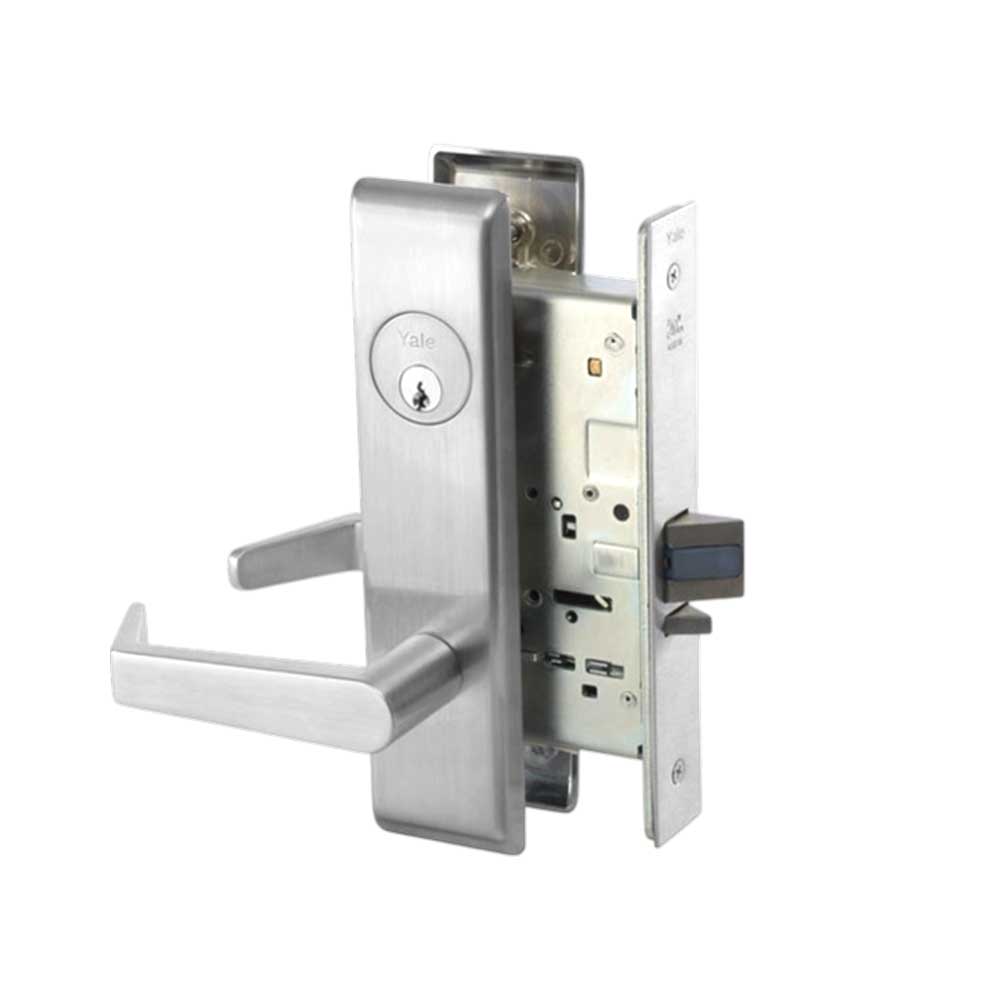

Yale - MOR8805FL - Mortise Storeroom Lock with MOR Trim - Grade 1 - 626 (Satin Chrome)
Secure transactionCouldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 4 p.m. EST will be shipped next business day.Â
Learn more
Yale - MOR8805FL - Mortise Storeroom Lock with MOR Trim - Grade 1 -...
Description
Description
Yale - MOR8805FL - Mortise Storeroom Lock with MOR Trim - Grade 1 - 626 (Satin Chrome)
Yale 8800 Series Mortise Locks installation is easy with quick lever handing, field reversible latchbolt and standard nonhanded strike. The 8800 Series Mortise Lock offers a new measure of security, featuring a reinforced stainless steel deadbolt, heavy-duty, vandal-resistant trim and ANSI/BHMA Grade 1 certification for long life and durability.
Features:
- ANSI/BHMA: Certified ANSI/BHMA A156.13, Series 1000, Operational Grade 1
- UL-cUL: UL/cUL fire rated up to 3 hours
- Windstorm: Certified (refer to local codes)
- Mechanism: Stainless steel
- Backset: 2-3/4"
- Latchbolt: 3/4" stainless steel throw
- Door Thickness: 1-3/4" standard, to 3-1/4" thick doors to order
- Fronts: Bevel front, free-floating to adjust from flat to standard bevel of 1/8" in 2"
- Cylinders: Brass, 6-pin, keyed-random cylinder with two keys furnished standard, 7-pin available to order
- Reversibility: Field reversible handing
- Strikes: 1-1/4" curved lip for 1-3/4" door standard; other lip lengths to special order; all reversible
- Finishes: Available in 17 finishes
- Warranty: 10 year mechanical
Product Specifications:
| Manufacturer | Yale |
| SKU | MOR8805FL 626 |
| UID | YALMOR8805FL626 |
| Grade | Grade 1 |
| Unit of Measure | Each |
| Base Material | Brass or Bronze |
| Design A | MO Lever |
| Design B | CO Rose |
| Limited Warranty | 10 Years |
| Fire Rated | 3 Hours {A} |
Technical Specifications:
| Function | 05-Storeroom or Closet Lock |
| ANSI Function | F07 - Storeroom/Exit |
| Lever/Knob Design | MO - Monroe |
| Rose/Escutcheon Design | R - Rose |
| Cylinder Type | Conventional Cylinder |
| Num Pins | 6 |
| Std. Keyway | Para |
| Num of Keys | 2 |
| Cylinder Length | 1-1/8 In. |
| Door Thickness | 1-3/4" |
| Std. Latch Backset Dim | 2-3/4" |
| Lock Face Size | 8" x 1-1/4" |
| Bolt Projection | 3/4" |
| Std. Strike Number | 2815 |
| Std. Strike Type | ASA |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Product Type | Mortise Lock |
Installation Instructions:
