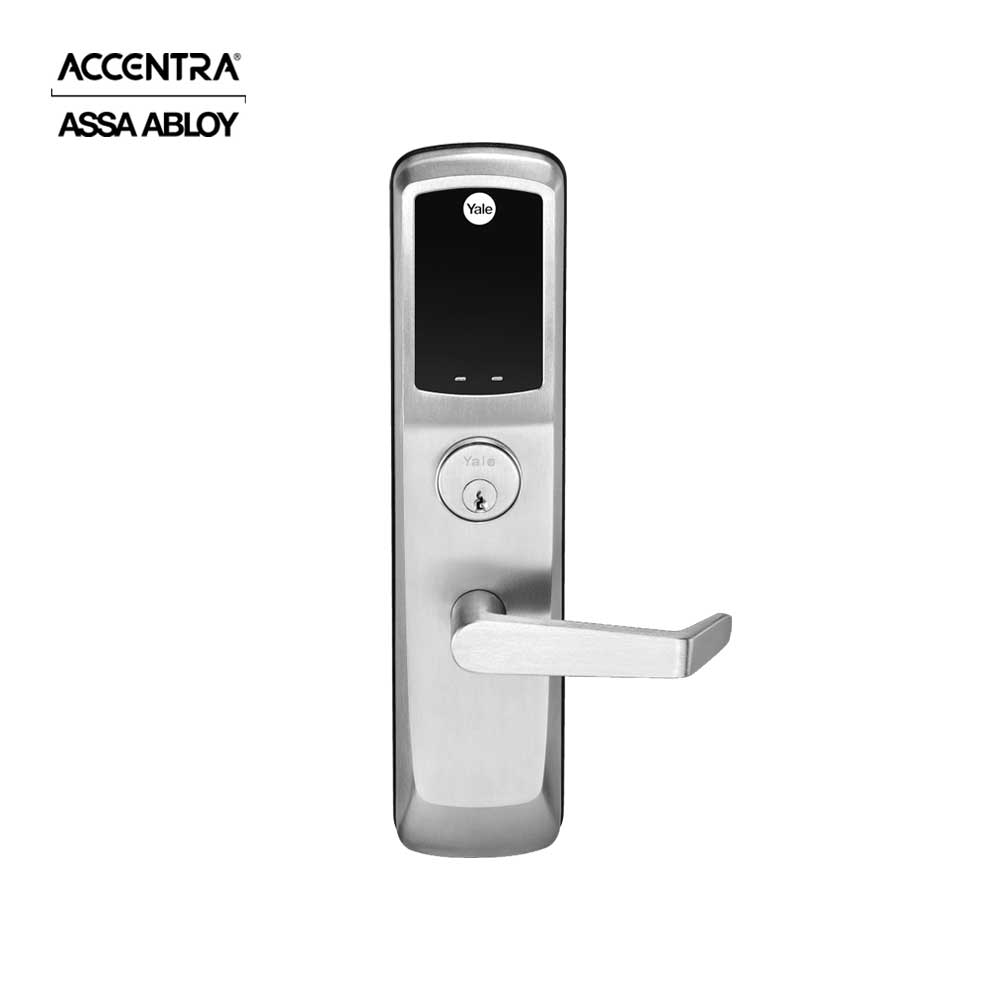

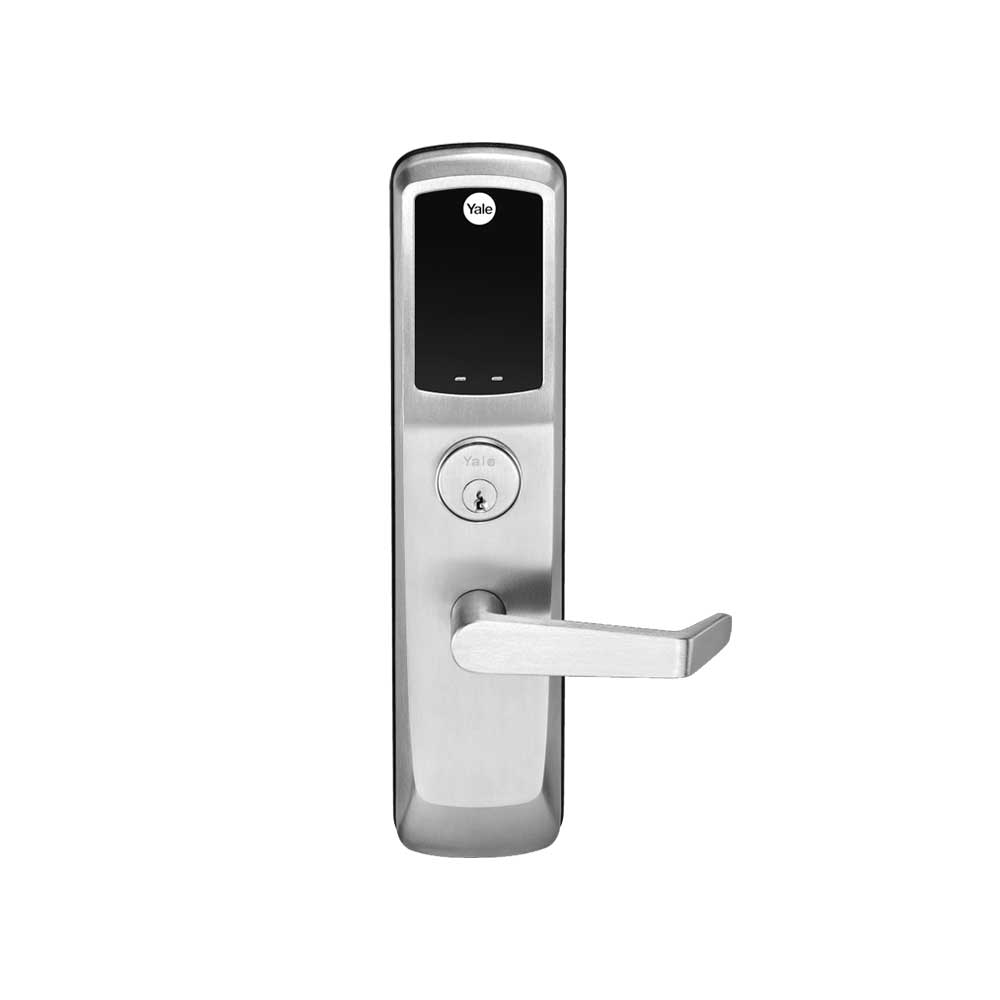

Yale - NexTouch - Commercial Keypad Exit Trim Lock with Augusta Lever and Capacitive Touchscreen Conventional Cylinder - Grade 1 - 626 (Satin Chrome)
Secure transactionCouldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 4 p.m. EST will be shipped next business day.
Learn more
Yale - NexTouch - Commercial Keypad Exit Trim Lock with Augusta Lev...
Description
Description
Yale - NexTouch - Commercial Keypad Exit Trim Lock with Augusta Lever and Capacitive Touchscreen Conventional Cylinder - Grade 1 - 626 (Satin Chrome)
Yale NexTouch Stand-Alone Lock ANSI/BHMA Grade 1 Certified Keypad Lock. The fully modular design of NexTouch allows users to easily upgrade to more advanced security technologies as their requirements grow and change. Features solutions for standalone, multi-family and small business applications.
Ideal for: Management offices, restrooms, staff lounges, access to airport apron, storage closets, new construction or renovation projects of multi-family facilities with individual units and common areas, ;small to medium-sized businesses with new or existing automation systems.
Features:
- Modular technology allows users to upgrade to Data-on-Card or ZigBee/ZWave wireless technologies as system requirements change and grow
- Capacitive touchscreen or pushbutton keypad available, for tactile environments and ADA compliance
- Privacy mode enabled by a button push
- Up to 100 user codes in keypad only operation
- 9V battery power backup prevents lockout even if the batteries fail
Benefits:
- Easy Traffic Control: Engineered to provide a comprehensive, easy-to-use access control solution to protect your facility and personnel
- Modular Technology: Unique and versatile design enables upgrade of the lock’s technology when needed
- Key-free Convenience: Reduces investment and maintenance costs
- Strong and Reliable: ANSI/BHMA Grade 1 certification ensures long life and reliability
Product Specifications:
| Vendor | Assa Abloy |
| Manufacturer | Yale |
| SKU | AU-NTT620-NR 626 |
| UID | YALAUNTT620NR626 |
| Grade | Grade 1 |
| Installation | Commercial |
| Unit of Measure | EACH |
| Application | Capacitive Touchscreen |
| UL Listing Type | UL/cUL, 3 Hours |
| ANSI Number | ANSI/BHMA A156.3, Grade 1 |
| Limited Warranty | 3 Years |
| Fire Rated | Yes |
Technical Specifications:
| Series Name | NexTouch |
| Access Function | Software Programmable |
| Reader Technology | Keypad Only |
| Keypad Type | Capacitive Touchscreen |
| Cylinder Type | Conventional Cylinder |
| Hand | Not Handed |
| Door Thickness | 1-3/4 In. |
| Latch Backset Dimension | 2-3/4 In. |
| Strike Type | 4-7/8 In. x 1-1/4 In. |
| Power | Battery Pack |
| Operating Voltage | 4 AA Batteries |
| Product Type | Rim Exit Trim with Keypad |
Installation Instructions:
