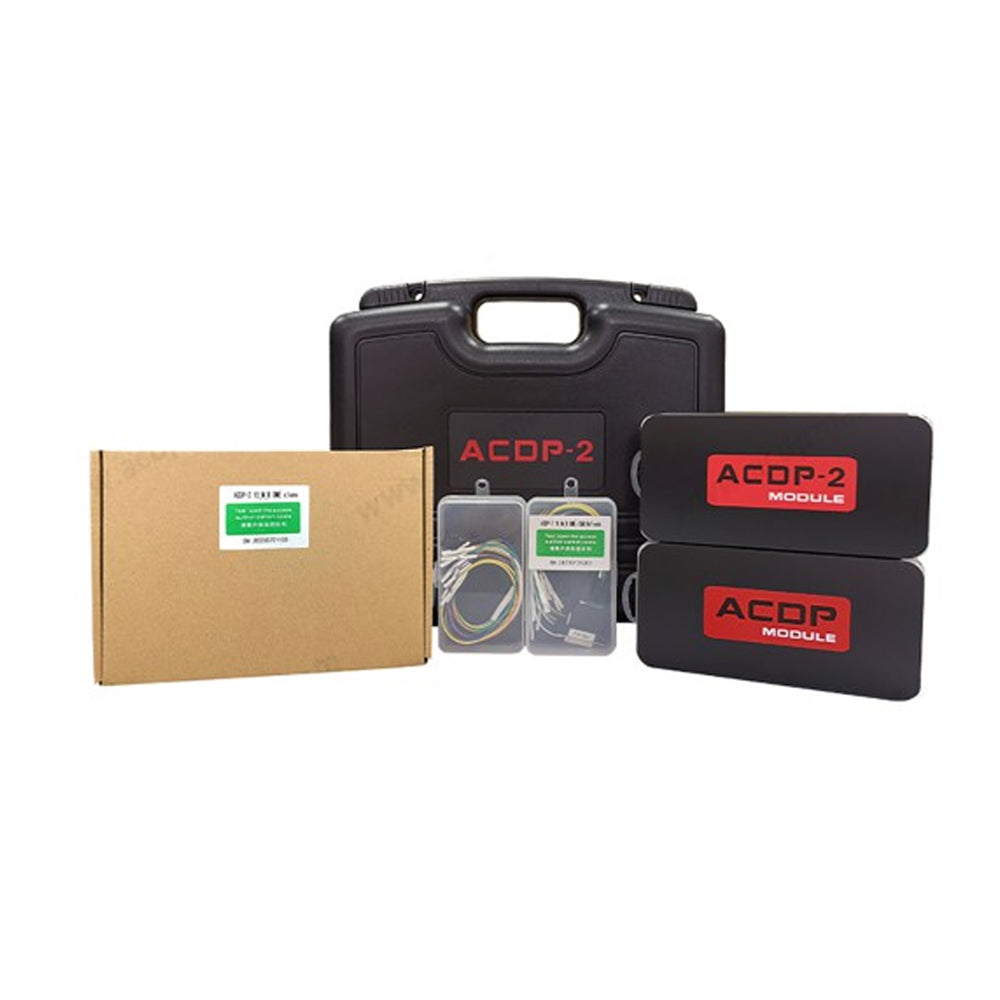

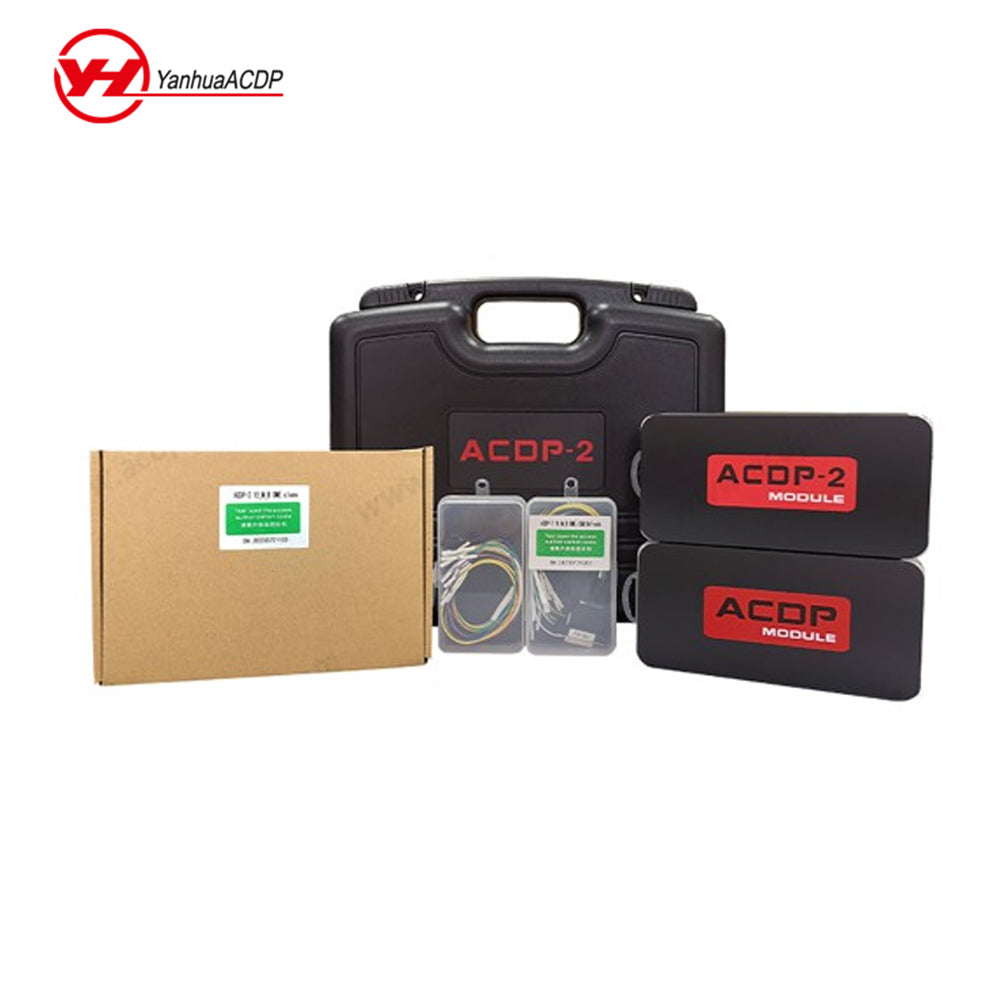

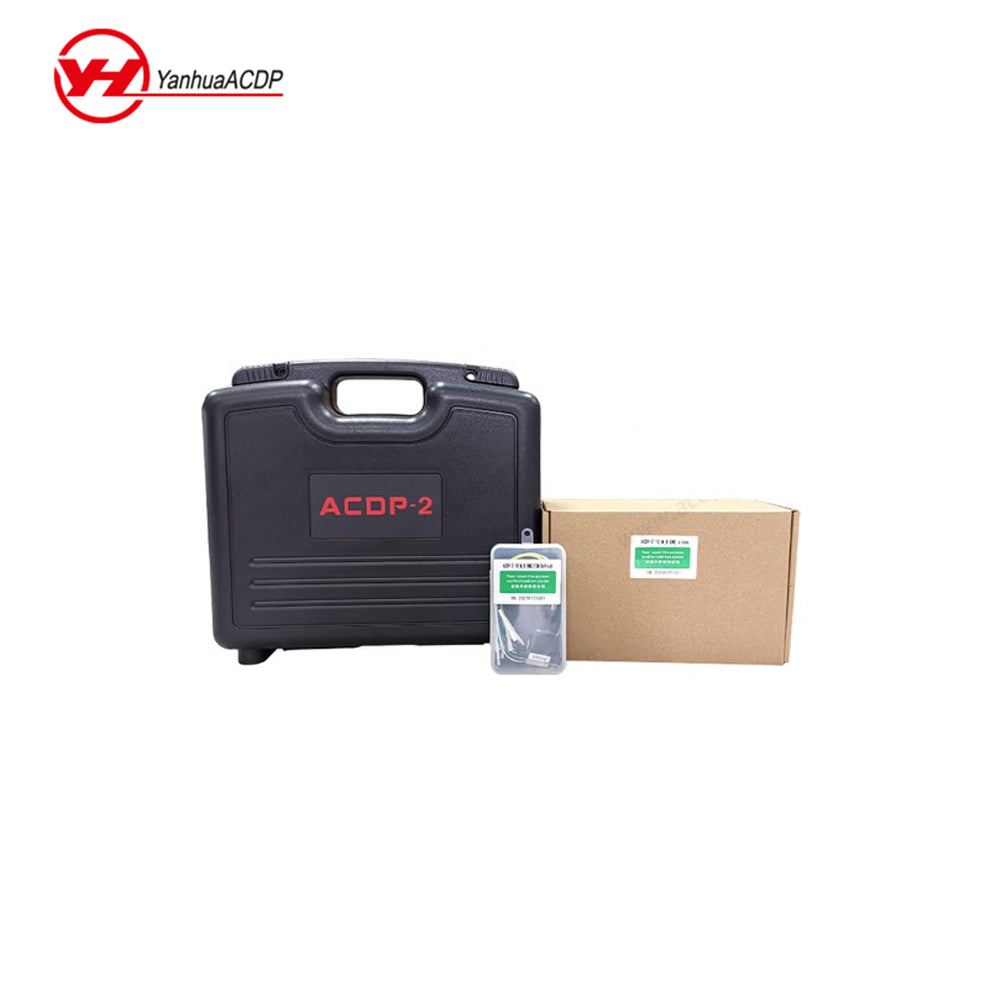

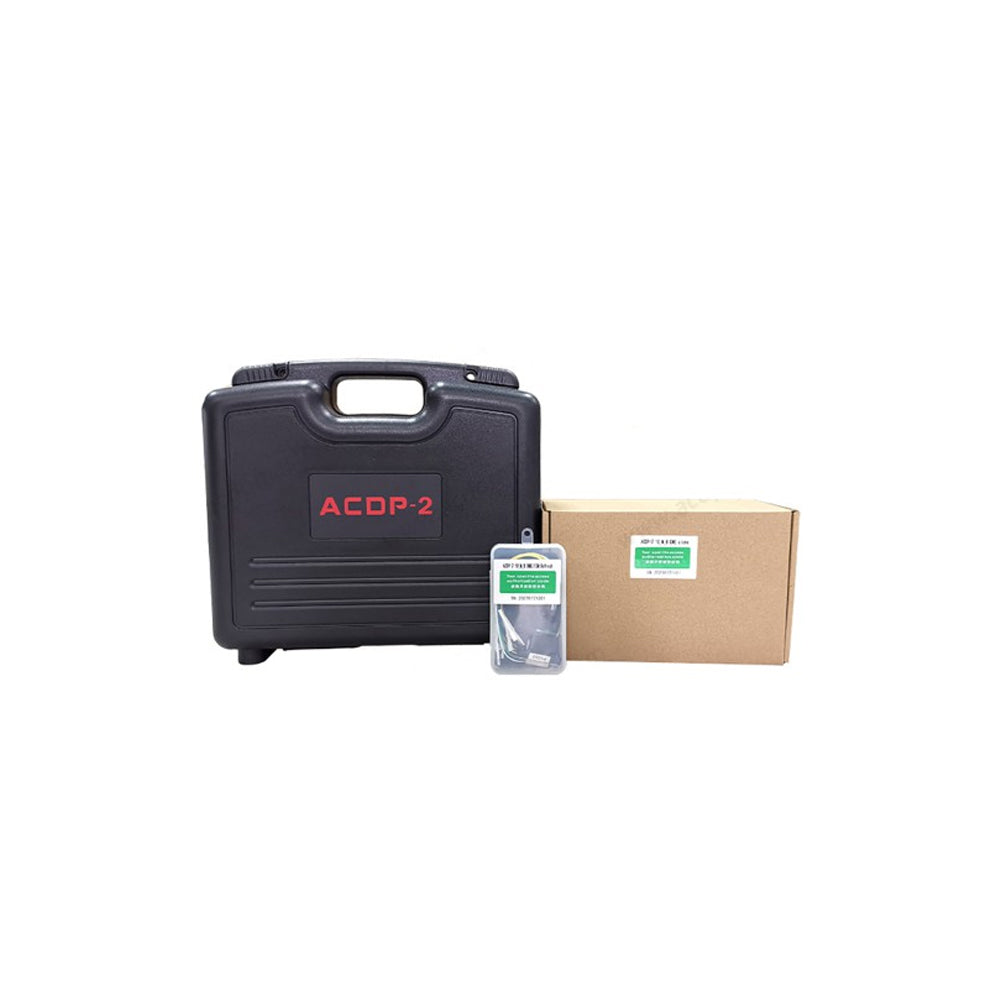

Yanhua ACDP 2 Mercedes Benz Package Including Module 15/16/18/19 and Pean Cable

Yanhua ACDP 2 Mercedes Benz Package Including Module 15/16/18/19 and Pean Cable

This package includes ACDP 2 Master basic version and Module 15/16/18/19. It support Mercedes Benz DME Refresh Clone and Gearbox Refresh Clone

Feature:

• ACDP-2 Basic Module with License A801: Support 93 /24/ 25 / 35/ 95 Series EEPROM in circuit programming (ICP) and on adapter board programming (OBP), and parts of Freescale / NEC MCU in circuit programming (ICP). This module is a necessary basic configuration for other modules.
• ACDP-2 Module15: Mercedes Benz DME Clone Work via Bench Mode with License A100

Function:

• X1: MB-DME-Adapter X1 supports DME clone of Mercedes-Benz 152/157/274/276/278 (MED17.7.3), 272/276(MED17.7.3.1), 276/278(MED17.7.1) etc.
• X2: MB-DME-Adapter X2 supports DME clone of Mercedes-Benz 133/270/274(MED17.7.2) etc.
• X3: MB-DME-Adapter X3 supports DME clone of Mercedes-Benz 260/264(MED17.7.7),etc.
• X4: MB-DME-Adapter X4 supports DME clone of Mercedes-Benz diesel vehicle 642(EDC17CP01), 642/651(EDC17CP46), 626/622/651(EDC17C66), 651/642(EDC17CP57), 651/642(EDC17CP10), etc.
• X5: MB-DME-Adapter X5 supports DME clone of Mercedes-Benz 272/279(ME17.7), etc.
• X6: MB-DME-Adapter X6 supports DME clone of Mercedes-Benz diesel vehicle 642/654(MD1CP001), etc.
• X7: MB-DME-Adapter X7 supports DME clone of Mercedes-Benz 177/178(MED17.7.5), etc.
• X8: MB-DME-Adapter X7 supports DME clone of Mercedes-Benz GLS/GT(MG1CP002), etc.

Advantages:

• No need to open DME shell, no need to drill hole on DME, no need to plug wire.
• The special interface board connection method replaces the traditional plugging wire method to prevent plug wire to opposite direction and wrong place, simple and efficient, plug and play, safe and reliable.

Yanhua Mini ACDP Module16 Benz Gearbox Renew and Refresh with License A101

• Support cloning Mercedes-Benz (VGS-FDCT/ VGS2-FDCT) dual-clutch gearbox.
• Support cloning Mercedes-Benz 722.8 (VGS2-FCVT) gearbox.
• Support Mercedes-Benz 722.9 the second generation (VGS2-NAG2) gearbox refresh.
• Support Mercedes-Benz 722.9 the third generation (VGS3-NAG2) gearbox refresh.

The special interface board connection method replaces the traditional plugging wire method to prevent plug wire to opposite direction and wrong place, simple and efficient, plug and play, safe and reliable.

Yanhua Mini ACDP-2 Module18 Mercedes Benz DME and ISM Refresh with License A102

Functions:

• Support Mercedes-Benz DME Refresh CR3.XX/CR4.XX/CR5/CR6/CR60.XX/SIM271DE2.0/SIM4LKE/SIM271KE2.0/CRD.11/CRD2.XX/ME9.7/MED17.7.X/SIM266 etc.
• Support Mercedes-Benz ISM Refresh

Yanhua Mini ACDP-2 Module19 SH725XX Gearbox Clone with License A000

• Supports all ZF 8HP gearbox clone. Supported car brands: BMW, JLR, VW/Audi, Rolls-Royce, Porsche, Bentley, Aston Martin, Lamborghini, Maserati, Dodge, Jeep, Chrysler, etc.
• Support VW/Audi DQ380/DQ381 ODE gearbox clone.
• Support Mercedes-Benz 9GT (VGS-NAG3) gearbox clone.
• Support BMW 7 speed dual clutch (GETAG 7DCT) gearbox clone.
• Support BMW 7 speed dual clutch (DKG) gearbox clone.

Download:

• Yanhua ACDP 2 Mercedes Benz Package Configuration List
