AUTEL | SKU: AUTEL-MS-ULTRA-KIT3

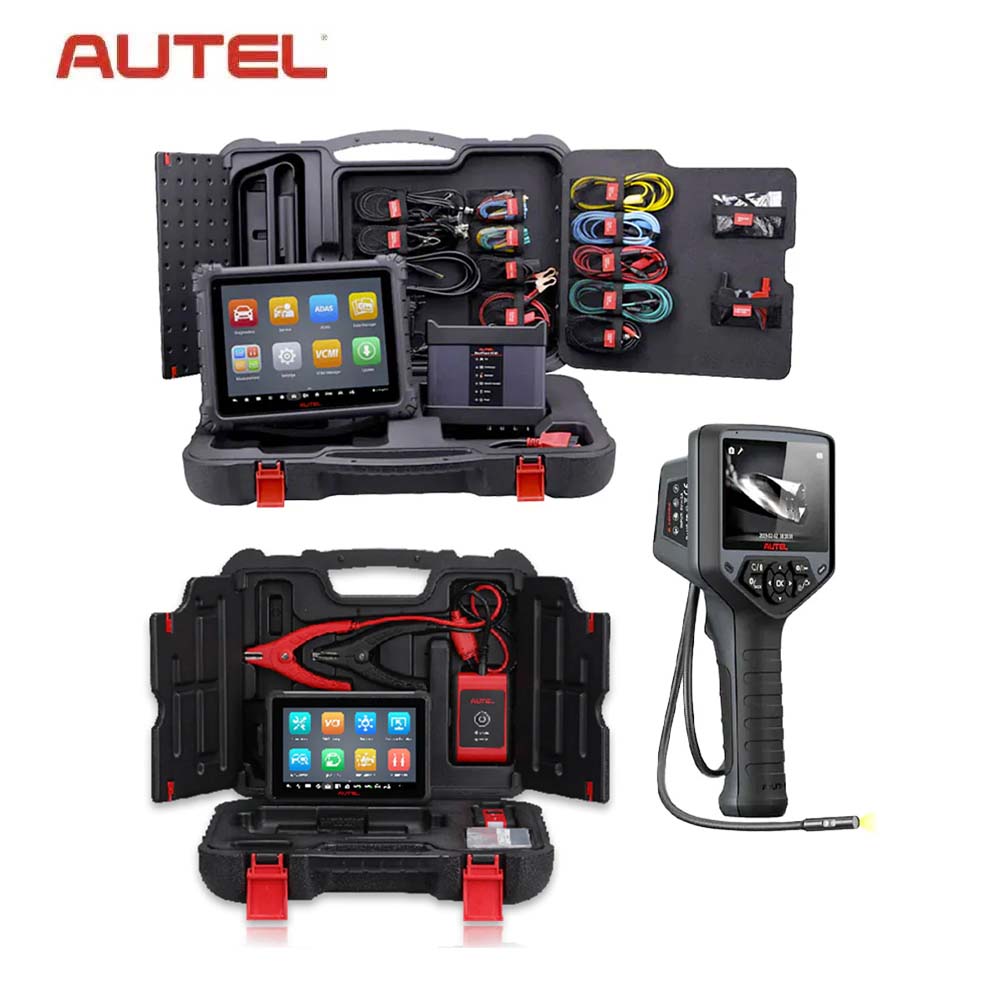

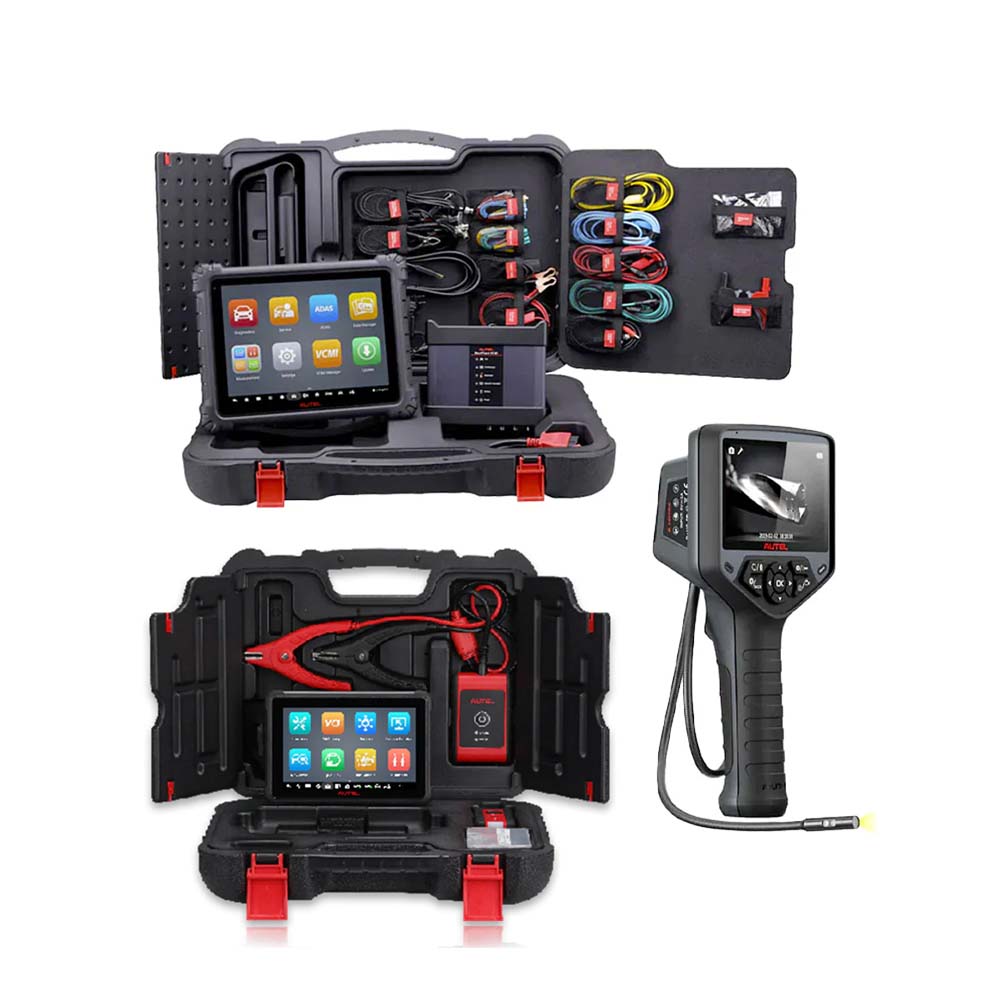

Autel MaxiSys Ultra with MaxiFlash VCMI and MaxiBAS BT609 and MV480 Digital Videoscope

Name: Autel MaxiSys Ultra with MaxiFlash VCMI and MaxiBAS BT609 and MV480 Digital Videoscope
SKU: AUTEL-MS-ULTRA-KIT3
Price: 4499.95 USD
Availability: InStock

$4,499⁹⁵ ~~$5,335⁰⁰~~

Shipping calculated at checkout.

Secure transaction

Found a better price? Call for Price Match!
Shop with confidence knowing you’re getting the best deal.

Delivery and Shipping

All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 5 p.m. EST will be shipped next business day.
Learn more

Return Policy

At Locksmith Keyless, we prioritize your satisfaction and offer a simple return process. Returns are accepted within 30 days of purchase for unused items in original packaging. Certain items, including OEM keys, Lishi tools, and customized orders, are non-returnable. A restocking fee of up to 30% may apply. For a full list of non-returnable items and more details, please refer to our complete return policy.

For damaged, missing, or incorrect items, please contact us within 48 hours of delivery. All returns require an RMA number. Shipping costs for returns are the responsibility of the customer.

View Full Return Policy

Registered or used programmers are
non-returnable and non-exchangeable.

Description

Autel MaxiSys Ultra with MaxiFlash VCMI and MaxiBAS BT609 and MV480 Digital Videoscope

Includes:

Autel - MaxiSys Ultra Automotive Diagnostic Tablet With Advanced MaxiFlash VCMI

The MaxiSys Ultra is Autel’s most ambitious diagnostics tablet designed to maximize technician intelligence. It features a 12.9-inch touchscreen tablet with Android 7.0 OS powered by an Octa-core processor (2.3GHz Quad + 1.7GHz Quad), substantial 256GB built-in memory, all powering the new split-screen multi-application navigation to provide diagnostic guidance and test components to confirm repairs. Combined with the dynamic topology module mapping, enhanced AutoSCAN features and Intelligent Diagnostics options, the Ultra offers the technicians step-by-step repair guidance. The new MaxiFlash VCMI functions as a 4-channel oscilloscope, waveform generator, multimeter, and CAN BUS tester. The convenient docking station featured ensures you always have the power to scan.

Features:

Autel updates provide latest OE level coverage for more than 80 US Domestic, Asian and European vehicles, including supercar
Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding and programming
Automatic system and software updates with real-time push message notifications via internet
Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and errors
One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes

Specifications:

Operating System	Android 10.0
Processor	Samsung Exynos8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53)
Memory	4GB RAM & 256GB On-board Memory
Display	12.9 inch TFT-LCD with 2732 x 2048 resolution & capacitive touch screen
Connectivity	WiFix2 (802.11 a/b/g/n/ac 2x2 MIMO) BT v.2.1 + EDR GPS USB 2.0 (Two USB HOST Type A, one USB mini device) HDMI 2.0 SD Card (Support up to 256GB)
Camera	Rear: 16 Megapixel, Autofocus with Flashlight Front: 5 Megapixel
Sensors	Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output	Microphone Dual Speakers 3-Band 3.5 mm stereo/standard headset jack
Power and Battery	18000mAh 3.8 V lithium-polymer battery Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C
Input Voltage	12V/3A Adapter
Operating Temp.	0 to 50°C (32 to 122°F)
Storage Temperature	-20 to 60°C (-4 to 140°F)
Dimensions (WxHxD)	366.5 mm (14.43") x 280.9 mm (11.06") x 34 mm (1.34")
Weight	2.18kg (4.81 lb.)
Protocols	DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can (GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)

Download:

Autel MaxiVideo Dual-Camera Digital Videoscope Inspection Camera Endoscope MV480

The MaxiVideo MV480, the next generation of digital videoscope, is ideal for inspecting difficult-to-reach areas with its semi-rigid flexible cable and 10-level adjustable LED light. It features dual front and side cameras with 1920×1080 high resolution, a 4.1" 1200×720 full color LCD display, an 8.5mm camera probe, and a built-in 2600mAh battery with up to 4 hours continuous use. This multipurpose videoscope is an economical solution to inspect machinery, facilities, and infrastructure in the safest, quickest and most cost-effective manner possible.

Features:

High resolution images and videos (1920 x 1080)
Dual front and side cameras for wider viewing angle
4.1-inch full color LCD display (1200 x 720)
1-button quick image capture and video recording
70-degree field of view for expanded viewing angle
Adds audio annotation for detailed review
Micro HDMI-output enables streaming to larger monitors
Freeze-frame camera stills or video recording
On-screen horizontal/vertical reverse
Records and plays back images and video clips
7X digital zoom for increased viewing
8GB Micro SD card (included), supports up to 128GB
Mini-USB cable (included) for uploading images and videos
More than 10,000 lux, adjustable 10-level LED illumination
Flashlight for higher visibility in low-light environment
Built-in, rechargeable 2,600 mAh battery for 4 hours of continuous use
1m (39.4") semi-rigid, flexible watertight cable
Includes magnet and hook cable accessories
8.5mm (0.33’’) probe fits most spark plug holes
Compatible with 5.5mm (0.22’’) camera head (not included)

Specifications:

Recommended use: Indoor
Optimal viewing Distance: 0.79" to 2" (2 cm to 5 cm)
Image capture: JPG images (1920 x 1080 pixels)
MP4: videos (1920 x 1080 pixels)
Screen type: display 4.1" TFT LCD
Display resolution: 1200 x 720 pixels
Power supply Built-in rechargeable lithium-ion battery pack (3.7V/2600 mAh)
Tested battery life: Approximately 4 hours of continuous use
Dimensions: 243 x 116 x 122mm (9.6" x 4.6" x 4.8")
Weight : 0.422 kg (0.93lbs)
Recording medium: Micro SD card (8GB Standard/128GB Max)
Image controls: Zoom, low light vision
Lighting: Fully adjustable LED, Flashlight
Cable reach: 1m (39.4")
Imager heads: 8.5mm (0.33"), 2 megapixel (1920 x 1080 pixels)
Waterproof: To a depth of 1m (39.4") (Imager heads and cable only)
Additional ports: TF, Mini USB, Micro HDMI
Operating temp: Main unit: 14°F to 122°F (-10°C to 50°C)
Cable: 14°F to 140°F (-10°C to 60°C)
Storage temp: -4°F to 158°F (-20°C to 70°C)
Operating humidity: 5% to 95% non-condensing

Autel MaxiBAS BT609 Battery Wireless Battery and Diagnostics Tool

The MaxiBAS BT609 wireless battery and diagnostics system applies Adaptive Conductance, an advanced battery analysis method that produces a more accurate examination of the battery’s cold cranking ability and reserve capacity, vital to determining a battery’s true health. The 7-inch Android touchscreen tablet can display a quick health status of the existing battery, register a new battery and perform advanced battery and electrical system diagnostics. The BT609’s features include AutoVIN to immediately identify vehicle and battery information and to display graphic instructions for battery positioning and testing. Features service menu. Read/Clear codes on all available vehicle systems and perform common maintenance services. Print or share customized reports via Wi-Fi.

Description:

Support in-vehicle and out-of-vehicle testing of passenger vehicle batteries.
Test 12-volt batteries: 100 – 3000 CCA
Test 12-volt cranking/charging systems
Test Flooded, AGM, AGM Spiral, EFB and GEL batteries
Compatible with CCA, CA, SAE, EN, IEC, DIN, JIS and MCA
Quick display of battery specifications through battery barcode scan, auto and manual VIN entry
Illustration instruction guides for battery positioning and testing
Read and erase codes and view Live Data of all available systems
Support maintenance services

Specifications:

Item	Description
Operating System	Android 9.0
Memory	2GB RAM & 64GB On-board Memory
Display	7.0 inch TFT-LCD with 1280 x 800 resolution & capacitive touch screen
Connectivity	Wi-Fi (IEEE 802.11 a/b/g/n/ac 1x1)
	BT 5.0+EDR+BLE
	USB 2.0 (1 USB HOST + 1 USB OTG)
	Micro SD Card (Support up to 128GB)
Camera	8 Megapixel
Sensor	Ambient Light Sensor (ALS)
Audio	Microphone
Input/Output	Loudspeaker
Power and Battery	5800 mAh 3.85 V lithium-polymer battery
Power and Battery	Charging via 5 V AC/DC power supply with the temperature between 0°C and 45°C
Input Voltage	5 V / 2 A Adapter
Operating Temp.	0 to 50° C (32 to 122° F)
Storage Temp.	-10 to 60° C (14 to 140° F)
Dimensions (WxHxD)	197 mm (7.75") x 135 mm (5.31") x 14 mm (0.55")
Weight	445 g (0.98 lb.)

Comparison:

Accessories:

Downloads:
