Autel MaxiIM IM608 PRO II Automotive All-In-One Programming and Diagnostic Tool (2-Year Update), G-BOX3, IMKPA, APB112 & OTOFIX Programmable Smart Key Watch (White & Black)
Review: 5 - "A masterpiece of literature" by , written on May 4, 2006
I really enjoyed this book. It captures the essential challenge people face as they try make sense of their lives and grow to adulthood.

Autel MaxiIM IM608 PRO II Automotive All-In-One Programming and Diagnostic Tool (2-Year Update), G-BOX3, IMKPA, APB112 & OTOFIX Programmable Smart Key Watch (White & Black)

  • Product SKU: AUTEL-IM608PROII-OTOWAT-2YEAR-02
$3,995.95
Save $1,310.05 Was $5,306.00
Found a better price? Call for Price Match!

  • Order within

    and choose FedEx 2Day® Shipping

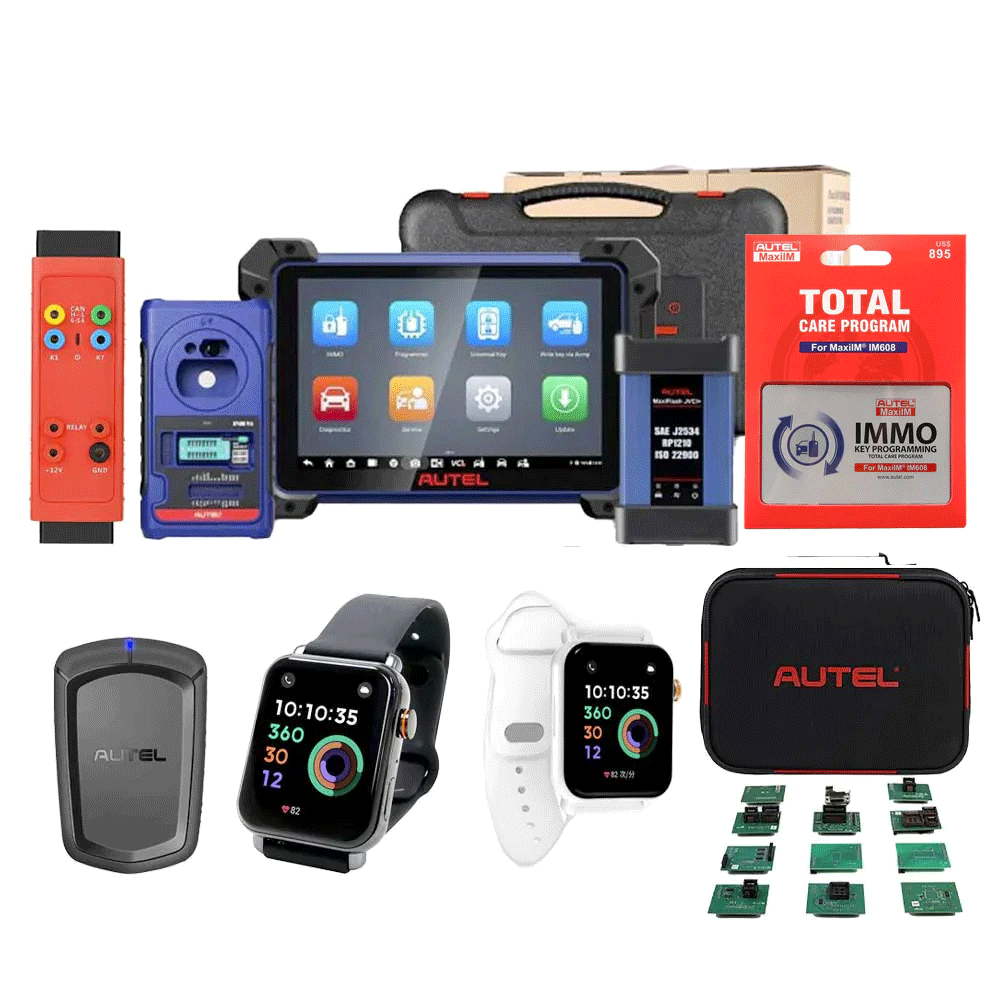

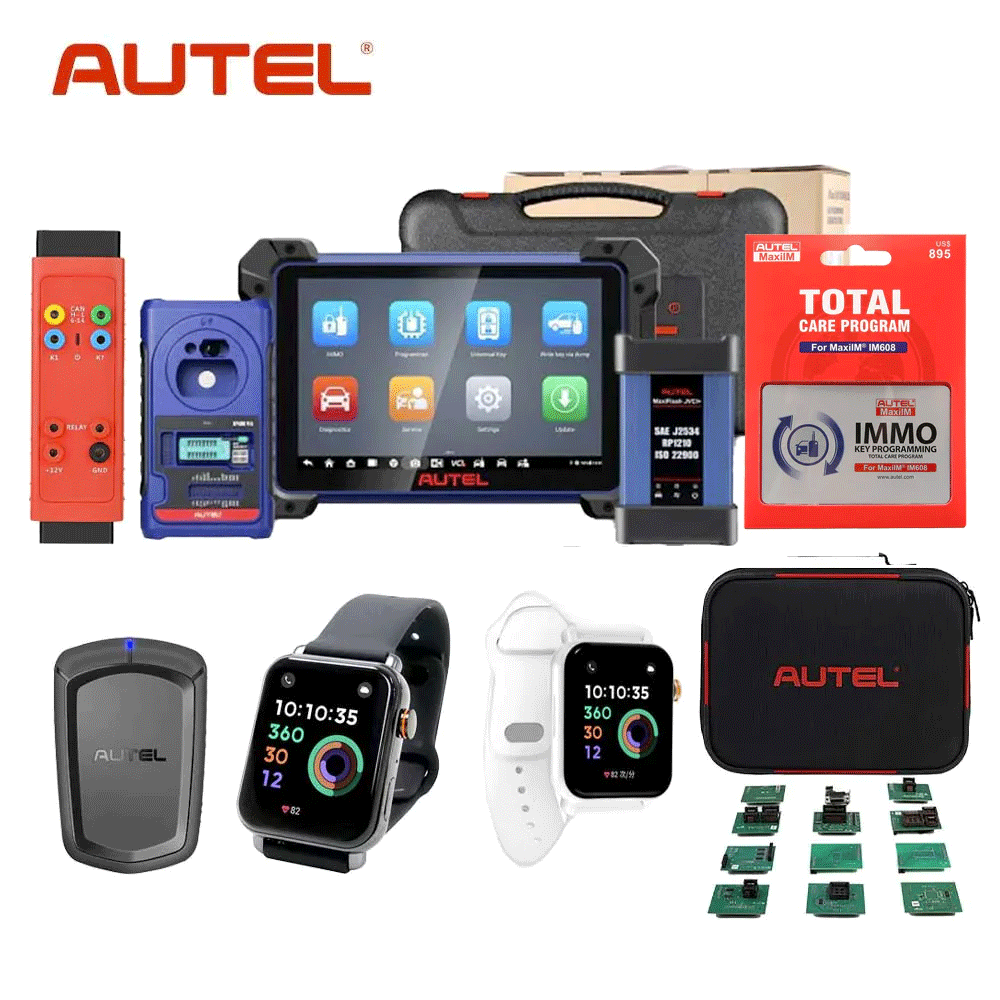

Autel MaxiIM IM608 PRO II Automotive All-In-One Programming and Diagnostic Tool (2-Year Update), G-BOX3, IMKPA, APB112 & OTOFIX Programmable Smart Key Watch (White & Black)

Includes:

Autel MaxiIM IM608 PRO II Automotive All-In-One Key Programming and Diagnostic Tool with Two Years Update (No Area Restriction)

*Wifi is required for key programming and diagnostics*

Description:

Autel IM608 II is the most advanced key programming tool that combines the powerful IMMO and programming functions with OE-level diagnostics and advanced service functions in one tablet. It can read the immobilizer pins and password directly from the vehicle and store this information to use later when learning the newly programmed keys to the vehicle.

Highlights:
  • IM608 II = IM608 PRO II
  • No Area Restrictions, You Can Used It All Around the World without Limitation
  • One Year Free Update Online
  • Upgraded Version of Autel IM608 and IM608 PRO, with the latest powerful hardware configuration
  • Smart Mode and Expert Mode Solution In One Tool to Easy Operation, Works for 85% Cars In the Wordwide, Include BMW, BENZ, VW, AUDI etc
  • Support Multi-Language: Both Diagnose Software and IMMO Software Support Multi-Language. (Default Language is English, Can Be Changed Language to German, Swidish, Italian, Portuguese, French, etc.)
  • Works for 85% Cars In The Wordwide, Include BMW, BENZ, VW, AUDI etc. make your work simple and easier, Best Choice for Locksmith and Workshop
  • Extended to Work with Autel MV108/ MV105 allowing you to examine difficult-to-reach areas normally hidden from sight. It is capable of recording digital still images and videos, which offers you an economical solution to inspect machinery, facilities, and infrastructure safely and quickly
Features:
  • 9. IMMO ECU reset/ adaptation, refresh coding
  • Transpronder read/ write, EEPROM/ MCU read/write
  • Android Operating System for fast boot-up and multitasking
  • Expert Mode for advanced key learning
  • Powerful combination of key programming/ all system diagnostics/ advanced maintenance services
  • Smart Mode for guided and automated key learning
  • Read PIN/ CS (all key lost) , key generation, key learning, remote learning
  • Powerful OE level diagnostics for more than 80 US, Asian and European makes and models
  • Advanced maintenance services including EPB, DPF, SAS, Oil reset, BMS and TPMS sensor ID relearn

Functions:
IMMO Functions:
  • Auto Detect Make/Model/Year/System
  • Read PIN (All Key Lost)
  • Key Learning
  • IMMO ECU Reset/Adaption
  • IMMO ECU Refresh/Coding
  • Remote Learning
  • AUDI Q5/A4/A5 2015-2017 Key Learning
  • VW MQB Key Learning
  • BMW FEM/BDC Key Learning and Adaption
  • BMW CAS4 Key Learning and Adaption
  • Mercedes Key Learning
  • 2015-2018 Land Rover & Jaguar write key via dump
  • Volvo Smart Key Learning/knob-style smart key

In comparison with its predecessor IM608/ IM508, the Advanced IMMO & Key Programming scan tool IM608 Pro is upgraded with the following new abilities:

  • EEPROM - added 60 chip types, now supports 445 types
  • MCU– added 32 chip types, now supports 2067 types
  • Odometer – added 162 chip types, support 171 types
  • Engine ECU – added 1 chip type, now supports 41 chip types
  • Immobilizer ECU – added 3 chip types, now supports 181 chip types, Key unlock – supports 11 key types
  • BMW EWS3 key learning , Mercedes-Benz W209 EIZ read/write/erase
  • OEM Mercedes-Benz NEC key learning

The XP400 Pro has been extended IMMO functionalities on BMW, BENZ and Audi etc., designed to work with IM508, IM608, IM608 Pro to perform various IMMO Key programming, key chip programming functions, MCU writing and reading, etc. Auto Detect Make, Model, Year, System. Read PIN (All Key Lost), Key Learning, IMMO ECU Reset/Adaption, IMMO ECU Refresh/Coding, Remote Learning

  • For AU-DI Q5/ A4/A5 2015-2017 Key Learning
  • For VW MQB Key Learning
  • For BM-W FEM/ BDC Key Learning and Adaption
  • For BM-W CAS4 Key Learning and Adaption
  • For Mercedes Key Learning
  • For 2015-2018 Land Ro-ver & Jag-uar write key via dump
  • For Volvo Smart Key Learning/ knob-style smart key, etc.
XP400Pro Adds Support for Following Chips:
  • EEPROM--AMD--AM29FXXX series chip
  • EEPROM-- FUJITSU-- MB29FXXX series chip
  • EEPROM-- ST-- M29FXXX series chip
  • Engine control module-- ST-- M29FXXX series chip
  • IMMO-- BENZ-- ESL_W209_W906 (Motorola) read/write/erase function
  • IMMO-- BMW--EWS3 module read/write function
  • REMOTE_RENEW(renew key)-- NEC-- V51 and V5 chip read/write/erase

XP400 Pro Adds Support for Following Adaptor Board:
  • APB113 PCF79XXadaptor board
  • APB114 EWS3 adaptor board
  • APB115 NEC Adapter board
  • APB118 NEC ELV adaptor board
  • APB119 TB28FXXXadaptor board
  • APB120 TMS370adaptor board
  • APB121 AM29FXXX Adapter board
  • APB122 AM29FXXX adaptor board1
  • APB123 AM29FXXX adaptor board2
  • APB126 M35080/D80 adaptor board
  • APB127 MC68HC0(7)05BXX adaptor board
  • APB128 MC68HC05X32 adaptor board
OE-Level Diagnostics:

Simply accessing the diagnostic modes via AutoVin or Control Unit, and you' re able to perform diagnosis over all the systems on the vehicle' s ECU in order to locate fault systems and retrieve DTCs.

  • ECU Coding – Match Component and Flash Hidden Functions. IM608Pro can do ECU Coding the lower-grade IM508 can’t do. It enables you to reprogram adaptive data for vehicle control modules after repairs or replacements of vehicle parts just like MS908. It also has personalized settings. Using this setting feature, you can disable annoying functions and unlock the hidden functions of the scanner by setting parameters to control the sound, lights, windows, doors, etc. on the car.
  • Active Test – Diagnose the Real Cause of the Troubles. This function allows the diagnostic tablet to command an actuator, such as a relay or solenoid, to see whether it’s actually performing its task. It can be used to see if all the warning lights are still functioning, if all solenoids are still working, if all the car functions are still up to par (e.g. interval of windshield wipers), etc. Use the bi-directional control to identify and trace the exact faulty part on your vehicle, and send commands to do some other advanced maintenance and service functions.

Advanced Service Functions:
  • Oil Reset: Reset service mileage & service intervals after engine oil is changed.
  • EPB Service: Resetting brakes after disc or pad replacement and etc.
  • SAS Calibration: Clear SAS fault memory and reset the current steering wheel position as the straight-ahead position in the steering angle sensor EEPROM.
  • DPF Regeneration: Performs DPF Regeneration to clear the blockage through continuous burning of the particulate matter captured in the DPF filter and turn off DPF light.
  • ABS/SRS Services: Perform various active/functional tests to check ABS and SRS (Airbag) systems like ABS Brake Bleeding, Pump Motor Test and checking Module Information and etc.
  • ABS Bleeding: Autel scanner allows you to check the operating conditions of the Antilock Braking System, such as Automated Bleeding, ABS Brake Bleeding enables technicians and home mechanics to bleed air out of the ABS module and saves you time and money.

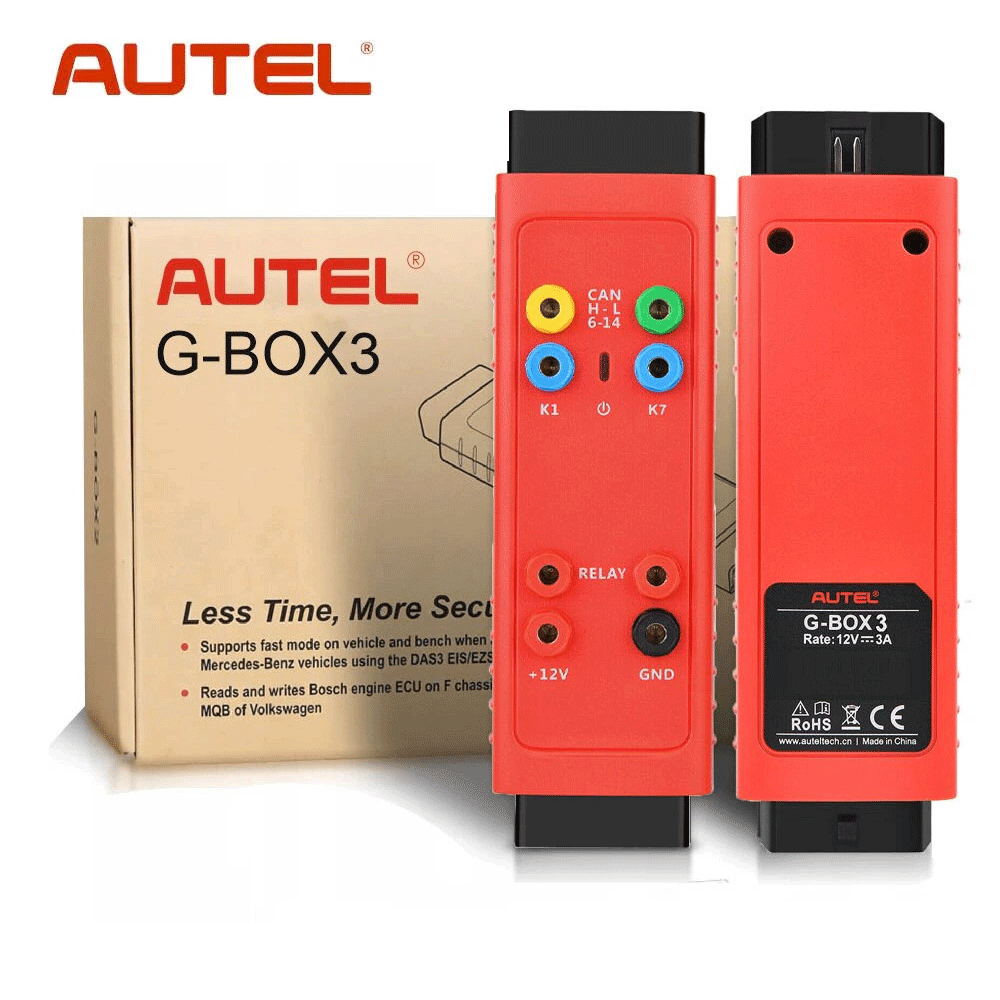

Autel G-BOX3 Key Programming Adapter for Mercedes and BMW Vehicle All Key Lost Work with Autel MaxiIM IM608 PRO II/ IM608 PRO/ IM608 II/ IM508/ IM508S

Description:

The Autel G-Box3 adapter, compatible with the MaxiM IM608Pro, IM608, and IM508 (with an additional purchase of XP400), offers faster and more secure reading and writing of Bosch EDC17, MEx17, MD1, and MG1 CUs and supports on-vehicle and on-bench Fast Mode in Mercedes-Benz All Keys Lost scenario.

What's New in Autel G-box3:
  • FASTER, MORE SECURE
  • Supports on-vehicle and on-bench Fast Mode in an All Keys Lost scenario for Mercedes-Benz vehicles using the DA S3 EIS/EZS.
  • Bosch engine ECU read and write on BMW F-chassis, PSA group and Volkswagen MQB vehicles
G-BOX 3 FEATURES:
  • Faster password calculation for Mercedes-Benz All Key Lost scenario
  • 8x faster password calculation for Mercedes-Benz W172, W204 and W207 ElS types
  • 4X faster password calculation for Mercedes-Benz W209 and W211 El S types
  • BMW ME/DDE ISN reading for 20 types of ECUs, including EDC17, MEVD17, MSV90, and MSD87
  • Volkswagen CM IMMO data reading and data synchronization for 18 types, including MQB EDC17 and MED17 ECUs
  • Bosch engine ECU read and write on Volkswagen, BMW, and PSA group vehicles.

Functions:
  • COMPATIBLE WITH THE MAXIM IM608, IM6O8PRO AND IM508 (WITH THE PURCHASE OF THE XP400).
  • Supports on-vehicle and on-bench Fast Mode in an All Keys Lost scenario for Mercedes-Benz vehicles using the DAS3 EIS/EZS
  • Bosch engine ECU read and write on BMW F-chassis and Volkswagen MQB vehicles
Gbox 2 vs Gbox3:
  • Gbox2 makes Mercedes all keys lost faster, Gbox3 makes it 4x/8x faster
  • Gbox3 offers faster and more secure reading and writing of Bosch EDC17, MEx17, MD1, and MG1 ECUs and supports on vehicle.
Package List:
  • 1pc x Autel G-box3

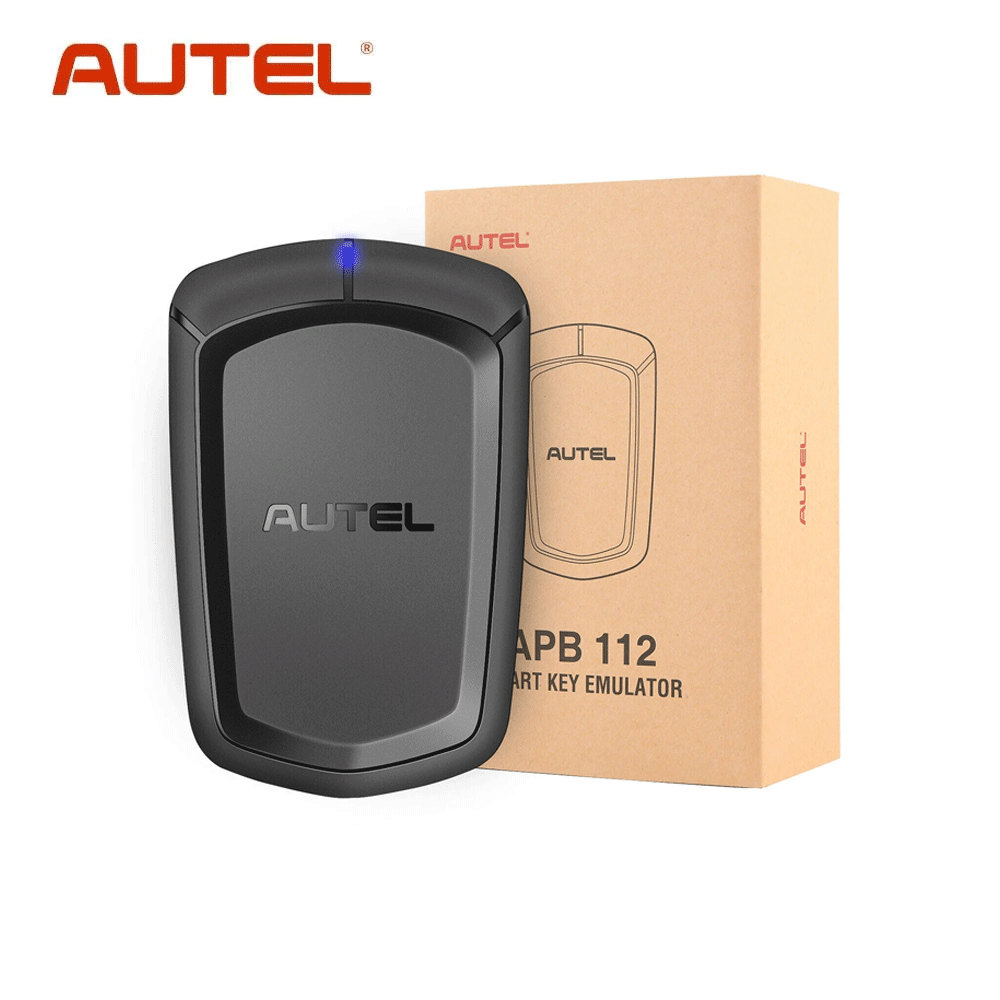

Autel APB112 Smart Key Simulator Works for Autel MaxiIM IM608/ IM508

Characteristics
  • Smart key simulator.
  • Compatible with IM608, IM508, and MX808IM.
  • Compact but would need to be used with the XP400 .
  • Cannot be used with the XP200.
  • 46, 4D data collection.
  • 46 smart key password calculation.
  • 46 chip simulation.
  • Toyota 4D (94/D4, 98) smart key simulation.
  • Toyota H (88/A8, A9, 39) smart key simulation.
  • Collects data from the ignition coil.
  • Identify ignition coil troubles.
  • Decode vehicle key chip data.
  • Simulate vehicle key chip (ex - 4D chip).
  • Must be used with an Autel diagnostic tool.
  • Toyota/Lexus smart key all key lost.
  • Chip decoding (Hyundai 46).
  • Includes: APB112 Smart Key Simulator, USB Cable, Quick Reference Guide.

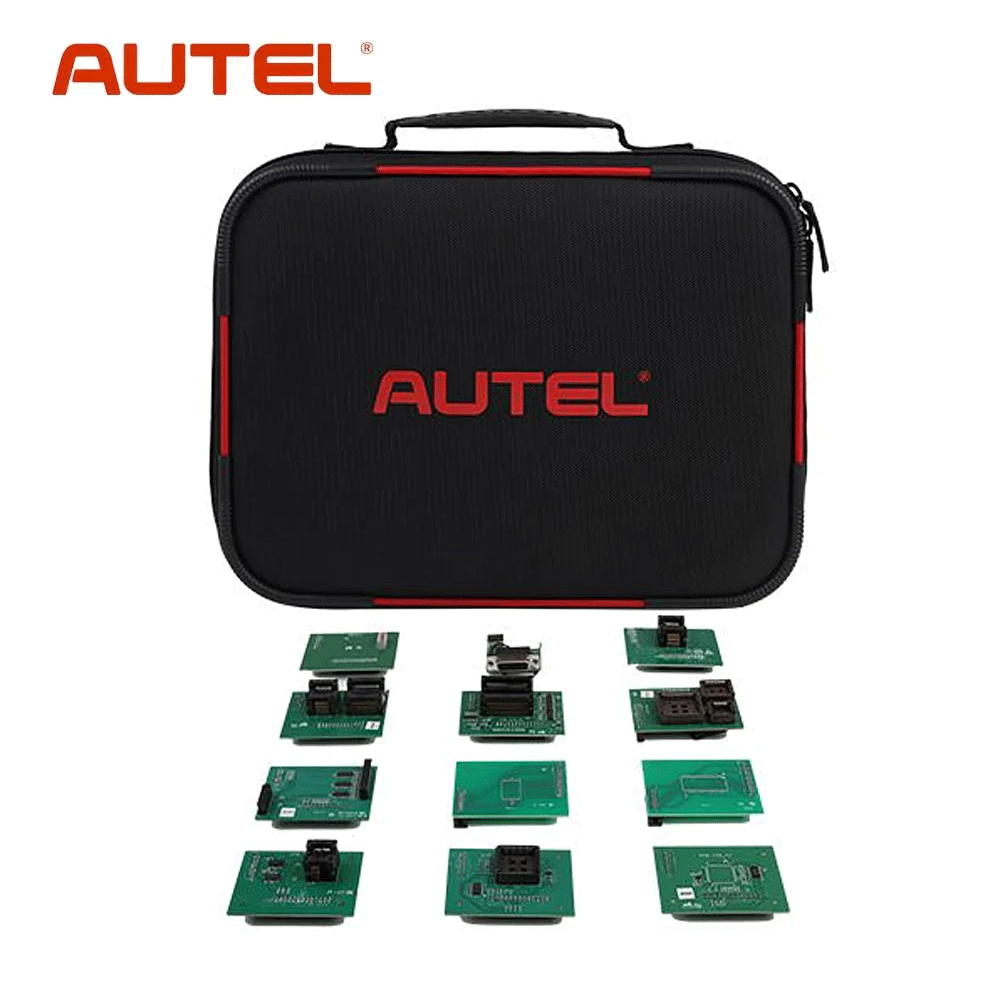

Autel IMKPA Expanded Key Programming Accessories

The IMKPA Accessories Kit works with the XP400Pro and supports the following functions:

  • Currently supports over 10 key unlock types
  • BMW EWS3 key learning
  • Benz NEC key learning
  • Benz ESL_W209 read/write/erase
  • Compatible with IM508 and IM608 (XP400Pro required)
  • Includes 1-Year Warranty
Includes:
  • APB113
  • APB114
  • APB115
  • APB118
  • APB119
  • APB120
  • APB121
  • APB122
  • APB123
  • APB126
  • APB127
  • APB128
  • Storage Case.

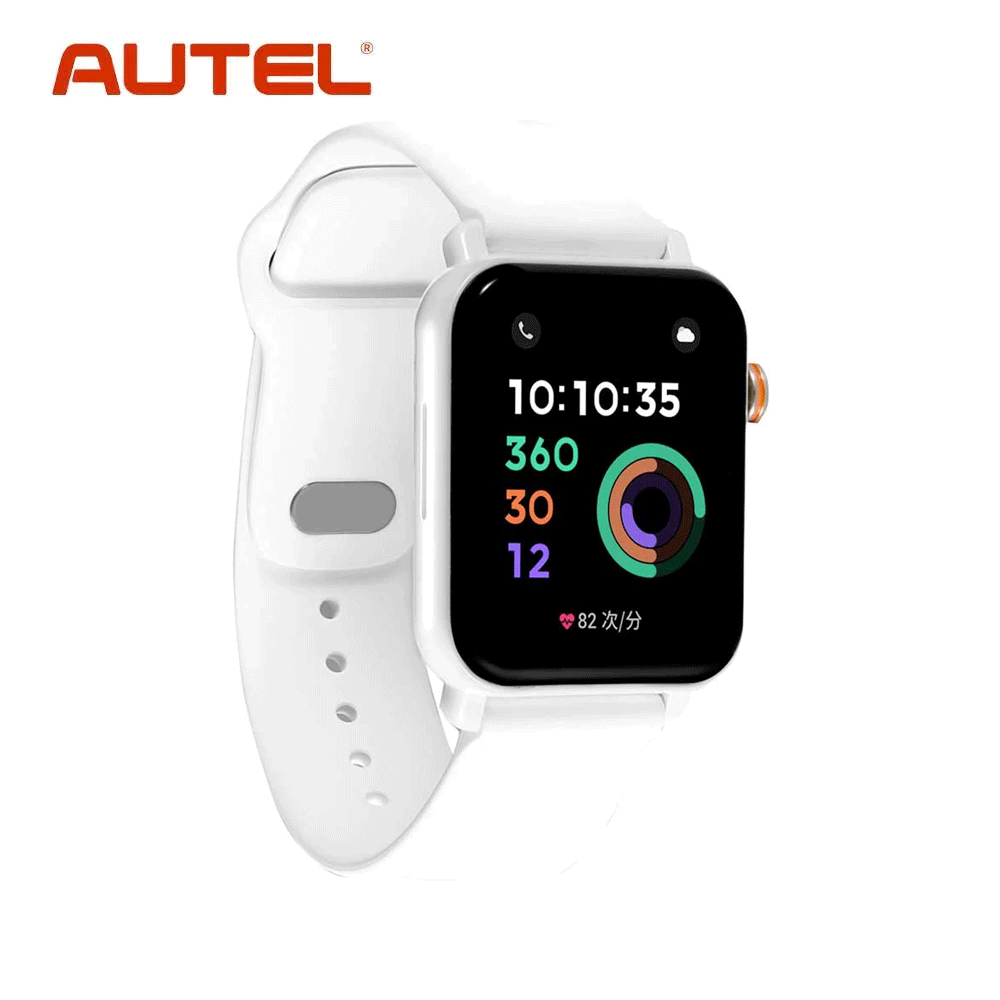

Autel OTOFIX Programmable Smart Key Watch Bluetooth (White)

The OTOFIX Smart Watch combines the functions of a vehicle Smart Key with those of a Smart Watch into one indispensable personal digital device. 45 mm high-definition touchscreen, white case, and band. The Smart Watch performs all the functions of a Smart Key—Lock and Unlock doors and Remote Start—and all the functions you expect from a quality Smart Watch, including call and text notifications (when paired with iOS or Android phone), exercise apps, and health monitoring. Voice Control: Tell Watch to Remotely Start Car, Lock, Unlock Doors and Trunk. (Cannot perform vehicle functions not supported by original Smart Key.) Features more than 12 exercise and sports apps including running, walking, hiking, yoga, cycling and multiple health monitoring and reminder apps including sleep, heart rate, pulse oxygen, stand, and breathe. Free Autel Link phone app tracks health and exercise history. Smart Key capabilities are compatible with most vehicles equipped with Smart Keys or FOBs. Requires Autel MaxiIM KM100 (not included) to program Smart Watch to the vehicle and use smart key functions. Covered by one-year limited warranty and free technical support

Description:
  • Wearable smart key that does everything your vehicle’s smart key does
  • Performs smart key functions including Lock, Unlock, and Remote Start when programmed to vehicle
  • Make and receive calls and texts when paired with a phone (iOS and Android)
  • More than 12 exercise and sports apps inc. running, walking, hiking, yoga, cycling
  • Health monitoring and reminder apps inc. sleep, heart rate, pulse oxygen, stand and breathe
  • 45 mm high-definition touchscreen, white case, and band
  • Voice Control: Tell Watch to Remotely Start Car, Lock, Unlock Doors and Trunk
  • Requires Autel MaxiIM KM100 (not included) to program Smart Watch to the vehicle and use smart key functions
  • Free Autel Link app tracks health and exercise history
  • One-year limited warranty

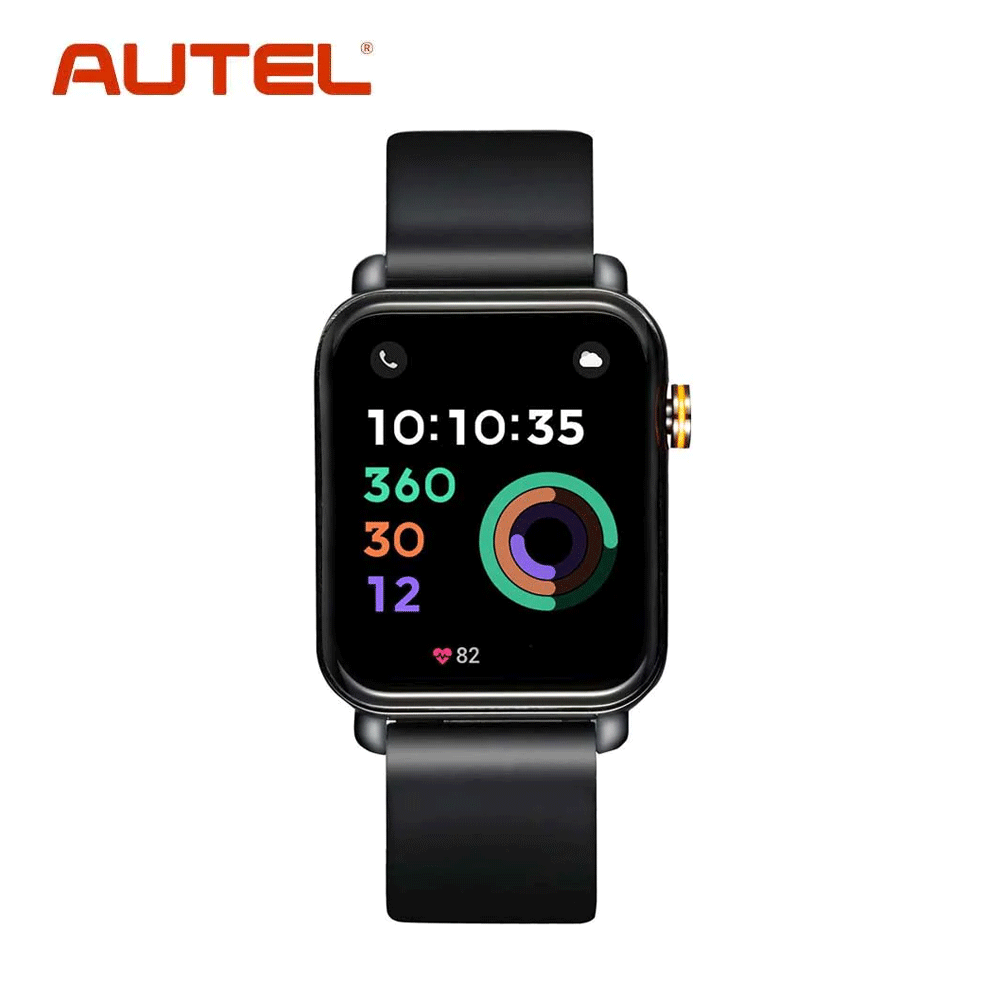

Autel OTOFIX Programmable Smart Key Watch Bluetooth (Black)

The OTOFIX Smart Watch combines the functions of a vehicle Smart Key with those of a Smart Watch into one indispensable personal digital device. 45 mm high-definition touchscreen, white case, and band. The Smart Watch performs all the functions of a Smart Key—Lock and Unlock doors and Remote Start—and all the functions you expect from a quality Smart Watch, including call and text notifications (when paired with iOS or Android phone), exercise apps, and health monitoring. Voice Control: Tell Watch to Remotely Start Car, Lock, Unlock Doors and Trunk. (Cannot perform vehicle functions not supported by original Smart Key.) Features more than 12 exercise and sports apps including running, walking, hiking, yoga, cycling and multiple health monitoring and reminder apps including sleep, heart rate, pulse oxygen, stand, and breathe. Free Autel Link phone app tracks health and exercise history. Smart Key capabilities are compatible with most vehicles equipped with Smart Keys or FOBs. Requires Autel MaxiIM KM100 (not included) to program Smart Watch to the vehicle and use smart key functions. Covered by one-year limited warranty and free technical support

Description
  • Wearable smart key that does everything your vehicle’s smart key does
  • Performs smart key functions including Lock, Unlock, and Remote Start when programmed to vehicle
  • Make and receive calls and texts when paired with a phone (iOS and Android)
  • More than 12 exercise and sports apps inc. running, walking, hiking, yoga, cycling
  • Health monitoring and reminder apps inc. sleep, heart rate, pulse oxygen, stand and breathe
  • 45 mm high-definition touchscreen, white case, and band
  • Voice Control: Tell Watch to Remotely Start Car, Lock, Unlock Doors and Trunk
  • Requires Autel MaxiIM KM100 (not included) to program Smart Watch to the vehicle and use smart key functions
  • Free Autel Link app tracks health and exercise history
  • One-year limited warranty
